Thread: Cure for sagging Disco 1 doors.

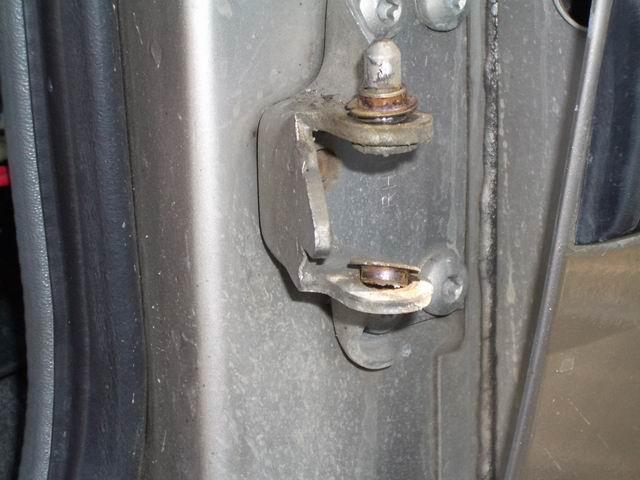

Recently I wanted to fix the slightly sagging drivers door on my MA series Disco. Apparantly LR uses the same hinge up until the start of Disco 2, when it changes to a 1 piece unit. ( I can only presume early Disco 1 - JA / KA / LA have the same as me) This is a two part hinge that dissassembles like so




The other part of the hinge mirrors this bit, and the two swing on flanged bushings , those copper bits you see that I've popped out of their holes for clarity.

LR don't supply replacement bushings, only the hinges, and a set costs about $94. Having a bit of time, I did a little search after P38a rover suggested a bearing company. CBC wanted $30 ea, imported from OS, and were unusually UN-helpfull. A little bit of google and I found SKF make a flanged metal bushing that fits.

Go to.
http://www.skf.com/portal/skf/home/p...newlink=3_4_81

... and select product table. The one we're talking about is the 8mm ID, 10mmOD, 15mm flange, 1mm flange depth and either 5.5 or 9.5mm sleeve length.

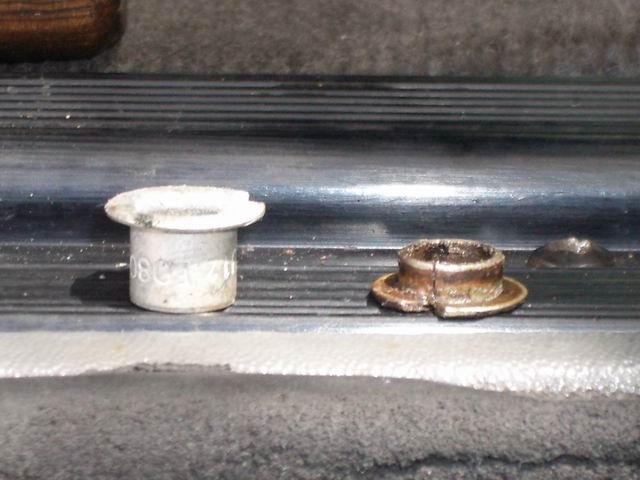

I bought 4 of these on the left, $5.40 each. (overnight from Melb) (PCMF 081009.5E)




I bought the long sleeve version, so I had to trim two of them similar to the original on the right so the retaining clips engage. The other two you can leave as is. Easy to trim with a dremel type engraver/hobby tool. The shorter version would still need to lose about 1.5mm or so, but you could file it down easily.

And, using somthing like a drift, they tap into the hinges easy. Watch the surface of the flange, as it is coated with teflon.

They work a charm. My door no longer sags and opens and closes great - The door lock no longer jams when I try to open it ( I imagine that's how one breaks lock springs)

Ring SKF in your state, quote the designation number from the product table, and away you go.
