Thread: D110 - HD Front Springs

  1. 27th August 2007, 09:05 PM #1
    LRHybrid100's Avatar
    LRHybrid100
    LRHybrid100 is offline YarnMaster Gold Subscriber
    Join Date
    May 2002
    Location
    Sydney, Australia
    Posts
    3,424
    Total Downloaded
    0

    D110 - HD Front Springs

    G'day Guys,

    Well my MY02 D110 had the usual front end droop - like a IFS Tojo!!! I dont want to go extreme with this car as its my tourer, so took the advice of D110V8 / Clarkie etc and replaced them with a genuine D110 HD spring.

    LR Part numbers are NRC9448 & NRC9449 - these are a HD for D110s or standard for D130s

    NRC9448 is 15.31" and NRC9448 is 14.80" according to the records and both have a spring rate of 225lbs - with the slightly longer spring being the drivers side.

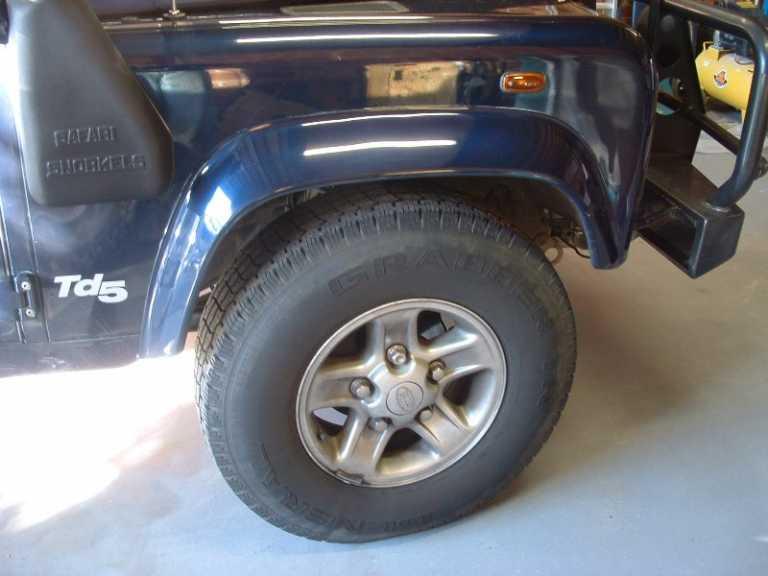

    Here we are before:

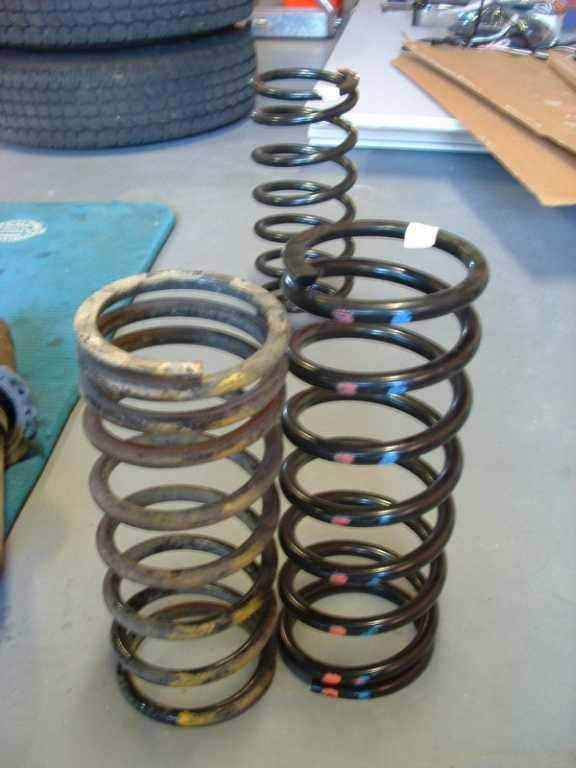

    During:

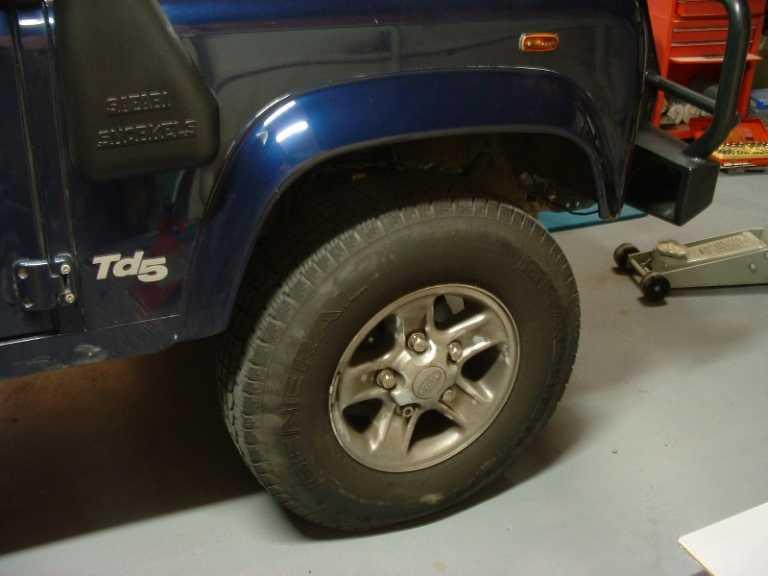

    After:



    LRH
    Disco 4 SDV6 Auto
    Disco 4 SDV8 Dual Cab Project
    Disco 2 M57 Extra Cab Project
    Foton Tunland Cummins ISF
    Disco 1 3 door 4.6 V8 Auto
    RRC V8 Auto "Classic" Softdash
    RRC 300 TDI Auto
    Disco 1 TD5 Auto Buggy
    Disco 1 300 Tdi Auto Ute
    SAME Explorer 70HP 4x4 Tractor plus Nell Loader
    Subaru GDA WRX
    Triumph Bonneville SE
    Yamaha TTR250




    Reply With Quote Reply With Quote
  2. 27th August 2007, 09:10 PM #2
    LRHybrid100's Avatar
    LRHybrid100
    LRHybrid100 is offline YarnMaster Gold Subscriber
    Join Date
    May 2002
    Location
    Sydney, Australia
    Posts
    3,424
    Total Downloaded
    0

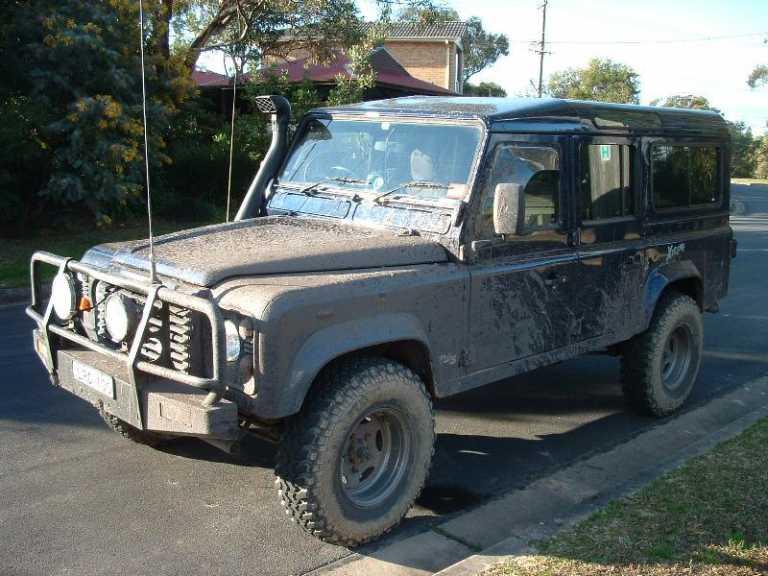

    and I just had to put the bigger tyres on and get dirty:



    LRH
    Disco 4 SDV6 Auto
    Disco 4 SDV8 Dual Cab Project
    Disco 2 M57 Extra Cab Project
    Foton Tunland Cummins ISF
    Disco 1 3 door 4.6 V8 Auto
    RRC V8 Auto "Classic" Softdash
    RRC 300 TDI Auto
    Disco 1 TD5 Auto Buggy
    Disco 1 300 Tdi Auto Ute
    SAME Explorer 70HP 4x4 Tractor plus Nell Loader
    Subaru GDA WRX
    Triumph Bonneville SE
    Yamaha TTR250




    Reply With Quote Reply With Quote
  3. 27th August 2007, 09:11 PM #3
    tombraider Guest
    Cost?
    Reply With Quote Reply With Quote
  4. 27th August 2007, 09:12 PM #4
    LRHybrid100's Avatar
    LRHybrid100
    LRHybrid100 is offline YarnMaster Gold Subscriber
    Join Date
    May 2002
    Location
    Sydney, Australia
    Posts
    3,424
    Total Downloaded
    0
    both springs cost me $130 from my local LR parts supplier.

    HTH

    LRH
    Disco 4 SDV6 Auto
    Disco 4 SDV8 Dual Cab Project
    Disco 2 M57 Extra Cab Project
    Foton Tunland Cummins ISF
    Disco 1 3 door 4.6 V8 Auto
    RRC V8 Auto "Classic" Softdash
    RRC 300 TDI Auto
    Disco 1 TD5 Auto Buggy
    Disco 1 300 Tdi Auto Ute
    SAME Explorer 70HP 4x4 Tractor plus Nell Loader
    Subaru GDA WRX
    Triumph Bonneville SE
    Yamaha TTR250




    Reply With Quote Reply With Quote
  5. 27th August 2007, 09:14 PM #5
    LRHybrid100's Avatar
    LRHybrid100
    LRHybrid100 is offline YarnMaster Gold Subscriber
    Join Date
    May 2002
    Location
    Sydney, Australia
    Posts
    3,424
    Total Downloaded
    0
    and gives a genuine 2" over my sagging originals - car looks almost level now, back is just slightly higher.

    LRH
    Disco 4 SDV6 Auto
    Disco 4 SDV8 Dual Cab Project
    Disco 2 M57 Extra Cab Project
    Foton Tunland Cummins ISF
    Disco 1 3 door 4.6 V8 Auto
    RRC V8 Auto "Classic" Softdash
    RRC 300 TDI Auto
    Disco 1 TD5 Auto Buggy
    Disco 1 300 Tdi Auto Ute
    SAME Explorer 70HP 4x4 Tractor plus Nell Loader
    Subaru GDA WRX
    Triumph Bonneville SE
    Yamaha TTR250




    Reply With Quote Reply With Quote
  6. 27th August 2007, 09:24 PM #6
    Defender=1st Guest
    Will they wear longer ?? are the new ones tougher ? or will they sag like the originals ?? also was the price each or for 2
    Thanks mine is sagging very baddly and will need to do the same soon. so any infow would be greatly appreceated.
    Thanks regards Adrian
    Reply With Quote Reply With Quote
  7. 27th August 2007, 09:32 PM #7
    LRHybrid100's Avatar
    LRHybrid100
    LRHybrid100 is offline YarnMaster Gold Subscriber
    Join Date
    May 2002
    Location
    Sydney, Australia
    Posts
    3,424
    Total Downloaded
    0
    the HD springs have a higher rating - so should be fine for the next couple of years. The Standard springs are about 1" shorter and lighter spring rates - they dont like bullbars / winces etc.

    Yup about $130 for the pair and have been used for a while by others and they still rate them.

    HTH

    LRH
    Disco 4 SDV6 Auto
    Disco 4 SDV8 Dual Cab Project
    Disco 2 M57 Extra Cab Project
    Foton Tunland Cummins ISF
    Disco 1 3 door 4.6 V8 Auto
    RRC V8 Auto "Classic" Softdash
    RRC 300 TDI Auto
    Disco 1 TD5 Auto Buggy
    Disco 1 300 Tdi Auto Ute
    SAME Explorer 70HP 4x4 Tractor plus Nell Loader
    Subaru GDA WRX
    Triumph Bonneville SE
    Yamaha TTR250




    Reply With Quote Reply With Quote
  8. 28th August 2007, 06:02 PM #8
    sclarke's Avatar
    sclarke
    sclarke is offline TopicToaster
    Join Date
    Jan 1970
    Location
    Warburton, Victoria
    Posts
    4,693
    Total Downloaded
    0
    Looks good....

    The HD LR are the go.....

    mmmm mud
    Reply With Quote Reply With Quote
  9. 29th August 2007, 01:45 AM #9
    camel_landy's Avatar
    camel_landy
    camel_landy is offline YarnMaster
    Join Date
    Jan 1970
    Location
    Nanny state UK...
    Posts
    3,253
    Total Downloaded
    0
    The 110 HD fronts are the same as the Std 90 rears...

    M
    Reply With Quote Reply With Quote
  10. 29th August 2007, 03:36 PM #10
    discowhite's Avatar
    discowhite
    discowhite is offline TopicToaster
    Join Date
    Jan 1970
    Location
    Padstow NSW
    Posts
    4,501
    Total Downloaded
    0
    Quote Originally Posted by camel_landy View Post
    The 110 HD fronts are the same as the Std 90 rears...

    M
    not on the aussie spec ones
    they are NCR9463 and NCR9462
    210-240lb progressive @ 14.81''

    cheers phil
    Reply With Quote Reply With Quote
