For those who may remember, quite a while back I decided to test some 300Tdi air filters. Well the results are finally in...

Note that these tests were NOT performed according to the ISO standard for air filter testing. The following tests used much more sensitive equipment to measure short-term filtration efficiency and pressure drop of clean and dirty air filter samples. The ISO tests load filters with large amounts of dust and allow gravimetric measurement of filter efficiency.

First some specifics on the equipment and procedure: The tests used;
A collison nebuliser to aerosolise polystyrene latex particles (a common laboratory test aerosol)
A diffusion dryer to remove residual moisture from the particles
Dilution of the aerosol stream with HEPA filtered air

Measurements upstream and downstream of the filter were perfomed using either a TSI 3010 Condensation Particle Counter and a Grimm 1.108 Optical Particle Counter.

Pressure drop across the filter was measured using a TSI Velocicalc Plus.

IN MY OPINION, these tests provide an accurate comparison of pressure drop and filtration efficiency of the filters tested - as good or better than the ISO-standard testing would provide. The only information which this test does not provide is information on filter lifetime (dust capacity).

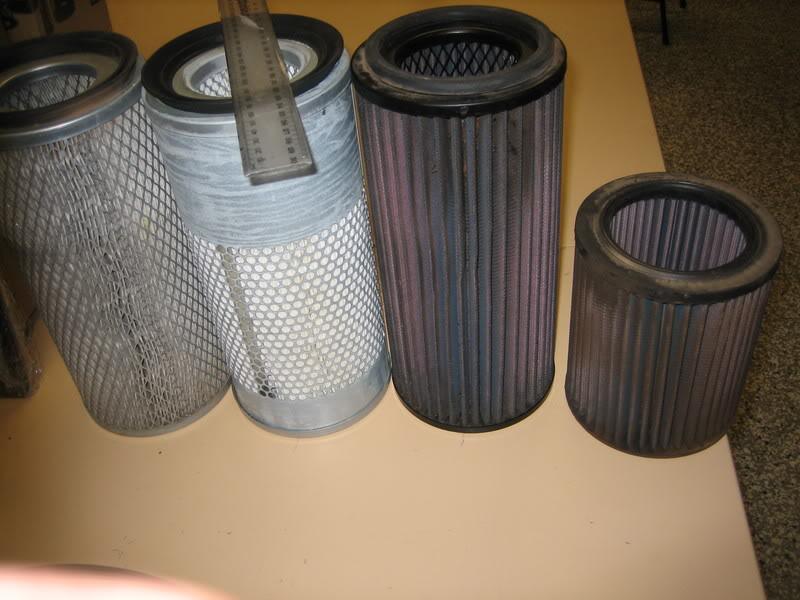

First the filters:

Left - Right:
Discovery 300Tdi K&N (thanks SSmith)
Defender 300Tdi DONALDSON - used for 20k km on dusty roads (thanks rick130)
Defender 300Tdi Coopers (OEM) NEW (thanks rick130)
Defender 300Tdi K&N - initially supplied with 20k km worth of dust (thanks rick130)


And also a 3.9V8 (RRC) K&N (thanks Hobie18) - you will notice that this is about the same diameter as a 300Tdi filter, but about half the length. Yet a 3.9L V8 would flow A LOT more air than a 2.5L Tdi - what were the engineers thinking...

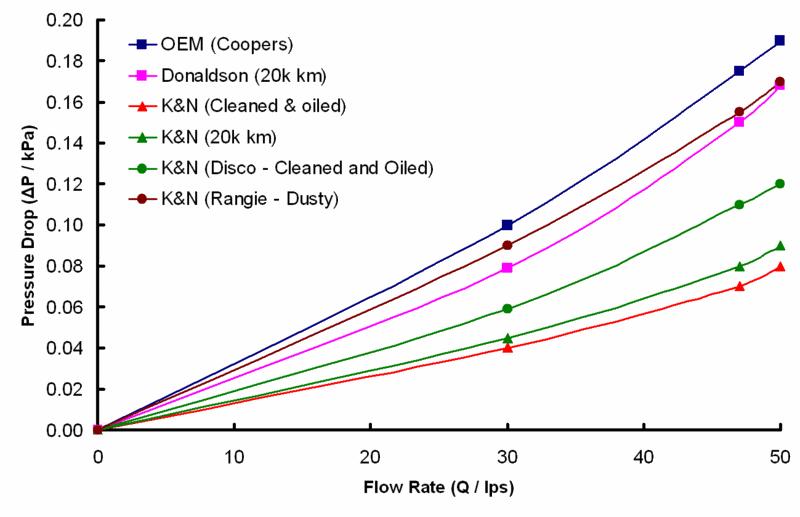

So now for the pressure drop results - should be self explanatory???


So - the first conclusion we can draw is that V8 owners should switch to a TDI filter!!!

The 2nd conclusion is that K&N filters definitely have lower pressure drop - but at what cost (wait for the efficiency results) - when they are clogged, that would be a different story, but 20k km worth of dust isn't a lot in the scheme of things.

However the most surprising conclusion, was that a Donaldson (cellulose fibre (paper)) filter element with 20k km worth of dust in it, has a LOWER DP than an OEM (Coopers) filter does when NEW!!!

This can be explained by 2 things:
(1) Notice in the picture above, that the Donaldson uses expanded metal for the outer mesh, which has a high open area, whereas the OEM filter uses a drilled plate, which has a lower open area, and even dome closed areas. NOTE - all filters were tested without the plastic cyclone, which may make the DP curves of the 2 filters slightly closer.

(2) The Donaldson has deeper pleats, which means there is more filter material in the element, therefore lower average velocities and less restriction. It also should mean that the donaldson filter has more dust capacity (so your Donaldson element still has life in it rick )

Now onto the efficiency data! The most important part!

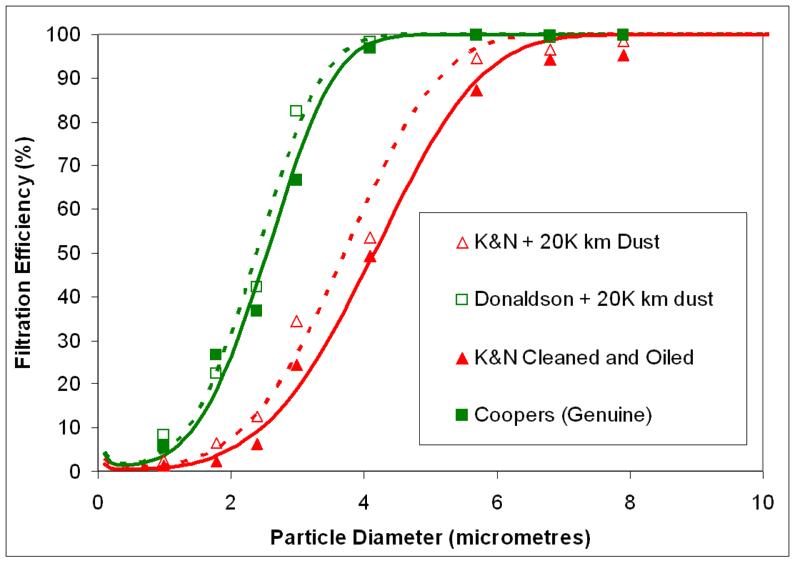

The image above shows the filtration efficiency vs particle size for 4 different filters. It can be seen that (a) a "dirty" filter is more efficient than a clean one, and (b) the cellulose-fibre type filters are more efficient than the K&N type of filter. The diffenence between the two filter types may not look significant, but over a few thousand km it will amount to a very large difference in the amount of dust getting into the engine.

If anyone wants any more details of the test setup, feel free to ask.

__________________
Cheers,
Ben.
___________________
1987 110CSW, 4BD1T
1968 IIA 109 2.25D (172-131). REMLR #244

Nice work Ben!!!

__________________
Cheers!

Keith
www.rovertracks.com

Ahh that'll buff right out!

thanks Ben.

__________________
I live with real fear everyday.......


and sometimes she lets me go off-road in my Defender....

Thanks for your work, mate, good on ya'!
It basically confirms my suspicions about the K&Ns with regard to the risk of higher particle ingestion compared to the OEM items.
I have, however, some difficulties in reading/interpreting table 2 of your research where you are putting particle size against efficiency. How do I have to read the results ??? Any help appreciated!

Cheers

If you want to stop dirt getting into your engine, do not use a K&N filter.

John

__________________
JDNSW
1986 110 County 3.9 diesel
1970 2a 109 2.25 petrol

I think that summarises it nicely

When I get that K&N back from Ben, I think I'll have to stick it on e-bay. It's only been an expensive paperweight for the last five years, and I don't think anyone on here will want to buy it after seeing this......

__________________
I live with real fear everyday.......


and sometimes she lets me go off-road in my Defender....

Bloody good work Ben.

As doctor Karl says mate ''top job for actually doing the experiment''. Too many people blurt out a theory with no actual evidense.

Just confirms why earth moving equipment use Donaldson types not K&N

At least our Isuzu is breathing easy.

Justin

__________________
85 Rangie 3.9 Isuzu tdi to R380/LT230 , & loads of things that start with M & end with Drive. 4:11 diffs Yada Yada .

06 D3 V8 HSE Kathryn's new work horse

"Only two things survive a nuclear holocaust"
Cockroaches and 3.9 Isuzu,s

OK, I have one of these in my '93 Disco v8i. I cant see how I can change over to a longer tdi filter without making more room in my engine bay. Suggestions??

Cheers, Pete'

hmmmmm

why would the oem have the large closed areas?

and why are they different sizes at the ends ?

someone have the part numbers for each so they can be added to the data for completeness?

good to get the results on the test, thanks for taking the time and trouble to do it... much appreciated Ben!

__________________
1959 SII 88 O'drive ARN 110-574
1985 4BD1 110 - The Incasaurus
1996 Air Force .5T Tactical Trailer
-= Military Vehicle Collectors AU =-


karma and the inherently corrupt, a match made in heaven....

Brilliant, thanks BEN.

Donaldson recommend using little pressure/restriction guages reading the pressure on the outlet side. Given your results show that filters that we would have thrown are still filtering well, a pressure guage would make sense. I think they cost about $25.

Has anyone had any experience with them, and
what pressure do you set them at (300tdi for me)?
