Hi all,
Just trying to put my motor back together after 12 months. I thought I had labelled everything......but maybe not.

It is an 87 Rangie efi but most of the efi fuel stuff has been removed as it will be running straight gas.

Here are 2 pics, can anyone tell me where the hose should connect too on each of the red circled bits.

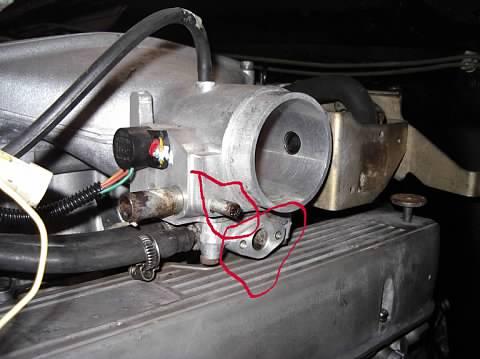

The first is at the air intake.

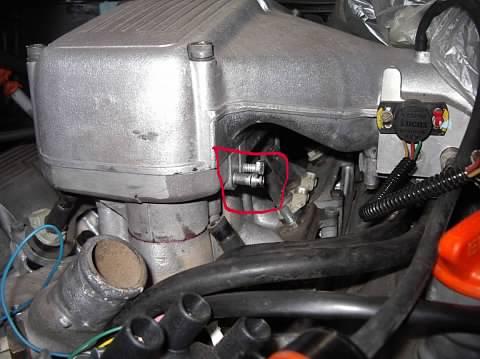

22nd pic is the front passenger side of plenum. I think this connects into the breather from flame trap (according to book) but I think mine was done different because nothing matches up.



Thanks for the help

ok first pic small outlet is to charcoal canister.
2nd thing below the intake, i pretty sure nothing goes there. but will double check.
EDIT: pretty sure its just a blanking welsh plug that sits in that hole, someone here will confirm as my manifold is slightly differant.

2nd pic that barb T's into the breather pipe from the flame trap to the port near the TPS.

Ok, thanks a lot for that.

I dont have the charcoal canister since it will be running straight gas so i can get rid of that.

I though the 2nd one went on the breather somewhere, but I think it has been changed about on the motor I have. There is no "T piece" anywhere , but it should not be hard to get a new one. I think someone had run the hose directly from the flame trap to port near TPS.

Anyone know why it has the T to the manifold? I am guessing both the port near TPS and the small one at front of manifold are both vacuum?

yeah my 86 was set up like that, 1 hose straight to the one near the TPS. The 95 3.9L thats in it now has the T in it and has it hooked up to both manifold vacuum and before the throttle body.

Maybe it needs the extra vacuum to get rid of all the stinky fumes!

Yep that is it, but it is a special T piece with a restrictor in the stub to the vacuum source. It will not idle with a normal T piece.
Specialists will have them . They were made by Maxi -Drive.
Regards Philip A

shouldn;t be too hard to find at a LR wrecker.

LRA do a replacement metal one.
part number for the plastic T should be ETC6374.

Thanks again. I will just get one off Andrew.
