Thread: Is an air tank worthwhile ?

  1. 28th December 2008, 08:14 PM #21
    hook's Avatar
    hook
    hook is offline Master
    Join Date
    Jan 1970
    Location
    N Qld,
    Posts
    702
    Total Downloaded
    0
    Quote Originally Posted by long stroke View Post
    Nice any pics!!!

    CHEERS TIM.
    Pic as req.

    Message - AULRO Photo Gallery

    Message - AULRO Photo Gallery

    Message - AULRO Photo Gallery

    I still can't post pics????????????????????
    Reply With Quote Reply With Quote
  2. 28th December 2008, 08:26 PM #22
    long stroke's Avatar
    long stroke
    long stroke is offline TopicToaster Subscriber
    Join Date
    Oct 2007
    Location
    JUST NORTH OF COFFS HARBOUR NSW
    Posts
    4,178
    Total Downloaded
    0
    Quote Originally Posted by hook View Post
    Pic as req.

    Message - AULRO Photo Gallery

    Message - AULRO Photo Gallery

    Message - AULRO Photo Gallery

    I still can't post pics????????????????????
    Sweeet, very nice thanks Hook, they don't look to hard to make
    These pics just may come in handy soon

    CHEERS TIM.
    Dads-
    http://www.aulro.com/afvb/members-ri...-progress.html

    Mine-
    http://www.aulro.com/afvb/members-ri...-progress.html

    Mums- stock 92 200tdi d1.
    Reply With Quote Reply With Quote
  3. 28th December 2008, 08:35 PM #23
    abaddonxi's Avatar
    abaddonxi
    abaddonxi is offline Moderator
    Join Date
    Jan 1970
    Location
    2780
    Posts
    8,257
    Total Downloaded
    0







    Reply With Quote Reply With Quote
  4. 28th December 2008, 09:10 PM #24
    hook's Avatar
    hook
    hook is offline Master
    Join Date
    Jan 1970
    Location
    N Qld,
    Posts
    702
    Total Downloaded
    0

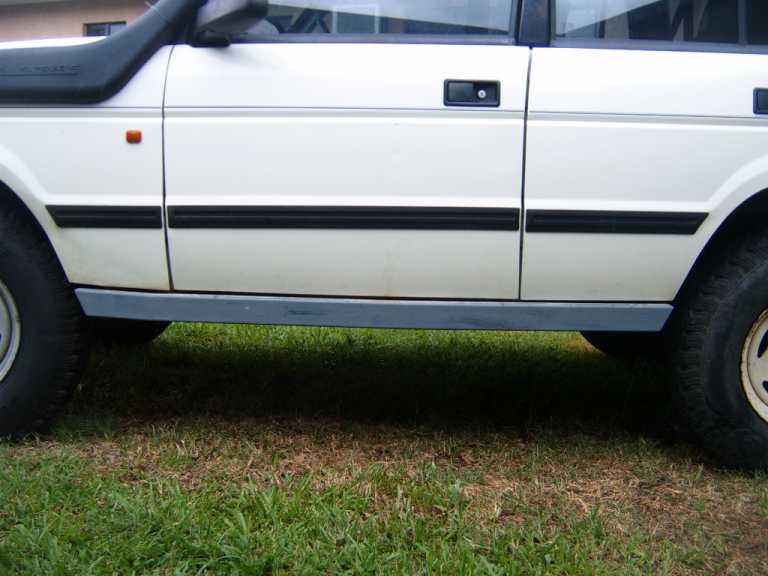

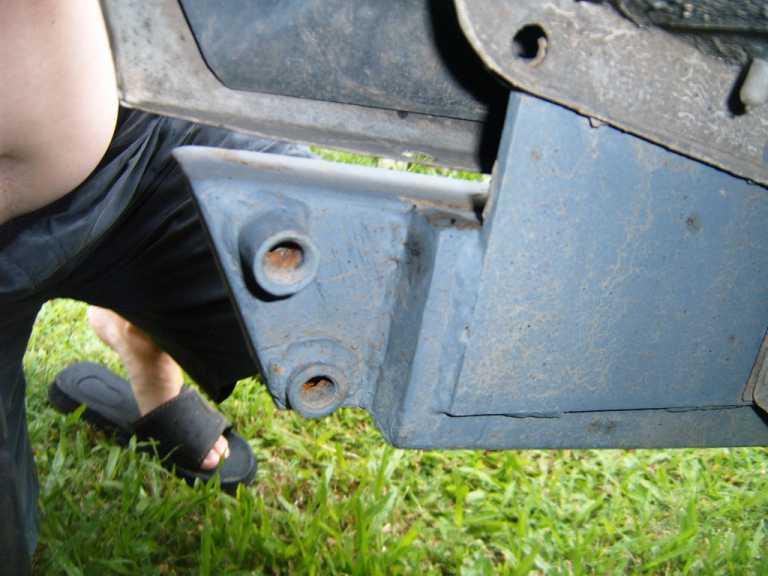

    The mounting plate is about 6mm plate.
    Not needed forward of the A pillar.
    Maybe able to do with out the spacer, forward of the A pillar.

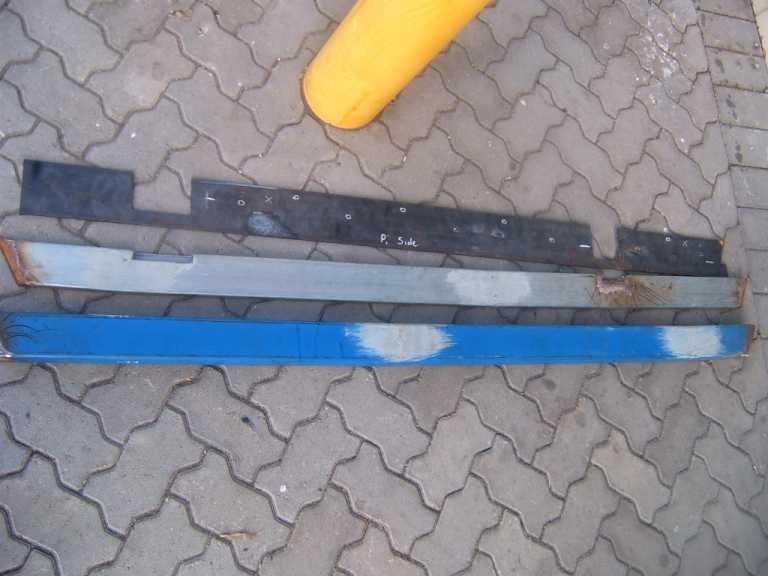

    Primer on the blue RHS is were bends were made to follow sill lines.
    The middle cut was made with two hacksaw blades and the front one with 3 blades. (check air pressure before welding to spacing RHS), I didn’t, I had to cut it of and re-weld one air tank, then back onto spacer .
    As for, air fittings, top one is for hose fitting and the bottom is for pressure release and water drain.
    If done again I would put in more air fittings.
    Reply With Quote Reply With Quote
