    D2 rear recovery points + hi lift tubes.

    Here is the recovery points and hi lift jack points I added to a STD D2 rear bumper.

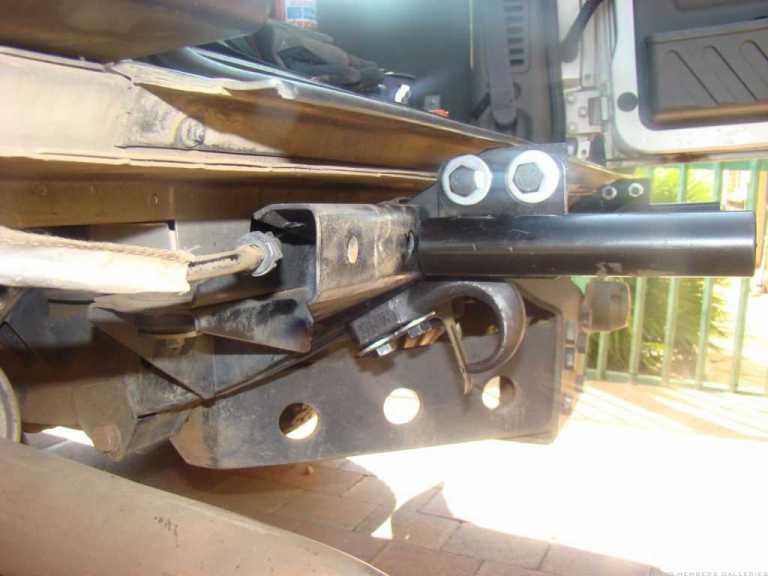

    Brackets installed.
    Bolts are M12 torqued to 85Nm.
    The hook are rated for 10000Lbs each (5.2T) and are STD issue on Cruisers and old Hilux.

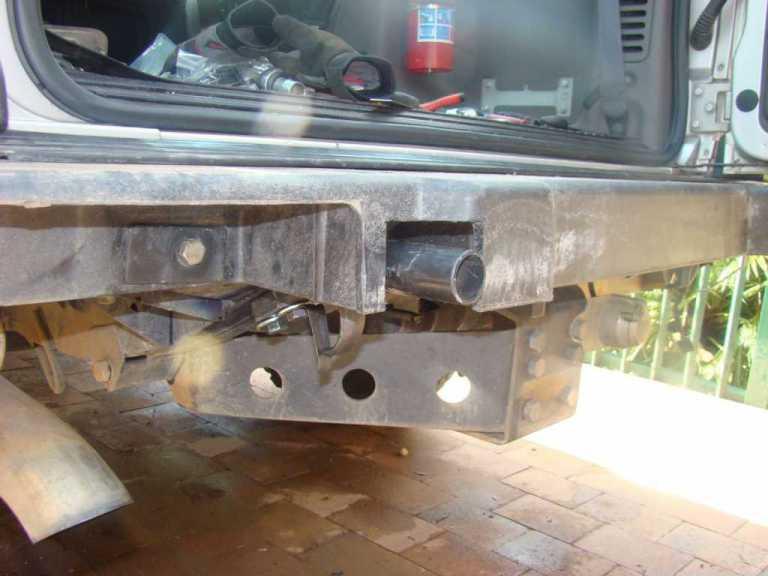

    Trail fit for bumper GRP frame.

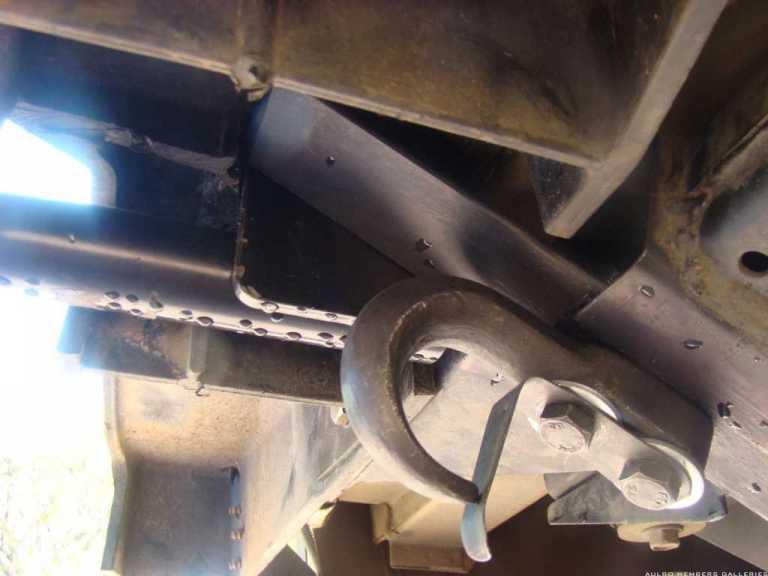

    View from bottom.


    Each hook has 3 M12 Gr 8.8 bolts.

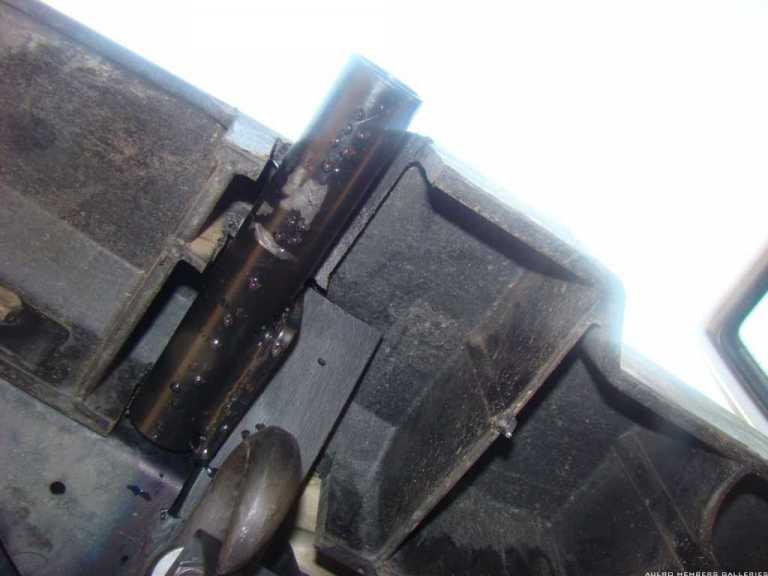

    Bumper body cut and fitted.


    Hooks will always be used with bridle strap to distribute load between the two recovery hooks.



    If the last photo is not good enough resolution, I will re-attach it with a better resolution.
    Reply With Quote Reply With Quote
  2. 16th September 2009, 06:02 AM #2
    long stroke's Avatar
    long stroke
    long stroke is offline TopicToaster Subscriber
    Join Date
    Oct 2007
    Location
    JUST NORTH OF COFFS HARBOUR NSW
    Posts
    4,178
    Total Downloaded
    0
    Looks the goods!!
    Well done
    Dads-
    http://www.aulro.com/afvb/members-ri...-progress.html

    Mine-
    http://www.aulro.com/afvb/members-ri...-progress.html

    Mums- stock 92 200tdi d1.
    Reply With Quote Reply With Quote
  3. 16th September 2009, 06:37 AM #3
    Dougal
    Dougal is offline ForumSage
    Join Date
    Sep 2007
    Location
    Kiwiland
    Posts
    7,246
    Total Downloaded
    0
    Is the spare tyre in the way of the jack when using the one on the right?
    Reply With Quote Reply With Quote
  4. 16th September 2009, 08:41 AM #4
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,031
    Total Downloaded
    0
    Thats looking good Rudolf

    was that a factory towbar?

    ( and am I right in thinking every D2 in OZ has a different one fitted ex factory?)
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  5. 16th September 2009, 01:21 PM #5
    Rudolf
    Rudolf is offline Master
    Join Date
    Feb 2009
    Location
    Pretoria, RSA
    Posts
    536
    Total Downloaded
    0
    Quote Originally Posted by Pedro_The_Swift View Post
    Thats looking good Rudolf

    was that a factory towbar?

    ( and am I right in thinking every D2 in OZ has a different one fitted ex factory?)
    Hi Pedro
    Not sure but most likely as most after market bars are of hollow section
    construction and not as sturdy.

    Dougal
    The spare overhangs the bumper by about 3cm but I plan to move it left and make place for the high lift jack.
    Reply With Quote Reply With Quote
  6. 16th September 2009, 02:17 PM #6
    malsgoing130 Guest
    Hi Pedro,

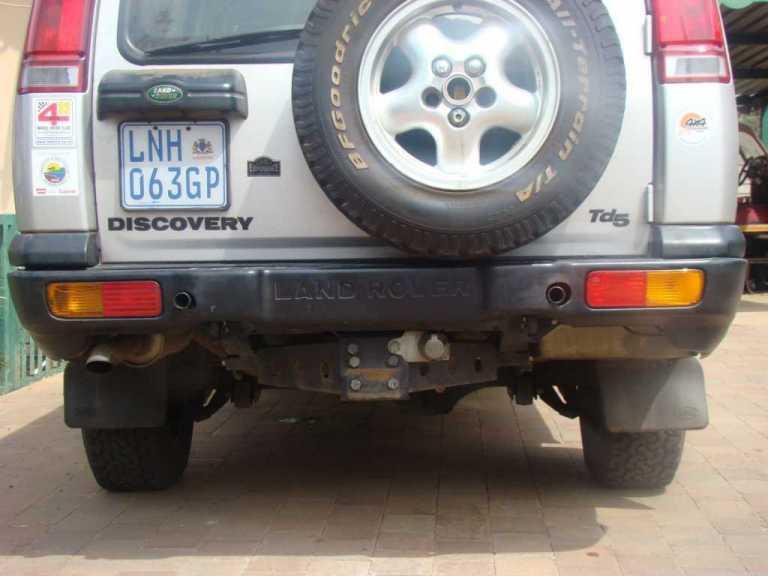

    In South Africa they use European type tow balls so if you look at the pics you will see 2 lines of bolt holes on the verticle rear plate, they bolt on using 2 bolts on either side of the cast hitch ball plate????
    Cheers
    Mal
    Reply With Quote Reply With Quote
  7. 17th September 2009, 03:07 AM #7
    Rudolf
    Rudolf is offline Master
    Join Date
    Feb 2009
    Location
    Pretoria, RSA
    Posts
    536
    Total Downloaded
    0
    Quote Originally Posted by Dougal View Post
    Is the spare tyre in the way of the jack when using the one on the right?

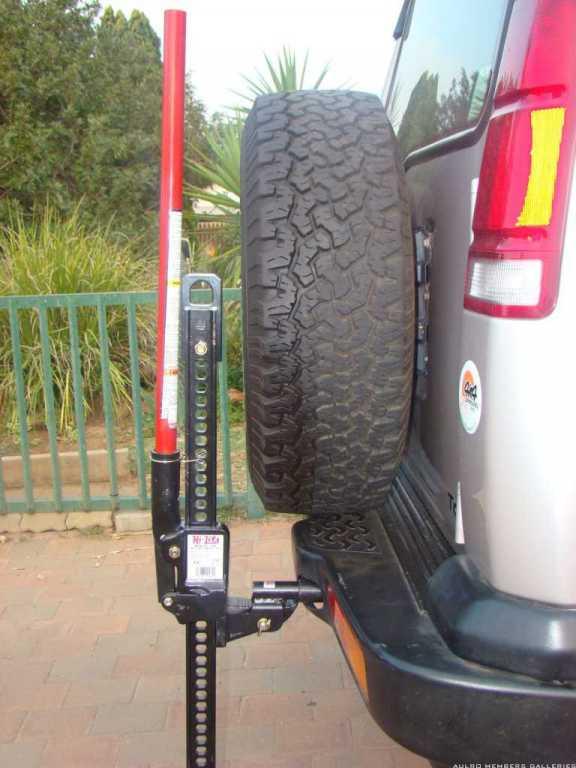

    I am wrong about the 3cm but it does fit. For scale, the tyre is 245 wide.
    I also saw a potential problem. The adaptor on Hi Lift does not fit quite parralel and this has the jack at not vertical position.

    Will post a photo of tow ball but only in 24H's time. Going to sleep soon.


    Reply With Quote Reply With Quote
  8. 18th September 2009, 03:07 AM #8
    Rudolf
    Rudolf is offline Master
    Join Date
    Feb 2009
    Location
    Pretoria, RSA
    Posts
    536
    Total Downloaded
    0
    Quote Originally Posted by malsgoing130 View Post
    Hi Pedro,
    In South Africa they use European type tow balls so if you look at the pics you will see 2 lines of bolt holes on the verticle rear plate, they bolt on using 2 bolts on either side of the cast hitch ball plate????
    Cheers
    Mal

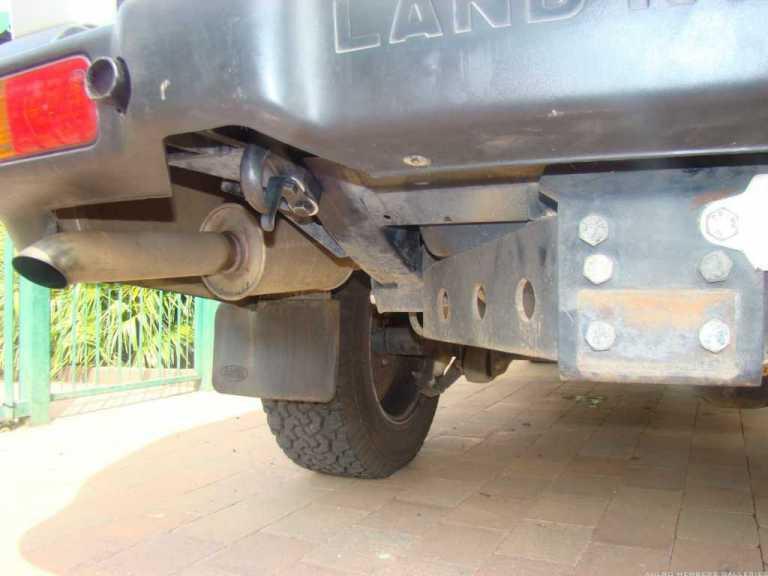

    Had to remone the tow ball and fixture.
    The moles was starting to complain that I was digging up their burrows.



    Reply With Quote Reply With Quote
  9. 18th September 2009, 03:10 AM #9
    Rudolf
    Rudolf is offline Master
    Join Date
    Feb 2009
    Location
    Pretoria, RSA
    Posts
    536
    Total Downloaded
    0
    Quote Originally Posted by Rudolf View Post
    I am wrong about the 3cm but it does fit. For scale, the tyre is 245 wide.
    I also saw a potential problem. The adaptor on Hi Lift does not fit quite parralel and this has the jack at not vertical position.

    Will post a photo of tow ball but only in 24H's time. Going to sleep soon.


    Having second look at this pucture I realized the the jack is too short.
    The wheels will be barely of the ground at full lift if at all.
    Reply With Quote Reply With Quote
  10. 21st October 2009, 04:19 PM #10
    austastar's Avatar
    austastar
    austastar is offline YarnMaster Silver Subscriber
    Join Date
    Jul 2009
    Location
    Hobart
    Posts
    3,532
    Total Downloaded
    0
    A couple of wood blocks for stability will fix that to a point.
    cheers
    Reply With Quote Reply With Quote
