Thread: SHOW US YOUR FLEX !!!

  1. #41
    chook73 Guest
    Hi Robert,

    Given you have over 200k on one set of shocks with the punishment you have put them through from what I read, it seems they are worth considering (not sure of the price in aus).

    I am still doing research but looking into what may best suit my needs, mainly touring with hardcore when encountered between A and B as opposed to looking for it each weekend.

    Is there a specific model number as I can't find much information on them?

    Regards Iain.

  2. #42
    Oilworker Guest
    I guess it´s because it´s more of a niche product for them.
    If I find my old invoice I might be able to give you the exact number.

    Just contact:

    Alistair McRae Motorsport
    Proflex Shockabsorbers - mainindex

  3. #43
    Join Date
    Jun 2011
    Location
    Perth
    Posts
    60
    Total Downloaded
    0

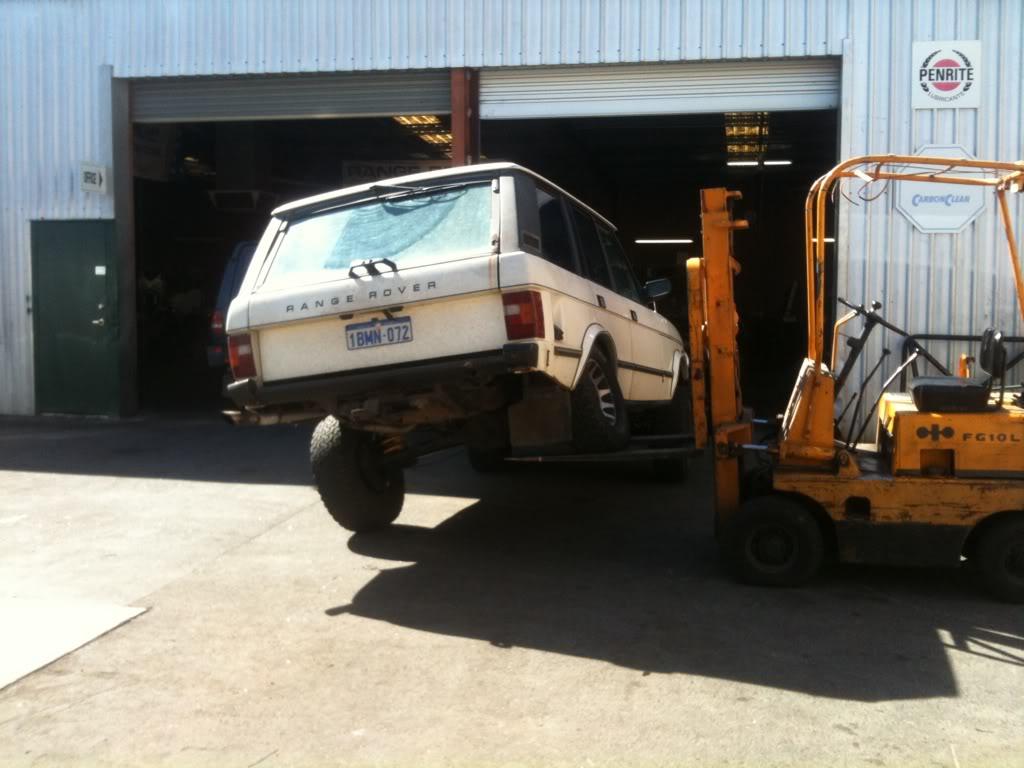

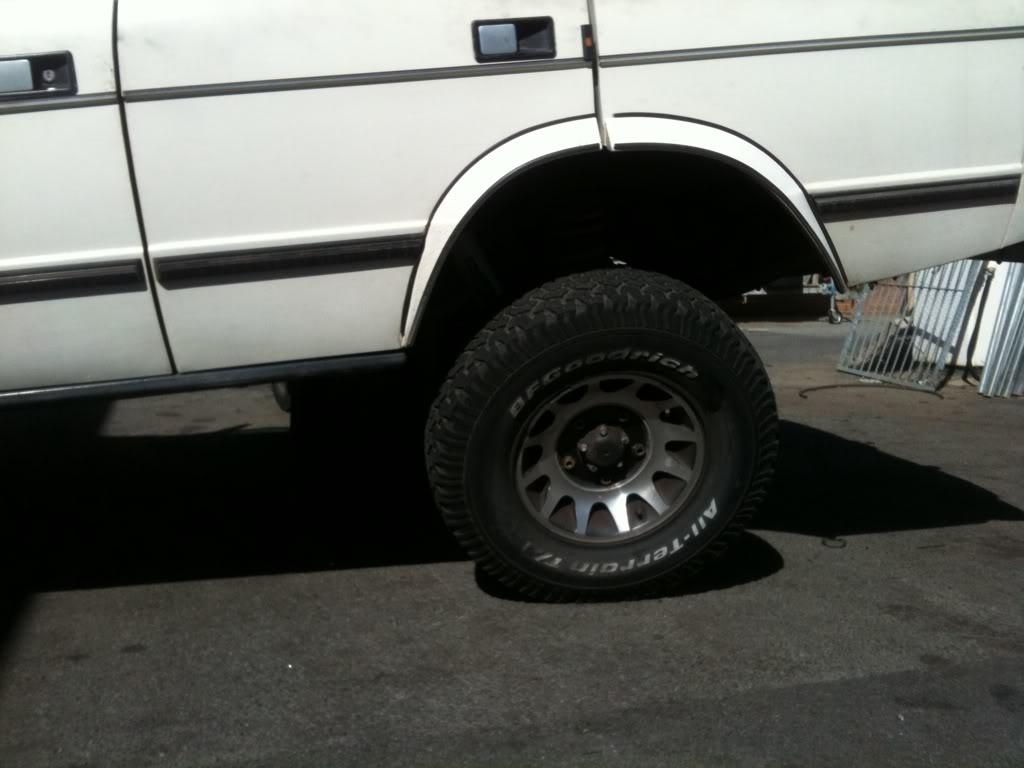

    86 RRC.

    31" tyres, 2" Ironman lift with foam cell shocks.


  4. #44
    chook73 Guest
    Thanks Robert as I said just doing research at the moment but I will definitely give them a call I'm the near future

  5. #45
    Join Date
    Apr 2008
    Location
    Near Seven Hills, Sydney
    Posts
    4,342
    Total Downloaded
    0

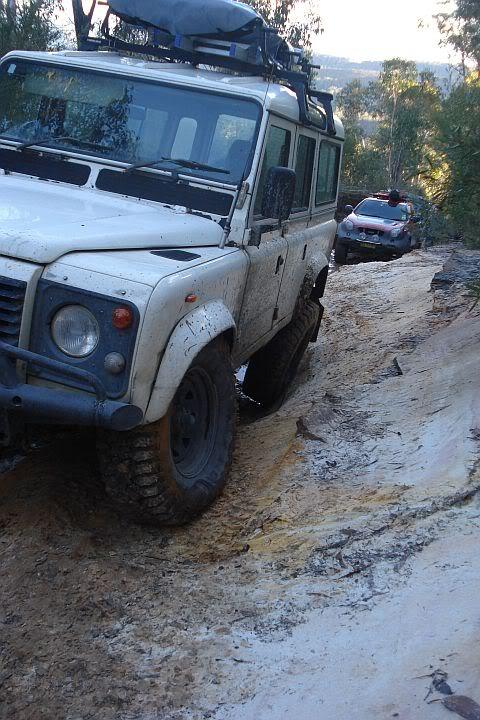

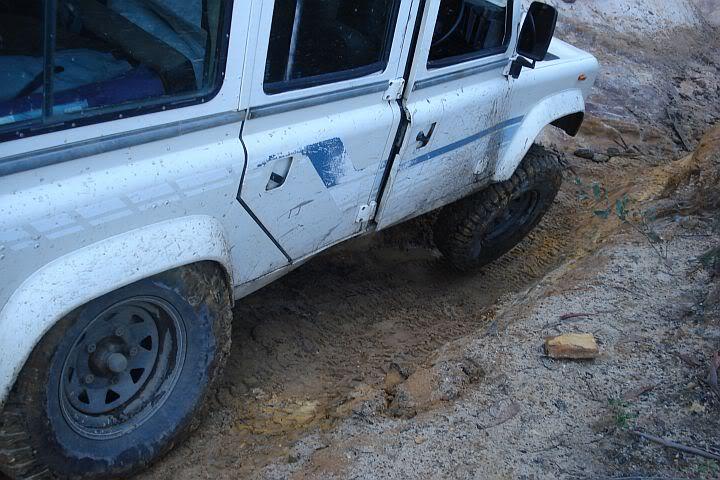

    Finally took some 'in use' rather than posed flex shots





    Dobinson 2" 'stiffer' springs, with the supplied Dobinson shocks, which are standard length despite the 2" lift
    Looks pretty balanced F/R though.

    I'd like to space the flares out 20mm or so, as the rears rub on full tuck.

  6. #46
    Join Date
    Nov 2009
    Location
    Western Sydney
    Posts
    2,182
    Total Downloaded
    0
    Quote Originally Posted by isuzutoo-eh View Post
    Finally took some 'in use' rather than posed flex shots





    Dobinson 2" 'stiffer' springs, with the supplied Dobinson shocks, which are standard length despite the 2" lift
    Looks pretty balanced F/R though.

    I'd like to space the flares out 20mm or so, as the rears rub on full tuck.
    Looks like a nice track
    Wayne
    ​VK2VRC
    "LandRover" What the Japanese aspire to be
    Taking the road less travelled
    '01 130 dualcab HCPU locked and loaded
    LowRange 116.76:1

  7. #47
    Join Date
    Apr 2011
    Location
    alice springs
    Posts
    45
    Total Downloaded
    0

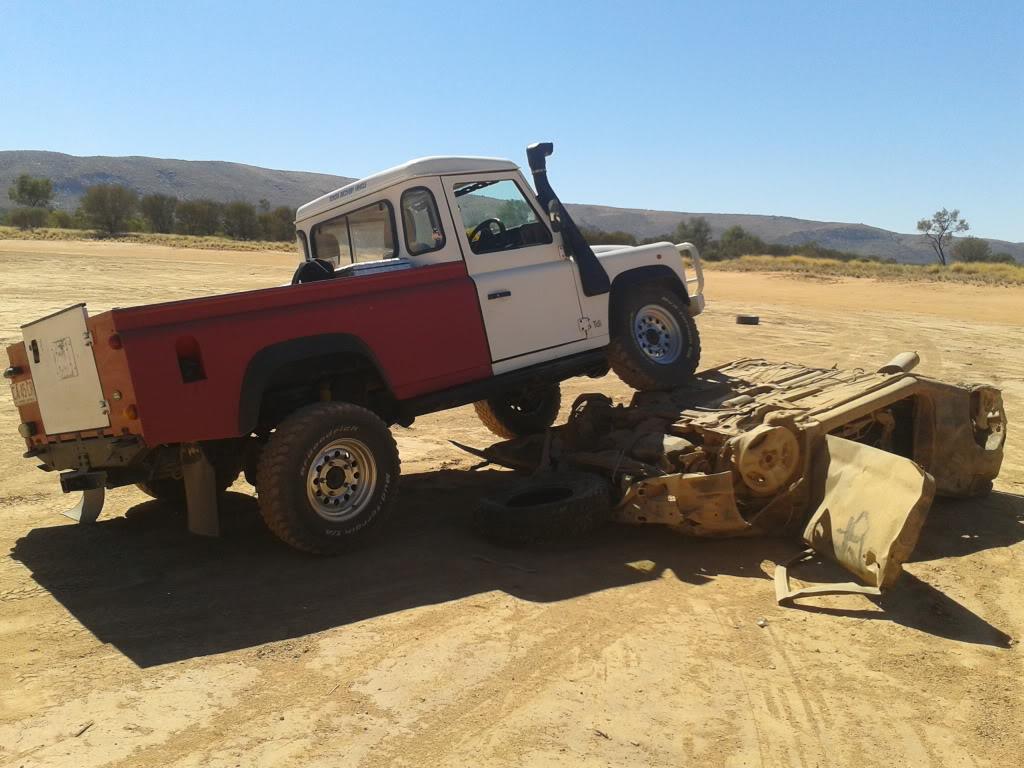

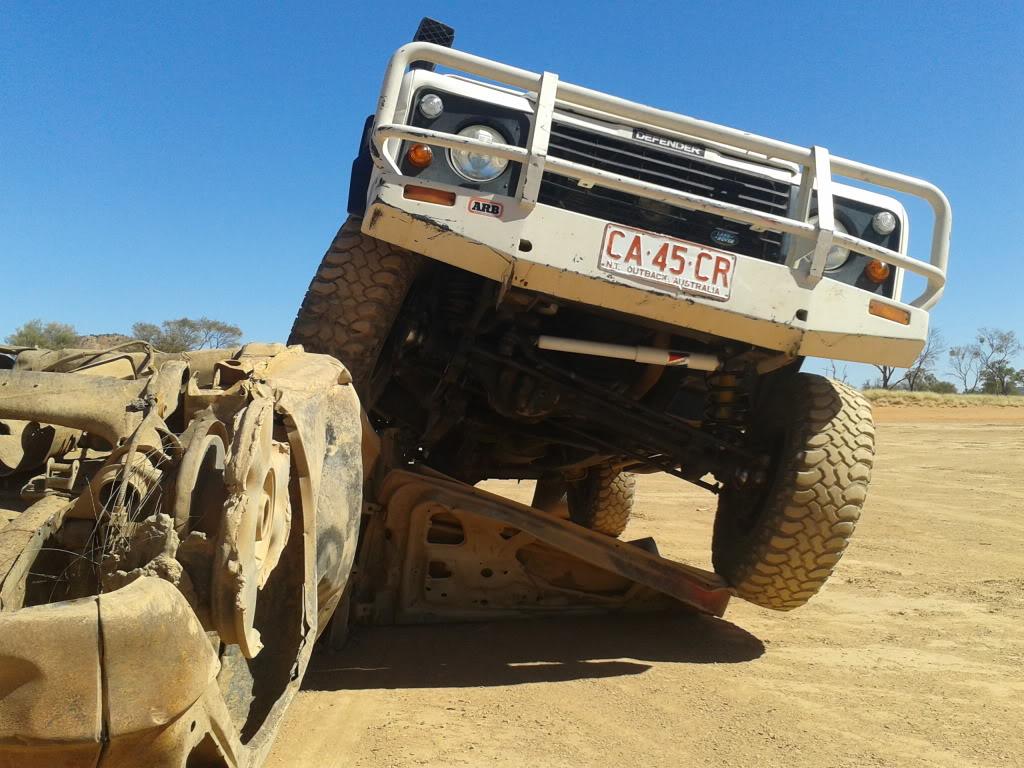

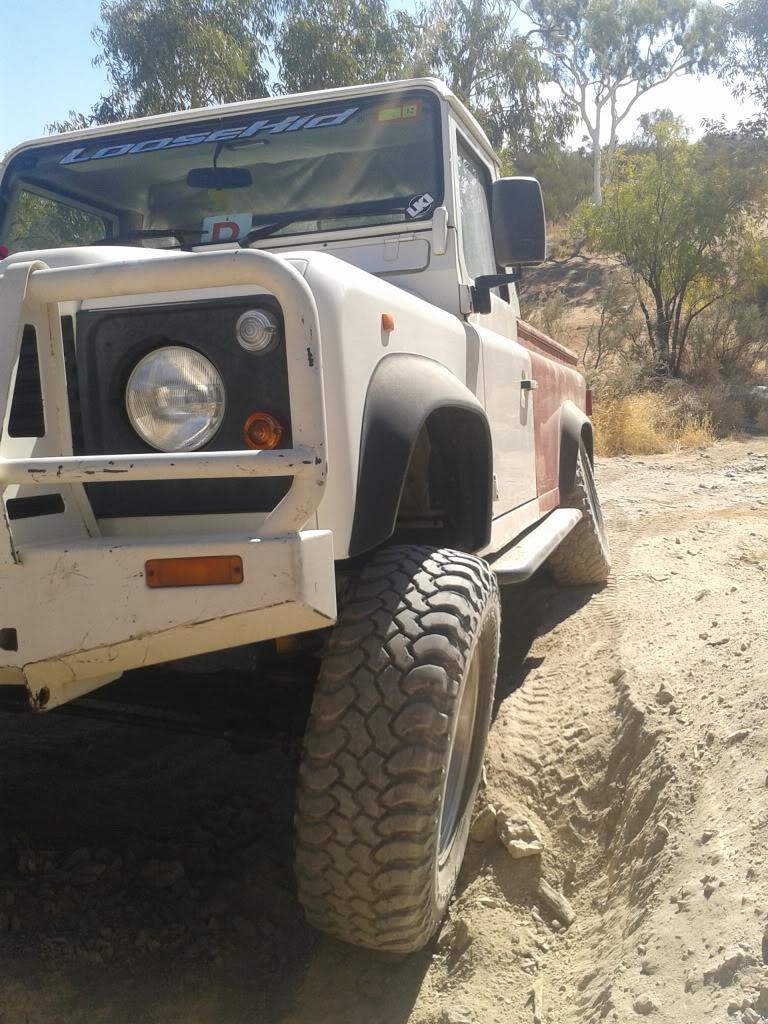

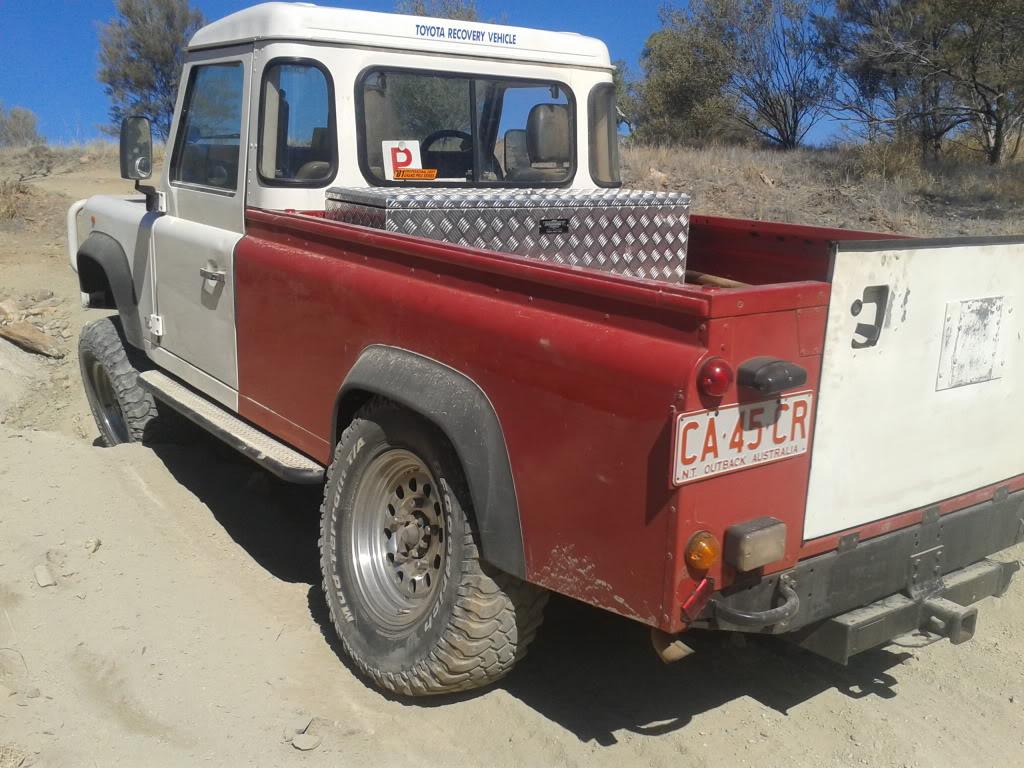

    also some in use photos of mine 2" ome soft springs ome rear springs and bilstein front's.




  8. #48
    Join Date
    Oct 2010
    Location
    Dixons Creek Victoria
    Posts
    1,533
    Total Downloaded
    0
    It would be interesting to do a before and after comparison of offroad stability of vehicles modified for increased flex. One that has balanced front to rear articulation should in theory be more stable in severe cross axle scenarios, but these type of suspensions tend to have little roll resistance so may be more inclined to tip over on a pure side slope.
    I'd like to modify an old hydraulic tipping tray into a tilt platform to test side slope stability of various setups with suspension in both unrestricted and restricted mode.
    Bill.

  9. #49
    Join Date
    Jan 1970
    Location
    Gold Coast
    Posts
    5,101
    Total Downloaded
    0
    Quote Originally Posted by wagoo View Post
    It would be interesting to do a before and after comparison of offroad stability of vehicles modified for increased flex. One that has balanced front to rear articulation should in theory be more stable in severe cross axle scenarios, but these type of suspensions tend to have little roll resistance so may be more inclined to tip over on a pure side slope.
    I'd like to modify an old hydraulic tipping tray into a tilt platform to test side slope stability of various setups with suspension in both unrestricted and restricted mode.
    Bill.
    when you say balanced, Im guessing you mean something with the front modded...IMO you get as much out of the front RA as possible, then get the rear to match, mabe a touch more...yes it wont be super flexy but should be a bit more predictable.

    Bill, on which side of the fence are you on regarding retained or unretained springs?

  10. #50
    Join Date
    Oct 2010
    Location
    Dixons Creek Victoria
    Posts
    1,533
    Total Downloaded
    0
    Quote Originally Posted by uninformed View Post
    when you say balanced, Im guessing you mean something with the front modded...IMO you get as much out of the front RA as possible, then get the rear to match, mabe a touch more...yes it wont be super flexy but should be a bit more predictable.

    Bill, on which side of the fence are you on regarding retained or unretained springs?
    I run a One Link rear and 3 link front with unretained closer spaced springs front/rear Serg.. A coil spring has much the same rate in extension as compression. Once say a 200lbin spring extends to its free length during articulation , I don't want that same spring applying a 200lbin lifting force to the drooping wheel. There is also an offcentre see-saw action with the compressed spring being the fulcrum, which transfers some of the weight on the compressed spring over to the drooping wheel. At the limit, retained springs negate that see saw effect.
    Then again, I do have a much wider wheel track that restores any stability I may have lost compared to a standard setup,so I don't mind if the body leans over a bit more on sideslopes. I may not feel quite so confident with standard width axles though so a lockable antiroll bar, engageable from the cab would be up there on my 'to do' list.
    Bill.
