Originally Posted by DoubleChevron

I can throw a shot of bang gas into the A/C if you feel like a drive to Ballarat at some point. I can even pressure/leak test with nitrogen now ( Total Tools have rent free bottles finally).

seeya,
Shane L.

With regards to testing the electrical side. Just short the swithc on the receiver drier. What it does is cut the compressor out if there is to little or to much pressure in the A/C system (so shuts it down to protect itself). Don't run the system with the switch shorted. If the clutch thumps in on the compressor, that is all you need to know.

seeya,
Shane L.

Switch on receiver drier was open, but bypassing this didn't help. The relay that drives the clutch is all ok - the issue is coming from the ground wire that activates the relay - this isn't just a black wire, it comes from somewhere else I couldn't identify. The RAVE manual on hand didn't show any details of the AC system, so I stopped when I got this far. Everything else checked out ok.

Bypassed this to run the compressor - no banging, it spins fine, but nothing gets cold, I'm guessing whatever was in there has leaked out but from where who knows.

The rest of the system and wiring all seem fine - the condenser fans come on when the AC is switched on and the idle up on the engine works too, it's just the compressor clutch not coming in as it should - not sure what drives the negative side of the coil. I can make it work no dramas, but rather than bypassing things to do this I'd prefer to find out where this comes from and fix it properly.

If anyone has a wiring diagram of the AC system for one of these I'd love to see it.

Cheers.

Originally Posted by grey_ghost

* Alternator wired up correctly - however the tacho still doesn't work... Homestar pulled apart the dash board / instrument panel, but was unable to work out what was wrong...

In relation to the Tacho, Homestar can explain it better - but he wired up the W terminal on the alternator and traced the wiring all the way through the system... Put simply - the tacho doesn't move from 0..

Cheers,
GG.

Re the tacho, yes - the W terminal is wired in and working, and is up at the instrument cluster, but the tacho itself seems stuffed. I pulled the cluster out as the tacho was sitting on 6,000RPM - so at full deflection with no power applied. Needle was stuck there. I moved it with my finger and if you move it to 3000 (12 o'clock) it falls to zero, but anything past that and it will fall to full deflection at 6000. No movement of all of any kind - guessing the unit itself has gone to god.

Originally Posted by Homestar

Switch on receiver drier was open, but bypassing this didn't help. The relay that drives the clutch is all ok - the issue is coming from the ground wire that activates the relay - this isn't just a black wire, it comes from somewhere else I couldn't identify. The RAVE manual on hand didn't show any details of the AC system, so I stopped when I got this far. Everything else checked out ok.

Bypassed this to run the compressor - no banging, it spins fine, but nothing gets cold, I'm guessing whatever was in there has leaked out but from where who knows.

The rest of the system and wiring all seem fine - the condenser fans come on when the AC is switched on and the idle up on the engine works too, it's just the compressor clutch not coming in as it should - not sure what drives the negative side of the coil. I can make it work no dramas, but rather than bypassing things to do this I'd prefer to find out where this comes from and fix it properly.

If anyone has a wiring diagram of the AC system for one of these I'd love to see it.

Cheers.

If you ran a hot wire directly to the compressor clutch and it didn't "thump" into action. The clutch on the compressor is dead If it's just a sanden SD7 ... I'm sure you can grab one from any parts rangie around.

seeya,
Shane L.

Hi Shane,

I'll have a look tonight to see what compressor it is... I might take you up on the offer - my plan is to get a RWC first, and then I might come for a drive up to Ballarat!

Cheers,
GG.

Originally Posted by grey_ghost

Hi Shane,

I'll have a look tonight to see what compressor it is... I might take you up on the offer - my plan is to get a RWC first, and then I might come for a drive up to Ballarat!

Cheers,
GG.

No worries, if you do "open" the A/C up. Buy a bunch of 'O'rings and check every connection you can find (and replace the Orings). I found 1/2dozen munched Orings and a couple completely missing in the Rangie here

Also check the back of the service plug caps for Orings. This is where I reckon mine almost always leak from (the service valves)

seeya,
Shane L.

Hi Shane,

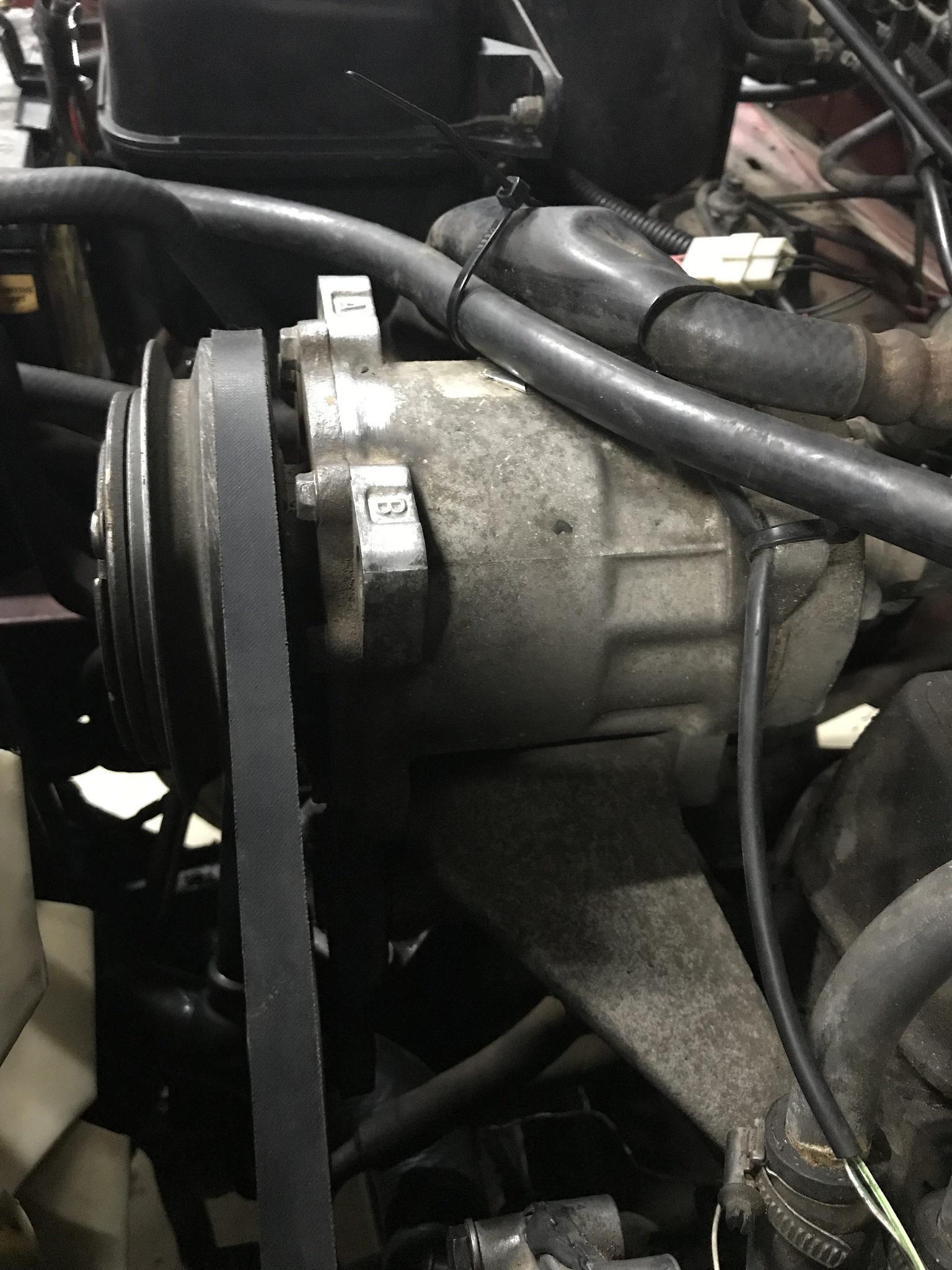

I had a look at the compressor last night - it has "A" and "B" stamped on the top of it:

IMG_2686 by Grey Ghost, on Flickr

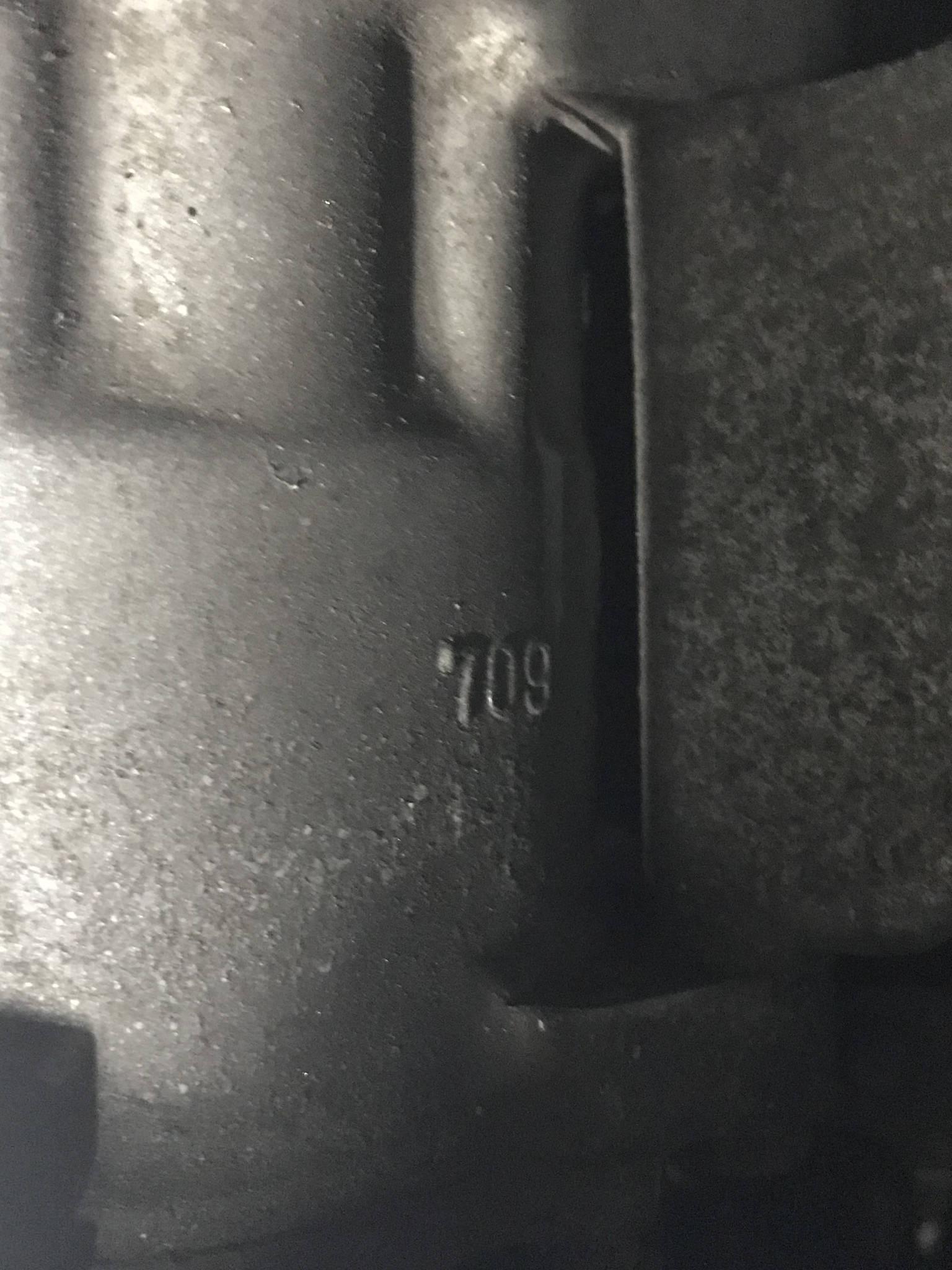

And "709" stamped on the side:

IMG_2687 by Grey Ghost, on Flickr

Is that a Sanden SD7 that you mention? (I couldn't find any other identifying marks)

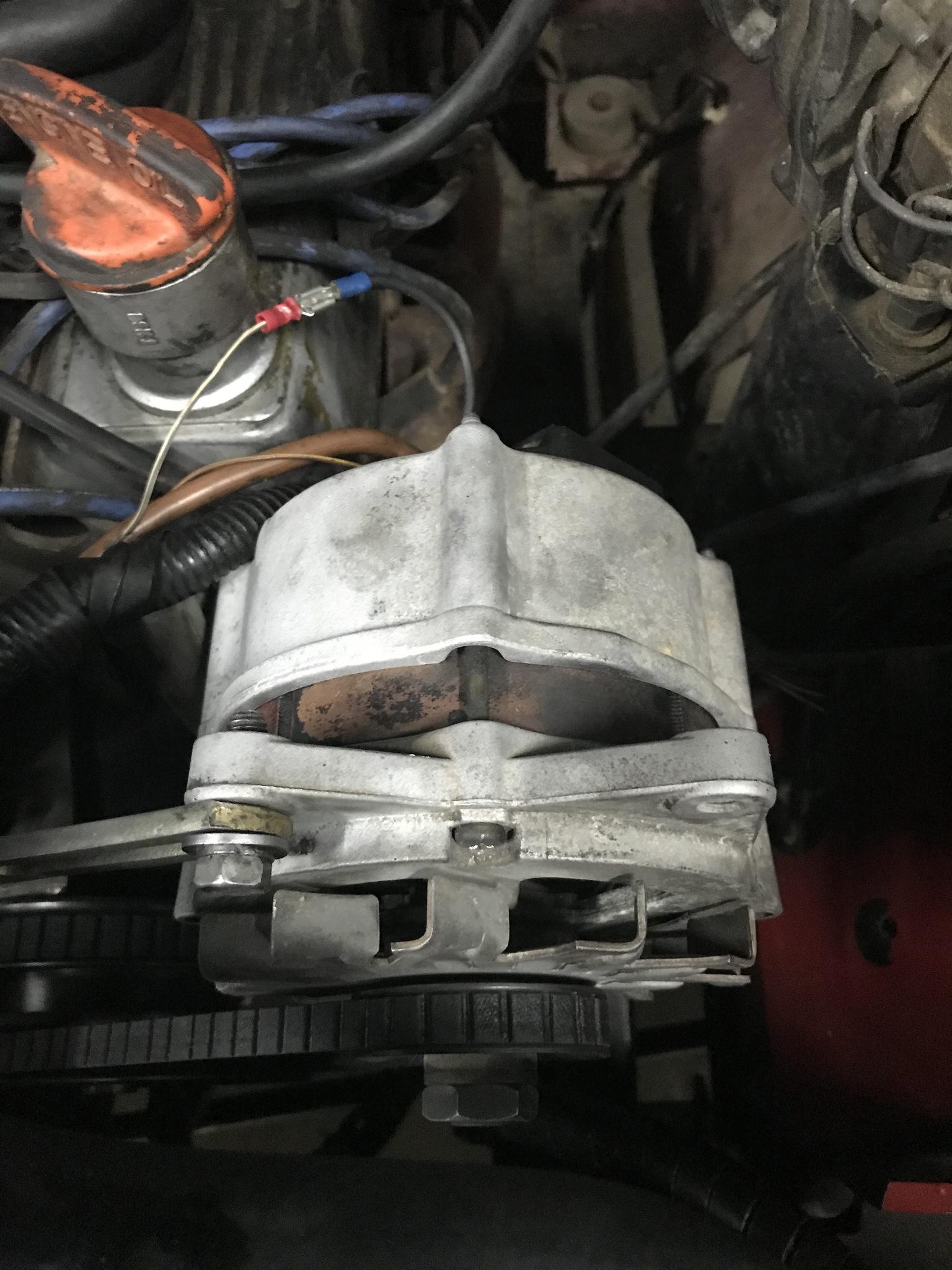

Here is a picture of the alternator - cleaned up and wired up:

IMG_2688 by Grey Ghost, on Flickr

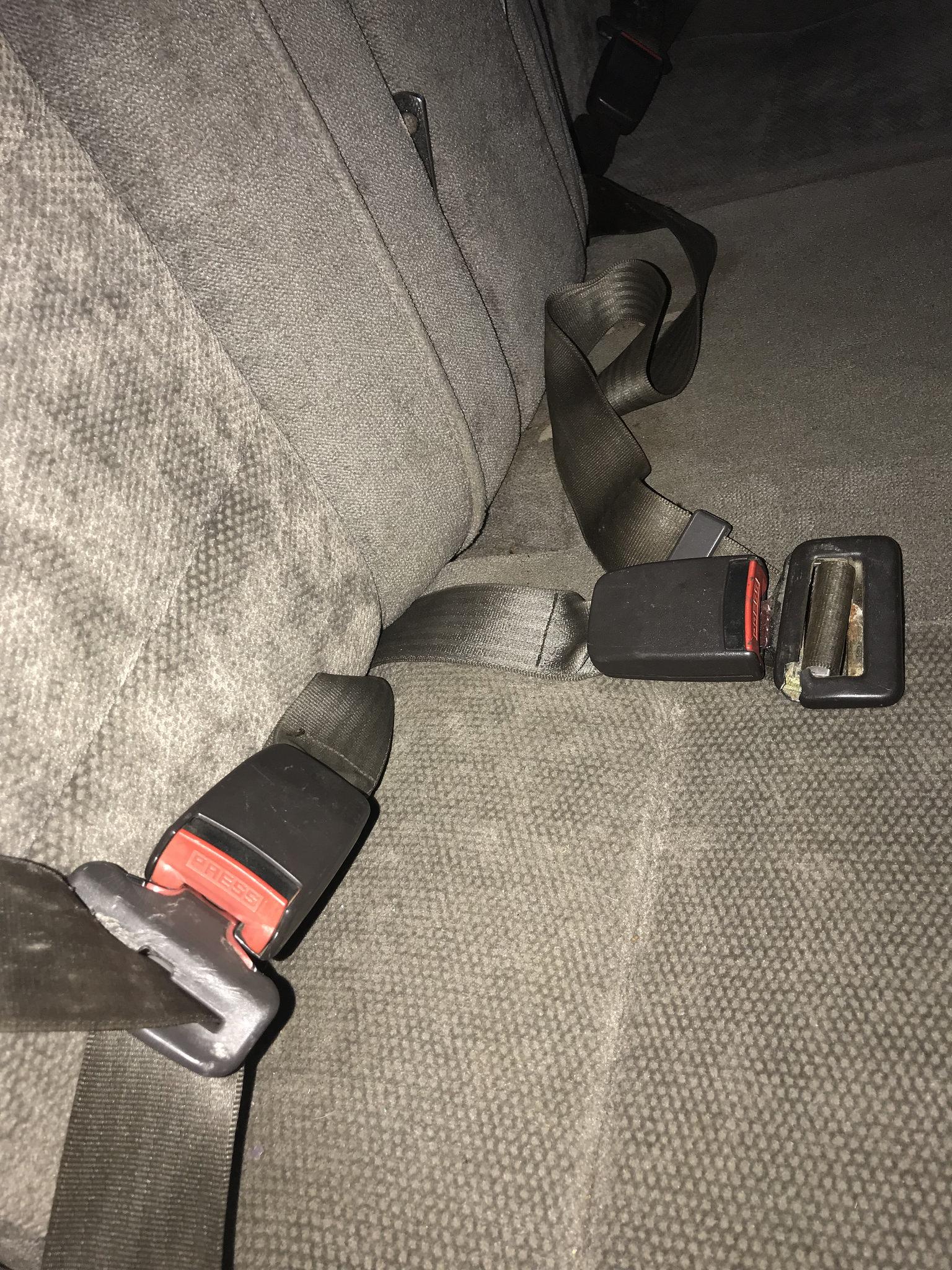

Here are the broken seat belt buckles:

IMG_2685 by Grey Ghost, on Flickr

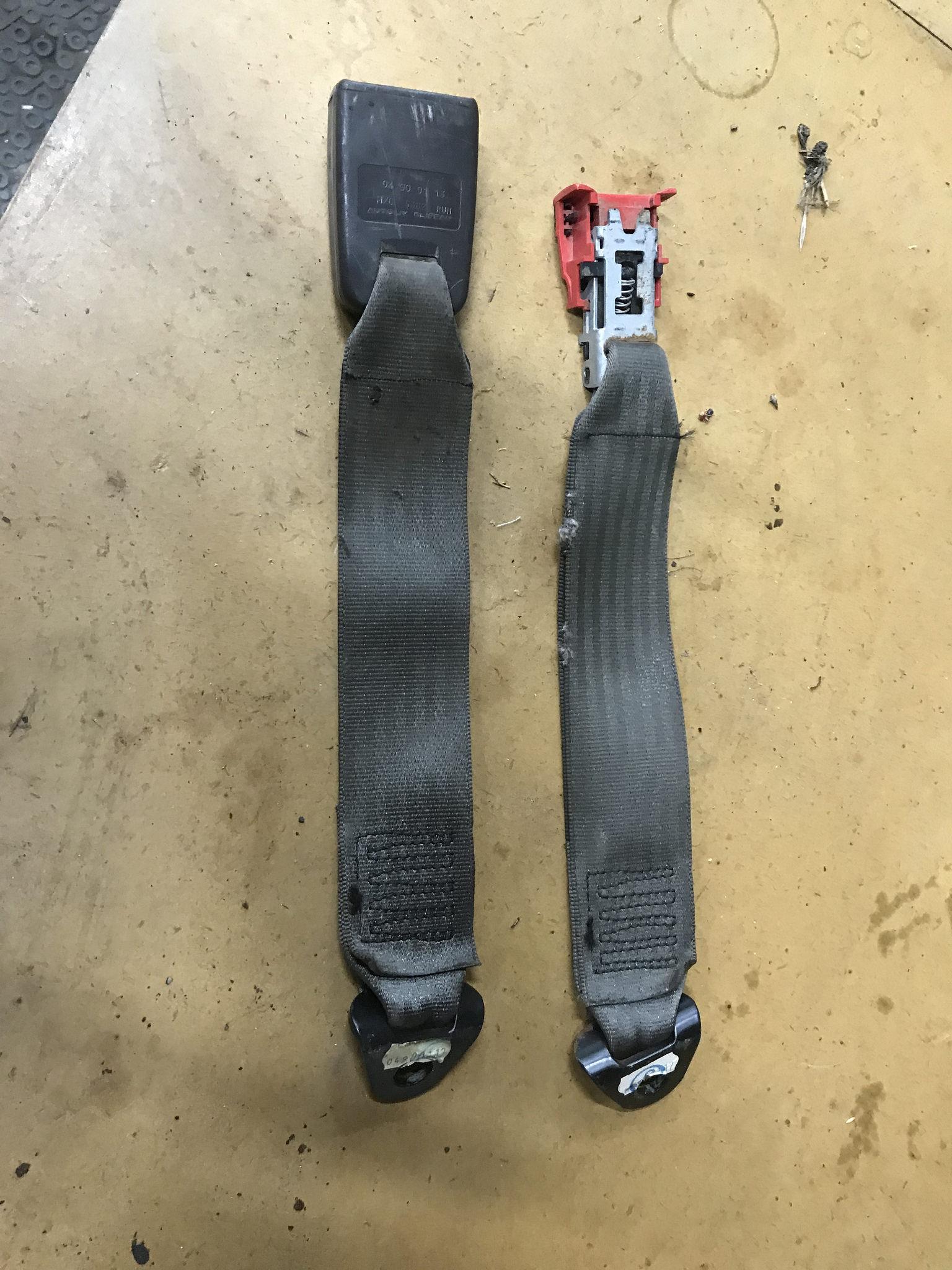

And the replacements in:

IMG_2683 by Grey Ghost, on Flickr

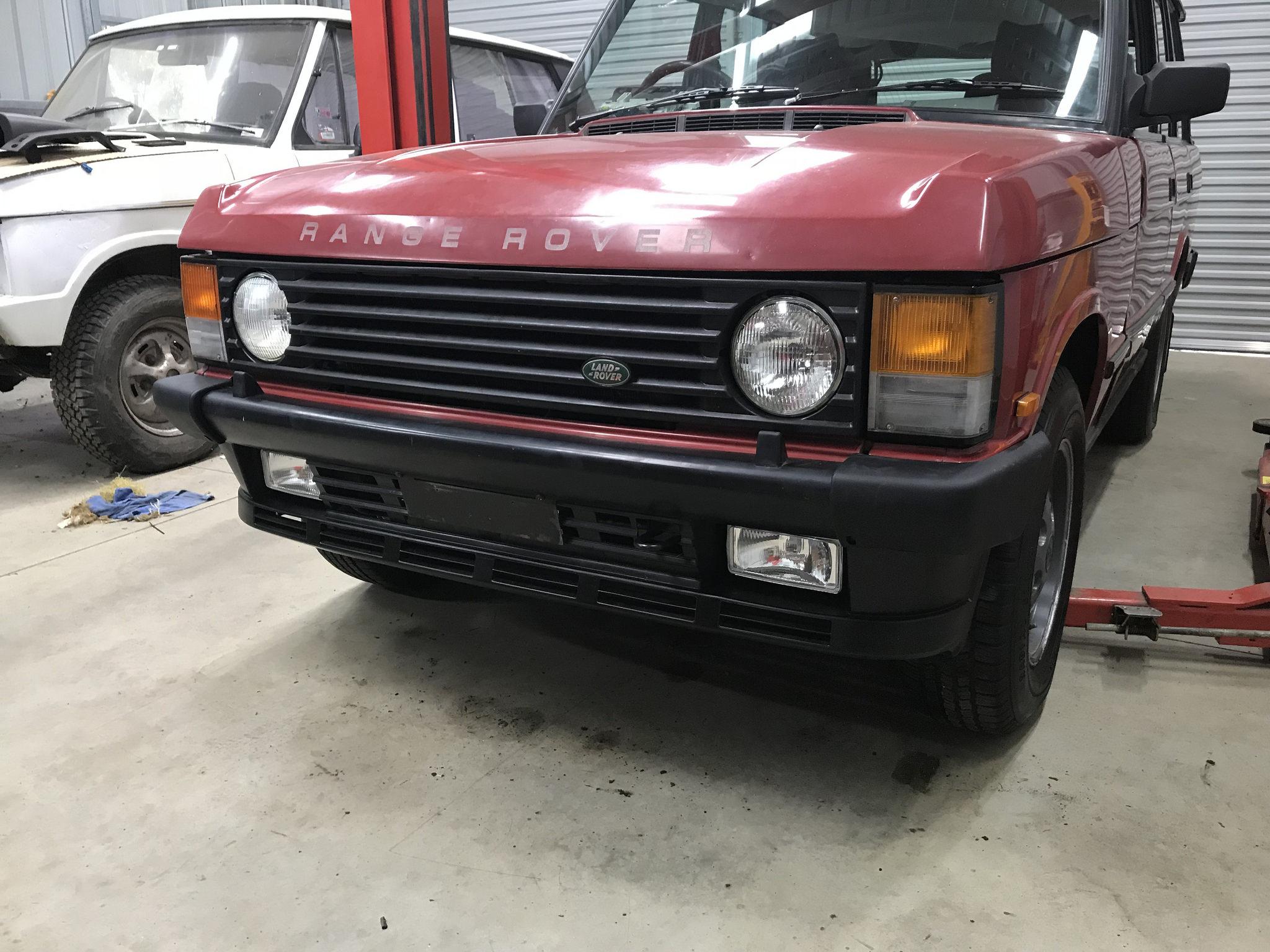

The front end back together and looking schmick.. (Apart from the dodgy drivers side head light):

IMG_2667 by Grey Ghost, on Flickr

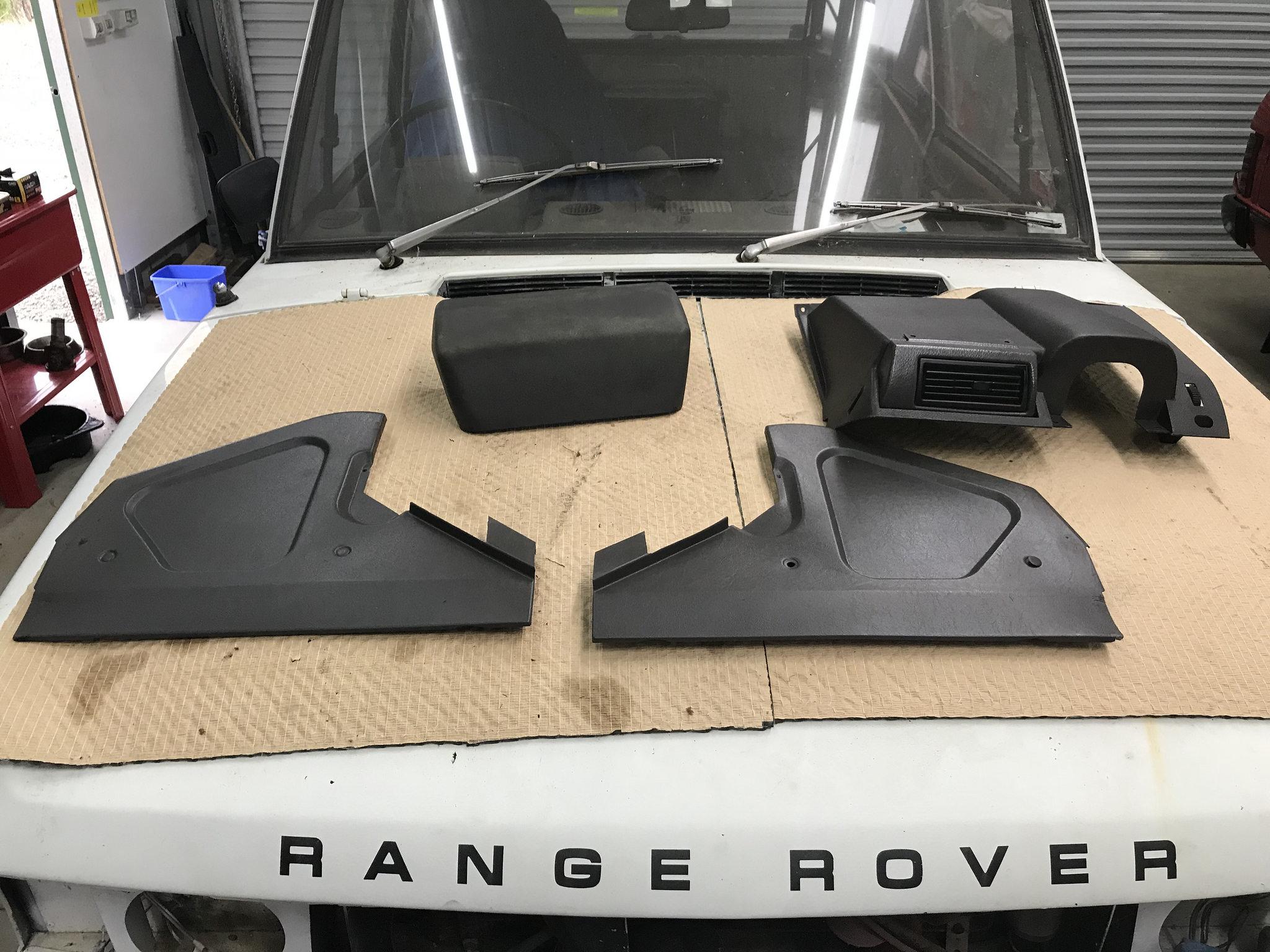

Stripped off all of these parts - while homestar was checking wiring - so gave them a good clean:

IMG_2680 by Grey Ghost, on Flickr

Removed this from behind the dash - a rats (or mouse) nest... Lot's of rat crap, and the smell was rather... Unpleasant:

IMG_2672 by Grey Ghost, on Flickr

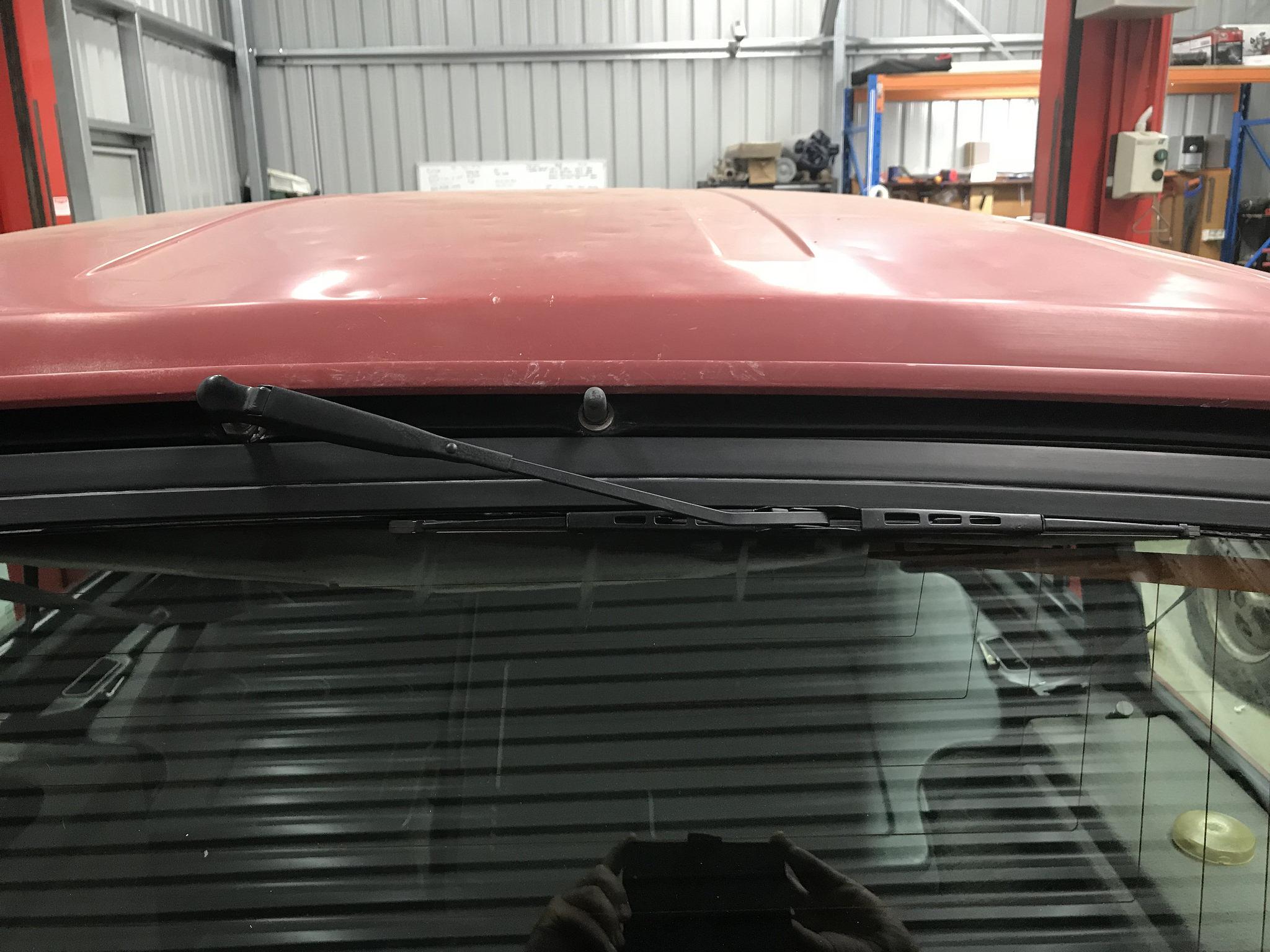

Old wiper arm installed with a new blade:

IMG_2668 by Grey Ghost, on Flickr

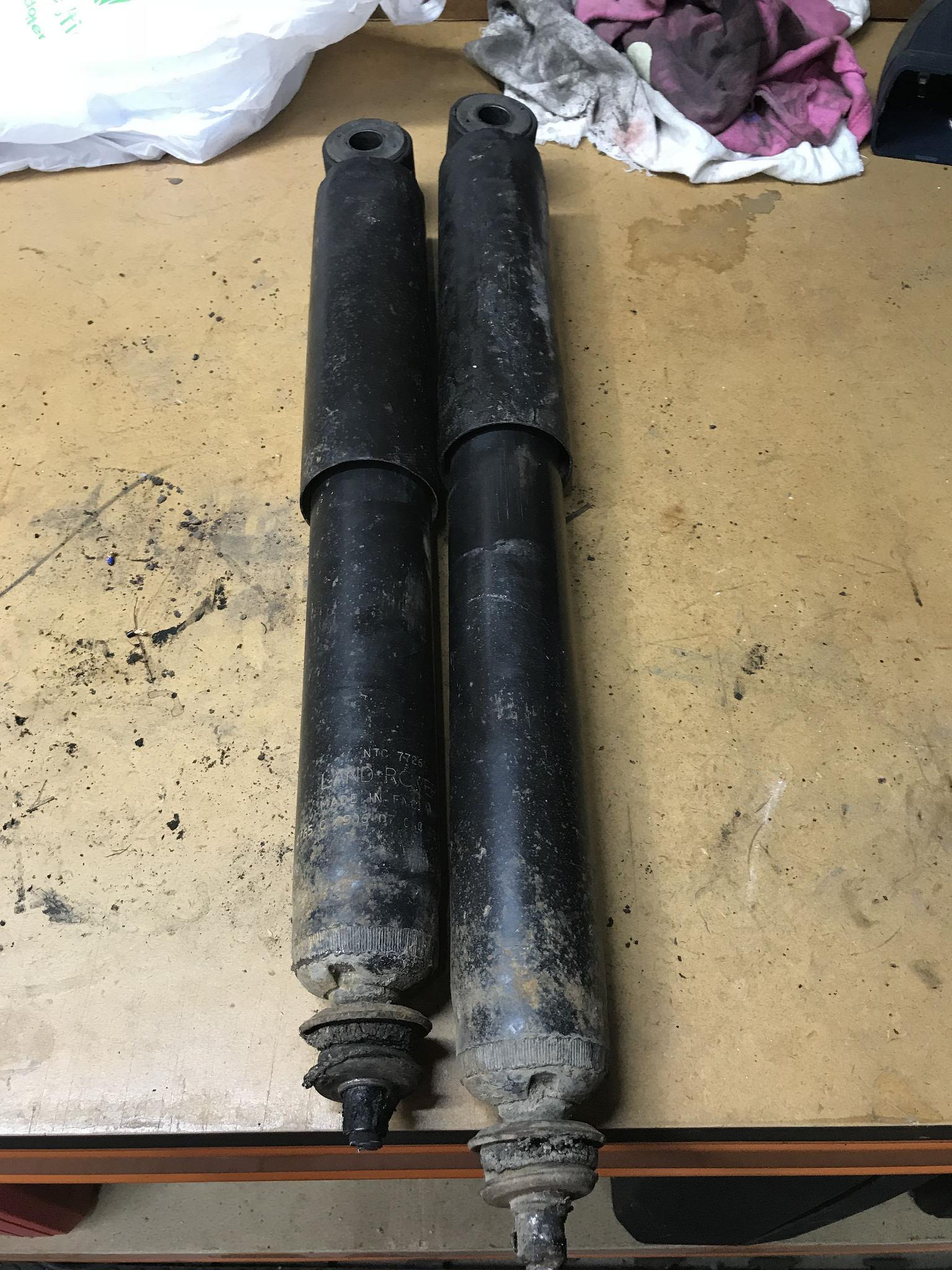

Old shocks off - thanks to Mr Grinder:

IMG_2674 by Grey Ghost, on Flickr

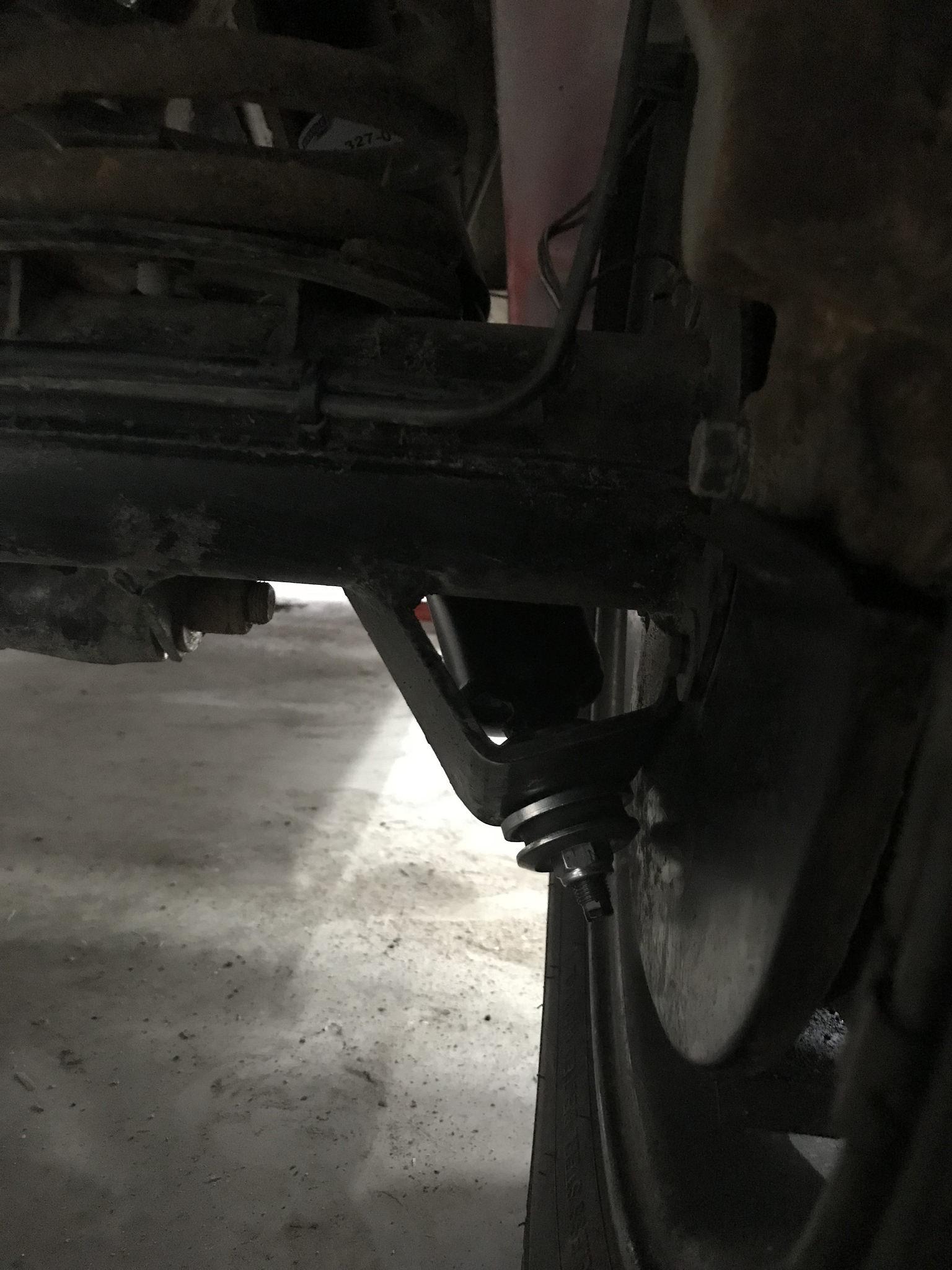

New shocks installed:

IMG_2671 by Grey Ghost, on Flickr

Last night I was working on another project, so didn't get much done (apart from the rear seat belts)..

Cheers,
GG.

Yes that looks like a sanden SD series compressor to me ( have a look on ebay for sanden sd, they should look the same ).

I did that to one of my seats belts a couple of weeks ago. It happens when you try to fold the seats back down with the seat belts in the way. The seatbelt does still work, but it doesn't look pretty!

seeya,
Shane L.
