Thread: Winch Cradle

  1. #1
    Join Date
    Sep 2015
    Location
    In the shed or 1000km from home
    Posts
    432

    Winch Cradle

    Hey folks,
    I just put a non-winch compatible bullbar on my D1 and want to know if i can get a winch cradle to site between the chassis rails to filt a winch, then just cut a slot in the bullbar for the guide and winch rope.
    Has anyone done something like this before?
    My bullbar has crush cans, but i presume that the sideways pressusre of the winch rope on it wont move it?

  2. #2
    Join Date
    Oct 2011
    Location
    Fremantle WA
    Posts
    3,506
    Yep, I have towbar receivers front and rear that my winch on cradle slots into. I also have 350A? Anderson plugs and under bonnet isolators activated from within the cab as part of my Traxide 160 kit.
    My front bar is a winch type with a custom made receiver inserted, but the principle will work for you
    Attached Images Attached Images
    MY16 D4 TDV6 - unmolested for towing "The Brick".
    MY95 RRC LSE Vogue Softdash "Bessie" from Aug 13 - with MY99 TD5 and 4HP24 transplants. Back home Aug 20 after being off road for periods totalling 3.5 years.
    SADLY SOLD MY04 D2a TD5 auto Classic and MY10 D4 2.7 both with lots of goodies.

  3. #3
    Join Date
    Mar 2012
    Location
    Melbourne
    Posts
    242
    Gavin,
    Apologies for going slightly off track. How have you set up the wiring for the winch when in use at the rear of the car? I have the traditional "winch-on-the-bulbar" setup but many the occasion when it would have been easier to pull the car out of the bog the way it went in, rather than go through it.
    Aussearcher

  4. #4
    Join Date
    Oct 2011
    Location
    Fremantle WA
    Posts
    3,506
    2 isolators and running separate 70 welding cable to front and rear 350A Anderson plugs which are attached to the respective steel bars. Obviously the winch also has an Anderson plug. I also have dual batteries using Tim's Traxide system. Make sense/
    MY16 D4 TDV6 - unmolested for towing "The Brick".
    MY95 RRC LSE Vogue Softdash "Bessie" from Aug 13 - with MY99 TD5 and 4HP24 transplants. Back home Aug 20 after being off road for periods totalling 3.5 years.
    SADLY SOLD MY04 D2a TD5 auto Classic and MY10 D4 2.7 both with lots of goodies.

  5. #5
    Join Date
    Sep 2015
    Location
    In the shed or 1000km from home
    Posts
    432
    Thanks Gavin,
    Where did you get the winch cradle that converts a winch to fit into a reese hitch? I am looking at one of those Domin8r winches.
    Thanks

  6. #6
    Join Date
    Jan 1970
    Location
    Douglas Park, NSW
    Posts
    9,334
    Just Google 'removable winch cradle' or 'portable winch mount'. There's a heap on eBay:
    Portable Winch Mount: Towing & Hauling | eBay
    Scott

  7. #7
    Join Date
    Sep 2015
    Location
    In the shed or 1000km from home
    Posts
    432
    Thanks for the info.
    So no one has used a cradle that sites between the chassis rails and then just feeds up through the bullbar? I dont really want to have to store the winch in the vehicle have to attach it to a reese hitch each time i use it.
    Thanks

  8. #8
    Join Date
    Jan 1970
    Location
    St Helena,Melbourne
    Posts
    14,573
    Quote Originally Posted by Finnius View Post
    Thanks for the info.
    So no one has used a cradle that sites between the chassis rails and then just feeds up through the bullbar? I dont really want to have to store the winch in the vehicle have to attach it to a reese hitch each time i use it.
    Thanks
    ARB airbag compatible bars use a cradle that sits between the chassis rails so that the winch is not mounted to the bar, its easy enough to get one made up.

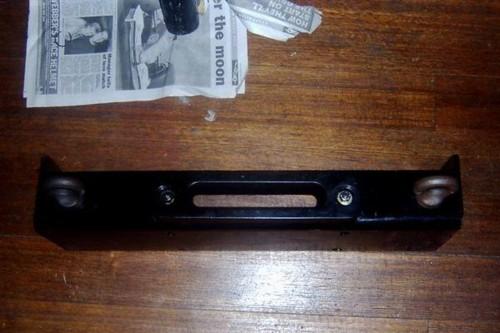

    A mate made one out of 10mm plate as a discreet winch mount for his rangie, you would then only need a slot and either a hawse or roller fairlead bolted to the bar.


    MY08 TDV6 SE D3- permagrin ooh yeah !
    98 TDI AUTO SE DISCO - gone and will be missed.
    2003 Dingo offroad camper trailer
    1998 Triumph Daytona T595
    1974 VW Kombi bus
    1958 Holden FC special sedan

  9. #9
    Join Date
    Sep 2015
    Location
    In the shed or 1000km from home
    Posts
    432
    Thanks loanrangie! That mount is almost exactly what i am after.

    Do you think i would i need two fairleads - one on the cradle and one on my bullbar at the front? Or could i get away with just the bullbar one?

  10. #10
    Join Date
    Jan 1970
    Location
    St Helena,Melbourne
    Posts
    14,573
    Quote Originally Posted by Finnius View Post
    Thanks loanrangie! That mount is almost exactly what i am after.

    Do you think i would i need two fairleads - one on the cradle and one on my bullbar at the front? Or could i get away with just the bullbar one?
    1 is enough.

    Sent from my GT-I9300 using AULRO mobile app
    MY08 TDV6 SE D3- permagrin ooh yeah !
    98 TDI AUTO SE DISCO - gone and will be missed.
    2003 Dingo offroad camper trailer
    1998 Triumph Daytona T595
    1974 VW Kombi bus
    1958 Holden FC special sedan
