Thread: Are my steering stoppers missing?

  1. 21st May 2012, 07:07 PM #1
    twr7cx
    twr7cx is offline YarnMaster Supporter
    Join Date
    Feb 2011
    Location
    Hobart, Tasmania, Australia
    Posts
    3,828
    Total Downloaded
    0

    Question Are my steering stoppers missing?

    On my truck when I turn the steering wheel full lock the tyres contact the trailing arms to the front diff. I was looking for where to adjust the steering stopers, but can't find anything. I did find a threaded hole and opposite is a ledge, is this where my stoppers should be?






    Anyone got a picture of what I am missing - is it a special Land Rover specific piece or just a bolt?
    Reply With Quote Reply With Quote
  2. 21st May 2012, 07:11 PM #2
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Yes they are missing, silly thing to remove as the CV operates on a more acute angle and will be closer to failure when under duress

    The stops are just a bolt with a long hex head, IIRC about 20mm long? I can measure/ photo some for you tomorrow and send you a pic, can you PM me your mobile number?

    JC
    Reply With Quote Reply With Quote
  3. 21st May 2012, 07:28 PM #3
    twr7cx
    twr7cx is offline YarnMaster Supporter
    Join Date
    Feb 2011
    Location
    Hobart, Tasmania, Australia
    Posts
    3,828
    Total Downloaded
    0

    Question

    Quote Originally Posted by justinc View Post
    Yes they are missing, silly thing to remove as the CV operates on a more acute angle and will be closer to failure when under duress

    The stops are just a bolt with a long hex head, IIRC about 20mm long? I can measure/ photo some for you tomorrow and send you a pic, can you PM me your mobile number?

    JC
    Thanks. Hopefully I'll be able to match them up easy enough at Nuts and Bolts Tasmania then.
    Reply With Quote Reply With Quote
  4. 21st May 2012, 07:34 PM #4
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Quote Originally Posted by twr7cx View Post
    Thanks. Hopefully I'll be able to match them up easy enough at Nuts and Bolts Tasmania then.
    Could probably use a stud and loctite an appropriate length barrel nut to it

    JC
    Reply With Quote Reply With Quote
  5. 21st May 2012, 08:03 PM #5
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,517
    Total Downloaded
    0
    they're just a long head bolt..

    find a bolt thats longer than needed, screw it in, measure out how much you need to take off take it out, cut it off wind on a nut.

    add loctite 262 to the bolt, wind it back in, add loctite to the thread and wind the nut down firm.

    from memory 21mm is the magic number for longevity and turning circle.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  6. 22nd May 2012, 03:05 AM #6
    .50's Avatar
    .50
    .50 is offline Fossicker
    Join Date
    Apr 2012
    Location
    UK
    Posts
    39
    Total Downloaded
    0

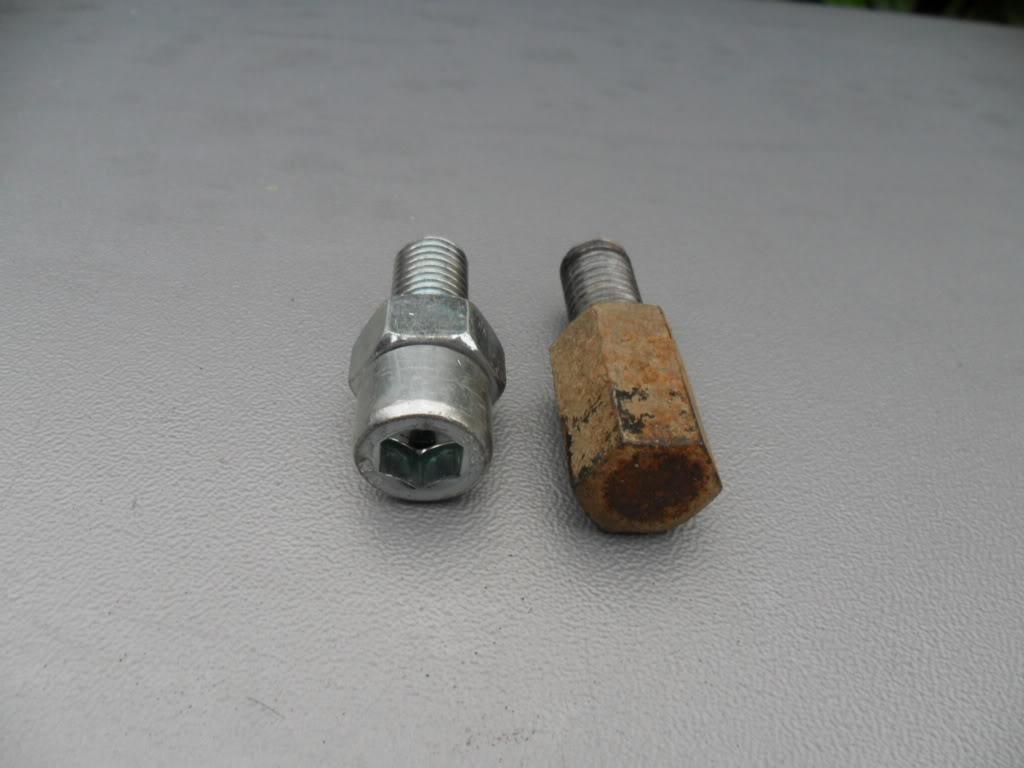

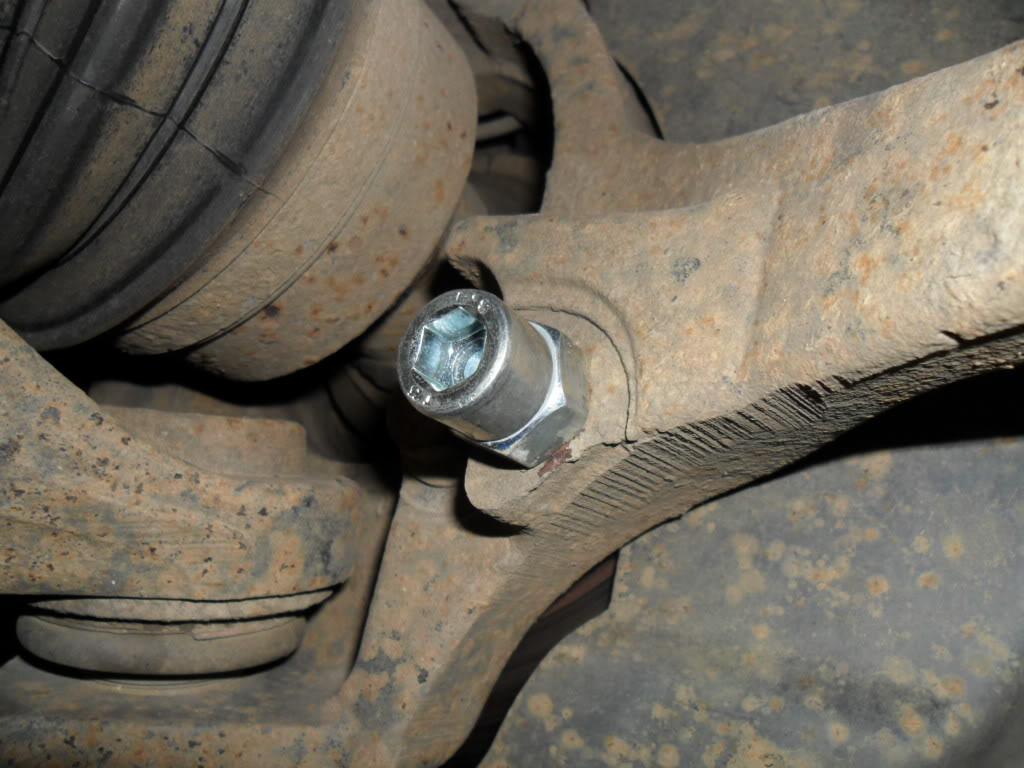

    I took out my long stops and made adjustable ones with a cap head bolt and a nut.



    As you can see the new ones are shorter than the originals.



    With my modified ones I can adjust them till I get the best turning circle without any rubbing.

    Del.
    Reply With Quote Reply With Quote
  7. 22nd May 2012, 12:11 PM #7
    Mundy
    Mundy is offline Master
    Join Date
    Aug 2008
    Location
    West Pennant Hills
    Posts
    469
    Total Downloaded
    0
    Del,
    what's the bolt size, please?

    Mundy
    Reply With Quote Reply With Quote
  8. 22nd May 2012, 04:05 PM #8
    twr7cx
    twr7cx is offline YarnMaster Supporter
    Join Date
    Feb 2011
    Location
    Hobart, Tasmania, Australia
    Posts
    3,828
    Total Downloaded
    0
    Del, can you tell me the length of the complete standard assembly - i.e. the complete length from the end of the thread to the end of the hex?
    Reply With Quote Reply With Quote
  9. 23rd May 2012, 02:54 AM #9
    .50's Avatar
    .50
    .50 is offline Fossicker
    Join Date
    Apr 2012
    Location
    UK
    Posts
    39
    Total Downloaded
    0

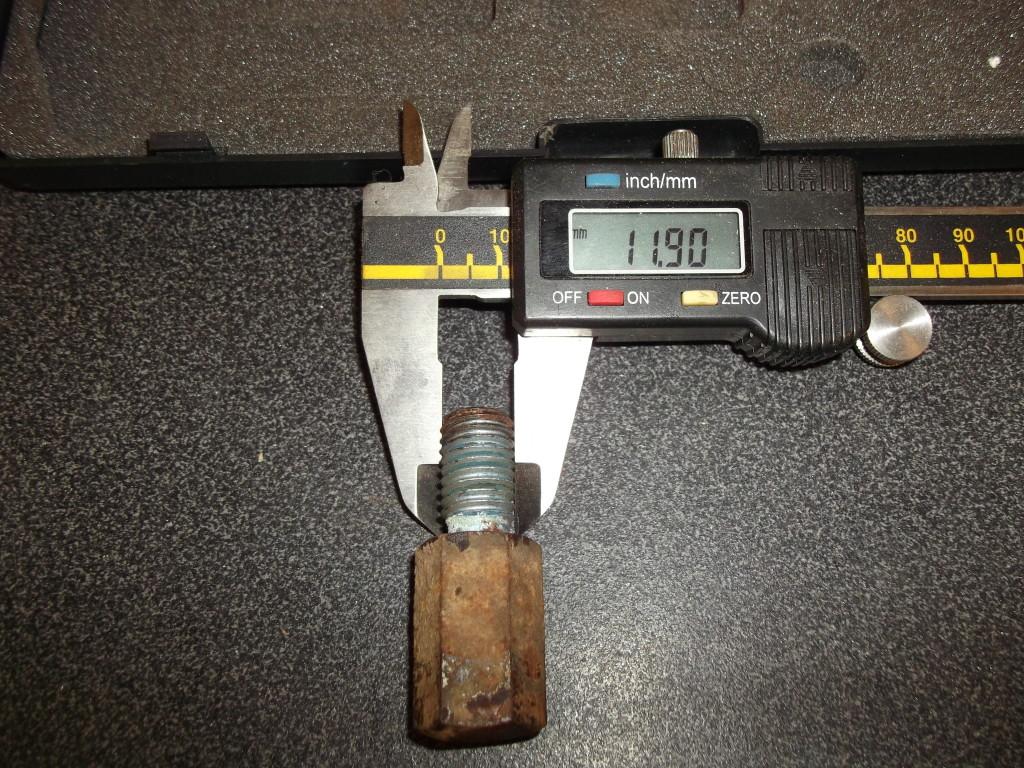

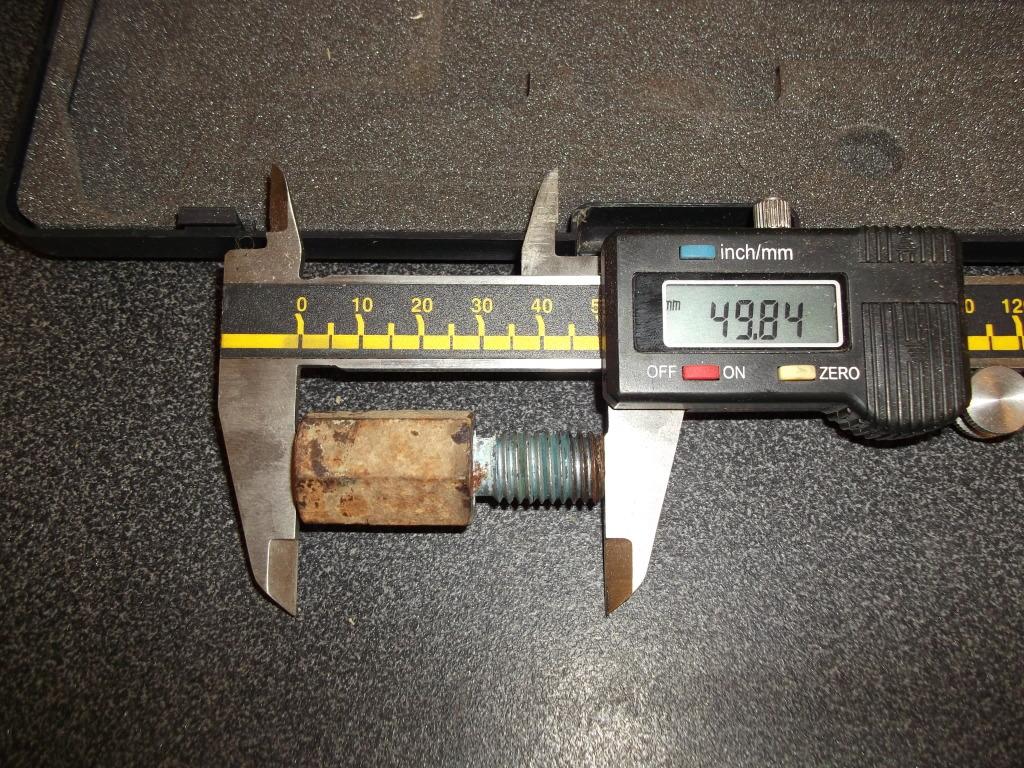

    Here yo go fella,s.

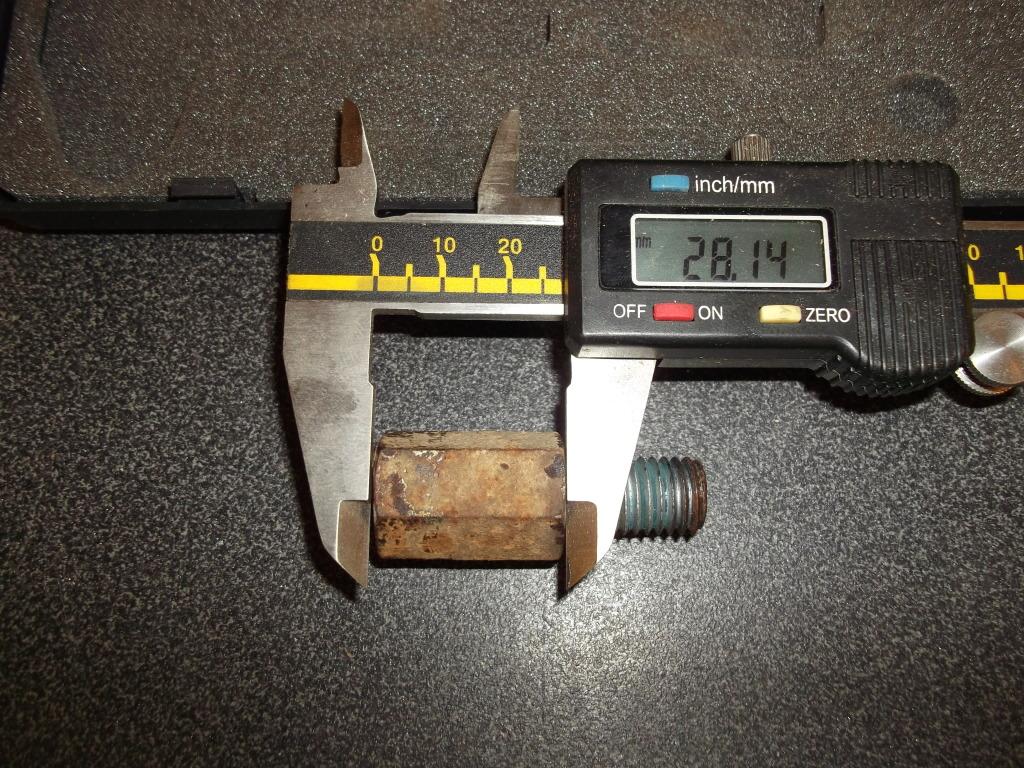

    The 28mm stops were used on vehicles that had 18" alloys.

    I think that blknight was right in saying the lentgh of the stops for the 16" wheels was 21mm.

    I have LR " Style 3 " alloys on mine with 255/70/16 BFG at,s, and my modified stops are about 21mm.

    It made a BIG difference in the turning circle when I changed them.

    Cheers.

    Del.
    Reply With Quote Reply With Quote
  10. 23rd May 2012, 06:25 AM #10
    twr7cx
    twr7cx is offline YarnMaster Supporter
    Join Date
    Feb 2011
    Location
    Hobart, Tasmania, Australia
    Posts
    3,828
    Total Downloaded
    0
    Thanks Del. I'll go and get a bolt that is 50mm long end to end then and I can cut it down if required. I can put it on a lock nut setup like yours.
