Thread: CV Joints

  1. 19th March 2018, 05:21 PM #1
    V8Ian's Avatar
    V8Ian
    V8Ian is offline Super Moderator
    Join Date
    Dec 2007
    Location
    Back down the hill.
    Posts
    29,773
    Total Downloaded
    0

    CV Joints

    Are D1 and D2 interchangeable?
    If you don't like trucks, stop buying stuff.
    http://www.aulro.com/afvb/signaturepics/sigpic20865_1.gif
    Reply With Quote Reply With Quote
  2. 19th March 2018, 05:25 PM #2
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Nope totally different beast`s
    Reply With Quote Reply With Quote
  3. 19th March 2018, 05:33 PM #3
    V8Ian's Avatar
    V8Ian
    V8Ian is offline Super Moderator
    Join Date
    Dec 2007
    Location
    Back down the hill.
    Posts
    29,773
    Total Downloaded
    0
    What about D1 and Defender of similar vintage?
    Last edited by V8Ian; 19th March 2018 at 06:00 PM.
    If you don't like trucks, stop buying stuff.
    http://www.aulro.com/afvb/signaturepics/sigpic20865_1.gif
    Reply With Quote Reply With Quote
  4. 19th March 2018, 07:29 PM #4
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Quote Originally Posted by V8Ian View Post
    What about D1 and Defender of similar vintage?
    ABS or not ?

    If you noticed your d2 has a nut on the end of the axle (cv) the deffer and d1 have a circlip on the end of the axle and a drive flange
    D2 axle end goes through the hub no drive flange
    Reply With Quote Reply With Quote
  5. 19th March 2018, 07:34 PM #5
    V8Ian's Avatar
    V8Ian
    V8Ian is offline Super Moderator
    Join Date
    Dec 2007
    Location
    Back down the hill.
    Posts
    29,773
    Total Downloaded
    0
    No ABS on my D1, I'll look at the new CVs on the weekend.
    Thanks.
    If you don't like trucks, stop buying stuff.
    http://www.aulro.com/afvb/signaturepics/sigpic20865_1.gif
    Reply With Quote Reply With Quote
  6. 19th March 2018, 07:34 PM #6
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0

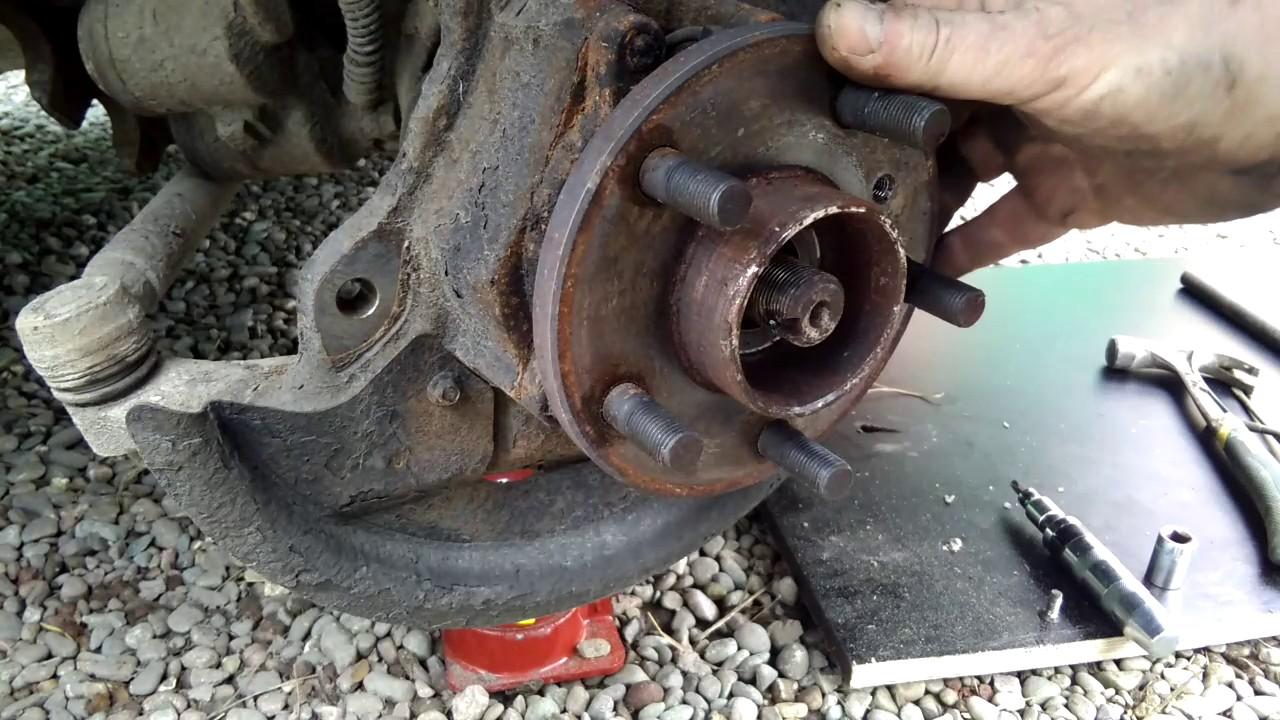

    D2 hub
    Reply With Quote Reply With Quote
  7. 19th March 2018, 07:37 PM #7
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0

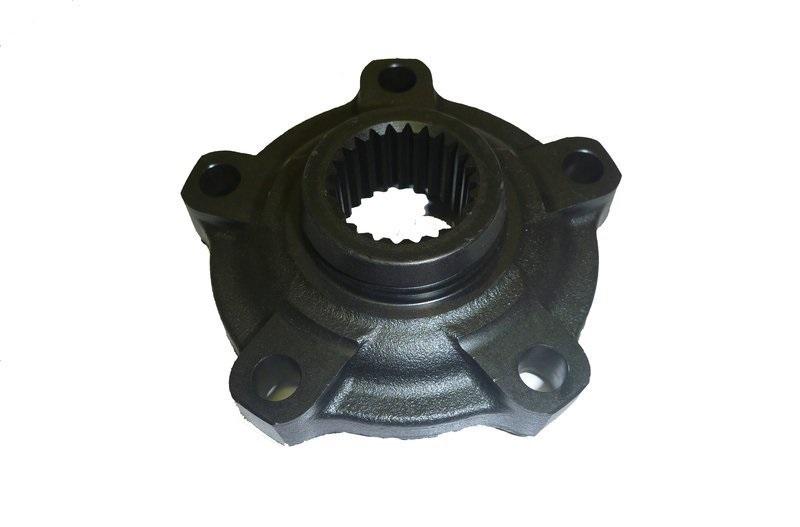

    D1 , Defender drive flange
    Reply With Quote Reply With Quote
  8. 19th March 2018, 11:21 PM #8
    shack
    shack is offline ChatterBox Supporter
    Join Date
    Jun 2013
    Location
    Universe A
    Posts
    2,645
    Total Downloaded
    0
    I've always wondered what the benefit of the drive flange/splined shaft arrangement vs the d2 setup is? If any....
    Just seems like another place to wear
    Reply With Quote Reply With Quote
  9. 20th March 2018, 08:54 AM #9
    strangy
    strangy is offline ChatterBox
    Join Date
    May 2007
    Location
    Australia
    Posts
    2,827
    Total Downloaded
    0

    CV Joints

    Quote Originally Posted by V8Ian View Post
    What about D1 and Defender of similar vintage?
    D1 and Defender CV are interchangeable.
    Reply With Quote Reply With Quote
  10. 20th March 2018, 09:04 AM #10
    donh54's Avatar
    donh54
    donh54 is offline Wizard Subscriber
    Join Date
    Mar 2007
    Location
    Warwick Qld
    Posts
    1,977
    Total Downloaded
    0
    A very large percentage of underbody parts are common between D1 and Defender
    -----
    You have the right to remain silent. Anything you say will be misquoted, then used against you.
    -----

    1999 Disco TD5 ("Bluey")
    1996 Disco 300 TDi ("Slo-Mo")
    1995 P38A 4.6 HSE ("The Limo")
    1966 No 5 Trailer (ARN 173 075) soon to be camper
    -----
    Reply With Quote Reply With Quote
