Internal LED upgrade

So here's something I learnt after buying a couple of extra ones ;)

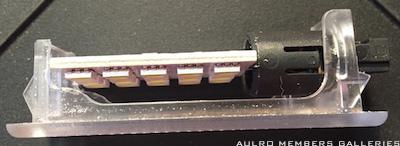

I put a 15 LED panel style bulb in the boot light thinking it would be better.
https://www.aulro.com/afvb/images/im...016/05/871.jpg
Required a bit of dremmeling to fit (left hand side of photo).
This replaced one of the 6 LED one-sided ones I'd put there already.

But in fact 6 x 5630 LEDs is equivalent to 15 x 5050 LEDs
3528 vs 5050 vs 5630 LED SMD Diodes
Identified by shape; 5050 are square and 5630 are rectangular.

No big deal as I'll be putting the 6 LED one elsewhere but it's definitely worth looking for the 5630 LED type. Much more light per LED.

Scott

I've been looking for just that Scott. So where did you get the 6x5630 panel from please.

Quote:

---

Originally Posted by The Fridster

I've been looking for just that Scott. So where did you get the 6x5630 panel from please.

---

hids4u.co.uk
501 Can-bus Super Bright 180 Degree 6 LED bulbs

Scott

Thanks Scott.

Quote:

---

Originally Posted by LRD414

hids4u.co.uk
501 Can-bus Super Bright 180 Degree 6 LED bulbs

Scott

---

Nice one Scott! The boot light was the only one where I thought i'd like a bit more juice as I have a fridge right below it. I'll be grabbing one of these.

Quote:

---

Originally Posted by Ben_Vapid

The boot light was the only one where I thought i'd like a bit more juice as I have a fridge right below it.

---

Check out this thread too for extra tailgate lighting ideas
http://www.aulro.com/afvb/d3-d4-rrs/...-lighting.html

I reckon 9 would be ideal for the boot one but haven't found a 9 x 5630. The 15 x 5050 is very cheap and puts out the same light as the 6 x 5630.

Scott

Quote:

---

Originally Posted by Grentarc

Check out this thread too for extra tailgate lighting ideas
http://www.aulro.com/afvb/d3-d4-rrs/...-lighting.html

---

Nice, yeah i've seen it. I have 12v sockets at the back so just plug in an LED strip when i'm camped up, it's just the quick uses i'm looking to solve. Love Scotts work there too, it's on the project list for another day ;)

Quote:

---

Originally Posted by LRD414

I reckon 9 would be ideal for the boot one but haven't found a 9 x 5630.
Scott

---

What about this one Scott? 2X 12V T10 5630 9SMD LED White CAR Canbus Error Free Replacement Light Bulb | eBay

I'll order and post up how well it fits and works...

David

Red Map reading lights - what an excellent idea [emoji48]
Wonder who did that [emoji41][emoji41][emoji41]

Then of course there is this..

https://www.aulro.com/afvb/images/im...016/05/832.jpg
