Thread: reverse light from white plug on rear

  1. 6th May 2016, 10:43 AM #1
    Marty110
    Marty110 is offline Master
    Join Date
    Feb 2009
    Location
    Mt Barker, SA
    Posts
    517
    Total Downloaded
    0

    reverse light from white plug on rear

    Hi, I'm wanting a better reverse light on the back of my RRS and was thinking - the white trailer plug should have a reverse wire and a power wire so why cant I use the reverse wire to the switch input on a relay and the power wire to supply power? All close and handy. So my question is - does anyone know the colour code for these wires and where they could be accessed in the rear of the car? How far out can you get the white plug when you take the screws out if accessing the back of the plug is the easiest option? I know I'm lazy and could just take the plug off and see but if someone here has easy answers....... Thanks in advance.
    Reply With Quote Reply With Quote
  2. 7th May 2016, 06:24 AM #2
    Tombie Guest
    The reverse wire there is sufficient to run a reasonable light without additional relays.

    Have you upgraded your factory bulbs to LEDs first? Makes a big difference.
    Reply With Quote Reply With Quote
  3. 7th May 2016, 12:18 PM #3
    Marty110
    Marty110 is offline Master
    Join Date
    Feb 2009
    Location
    Mt Barker, SA
    Posts
    517
    Total Downloaded
    0
    Quote Originally Posted by Tombie View Post
    The reverse wire there is sufficient to run a reasonable light without additional relays.

    Have you upgraded your factory bulbs to LEDs first? Makes a big difference.
    Thanks Tombie, haven't done the led upgrade yet but on the cards for sure. So you reckon I could run a 15w led just from the reverse wire? Do you know what colour the reverse wire is? Thanks again
    Reply With Quote Reply With Quote
  4. 7th May 2016, 12:54 PM #4
    Meken's Avatar
    Meken
    Meken is offline Master
    Join Date
    Sep 2013
    Location
    Brisbane
    Posts
    807
    Total Downloaded
    0
    If you google trailer plug wiring you should find it or look at the electric trailer brake fitting sticky post by sneigy - I'm sure there's a wiring diagram in that post
    Reply With Quote Reply With Quote
  5. 7th May 2016, 03:32 PM #5
    BMKal's Avatar
    BMKal
    BMKal is offline ForumSage Gold Subscriber
    Join Date
    Mar 2007
    Location
    Kalgoorlie WA
    Posts
    5,546
    Total Downloaded
    0

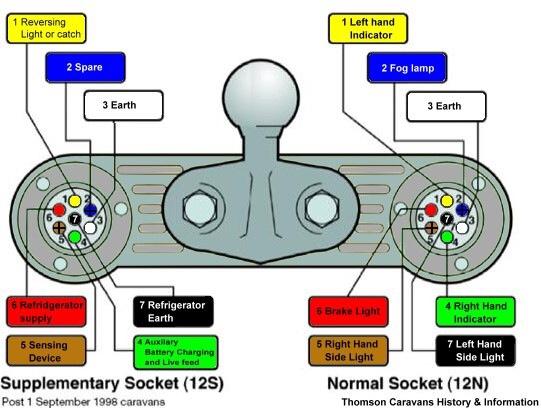

    Pin No. 1 (very top pin) on a 12S socket is for reversing light. See link below for standard wiring diagrams for 12S and 12N sockets.

    Wiring Diagrams for Sockets
    Cheers .........

    BMKAL

    Reply With Quote Reply With Quote
  6. 7th May 2016, 06:37 PM #6
    Tombie Guest
    Reply With Quote Reply With Quote
  7. 7th May 2016, 10:15 PM #7
    Marty110
    Marty110 is offline Master
    Join Date
    Feb 2009
    Location
    Mt Barker, SA
    Posts
    517
    Total Downloaded
    0
    thanks Tombie, BMKal, thats just what I needed.
