Reply With Quoteyour misfortune was my inspiration.Couldnt be naffed buying one that didnt fit.
TopicToaster
its amazing what you can do when your bored!not everyone is graced with your ability to manufacture goodies as you do
still good that steve's had a go! look at mine! i paid for it (cos i got lazy) fitted it, didnt fit properly, put up with it for awhile, got bored one day and cut it up and made it how it should have been
cheers phil
ChatterBox
Subscriberyour misfortune was my inspiration.
The Ugly Duckling-
03 Defender Xtreme, now reduced by 30%.
a master of invisibleness.
TopicToaster
im deffinatly happy with it now! it is a really good design, simple light and for what it is, bloody strong!
the main tube on mine is made from exhaust tube!
oh, and it opens with the rear door.
the top mount isnt showing any problems at all and i doubt it ever will. but do watch out in reguards to the bottom mount. on mine ive made up a large spreader plate to spread the load. with the small orignal one it was colapsing my cross member....
cheers phil
ChatterBox
Subscriberwere the mounting bolts for your lower mount thru both sides of the crossmember? I have put a spreader plate on the forward facing face of the CM and bolted thru both sides with 4x10mm, do you reckon I should fit crush tubes inside as well? Also fitted a backing plate of 3mm on the top mount, when its finished it will open with the door as well, my main tube is 5mm thick wall, so not to worried about it distorting.Originally Posted by discowhite
im deffinatly happy with it now! it is a really good design, simple light and for what it is, bloody strong!
the main tube on mine is made from exhaust tube!
oh, and it opens with the rear door.
the top mount isnt showing any problems at all and i doubt it ever will. but do watch out in reguards to the bottom mount. on mine ive made up a large spreader plate to spread the load. with the small orignal one it was colapsing my cross member....
cheers phil
The Ugly Duckling-
03 Defender Xtreme, now reduced by 30%.
a master of invisibleness.
ChatterBox
Subscriberwell here is the finished product minus paint, will post some more of it disassembled when I paint it.

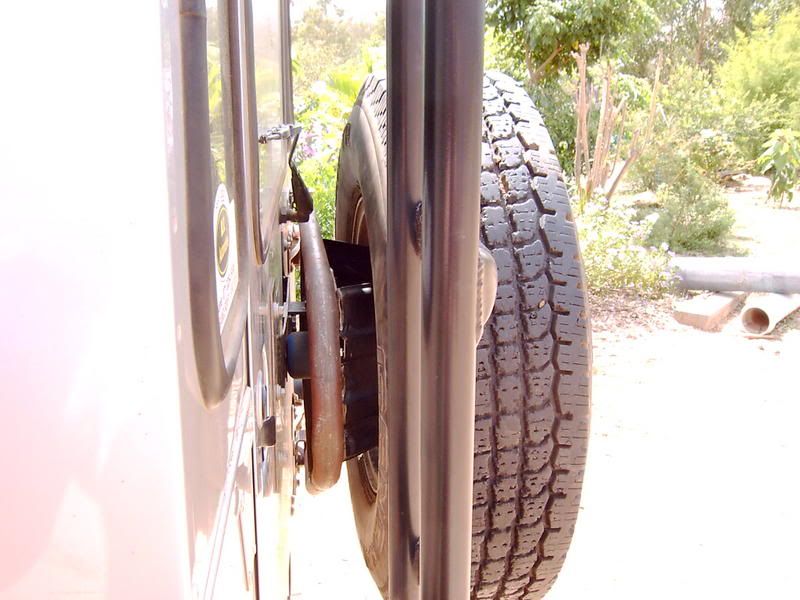

http://i28.photobucket.com/albums/c2...6/RIMG0250.jpg
Closed

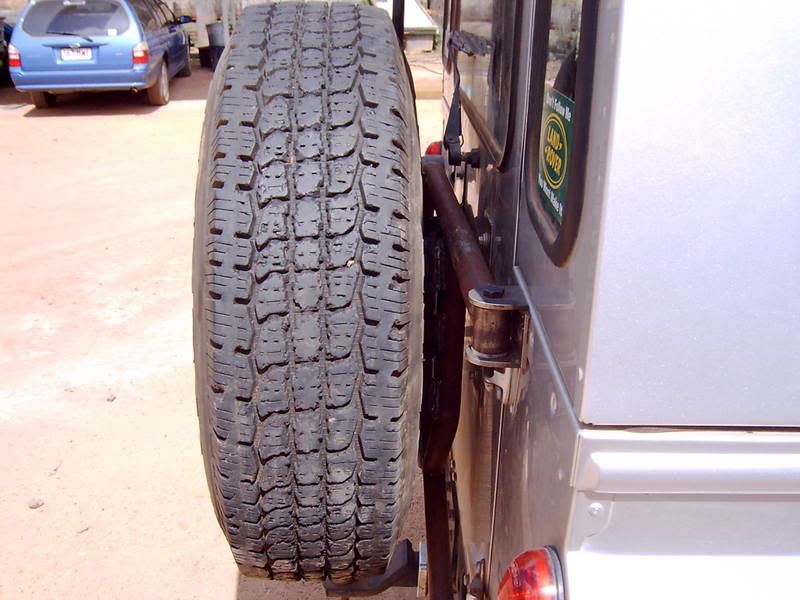

http://i28.photobucket.com/albums/c2...6/RIMG0252.jpg
open

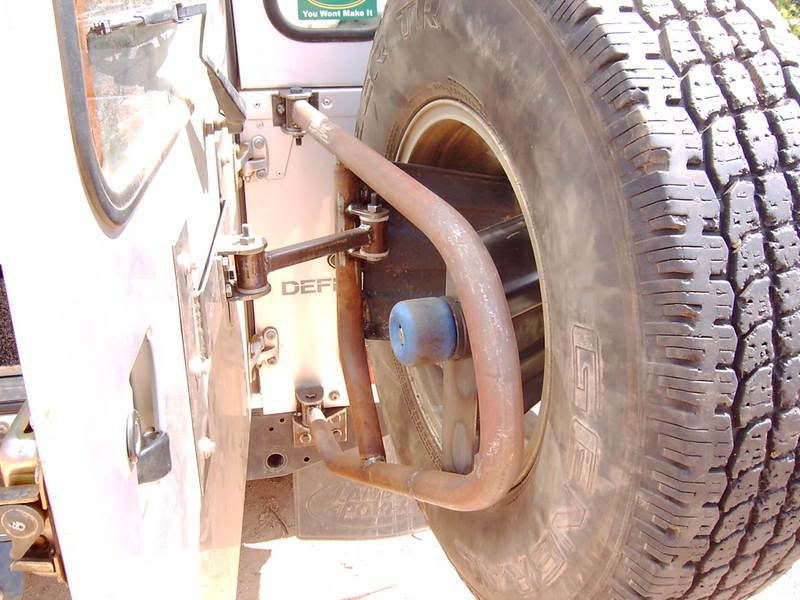

http://i28.photobucket.com/albums/c2...6/RIMG0251.jpg
works a treat, am very happy with it, and the price.
The Ugly Duckling-
03 Defender Xtreme, now reduced by 30%.
a master of invisibleness.
TopicToaster
yep, they go all the way through. i used 2x 1/2''x4''? HT bolts and 1x 3/8x1'' this one dosent go through.were the mounting bolts for your lower mount thru both sides of the crossmember
ide use crush tubes, other wise to have to tighten up the bolts every now and then.
cheers phil
TopicToaster
dose the kid know that you stole his stopper from his roller skates??
ChatterBox
Subscribervery observant,
The Ugly Duckling-
03 Defender Xtreme, now reduced by 30%.
a master of invisibleness.
RoverLord
Nice work...
Did you know that the space inside your original carrier mount ( the bit you welded to the pipework) is the right size for one of the long skinny 1.5kg gas bottles and a small compressor?
Dave
"In a Landrover the other vehicle is your crumple zone."
For spelling call Rogets, for mechanicing call me.
Fozzy, 2.25D SIII Ex DCA Ute
TdiautoManual d1 (gave it to the Mupion)
Archaeoptersix 1990 6x6 dual cab(This things staying)
If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
If you think you're in front on the deal, pay it forwards.
YarnMaster
Top work Steve! It looks really great. What about getting it hot dipped?
cheers Chazza
