Thread: Defender wheel carrier DIY

  1. 15th January 2007, 04:19 PM #1
    crump's Avatar
    crump
    crump is offline ChatterBox Subscriber
    Join Date
    Jan 1970
    Location
    Eidsvold QLD
    Posts
    2,691
    Total Downloaded
    0

    Defender wheel carrier DIY

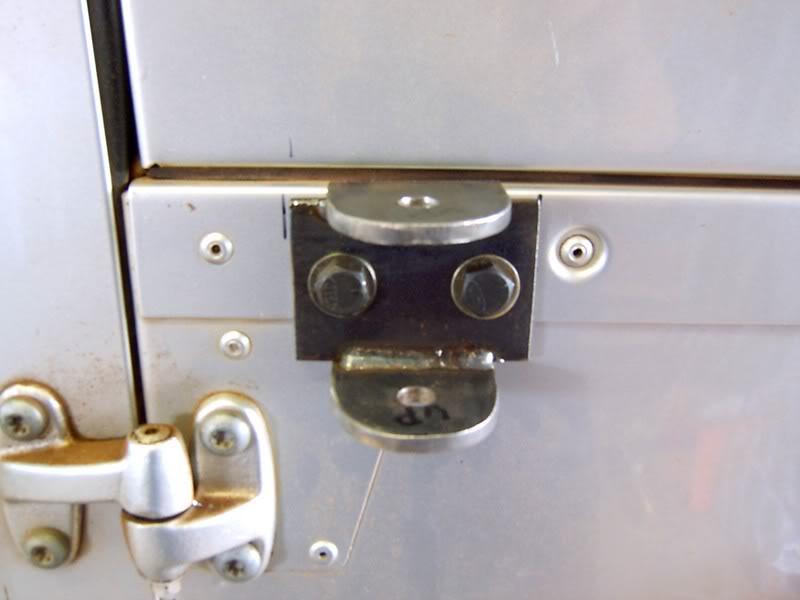

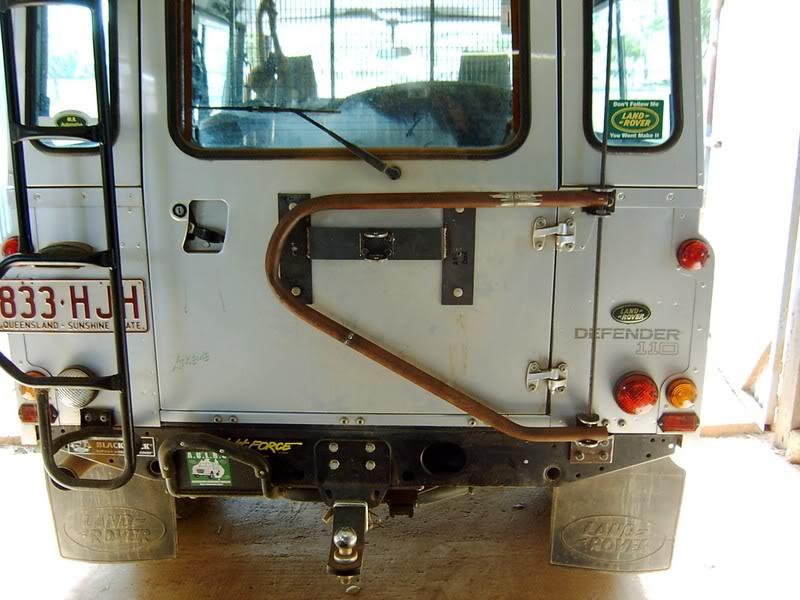

    got to work on it over the weekend for the upcoming Alice trip, progress so far.Going to cut down the original mount plate and weld it to a plate attached to the pipe to carry the wheel, getting a mate to lathe up some Teflon bushes for the pivots and use small sections of pipe as sleeves over them.Total cost for all materials was $150, the piece of Teflon rod was $80 itself.All the mounts are cut and shaped with a 4" angle grinder, the only thing I used thats not a home handyman item was the pipe bender(borrowed from work). Should have it finished by the end of the week, will post more pics then.PS something went wrong with the link in the middle.


    http://i28.photobucket.com/albums/c239/Weem6/WC2.jpg't=1168841754

    The Ugly Duckling-
    03 Defender Xtreme, now reduced by 30%.


    a master of invisibleness.
    Reply With Quote Reply With Quote
  2. 15th January 2007, 04:24 PM #2
    BigJon's Avatar
    BigJon
    BigJon is offline ForumSage
    Join Date
    Jan 1970
    Location
    Adelaide - Torrens Park
    Posts
    7,291
    Total Downloaded
    0
    Looking very good there mate.
    Reply With Quote Reply With Quote
  3. 15th January 2007, 04:39 PM #3
    discowhite's Avatar
    discowhite
    discowhite is offline TopicToaster
    Join Date
    Jan 1970
    Location
    Padstow NSW
    Posts
    4,501
    Total Downloaded
    0
    who taught you to bend pipe!!!

    next time weld a plate one one end, pack it full of sand and weld another plate on the other end!
    this will stop the pipe from collapsing/kinking like it has

    nylon? the white stuff?? lubron would have been a better choice, its harder wearing and self lubricating

    apart from that looks good.

    cheers phil
    Reply With Quote Reply With Quote
  4. 15th January 2007, 04:46 PM #4
    crump's Avatar
    crump
    crump is offline ChatterBox Subscriber
    Join Date
    Jan 1970
    Location
    Eidsvold QLD
    Posts
    2,691
    Total Downloaded
    0
    Quote Originally Posted by discowhite
    who taught you to bend pipe!!!

    next time weld a plate one one end, pack it full of sand and weld another plate on the other end!
    this will stop the pipe from collapsing/kinking like it has

    nylon? the white stuff?? lubron would have been a better choice, its harder wearing and self lubricating

    apart from that looks good.

    cheers phil
    picky, picky, the kink looks worse in the pic then it is, would have ditched it otherwise, but thanks for the tip."Who taught me to bend pipe?"
    The instructions on the bender of course!
    The Ugly Duckling-
    03 Defender Xtreme, now reduced by 30%.


    a master of invisibleness.
    Reply With Quote Reply With Quote
  5. 15th January 2007, 04:47 PM #5
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Quote Originally Posted by discowhite
    who taught you to bend pipe!!!

    next time weld a plate one one end, pack it full of sand and weld another plate on the other end!
    this will stop the pipe from collapsing/kinking like it has

    nylon? the white stuff?? lubron would have been a better choice, its harder wearing and self lubricating

    apart from that looks good.

    cheers phil
    the advice is good but hey thats a bloody good job for a first off attempt
    im sure there will be a few mods along the way

    not everyone is graced with your ability to manufacture goodies as you do
    Reply With Quote Reply With Quote
  6. 15th January 2007, 05:27 PM #6
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    Nice but I reckon it needs a vertical brace on it near the hinges or the weight and vibration is going to play merry hell on that top.hinge.

    You might also want to consider pulling the top hinge and making a rubber gasket out of old inner tube, floor mat or soft conveyer rubber dont make the holes for the bolts full size let it grab at them a little then when you put it back together put some aluminium panel washers on the inside (you may need to drill these out or make em custom)

    But not a bad job, hows the dynamic movement with the door opening go?

    and if you get enthusiastic, if you cut and paste it just before the hinges put a flat plate in there those type of wheel carriers make excelent air tanks.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  7. 15th January 2007, 05:33 PM #7
    spudboy's Avatar
    spudboy
    spudboy is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Adelaide Hills - SA
    Posts
    12,486
    Total Downloaded
    0
    DiscoWhite - What's Lubron? And where do you get it?
    Thanks
    Reply With Quote Reply With Quote
  8. 15th January 2007, 05:38 PM #8
    loanrangie's Avatar
    loanrangie
    loanrangie is offline LordRover Subscriber
    Join Date
    Jan 1970
    Location
    St Helena,Melbourne
    Posts
    16,770
    Total Downloaded
    1.13 MB
    You can also use carbon impregnated nylon, cant remember the name but it maybe this lubron stuff.
    MY08 TDV6 SE D3- permagrin ooh yeah
    2004 Jayco Freedom tin tent
    1998 Triumph Daytona T595
    1974 VW Kombi bus
    1958 Holden FC special sedan
    Reply With Quote Reply With Quote
  9. 15th January 2007, 06:01 PM #9
    crump's Avatar
    crump
    crump is offline ChatterBox Subscriber
    Join Date
    Jan 1970
    Location
    Eidsvold QLD
    Posts
    2,691
    Total Downloaded
    0
    Quote Originally Posted by Blknight.aus
    Nice but I reckon it needs a vertical brace on it near the hinges or the weight and vibration is going to play merry hell on that top.hinge.

    You might also want to consider pulling the top hinge and making a rubber gasket out of old inner tube, floor mat or soft conveyer rubber dont make the holes for the bolts full size let it grab at them a little then when you put it back together put some aluminium panel washers on the inside (you may need to drill these out or make em custom)

    But not a bad job, hows the dynamic movement with the door opening go?

    and if you get enthusiastic, if you cut and paste it just before the hinges put a flat plate in there those type of wheel carriers make excelent air tanks.
    Its got one just havnt taken the pic yet, was just showing the ongoing as I hate uploading pics.
    The Ugly Duckling-
    03 Defender Xtreme, now reduced by 30%.


    a master of invisibleness.
    Reply With Quote Reply With Quote
  10. 16th January 2007, 03:26 PM #10
    discowhite's Avatar
    discowhite
    discowhite is offline TopicToaster
    Join Date
    Jan 1970
    Location
    Padstow NSW
    Posts
    4,501
    Total Downloaded
    0
    What's Lubron? And where do you get it?
    bearing shops stock it, like CBC etc.
    or engineering workshops. its fairly common if you know where to look

    cheers phil
    Reply With Quote Reply With Quote
