MEET Harry Highback

**banjo** · 17th January 2013, 06:52 PM

Originally Posted by jakeslouw

Wouldn't it have been better to weld a piece of flat plate against the side of the chassis before doing the mounts?

Not sure.The standard ones are welded on the same way so i did it the same as original.

**banjo** · 17th January 2013, 06:57 PM

Ok engine is back in went in quiet easy so was happy about that..

I need to cut off the bumpstop bracket off the chassis once i do that i'll bend the bit that bolts to it so that its up on the side of the chassis & weld a nut in there so the bumpstop bolt can go into there..

**Landy Smurf** · 17th January 2013, 08:02 PM

good work, It is good to see some progress on him

**Landy Smurf** · 17th January 2013, 08:48 PM

what is next on the list once you have finished with the engine?

**wpalmo** · 17th January 2013, 11:51 PM

Hi Banjo,

I have taken some photo's of the radiator mounts for my Stage One but am having difficulty uploading them to my Flickr account. I will have another go tomorrow morning and see if the images will upload. Looks like you did a fair bit today.

Regards Warrick.

**jerryd** · 18th January 2013, 12:29 AM

Looking good Jason

I'm getting close to starting my 300 tdi conversion, just can't decide which gearbox to use

I'm going to put the defender power steering in too

**wpalmo** · 18th January 2013, 05:49 AM

Images uploaded. Hope they are of use.

Regards Warrick.

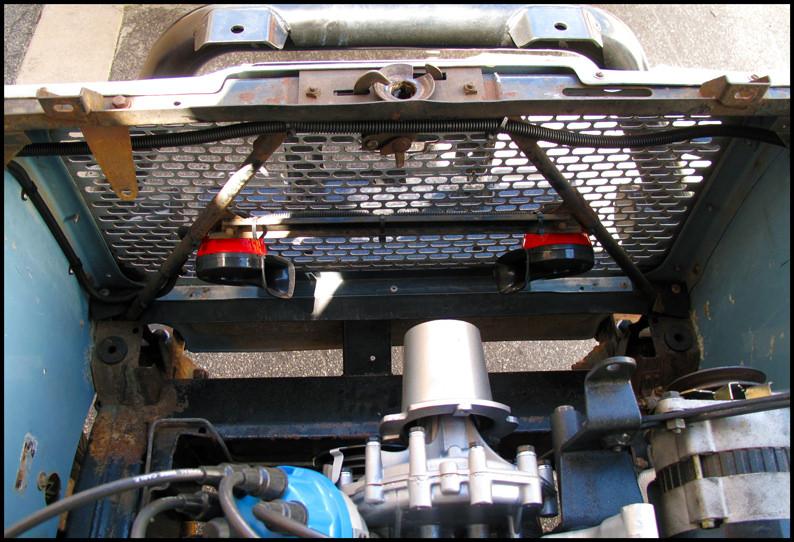

Bottom-Radiator-Mounts by wpalmo, on Flickr

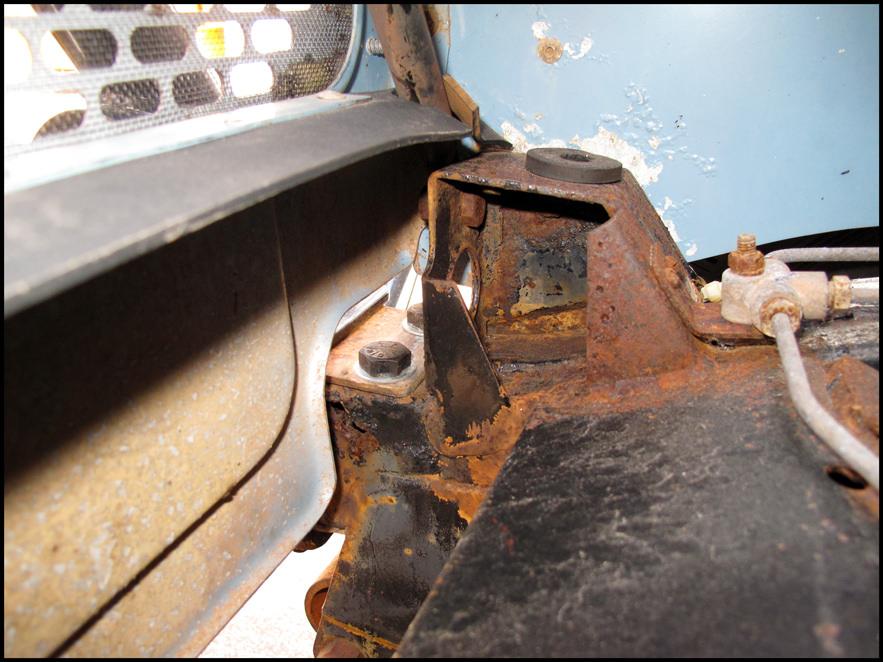

Right-Hand-Bottom-Radiator-Mount by wpalmo, on Flickr

Right-Hand-Bottom-Radiator-Mount-2 by wpalmo, on Flickr

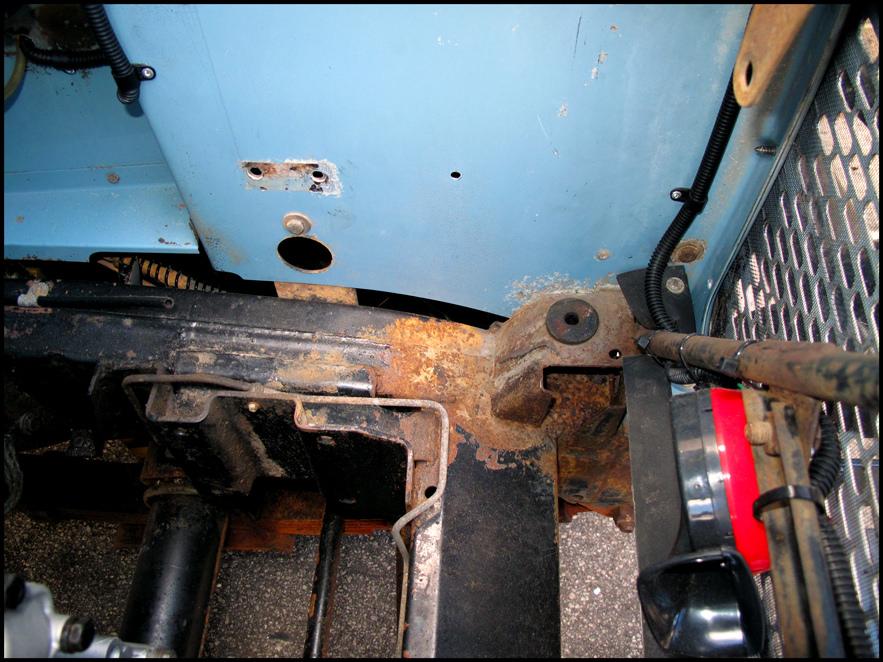

Left-Hand-Bottom-Radiator-Mount by wpalmo, on Flickr

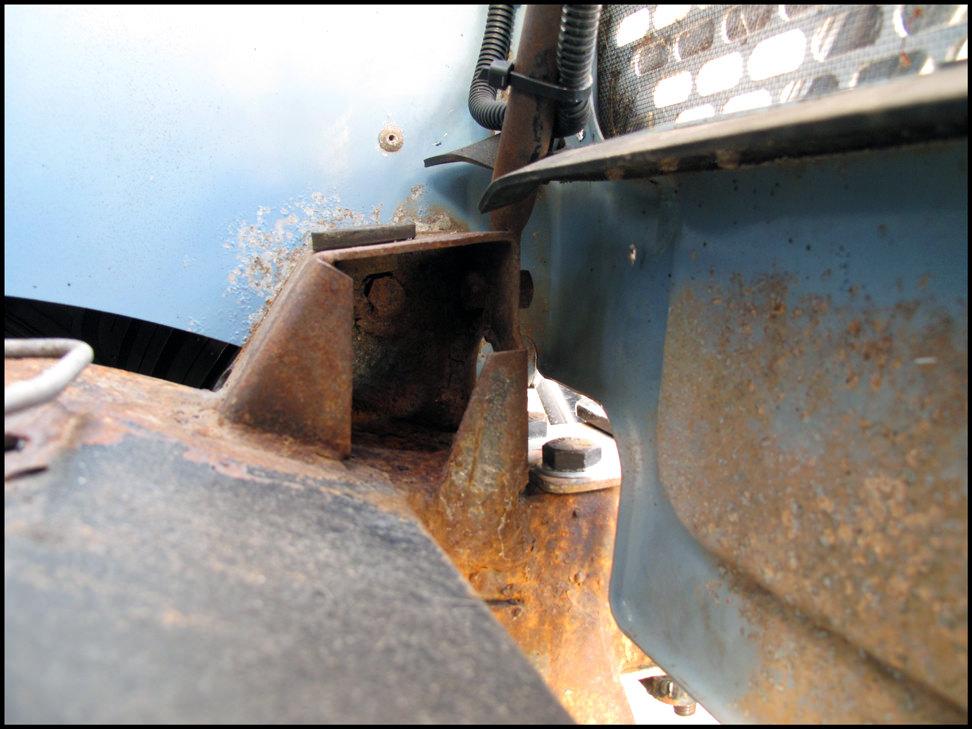

Left-Hand-Bottom-Radiator-Mount-2 by wpalmo, on Flickr

**debruiser** · 18th January 2013, 06:22 AM

Nice work! I wish I was game to weld engine mounts

What will happen when you go for a road worthy/rego? Will they want engineering certs on that?

I noticed in your photos that the steering relay (through the front crossmember) is missing! Did you weld that up? ? ? Are you not going to steer this one?

**banjo** · 18th January 2013, 06:55 AM

Originally Posted by debruiser

Nice work! I wish I was game to weld engine mounts

What will happen when you go for a road worthy/rego? Will they want engineering certs on that?

I noticed in your photos that the steering relay (through the front crossmember) is missing! Did you weld that up? ? ? Are you not going to steer this one?

Yeah it all has to be engineered . the mounts the engine the gearbox the seats the wheels the power steering..

Yep i cut the relay out cause i put power steering on all mine using a toyota 60series power steering box..Go back in this thread & you'll see how i cut it out & got it ready for the steering box..My Green one has it done aswell..One handed parking even in a crowded carpark

**banjo** · 18th January 2013, 06:57 AM

Thanks Warrick thats excactly what i needed..I was pretty sure the radiator sat in the top of those mounts..Does anyone know if it is possable to buy these mounts anywhere or am i going to have to make them..
