Thread: Meet Vincent the Stage 1 v8!

One completely rebuilt LT95 back where it belongs


New rear main oil seal and sump gasket. Man I hope I put the clutch back together correctly, as I don't want to take that thing back out any time soon

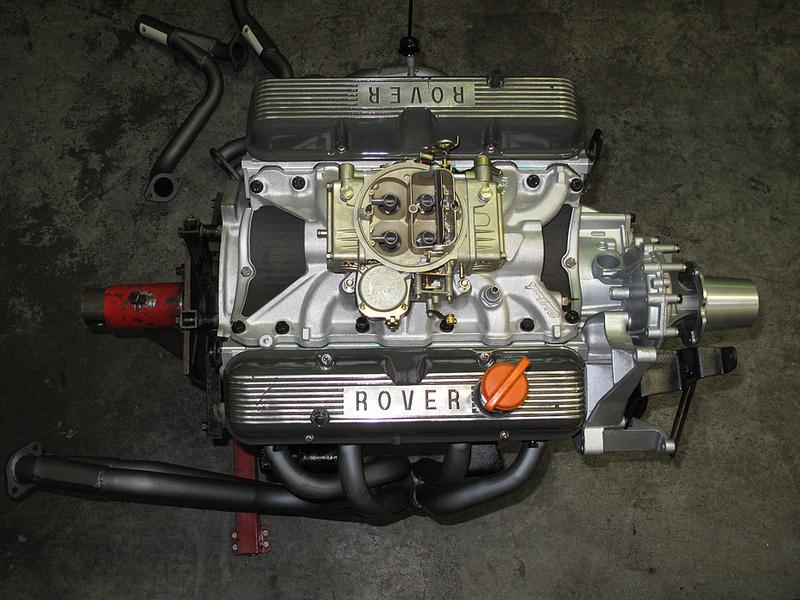

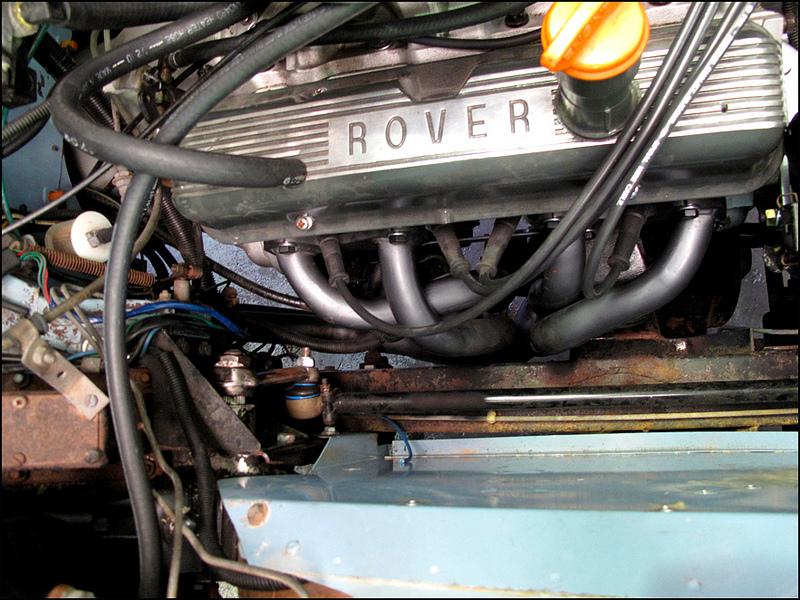

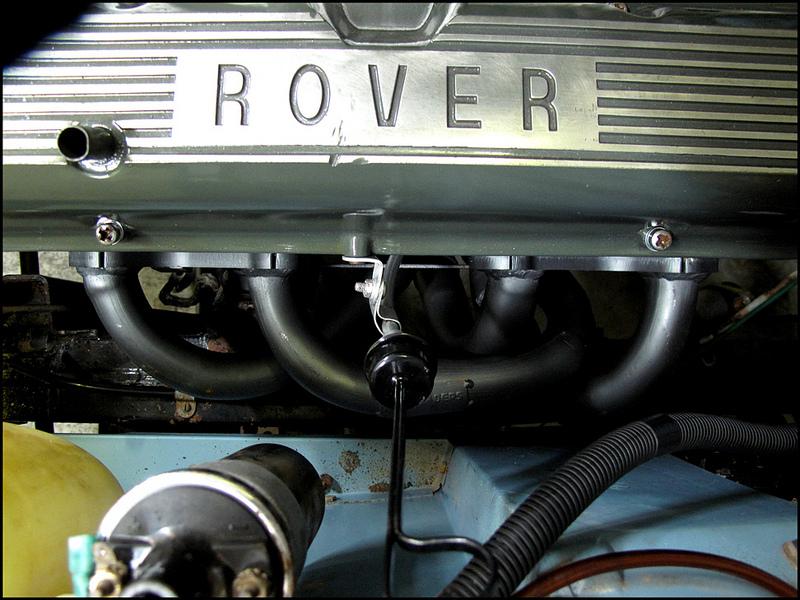

Now to start the process of hooking everything back up. I have some EFI 3.9l headers to go on after a coat of paint, with new down pipes that will run to a custom new exhaust later. Replacement bulkhead still to be painted then it can go back on also, and the dash refurbishment progressed.

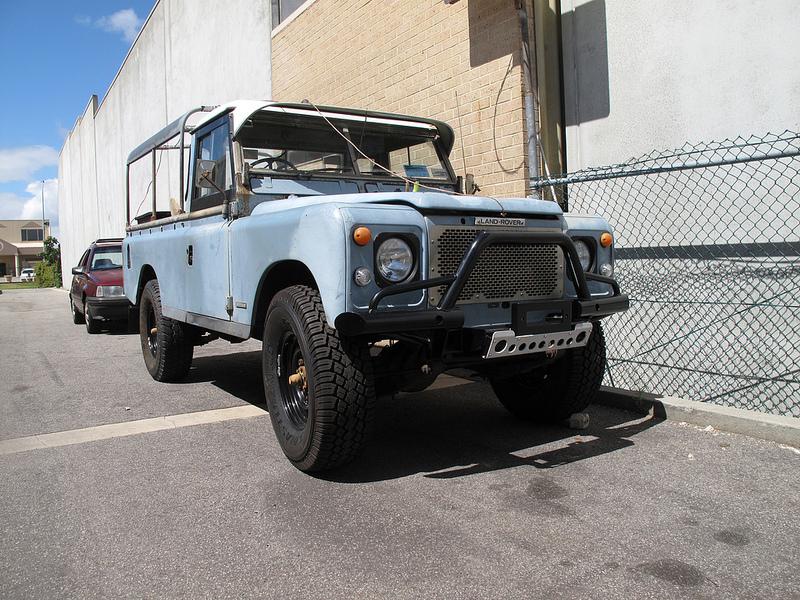

Acquired some hood sticks also, so will be set for summer topless cruising.

Some good work happening there Chris,well done!!!!
Andrew

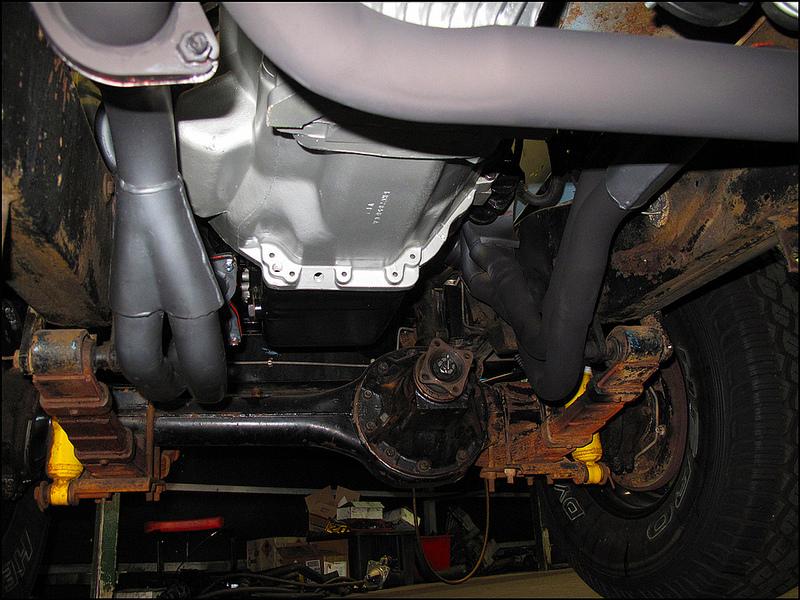

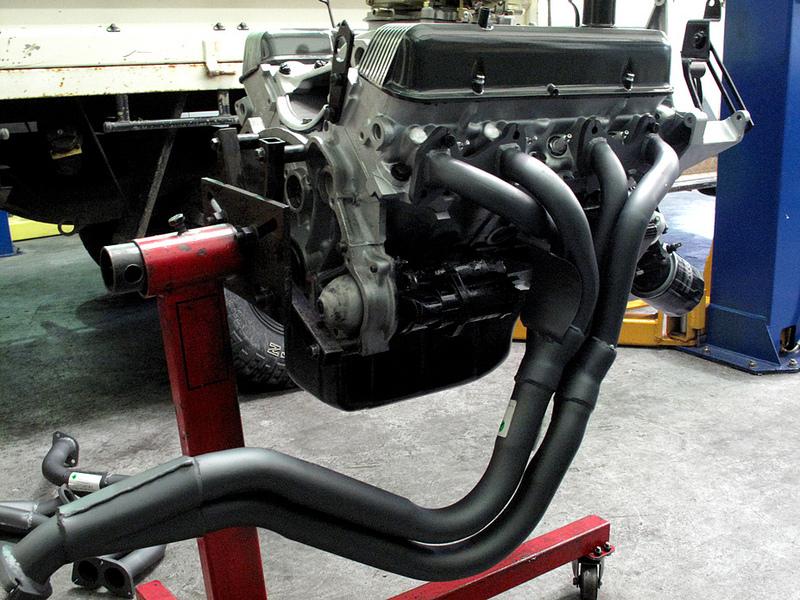

Well unfortunately I binned the 3.9l v8 down pipes I had so I had to buy another set to match the cast manifolds I plan to use.

I bought these from a reputable "bricks and mortar" Land Rover supplier in Perth, and when I removed the wrapping back home, the 2 into 1 pipes have been manufactured by crushing the 2 pipes into the 1 pipe. No 2-1 adapter used!

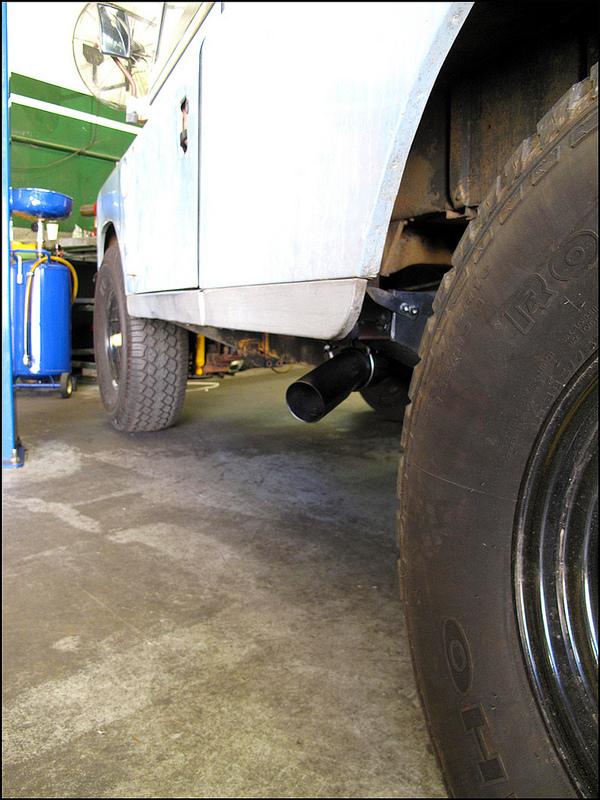

These 2-1 joins can't be very efficient. I may have to see if the exhaust shop that I plan to use to make the system downstream can retrofit some proper adapters into these pipes??

That's a bit crappy! I can't even see how they could properly weld and seal the pipes together like that. Have you spoken to the supplier about this?

Nasty one!

I made a collector box in halves for my P6, by knocking some 1mm cold-rolled-steel into shape with a hammer and some formers and MIG welding the whole lot together. If you have a welder it would be worthwhile doing it, if you can't get better ones and your money back,

Cheers Charlie

To their credit the store has replied to my email sent yesterday and is checking with their supplier in the UK. We will see what transpires....

Cheers,
Chris

Got the seat box back in today so I can sort out some of the wiring.


My aging memory is failing me though

Does anyone know what earth cables are standard procedure??
I have an earth cable from the negative battery terminal to the body on the cross member behind the seats, and an earth cable from the battery to a bolt on the flywheel housing (next to the starter). I have one cable left over though! It appears to have been from a bolt on top of the motor on the valley cover down to the gearbox area somewhere?

I am going to install a key style battery isolation switch in the hole under the handbrake both as an anti-theft measure and vehicle preservation in the case of a short somewhere. Some of the original wiring is fairly brittle, especially where it has been exposed to heat...

Cheers,
Chris

Good plan Chris!

I have no idea where the earth cables were originally, but earths close to the headlights and connected to the chassis, are worth considering as well,

Cheers Charlie
