Thread: Mirror hinges

  1. 6th July 2012, 07:56 PM #1
    dreamin'
    dreamin' is offline Master
    Join Date
    Nov 2008
    Posts
    295
    Total Downloaded
    0

    Mirror hinges

    Does anybody know where I can find a pair of those 2a door hinges with the hole for mounting a mirror arm?

    I think they were used for some military vehicles and forward controls.

    Thanks

    Roger
    Reply With Quote Reply With Quote
  2. 6th July 2012, 08:16 PM #2
    Lotz-A-Landies's Avatar
    Lotz-A-Landies
    Lotz-A-Landies is offline Super Moderator Gold Subscriber
    Join Date
    Jul 2006
    Location
    East-South-East Girt-By-Sea
    Posts
    17,662
    Total Downloaded
    1.20 MB
    Quote Originally Posted by dreamin' View Post
    Does anybody know where I can find a pair of those 2a door hinges with the hole for mounting a mirror arm?

    I think they were used for some military vehicles and forward controls.

    Thanks

    Roger
    They were the standard part on both the SIIA and SIIB forward control. very hard to find though.

    You won't find me on: faceplant; Scipe; Infragam; LumpedIn; ShapCnat or Twitting. I'm just not that interesting.
    Reply With Quote Reply With Quote
  3. 7th July 2012, 05:56 AM #3
    JDNSW's Avatar
    JDNSW
    JDNSW is offline RoverLord Silver Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    29,510
    Total Downloaded
    0
    Not a direct reply, but I have modified a LH door hinge to fit a mirror to it.

    John
    Last edited by JDNSW; 7th July 2012 at 06:03 AM. Reason: keyboard has a mind of its own
    John

    JDNSW
    1986 110 County 3.9 diesel
    1970 2a 109 2.25 petrol
    Reply With Quote Reply With Quote
  4. 7th July 2012, 06:21 AM #4
    Dinty's Avatar
    Dinty
    Dinty is offline TopicToaster
    Join Date
    Jan 1970
    Location
    Cessnock NSW
    Posts
    4,990
    Total Downloaded
    0
    I have a genuine S2A LHS door mirror mount in the shed, cheers Dennis
    Reply With Quote Reply With Quote
  5. 8th July 2012, 09:33 AM #5
    JackM's Avatar
    JackM
    JackM is offline Master
    Join Date
    Jan 1970
    Location
    Perth WA
    Posts
    512
    Total Downloaded
    0
    I've got a LH one too - wonder where all the RH ones are ?

    I used to be indecisive, but now I'm not so sure.

    1971 Landrover S2A Station Wagon
    1917 Model T Ford Lt Ptl Car (under restoration)
    1953 Austin Champ (under restoration)
    Reply With Quote Reply With Quote
  6. 8th July 2012, 11:03 AM #6
    juddy's Avatar
    juddy
    juddy is offline YarnMaster
    Join Date
    Nov 2007
    Location
    Gold coast
    Posts
    3,130
    Total Downloaded
    0
    I can get you both new ( but there not cheap ), and yes left handside theres more about, for some very strange reason.

    Theres also this alternative that we are adding to our Specialist series parts...

    Reply With Quote Reply With Quote
  7. 13th July 2012, 02:58 PM #7
    dandlandyman
    dandlandyman is offline Master
    Join Date
    Mar 2008
    Location
    darwin, nt
    Posts
    532
    Total Downloaded
    0
    I've got a pair of them.....













    ..... but they'll come free with the Forward Control. (See markets)

    Sorry, couldn't help it.

    Dan.
    69 2A 88" pet4 (still frustratingly in disguise), 68 2B FC pet6 (forsale), 73 3 109" pet4 (next project), plus 12 other parts cars.
    Last edited by dandlandyman; 13th July 2012 at 02:59 PM. Reason: Badly phrased.
    Reply With Quote Reply With Quote
  8. 13th July 2012, 08:13 PM #8
    dreamin'
    dreamin' is offline Master
    Join Date
    Nov 2008
    Posts
    295
    Total Downloaded
    0
    HA!
    Reply With Quote Reply With Quote
  9. 29th July 2012, 06:31 PM #9
    C00P Guest
    Quote Originally Posted by juddy View Post
    I can get you both new ( but there not cheap ), and yes left handside theres more about, for some very strange reason.

    Theres also this alternative that we are adding to our Specialist series parts...

    Hi Juddy,

    Can you get something similar for a Series III? My door hinges are different- see picture.
    Cheers,

    Coop

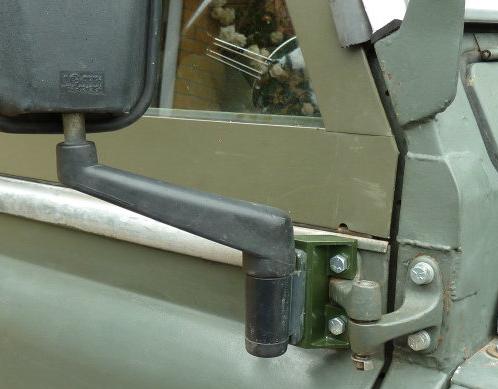

    Door Hinge.jpg
    Reply With Quote Reply With Quote
  10. 29th July 2012, 06:56 PM #10
    JDNSW's Avatar
    JDNSW
    JDNSW is offline RoverLord Silver Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    29,510
    Total Downloaded
    0
    Quote Originally Posted by C00P View Post
    Hi Juddy,

    Can you get something similar for a Series III? My door hinges are different- see picture.
    Cheers,

    Coop
    Door Hinge.jpg
    The Series 3 hinges are identical to the 110/Defender hinges, except the Defender top front door ones have two holes for the mirror to attach. You can either buy a pair of Defender top front door hinges and fit defender mirrors, or simply drill the two holes in your hinges to allow the fitting of Defender mirrors (which is what the mirrors in the picture are).

    John
    John

    JDNSW
    1986 110 County 3.9 diesel
    1970 2a 109 2.25 petrol
    Reply With Quote Reply With Quote
