Trailer pinouts

[Bushwanderer]

[IMG]file:///C:/DOCUME%7E1/PETERM%7E1/LOCALS%7E1/Temp/moz-screenshot.jpg[/IMG]Hi All,
CaverD3 has been kind enough to give me the pin Nos & positions on the white & black "trailer" plugs.

Can anyone give me the relevant data eg, LH blinker, stop lights etc etc, for the 14 pins on the two plugs?

Best Wishes,

[drivesafe]

Hi Peter, just went through the D3/FFRR to trailer wiring myself.

I made my own lead up and works OK so here is the Australian connections.

[johnc18]

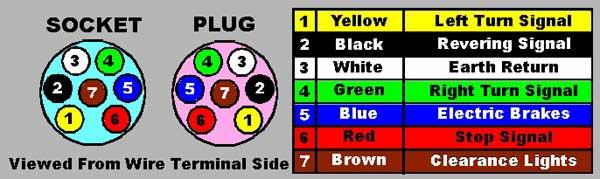

For anyone who wants to change a standard flat plug to a round plug, here's the schematic

[johnc18]

This is the first time I've uploaded something from my computer.
So I thought I'd just "wing it".
It's stored in "my pictures". I attached it, and it's come out, but nowhere near as clear as on my screen.
Am I missing something?
John

[Peter_OZ]

For anyone who wants to change a standard flat plug to a round plug, here's the schematic

thanks for that!!
