Thread: Transfer Nut size LT230

  1. 25th June 2012, 02:17 AM #1
    landy's Avatar
    landy
    landy is offline Master
    Join Date
    Jan 2009
    Location
    Seymour, Victoria.
    Posts
    751
    Total Downloaded
    0

    Transfer Nut size LT230

    Hi all,

    I need some help please from any of the service professionals or home servicers for that matter. I'm away from home at the moment and Im in the process of rebuilding a Discovery TC for fitting into my Defender. Unfortunately i'm not able to measure up the parts that I have. Now I found a little tool store that sells a bit of everything and a lot of nothing. My question is this:- Could someone please tell me the size across the flats of the TC bearing retaining nut, #13 in the repair manual diagram with special tool Part# LRT-41-007. Also, from memory the hub nuts are 52mm. Could someone please confirm that for me. And just to be a pain in the backside, could you please give me the sizes in metric and imperial for both nuts.
    All help as always greatly appreciated.

    Cheers, Nino
    Reply With Quote Reply With Quote
  2. 25th June 2012, 06:37 AM #2
    JoeB Guest

    Hub nut size - imperial

    Hi Nino,

    Can only help with the hub nut size - it is a 2 1/16 socket.

    Hard to get an exact metric conversion, as it's 52.3mm or 52.4mm.

    British Offroad, on the Sunshine Coast sell these for about $20. You can also order these on line, for a similar amount plus postage.

    Good luck with your other enquiries. I can't help there.

    Cheers,

    Joe
    Reply With Quote Reply With Quote
  3. 25th June 2012, 06:38 AM #3
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    got a picture from your repair manual, not all repair manuals use the same parts diagram.

    52mm for the hub nut socket which is 2+1/16th (near enough) this is also the size of the socket for the maxidrive flange seal nut.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  4. 25th June 2012, 07:37 AM #4
    Psimpson7's Avatar
    Psimpson7
    Psimpson7 is offline TopicToaster
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0
    Quote Originally Posted by landy View Post
    Hi all,

    Could someone please tell me the size across the flats of the TC bearing retaining nut, #13 in the repair manual diagram with special tool Part# LRT-41-007. Also, from memory the hub nuts are 52mm. Could someone please confirm that for me. And just to be a pain in the backside, could you please give me the sizes in metric and imperial for both nuts.
    All help as always greatly appreciated.

    Cheers, Nino

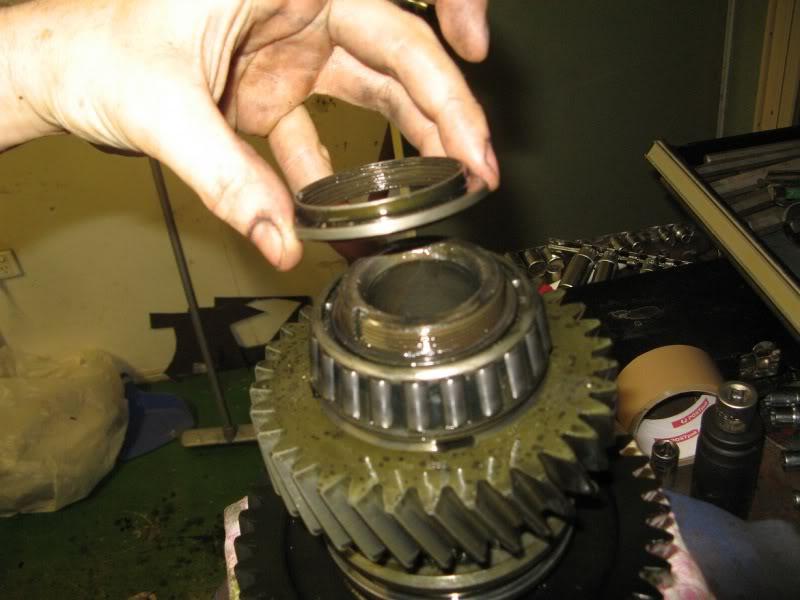

    Nino, do you mean the nut that holds the bearing on the back of the centre diff?



    If so you will need a spanner, or to make something, but I can't remember the AF measurement.
    Reply With Quote Reply With Quote
  5. 25th June 2012, 08:58 AM #5
    landy's Avatar
    landy
    landy is offline Master
    Join Date
    Jan 2009
    Location
    Seymour, Victoria.
    Posts
    751
    Total Downloaded
    0
    Hi Blknight. I do have the manual on disc but blowed if I know how to paste it in a post. But it's the one Psimpson7 has shown. I do have a paddocks hub nut tube socket but want a 3/4 drive HD socket to fit my flange end caps. I've found this great little tool shop that looks like a junk shop but has some real cool stuff very cheap. I just picked up a metric rivnut setter with 4 screw bits for $20. They have 3/4 sockets from $5 (proto) but most are imperial.so I need the imperial sizes. Also had these really large crows feet that would be great for the TC bearing nut,but also imperial.
    Reply With Quote Reply With Quote
  6. 25th June 2012, 09:02 AM #6
    landy's Avatar
    landy
    landy is offline Master
    Join Date
    Jan 2009
    Location
    Seymour, Victoria.
    Posts
    751
    Total Downloaded
    0
    Psimpson7'

    That's the one!
    Reply With Quote Reply With Quote
  7. 25th June 2012, 01:27 PM #7
    Bigbjorn
    Bigbjorn is offline Swaggie Gold Subscriber
    Join Date
    Jul 2006
    Location
    Brisbane, Inner East.
    Posts
    11,178
    Total Downloaded
    0
    Quote Originally Posted by landy View Post
    ps. I've found this great little tool shop that looks like a junk shop but has some real cool stuff very cheap.
    Well don't keep it to yourself. Name and Address please.
    URSUSMAJOR
    Reply With Quote Reply With Quote
  8. 25th June 2012, 02:15 PM #8
    MacMan's Avatar
    MacMan
    MacMan is offline Wizard
    Join Date
    Jan 1970
    Location
    Forty minutes closer to the hills in a house the bank is kind enough to let me live in
    Posts
    1,532
    Total Downloaded
    0
    I made this to allow use with a torque wrench.



    Reply With Quote Reply With Quote
  9. 26th June 2012, 12:35 PM #9
    landy's Avatar
    landy
    landy is offline Master
    Join Date
    Jan 2009
    Location
    Seymour, Victoria.
    Posts
    751
    Total Downloaded
    0
    Hi all. Sorry fellers, it's in Tuscan Arizona. I'm here for a few months with work. That's probably why it's mostly imperial sizes.

    Nino
    Reply With Quote Reply With Quote
