Thread: Auto cooler upgrade

Originally Posted by blitz

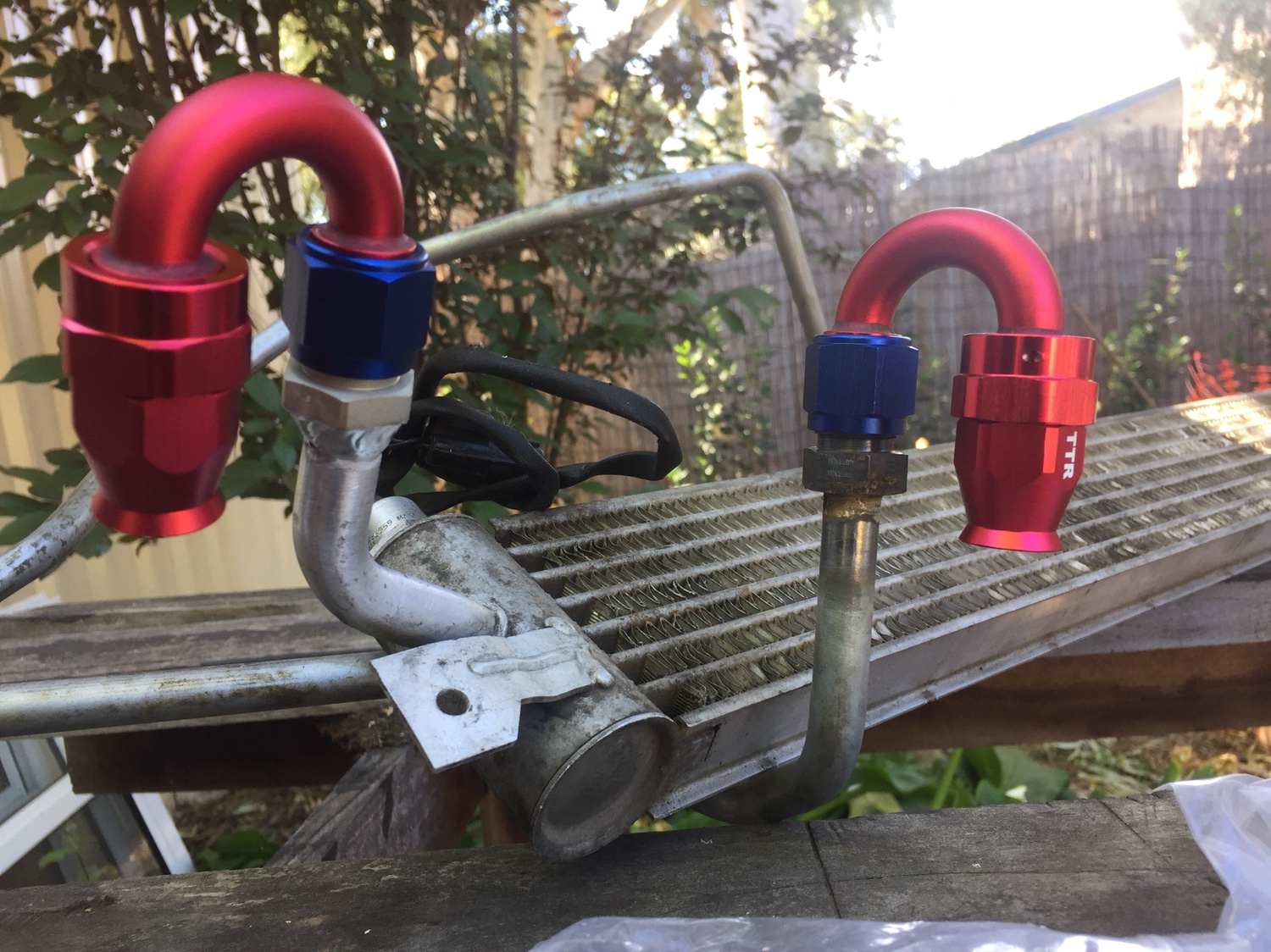

Would an A/C condenser have sufficient flow?

As an oil cooler ?

They are only narrow, I'd reckon there'd be too much pressure drop and it'd possibly rupture just from 'hydraulicing' ?

Real oil coolers aren't that dear.

I went searching yesterday, these are 405mm wide. Setrab Oil Coolers - 9 Series "Extra Wide"

OK, we'd need to fab mounts and obtain hose and fittings, maybe use some sexy Speedflow ones ?

PWR make some,,
PWR Performance Products | Transmission Oil Coolers – External Plate Fin

Originally Posted by Pedro_The_Swift

PWR make some,,
PWR Performance Products | Transmission Oil Coolers – External Plate Fin

Yes, but when I looked through the catalogue they all seemed to be 280mm or so wide, just various heights.
I was thinking a wider one might be better so I could have a lower stack height.

The BD one actually looks like a PWR in that photo.

Like Slunnie, mine is attached as far forward as possible and is in series with the original, leaves lots of air room behind, I also bought the half inch tube model so no pressure difference,, at least that was the idea--

Originally Posted by rick130

Yes, but when I looked through the catalogue they all seemed to be 280mm or so wide, just various heights.
I was thinking a wider one might be better so I could have a lower stack height.

The BD one actually looks like a PWR in that photo.

Bingo! Here it is. Its an engine oil cooler

PWR Performance Products | 37mm External Plate & Fin Close Mesh
