Thread: Pictures of a Uni joint conversion

Originally Posted by loanrangie

Huge grave dig but just getting around to doing this now even though i bought the parts last year, i have a couple of differences to both this and the discoweb pics.

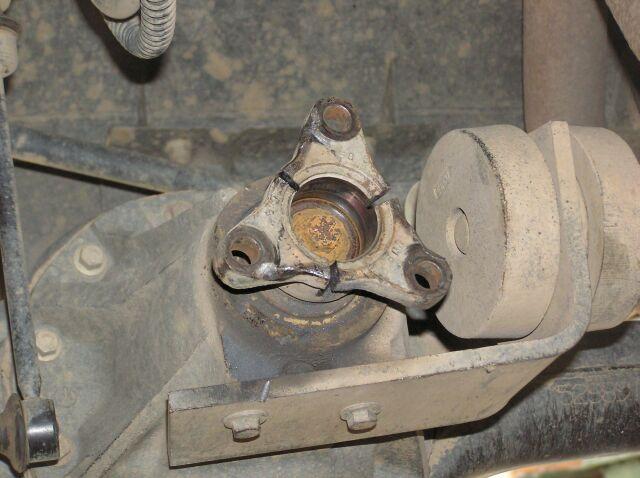

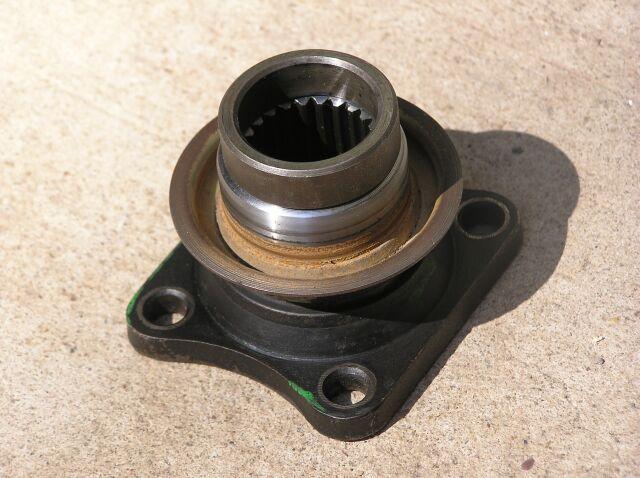

I removed the spigot easy enough to be greeted with a 15mm bolt instead of a 24mm nut, also there is no mud slinger on the new flange i got from All4x4 ?

The standard pinion has a bolt (well, at least it does on the Disco2).



It should also have that flange to keep the mud out. Not sure why it wouldn't or if its sensible to run it without one, especially at the rear.

On the drive to work i noticed reduced vibration from the driveline so whats left will be from front shaft, will look into a D2 double cardan conversion.
