Thread: Weld Porn,,

  1. 16th June 2018, 09:44 PM #1
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is online now The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,031
    Total Downloaded
    0

    Weld Porn,,

    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

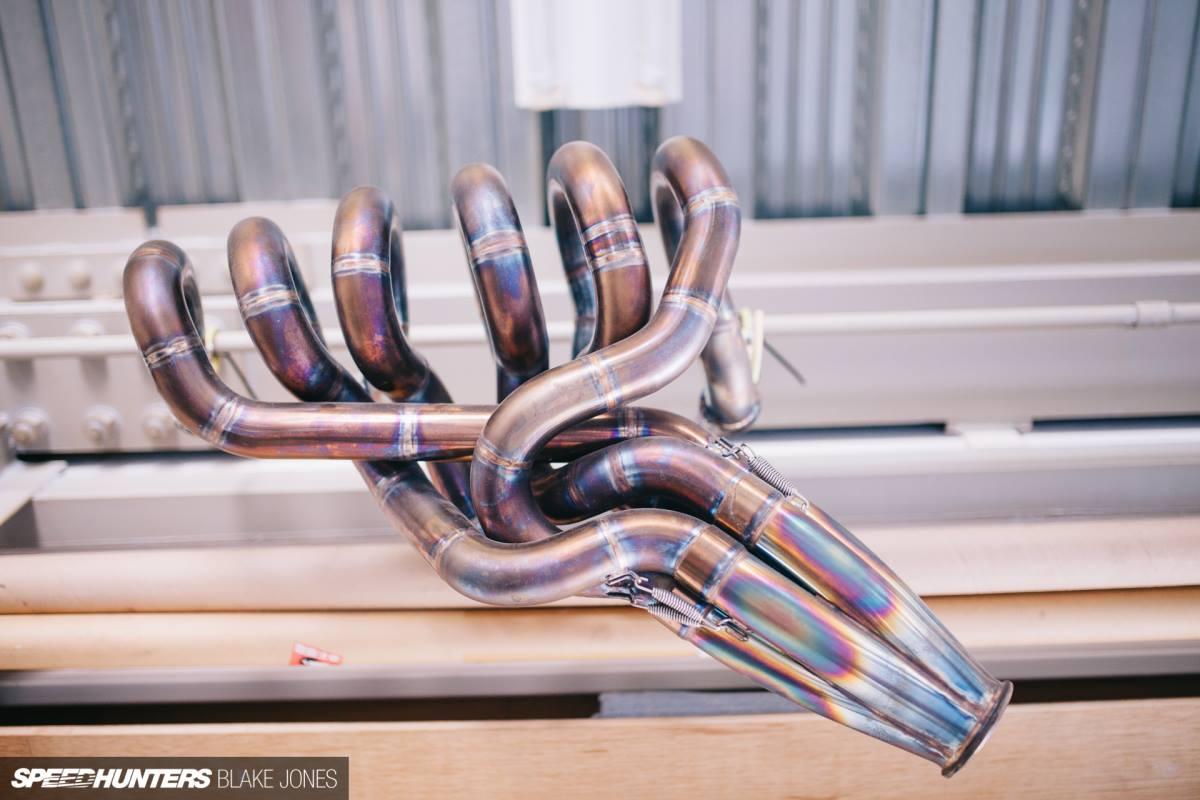

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  2. 16th June 2018, 10:11 PM #2
    theelms66's Avatar
    theelms66
    theelms66 is offline Master Supporter
    Join Date
    Dec 2017
    Location
    wandin nth vic
    Posts
    497
    Total Downloaded
    0
    Mechanics version of the Rubics cube
    Reply With Quote Reply With Quote
  3. 16th June 2018, 10:32 PM #3
    Slunnie's Avatar
    Slunnie
    Slunnie is offline Swaggie Gold Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    14,135
    Total Downloaded
    99.87 MB
    Aside from good welding, I dont know how you would even access half of that to do the weld at all.
    Cheers
    Slunnie


    ~ Discovery II Td5 ~ Discovery 3dr V8 ~ Series IIa 6cyl ute ~ Series II V8 ute ~
    Reply With Quote Reply With Quote
  4. 17th June 2018, 07:18 AM #4
    rick130's Avatar
    rick130
    rick130 is offline Moderator Gold Subscriber
    Join Date
    Jan 1970
    Location
    NSW far north coast
    Posts
    17,285
    Total Downloaded
    0
    Any shots inside the merge collector Pedro?

    That would be insane to see that just looking at the external fabrication, as they are incredibly tricky to make
    Reply With Quote Reply With Quote
  5. 17th June 2018, 08:16 AM #5
    Toxic_Avenger's Avatar
    Toxic_Avenger
    Toxic_Avenger is offline TopicToaster Subscriber
    Join Date
    May 2014
    Location
    Tamworth NSW
    Posts
    4,295
    Total Downloaded
    0
    Quote Originally Posted by Slunnie View Post
    Aside from good welding, I dont know how you would even access half of that to do the weld at all.
    Water cooled TIG micro torches would be one option.
    CK do some real trick micro torches too... Micro Torch | CK Worldwide

    Otherwise it's a modular design with sleeves and springs, so would disassemble to allow better access.
    The biggest pain would be the tube warping in every which way while being fabricated. You can make it on the engine or on a jig, but so much going on with it.

    Gotta love the tuned length 'bundle of snakes' headers
    -Mitch
    'El Burro' 2012 Defender 90.
    Reply With Quote Reply With Quote
  6. 17th June 2018, 08:21 AM #6
    rick130's Avatar
    rick130
    rick130 is offline Moderator Gold Subscriber
    Join Date
    Jan 1970
    Location
    NSW far north coast
    Posts
    17,285
    Total Downloaded
    0
    and with a good set of tuned length pipes you try and have them going into the collector in firing order, it seems to generate a swirl and helps scavenging, particularly with a merge collector.

    Several lifetimes ago I made some merge collectors but the welding was nothing at all like the above
    Reply With Quote Reply With Quote
