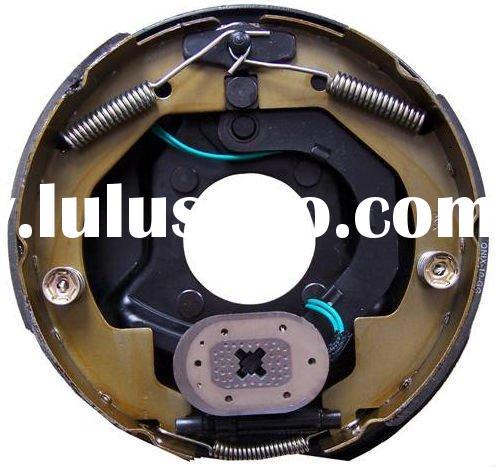

    Electric brakes IV (maybe five?)



    so what moves the trailing shoe?
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  2. 31st August 2012, 05:34 PM #2
    POD's Avatar
    POD
    POD is offline ChatterBox Subscriber
    Join Date
    Jun 2008
    Location
    Drouin East, Vic
    Posts
    2,781
    Total Downloaded
    0
    If I'm not mistaken, the magnet moves the lever, which turns the square cam, which moves both shoes.
    Reply With Quote Reply With Quote
  3. 31st August 2012, 06:46 PM #3
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,504
    Total Downloaded
    0
    depends, they may be a complete self energising setup with the lever moving only the leading shoe.

    As the leading shoe grabs it rotates with the drum as it rotates with the drum it moves its lower pivot towards the trailing shoe and then the trailing shoe begins to grab driving itself into the drum. effectively both shoes are leading shoes and they suck at breaking in reverse.

    if its lead trail setup then yes, one side of the lever arm moves the top of each shoe and one is always trailing one is always leading.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  4. 1st September 2012, 05:26 AM #4
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,032
    Total Downloaded
    0
    Only the right shoe moves when the magnet activates,,,,
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  5. 1st September 2012, 03:43 PM #5
    JFD
    JFD is offline Fossicker
    Join Date
    Jan 1970
    Posts
    35
    Total Downloaded
    0

    brakes

    I have a set of these brakes that I'am fitting to a trailer and I just went and had a look and the lever only moves the leading shoe so I think they must work as Blk Knight said as the bottoms of the shoes are not fixed only the top.If the lever is moved in the opposite direction ie. reverse rotation then the trailling shoe operates and it looks like the handbrake lever also operates the trailling shoe, BIDSTBC Regards John
    Reply With Quote Reply With Quote
