Here are two sill tanks I had made for the 110 - capacity 55l (drivers side) and 35l (passenger side). Simple design with less capacity than Erich's above as they don't wrap arount outriggers, which I didn't want as I thought it wiuld be difficult to clean mud etc from there. Dimensions (length) could probably be increased for a 130 - not sure of available clear space in 130.

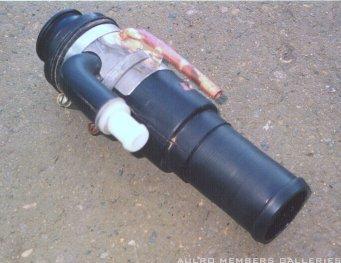

Filler was installed separate to original although original (plasticy) filler was modified to accept inlet from auxilliary tank/s. If you can get hold of the earlier metal type filler they can be modified as Erich has done above.
Rough drawings also attached.
If you know a good sheet metal worker he should be able to knock one or two of these up relatively cheaply.
![]()
Roger
Hi,
I had agonised over a long range tank (In a Discovery II) but after I eventually took the plunge I have never regretted it. Jerry cans need to be stored and carried, and you can still store and carry jerry cans even with a long range tank. It is so low fuss to find a cheap fuel outlet, fill up the tank and not worry about fragile, leaking and smelly Jerry cans.
I'd say go the built ins either main or outrigger, and be happy. Expensive yes, but a very worthwhile addition. I use it more than my bull bar and I paid about the same for it!
I.
I carry my extra fuel in square 10ltr jerrys, they fit anywhere, can stack and easy to pour from.........but I've never had to use them . Fuel seems to abundant everywhere now and its good to stop at the local servo and have a chat and put a dollar in their pockets.....they also have things like food, ice, newspapers, toiletries, shower etc. where do you have to drive over 600-700kms without a fuel stop anyway?
A mate of mine currently doing the lap towing a camper trailer reckons next time his buying a tanker to do it. Yes on average 4 to 500klm between servos, but that also limits you to a route to where the servos are.
His finding towing a tailer with lower tyre pressures, the standard 70lt tank in a new 2.5lt Challenger gives him about 400klm.
Don't forget to add to the jerry equation, to to mount a jerry safely the holders are priced somewhere between $100 and $150 per jerry, well that I have seen anyway.
Jason
2010 130 TDCi
1998 Defender
2008 Madigan
2010 Cape York
2012 Beadell, Bombs and other Blasts
2014 Centreing the Simpson
VKS-737 mob 7669
Can also be as simple as 10 days on Fraser Isl, yes there are servos but you pay for it.
Jason
2010 130 TDCi
FWIW I tend to only get 60-65l in my sill tank, the angle of the fill pipe (horizontal in two spots) and breather see to this.
If the driveway/forecourt have a reasonable lean away from the pump I can get the full 70l in with a bit of buggering around.
Check out Mulgo's sill tanks - they give over 100 litres extra to what you already have. Expensive but very very good.
http://www.mulgo.com.au/p11_Mulgo-Du...nk-System.html
Cheers
Chris
