Results 1 to 10 of 10

Thread: Ron Visited Me Today

  1. #1
    Join Date
    Jan 1970
    Location
    Canberra
    Posts
    18,616
    Total Downloaded
    0

    Ron Visited Me Today

    Ron (101Ron) is on his way from the South Coast to the Swim-In at Corowa with his son, Ryan stopping over in Canberra for the night as his wife is also in Canberra at the moment.

    He gave me a call this afternoon wanting somewhere to pull up for a while to do some repairs on his 101. On the way from Nowra to Braidwood his drivers side exhaust manifold broke on its neck and was extremely noisy.

    I have a set of old manifolds but both are cracked but I remembered that Canberra Motor Works had a set two years ago so I gave them a call. The proprietor was out and they would call me back.

    Ron climbed under and determined a temp repair might be able to be made using some jubilee clips, fencing wire and exhaust gasket cement. Ron put one jubilee clip over the break to stabilise that area - we used a dremel to cut in some slots in the old manifold so the clip had something to clamp on and used other clips joined together to keep the broken bit pulled up to the manifold.

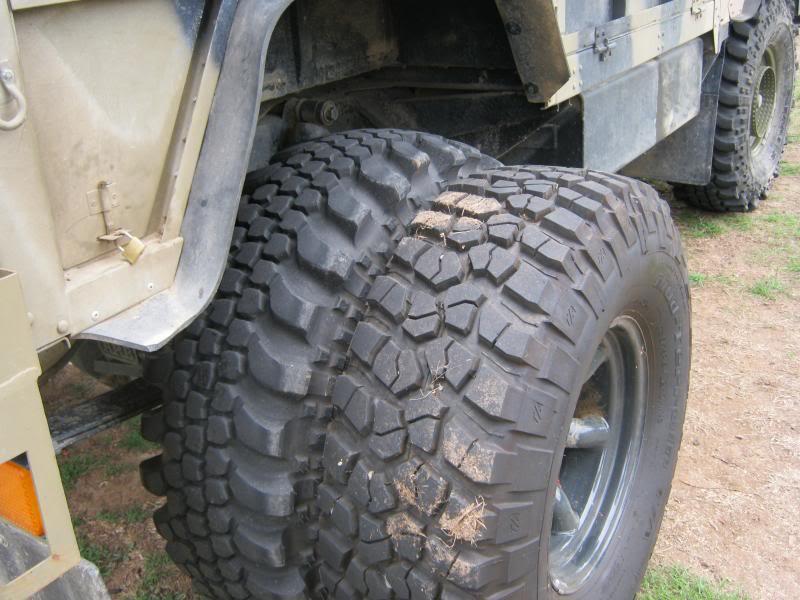

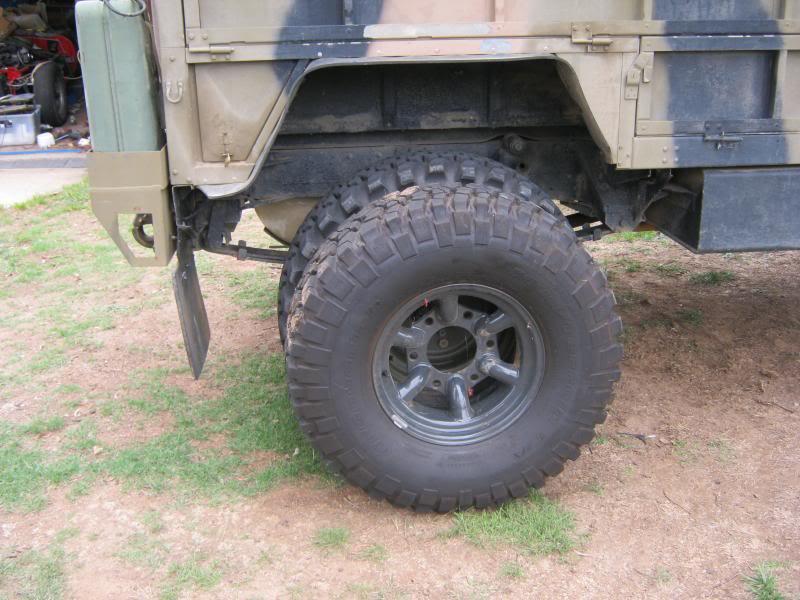

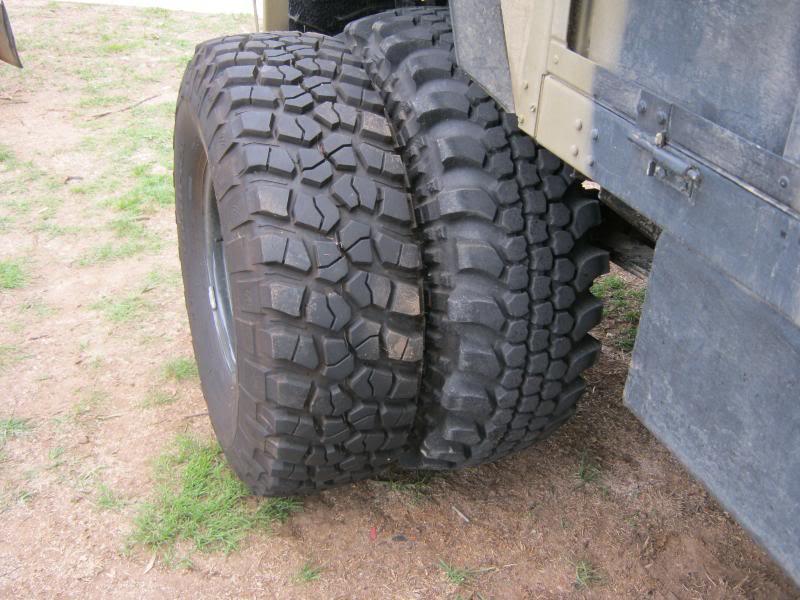

    We then compared tyre sizes as 101 owners tend to do and Ron took some pics. Ron's Simexs are about 1 1/2" bigger in diameter than my BFGs. The BFGs are clearly a better all round tyre but the Simex with their big side biters would be better in the mud.

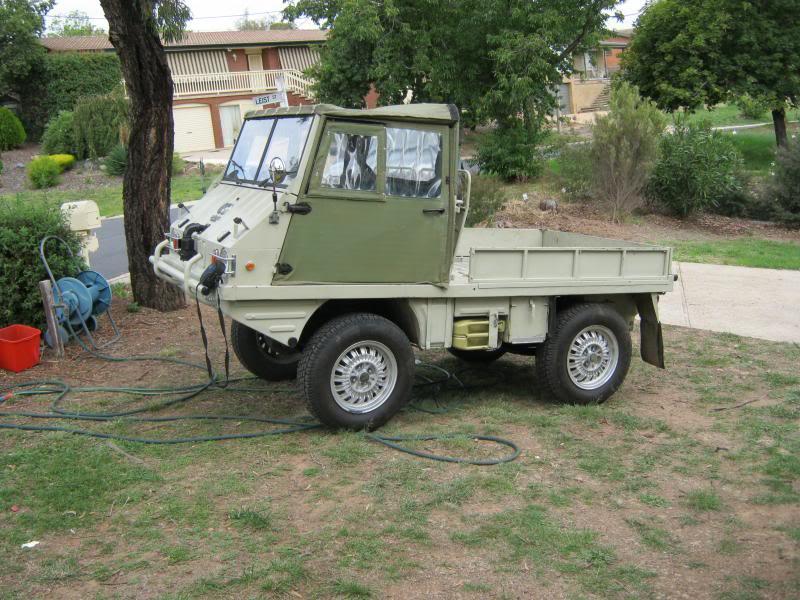

    As CMW had not called us back we then decided to travel over there as it was on the way back to where Ron's wife was staying. I took my Haffie with Ryan as a passenger with Ron following but the Haffie died on the way - no compression - so was left on the side of the road.

    We continued on to CMW where the owner searched for the manifolds but it looks like he sold them sometime in the last 2 years since I saw them (I should have grabbed them). So back to my place to get my RRS and trailer to pick up the Haffie and check whether the fix was holding.

    We got the Haffie and Ron went on to see his beloved.

    Ron was intending to go from Canberra to Tumut and then on to Corowa from the there but the Brindabella Road is a bit rough and the exhaust was never going to hold together.

    So expect to see - maybe you will him first down in Corowa tomorrow. If you have a drivers side 101 manifold for sale at the swap meet - save it for him.

    Me will be setting up to pull a Haflinger engine out for inspection - starting with the rockers, heads and then pistons. It has a bit of blow back and is blowing some oil of the crankcase breather.

    Cheers

    Garry
    REMLR 243

    2007 Range Rover Sport TDV6
    1977 FC 101
    1976 Jaguar XJ12C
    1973 Haflinger AP700
    1971 Jaguar V12 E-Type Series 3 Roadster
    1957 Series 1 88"
    1957 Series 1 88" Station Wagon

  2. #2
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    Going to risk corowa with the 101 in limp mode.
    I was thinking leaving it at canberra and just taking the missus car.
    Keeping fingers crossed
    Ron

  3. #3
    Join Date
    Dec 2009
    Location
    Williamstown, Barossa, SA
    Posts
    3,451
    Total Downloaded
    0
    Good luck. Take it steady and u should b fine. I have a pair of unbroken manafolds, but was not planning to part with them just yet.... That said I can't ever see me putting the fuel hungry V8 back in...
    1995 Mercedes 1222A 4x4
    1969 (Now know! Thanks Diana!!) Ser 2 Tdi SWB

    1991 VW Citi Golf Cti (soon to be Tdi)

    'When there's smoke, there's plenty of poke!!'
    'The more the smoke, the more the poke!!'

  4. #4
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    Having a great time at corowa.
    I have all ready crank started 3 101 landies and bent my crank handle, just to say that I can.
    Temp repairs to manifold are holding out and if I dont go over any bumpy roads should hold out.
    Thanks Garry for your help.
    Ron

  5. #5
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    The manifold hose clamps and fencing wire lasted the trip home until I hit the gutter in the drive way........and I can not complain about that.
    Hope the Haffie is not too bad Garry.
    It sounded like a damaged piston to me.
    I can say you do have the fastest Haffie I ever seen with the big bore jugs and large alloy wheels.
    Thanks again
    Ron






  6. #6
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0

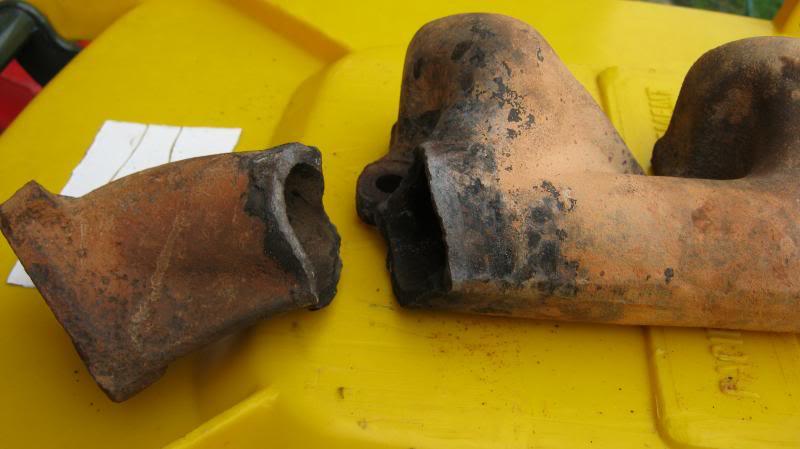

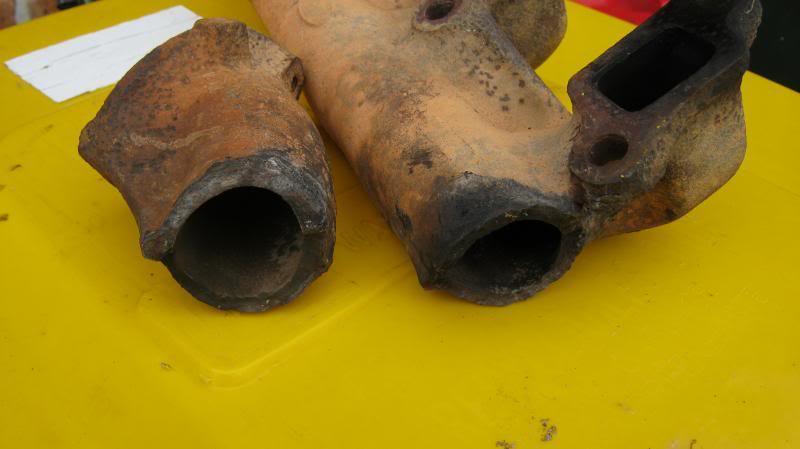

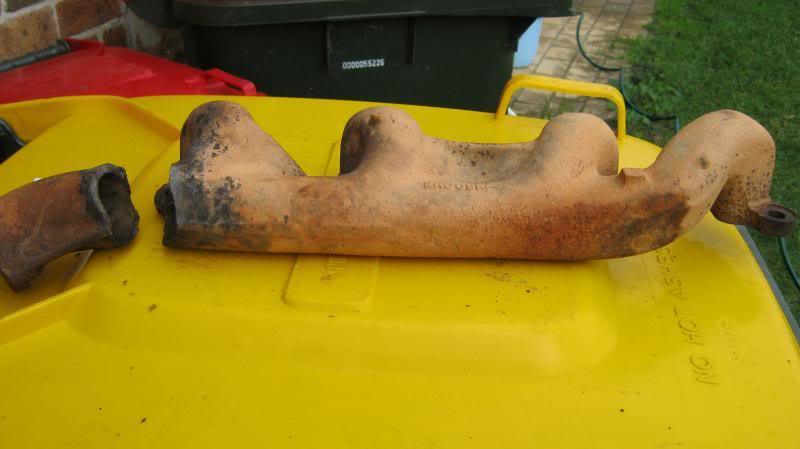

    This caused my starter and wiring to get fried.
    I may TIG weld it with cast iron filler rods.......if I ever find time.

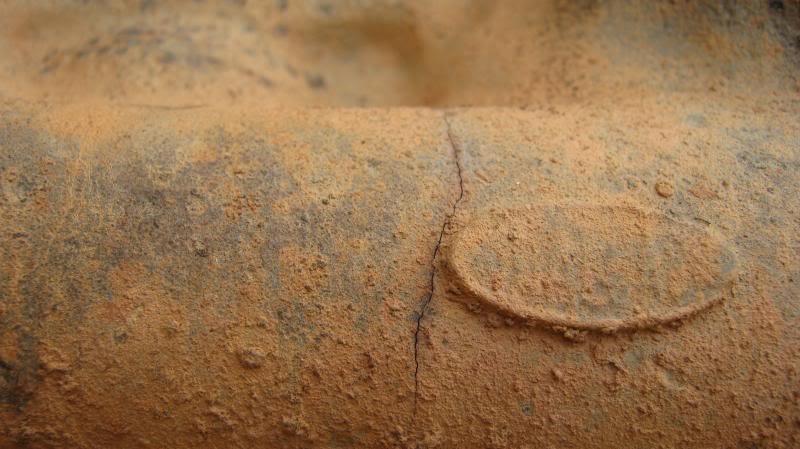

    Note the start of another crack around the middle of it.




  7. #7
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    My 101 is up and running with another RHS exhaust manifold I got from AJ and AJ did me no favours in parting with it as he knew I could not find one else where.
    The long term answer is a RHS manifold from a P38 4.6 rover motor and change the exhaust piping to suit.

  8. #8
    Join Date
    Jan 1970
    Location
    Canberra
    Posts
    18,616
    Total Downloaded
    0
    Been away on a 2500km trip in the 101 so haven't looked at the forum for a while.

    Yep the scrapped manifolds I showed you amongst the junk in my front courtyard all have multiple fractures starting.

    I think the P38 manifold is a goer for the right hand side on and on the left maybe a cut down version of the P38 on might work. Likewise custom made extractors might be an option.

    The genuine manifolds are becoming more brittle and harder and harder to find.

    Garry
    REMLR 243

    2007 Range Rover Sport TDV6
    1977 FC 101
    1976 Jaguar XJ12C
    1973 Haflinger AP700
    1971 Jaguar V12 E-Type Series 3 Roadster
    1957 Series 1 88"
    1957 Series 1 88" Station Wagon

  9. #9
    Join Date
    Dec 2009
    Location
    Williamstown, Barossa, SA
    Posts
    3,451
    Total Downloaded
    0
    Quote Originally Posted by 101 Ron View Post
    My 101 is up and running with another RHS exhaust manifold I got from AJ and AJ did me no favours in parting with it as he knew I could not find one else where.
    The long term answer is a RHS manifold from a P38 4.6 rover motor and change the exhaust piping to suit.
    Wish I'd seen this a few weeks ago.. Have a pair for sale. What did he sting u for a manafold?
    1995 Mercedes 1222A 4x4
    1969 (Now know! Thanks Diana!!) Ser 2 Tdi SWB

    1991 VW Citi Golf Cti (soon to be Tdi)

    'When there's smoke, there's plenty of poke!!'
    'The more the smoke, the more the poke!!'

  10. #10
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    I would buy yours, it is just money is just too tight for me currently I am still paying of some off other bills.
