Thread: ARB DIFF LOCK

  1. 1st June 2009, 04:14 PM #51
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0

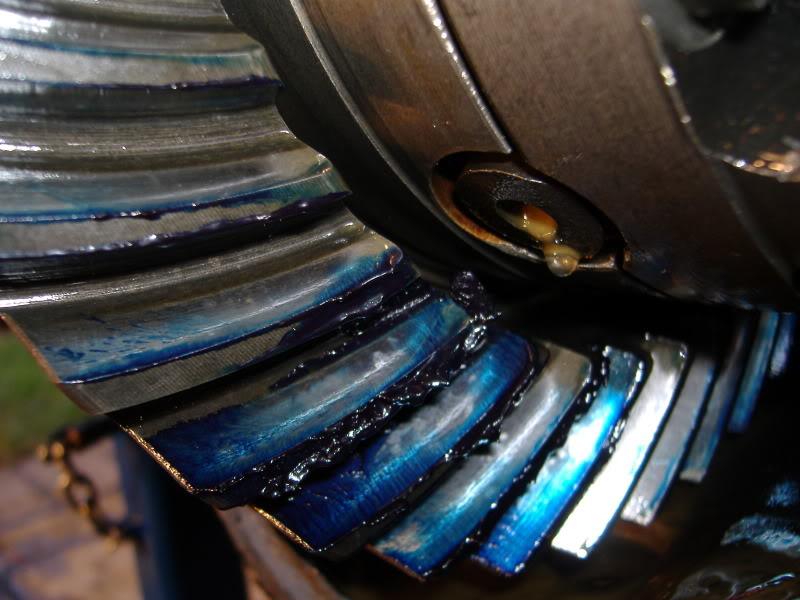

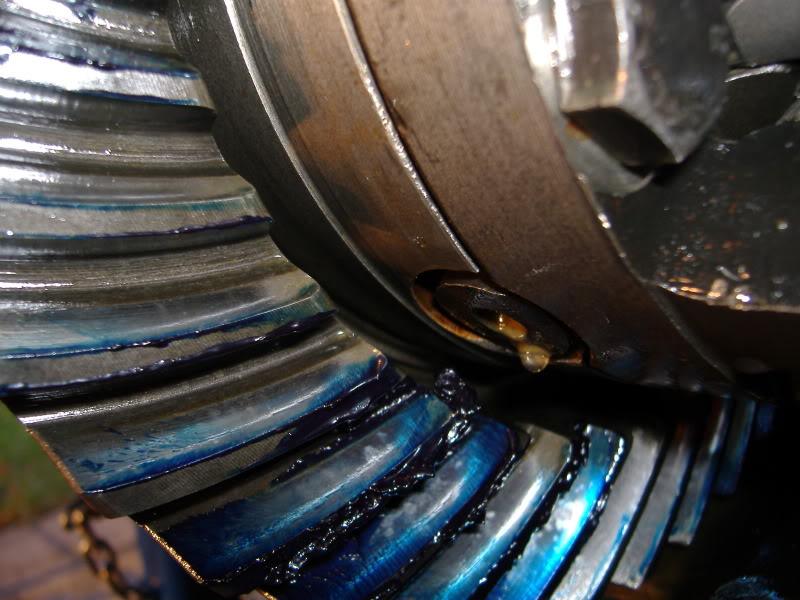

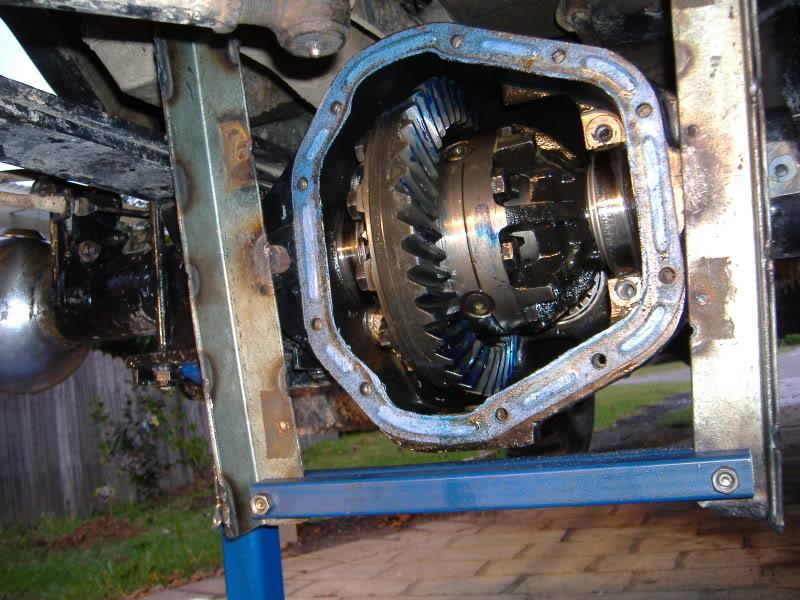

    This pic shows the gear contact pattern with bearing blue.
    Every thing looks fine.
    Factory backlash specs are 6 to 11 thou and mine are 5 thou,,,,good enough.

    Reply With Quote Reply With Quote
  2. 1st June 2009, 04:18 PM #52
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0

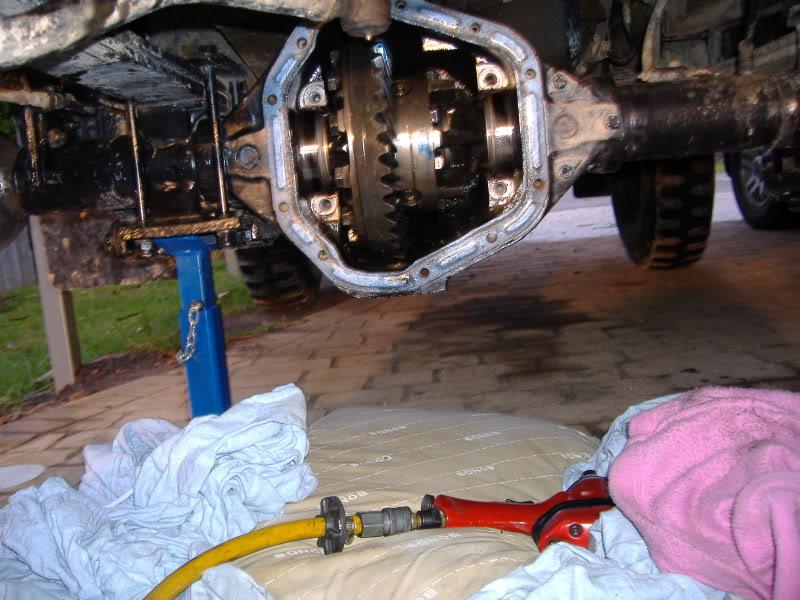

    Bearing caps centre popped marked and bolts evenly removed and then caps removed.
    Found a old pillow and rag to drop the diff centre on.
    Reply With Quote Reply With Quote
  3. 1st June 2009, 04:22 PM #53
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    My home made diff housing spreader will not fit as the drivers side spring is in the way.
    The proffessional spreaders will not fit too.
    I am going to have make some thing up to suit or drop the spring off.

    Reply With Quote Reply With Quote
  4. 1st June 2009, 04:25 PM #54
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0

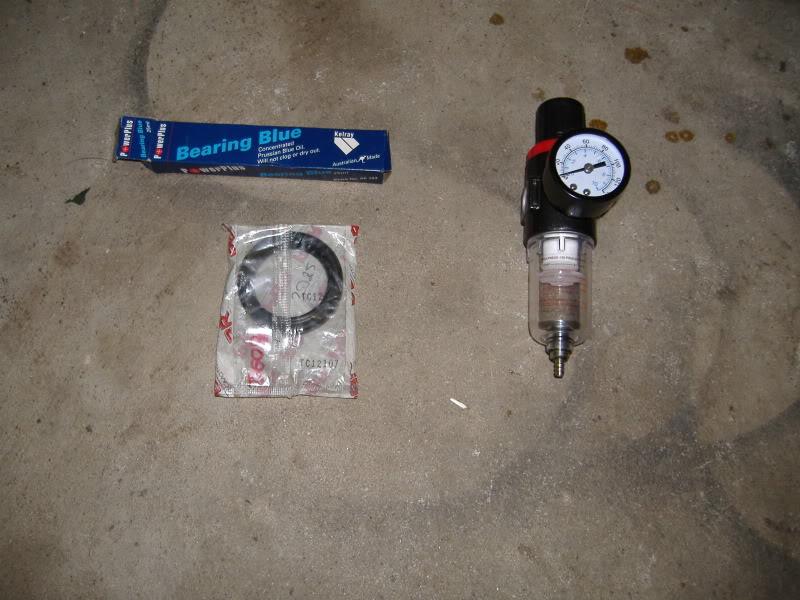

    Purchased today a small air pressure reg for 27 dollars which should work the air locker OK.
    Purchased new axle tube seals too.
    Reply With Quote Reply With Quote
  5. 1st June 2009, 09:14 PM #55
    101RRS's Avatar
    101RRS
    101RRS is offline LordRover Supporter
    Join Date
    Jan 1970
    Location
    Canberra
    Posts
    18,616
    Total Downloaded
    0
    Good work Ron - thanks for the pics - it will be really helpful for us who will be doing the same in due course.

    Cheers

    Garry
    REMLR 243

    2007 Range Rover Sport TDV6
    1977 FC 101
    1976 Jaguar XJ12C
    1973 Haflinger AP700
    1971 Jaguar V12 E-Type Series 3 Roadster
    1957 Series 1 88"
    1957 Series 1 88" Station Wagon
    Reply With Quote Reply With Quote
  6. 2nd June 2009, 12:41 PM #56
    isuzurover's Avatar
    isuzurover
    isuzurover is offline Swaggie
    Join Date
    Aug 2006
    Location
    WA
    Posts
    13,786
    Total Downloaded
    0
    Ron, Great pics and writeup, however you are the first person I have seen who actually bothers with a spreader.

    I (and many others) just use a couple of tyre levers or a small crowbar to remove (only gentle pressure is usually needed), and a leather/plastic hammer to refit.
    Reply With Quote Reply With Quote
  7. 2nd June 2009, 04:40 PM #57
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    The reason I am worrying about the spreader is the fact the ARB locker may have to go in and out of the diff a few times to check the settings for the bearings and crown wheel.
    One of the bearing caps have to be measured for drilling with the locker in place and then removed.....etc.
    Reply With Quote Reply With Quote
  8. 2nd June 2009, 05:17 PM #58
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0
    I found very little scrap steel at work today.
    I did find plenty of wire and gas in the MIG.
    Found a large piece of brooker rod and nuts to suit.

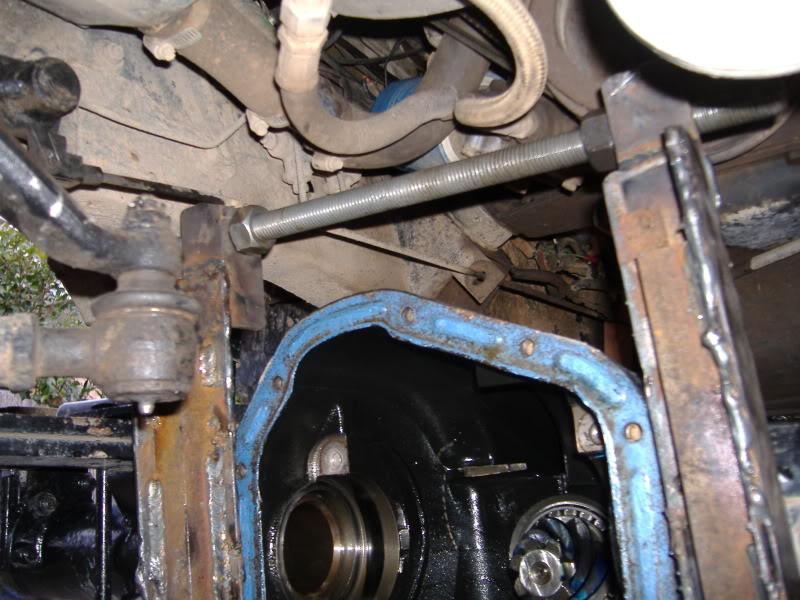

    So I reworked my original diff spreader.

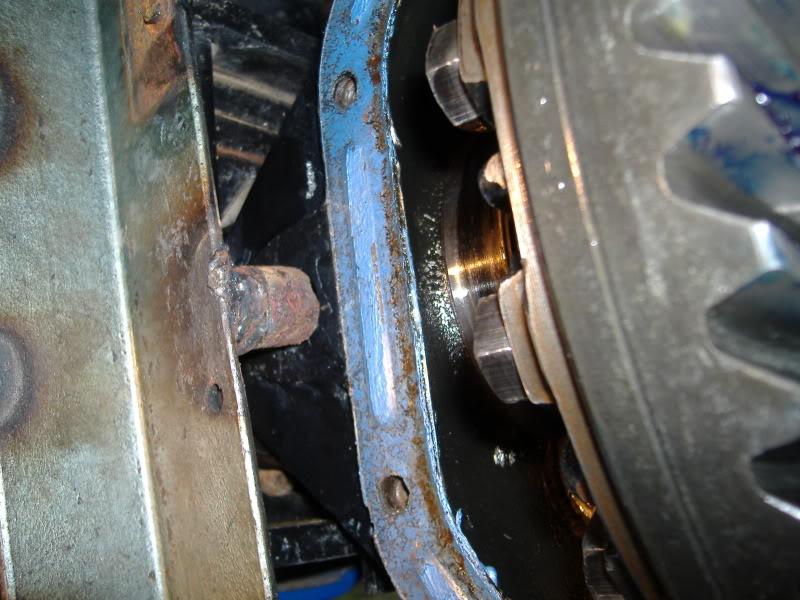

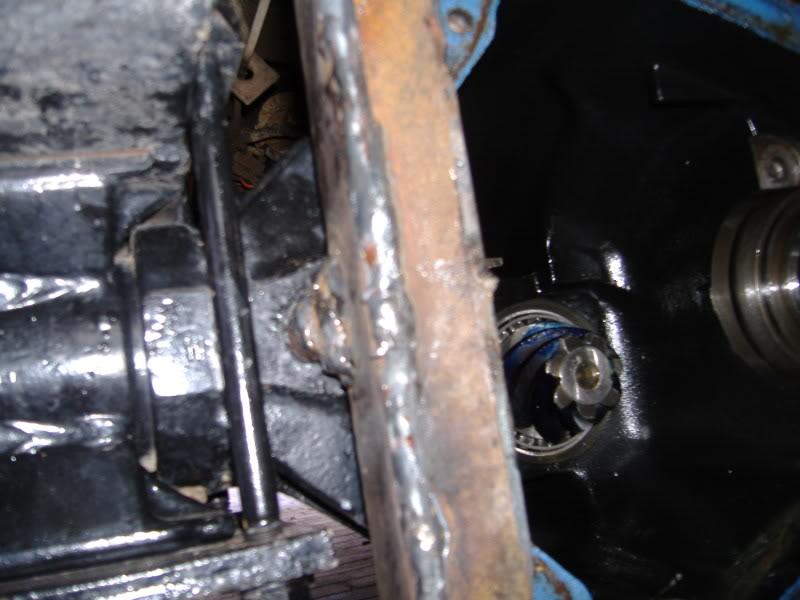

    I moved the pin for the drivers side of the diff spreader so it clears the spring.

    I dont have to use a old jack to work the spreader, the brooker rod and nuts work OK
    Reply With Quote Reply With Quote
  9. 2nd June 2009, 05:18 PM #59
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0

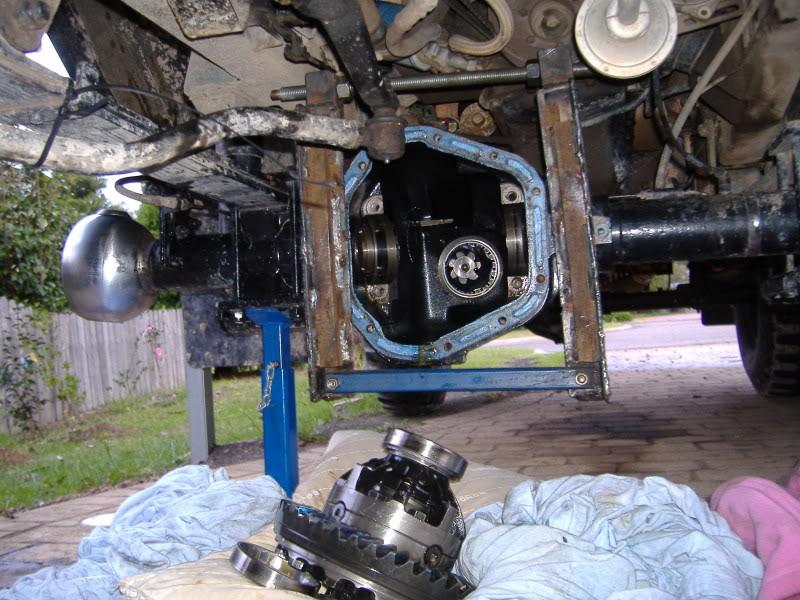

    Out she comes
    Reply With Quote Reply With Quote
  10. 2nd June 2009, 05:25 PM #60
    101 Ron's Avatar
    101 Ron
    101 Ron is offline YarnMaster
    Join Date
    Jan 2008
    Location
    Nowra NSW
    Posts
    3,906
    Total Downloaded
    0

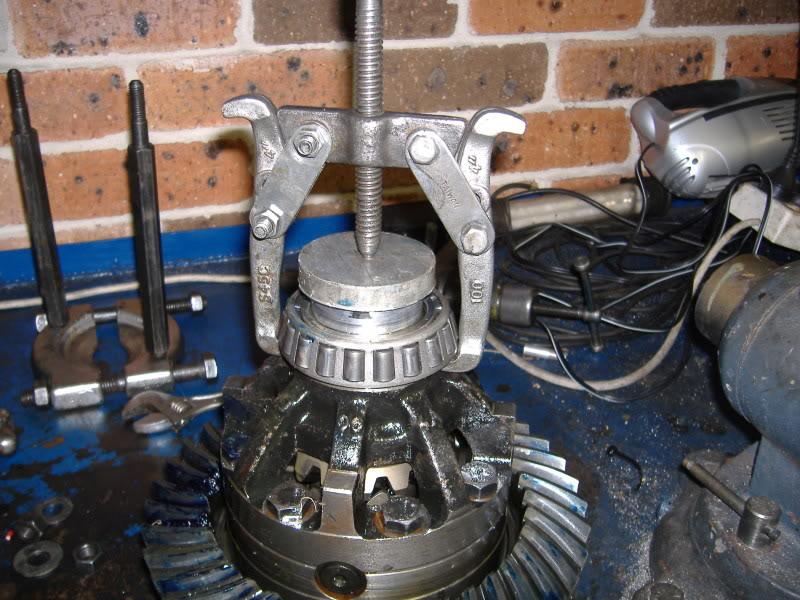

    I turned up on the lathe a alloy disc to help remove and refit the diff centre bearings.
    A two legged puller is supposed to be used to remove the bearings.
    I found the cut away in the original diff centre to allow the use of a two legged puller would not fit any two legged pullers I had.

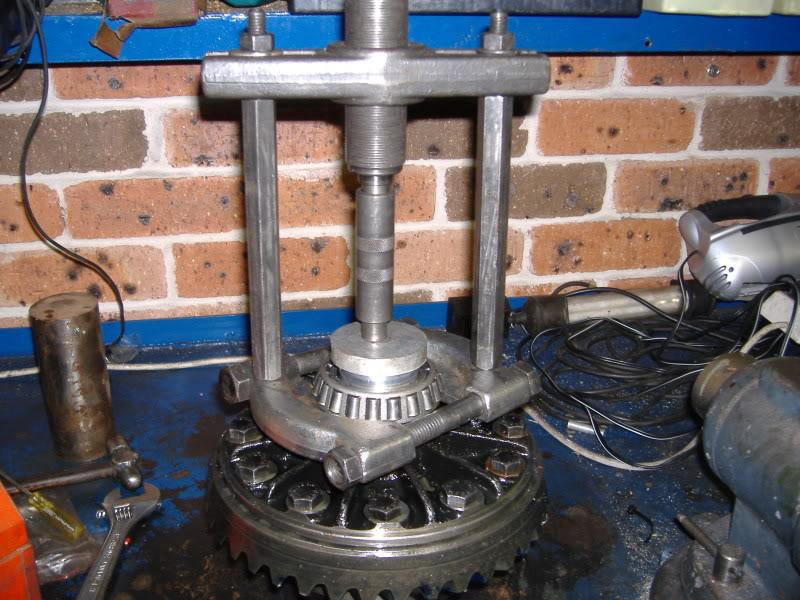

    So I used a bearing spreader and hydraulic puller.

    Reply With Quote Reply With Quote
