Thread: breath

  1. 30th May 2010, 02:05 PM #1
    trailcutter
    trailcutter is offline Master
    Join Date
    Mar 2010
    Location
    tomerong
    Posts
    160
    Total Downloaded
    0

    breath

    Could some one bring me up to speed on the exact location of the air intake re; engine air filter on the new defender 2010,,,correct me if i,m wrong ,,,

    left gaurd top ,,,,,perforated moulding,,,,interior fan intake?
    right gaurd top,,,,,,,, dummy moulding ,,no holes.

    engine air filter intake is located

    ( fill this space)

    cheers..

    is the integrity of the fittings watertight from factory or should i disaasemble/check and seal ...

    yes i could go and look ,,,,but i dont actually pay/pick up the big girl for 10 more sleeps...
    Reply With Quote Reply With Quote
  2. 30th May 2010, 02:29 PM #2
    dcale
    dcale is offline Fossicker Subscriber
    Join Date
    Nov 2008
    Posts
    68
    Total Downloaded
    0
    trailcutter,

    Drivers side - right side (vertical grill); drive with the window open and you can hear it suck the air in - awesome.
    Reply With Quote Reply With Quote
  3. 30th May 2010, 02:32 PM #3
    one_iota's Avatar
    one_iota
    one_iota is offline Moderator Gold Subscriber
    Join Date
    Jul 2003
    Location
    Sydney's gritty inner west (2204) and verdant Mount Wilson
    Posts
    7,445
    Total Downloaded
    0
    Air intake is through the side of driver's side guard.

    Illustrated here:

    Links and Downloads Manager - Australian Land Rover Owners

    I have heard that the various components of the intake system are not well sealed. As I have a snorkel mine was replaced with a flexible hose from the snorkel where it meets the guard through to the filter box.
    Mahn England

    DEFENDER 110 D300 SE '23 (the S M E G)

    Ex DEFENDER 110 wagon '08 (the Kelvinator)
    http://www.aulro.com/afvb/members-rides/105691-one_iotas-110-inch-kelvinator.html

    Ex 300Tdi Disco:


    Reply With Quote Reply With Quote
  4. 30th May 2010, 09:38 PM #4
    trailcutter
    trailcutter is offline Master
    Join Date
    Mar 2010
    Location
    tomerong
    Posts
    160
    Total Downloaded
    0
    Quote Originally Posted by one_iota View Post
    Air intake is through the side of driver's side guard.

    Illustrated here:

    Links and Downloads Manager - Australian Land Rover Owners

    I have heard that the various components of the intake system are not well sealed. As I have a snorkel mine was replaced with a flexible hose from the snorkel where it meets the guard through to the filter box.
    cheers mate,,,,,,,,,,,,, exactly what i needed and suspected ,,t.y.
    Reply With Quote Reply With Quote
  5. 1st June 2010, 02:13 PM #5
    Tomo
    Tomo is offline Master
    Join Date
    Apr 2007
    Location
    Jabiru, NT
    Posts
    274
    Total Downloaded
    0
    Quote Originally Posted by one_iota View Post
    Air intake is through the side of driver's side guard.

    Illustrated here:

    Links and Downloads Manager - Australian Land Rover Owners

    I have heard that the various components of the intake system are not well sealed. As I have a snorkel mine was replaced with a flexible hose from the snorkel where it meets the guard through to the filter box.
    what type of snorkel do you have?How did you do this exactly?

    I have a mantec snorkel and you are right it is not sealing. I took the mushroom head and stuck my hand over the top and it is sucking in al lot of air from the standard ducting to the airbox. I even slickaflexed the snorkel join onto the front guard!!! There is a slip on hose fitting onto the inner of the front guard that seems to not be a complete seal......
    Reply With Quote Reply With Quote
  6. 1st June 2010, 03:39 PM #6
    one_iota's Avatar
    one_iota
    one_iota is offline Moderator Gold Subscriber
    Join Date
    Jul 2003
    Location
    Sydney's gritty inner west (2204) and verdant Mount Wilson
    Posts
    7,445
    Total Downloaded
    0
    Tomo,

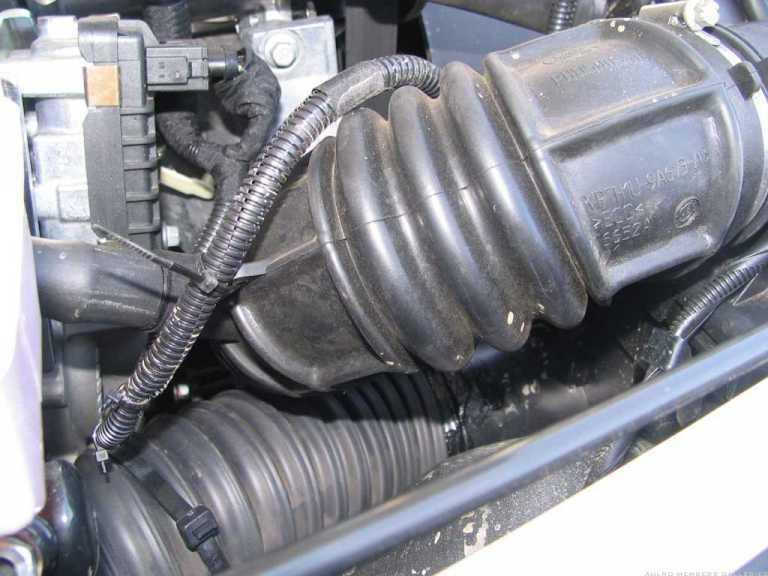

    Mine is a Safari Snorkel. It is the Td5 version modified by the installer to suit the Puma set up. (the Safari version for the Puma had just been released at the time). He dispensed with the existing pipework and replaced it with a flexible tube part of which can just be seen in this photo towards the bottom:



    The installer is also an experienced Defender owner and is not averse to taking his to places where the risk of water ingress is real so I have some confidence that he has done the right thing sealing it adequately at either end. He also sealed up the relief valve in the bottom of the air box.
    Mahn England

    DEFENDER 110 D300 SE '23 (the S M E G)

    Ex DEFENDER 110 wagon '08 (the Kelvinator)
    http://www.aulro.com/afvb/members-rides/105691-one_iotas-110-inch-kelvinator.html

    Ex 300Tdi Disco:


    Reply With Quote Reply With Quote
