Thread: New rear wheel carrier

  1. 28th November 2010, 02:38 PM #1
    Perspicacious Guest

    New rear wheel carrier

    Attached are a few photos of the wheel carrier rijidij fitted for me yesterday.

    First impression is this thing is solid as a rock. It's made out of powder-coated steel. It's bolted to the rear cross member, with two additional brackets that bolt to chassis. If I grab the wheel and give it a good hard tug, nothing moves.

    One thing I like is a spring-loaded pin that automatically holds the door in the open position. The door does not swing shut unexpectedly any more. There is a handle behind the wheel that pulls the pin out easily.

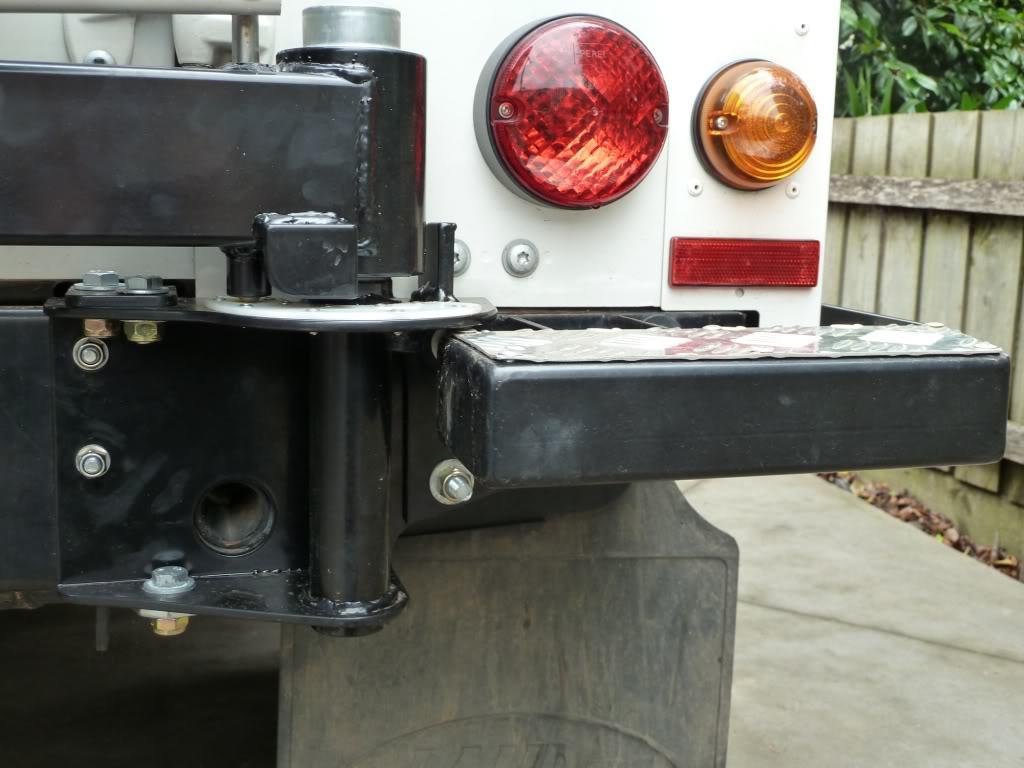

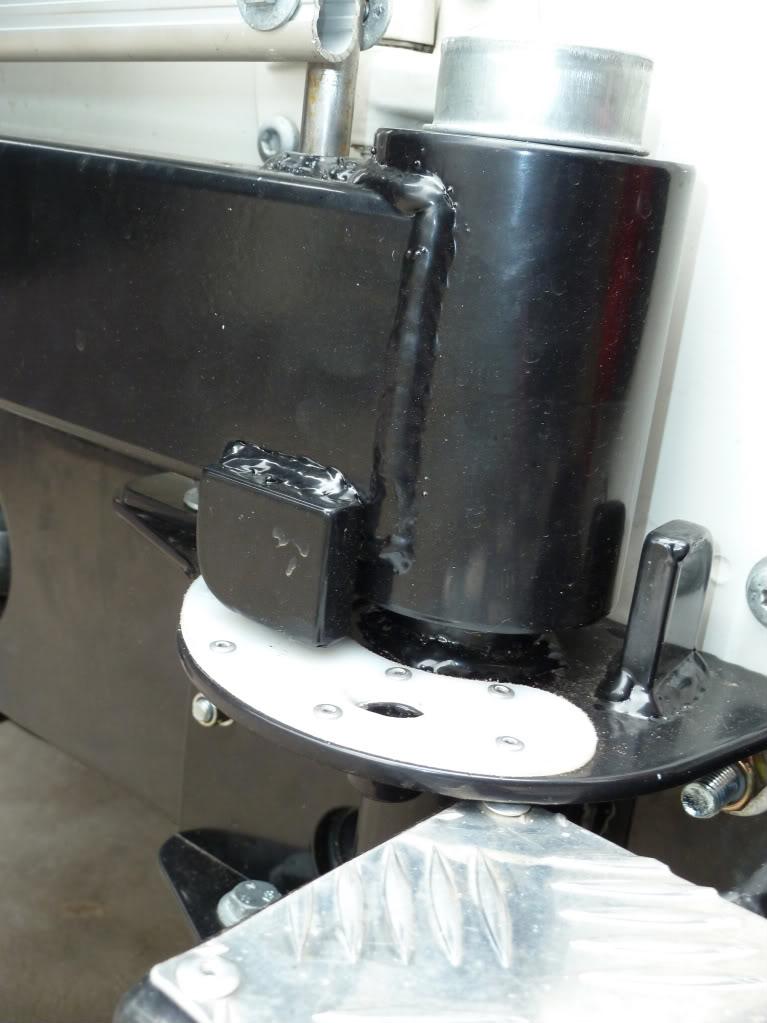

    This is the business end. The black cylinder has a stub axle with 2 bearings inside. You can see the hole were the spring-loaded pin fits and the 2 black lugs which limit the door opening.

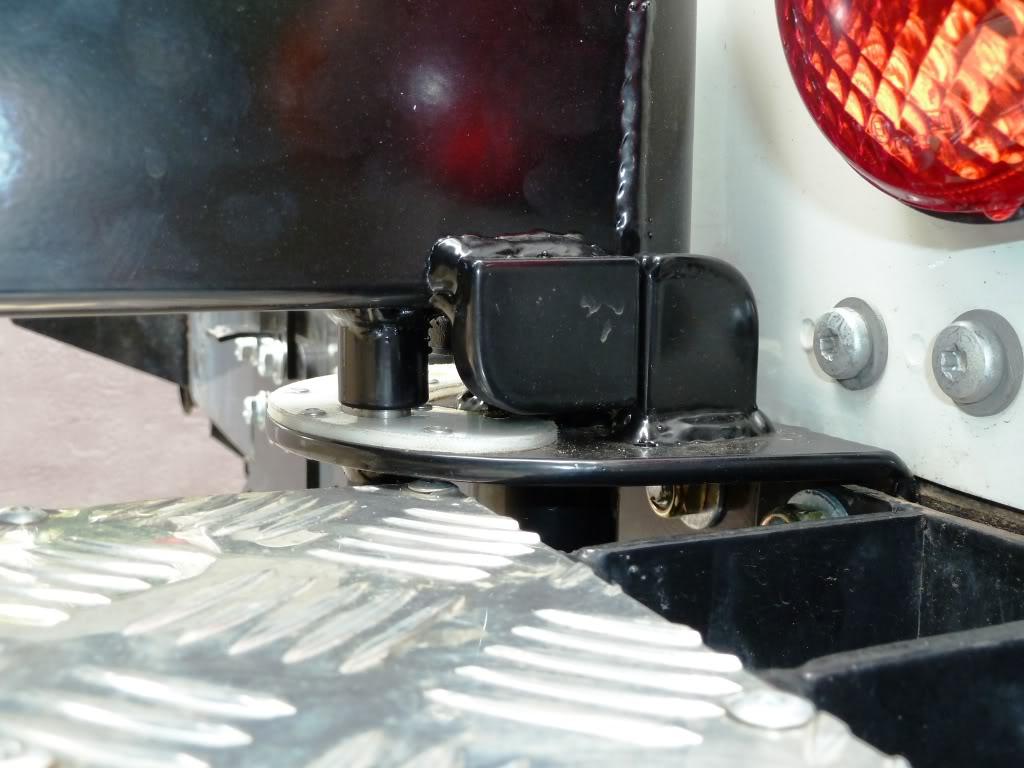

    This is the door open. You can see the spring-loaded pin in its hole and the 2 lugs against each other. The door opens to just past 90degrees, so it will not interfere with a drawer system in the back. The big silver thing in the foreground is a Mulgo Bumperette.

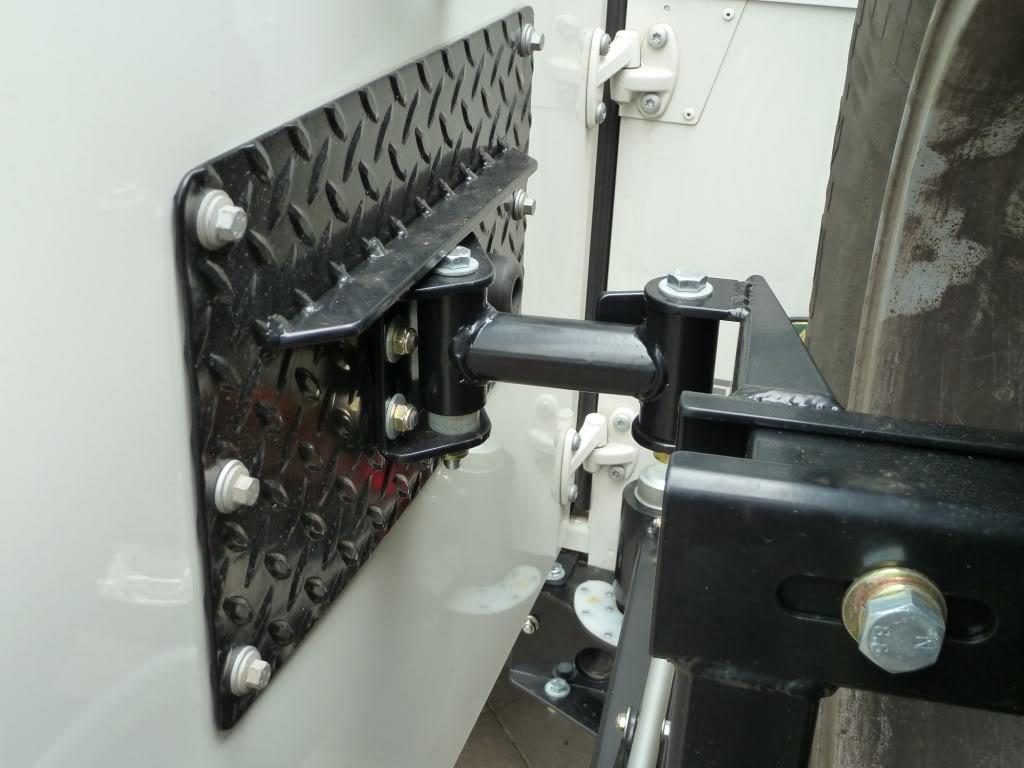

    This is the plate on the back door which replaces the OEM wheel carrier. It uses the same holes. The opening mechanism, which opens with the door and slides down because the door does not open strictly on the horizontal plane, is an elegant piece of engineering.

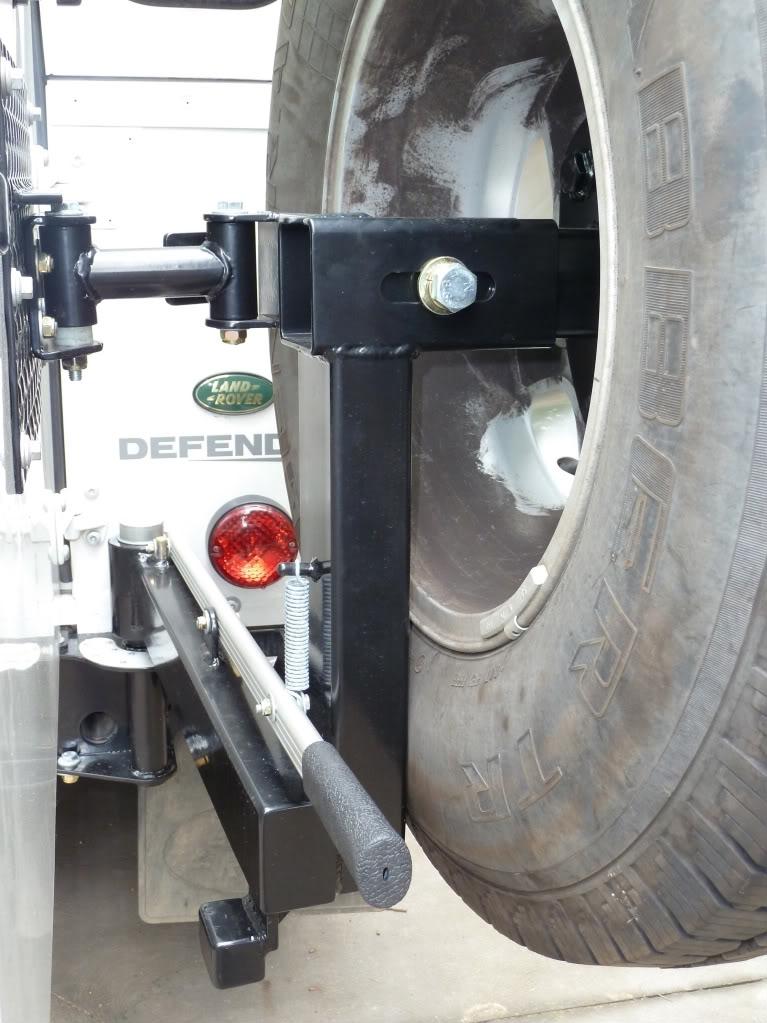

    This is the carrier open. The big silver nut on the right allows adjustment for different size wheels. The idea is to adjust so the rubber of the tyre sits up hard against the carrier and nothing rattles. Excuse the dirty alloy wheel.

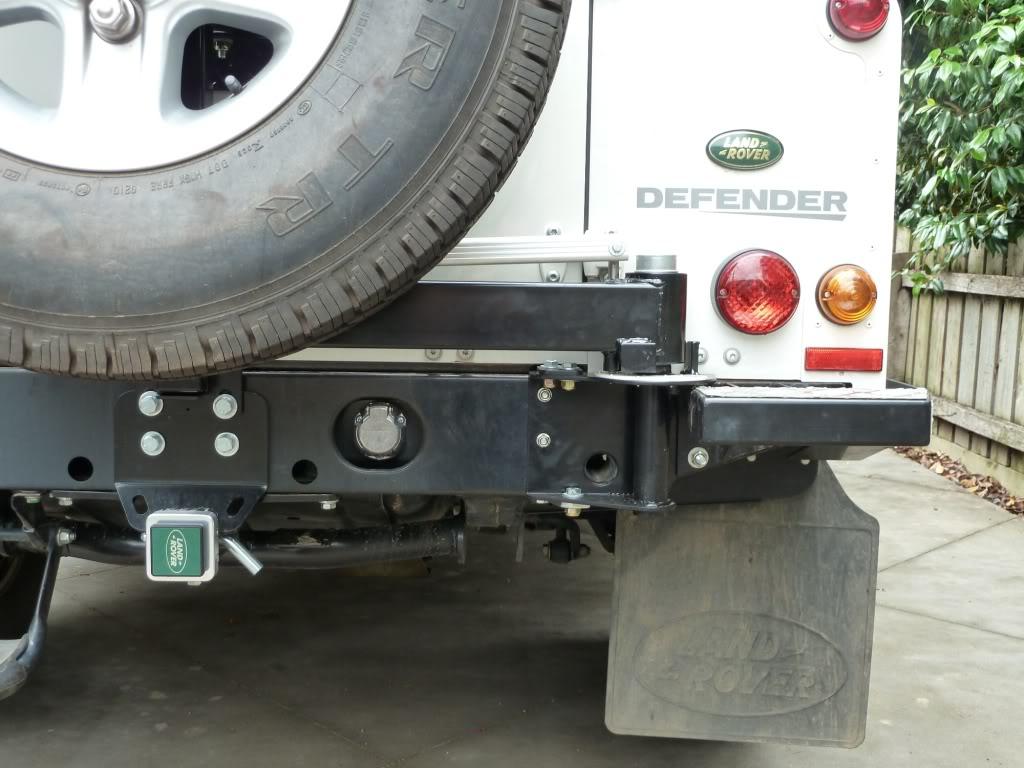

    Wheel carrier closed. Fits perfectly with the Mulgo bumperettes, although you will need the additional bracket they come with.



    Another photo of the carrier closed. This one shows you how it all fits together. Note the additional bracket at the 6 o'clock position of the wheel. This bracket holds the horizontal arm of the wheel quite firmly and stops vibration. As you can see, it fits with the OEM towbar.
    Reply With Quote Reply With Quote
  2. 28th November 2010, 02:45 PM #2
    Scooter Guest

    Wheel Carrier

    Nice engineering.

    How much and do they make a left side wheel carrier.
    Reply With Quote Reply With Quote
  3. 28th November 2010, 02:51 PM #3
    dullbird's Avatar
    dullbird
    dullbird is offline Admin Gold Subscriber
    Join Date
    Jan 1970
    Location
    Down the road from Sydney
    Posts
    14,702
    Total Downloaded
    0
    do you have a rear door that opens in the opposite direction? otherwise it wont work as its attached to the door
    Our Land Rover does not leak oil! it just marks its territory.......



    Reply With Quote Reply With Quote
  4. 28th November 2010, 03:19 PM #4
    miky Guest
    Looks like a nice bit of kit that.
    Good addition to your rig.


    .
    Reply With Quote Reply With Quote
  5. 28th November 2010, 04:38 PM #5
    frantic's Avatar
    frantic
    frantic is offline ChatterBox Subscriber
    Join Date
    Nov 2008
    Location
    Illawarra
    Posts
    2,508
    Total Downloaded
    0
    Very nice set up, where from and how much?
    Reply With Quote Reply With Quote
  6. 28th November 2010, 05:13 PM #6
    RVR110's Avatar
    RVR110
    RVR110 is offline Master Subscriber
    Join Date
    Feb 2010
    Location
    Sutherland Shire, Sydney
    Posts
    844
    Total Downloaded
    0
    I remember this carrier from this thread. I'd be interested in current price and availability.

    Also, there was some mention in that other thread about adding a hi-lift jack mount. Is that an option these days?
    Reply With Quote Reply With Quote
  7. 28th November 2010, 06:08 PM #7
    zuno555's Avatar
    zuno555
    zuno555 is offline Master
    Join Date
    Oct 2008
    Location
    Northern Melb.
    Posts
    343
    Total Downloaded
    0
    Excellent write up and pics, much much appreciated.
    Reply With Quote Reply With Quote
  8. 28th November 2010, 07:56 PM #8
    Perspicacious Guest
    The wheel carrier was manufactured by rijidij, who can be found on this forum. An earlier post about the carrier can be found here.

    If you have any questions about price and availability they are probably best answered by rijidij himself. I know he has plans to manufacture a few more for sale. I hope he does make some more because this wheel carrier is awesome.

    rijidij showed me the identical carrier he has had on his Tdi for a few years, which has a 20l water jerry hanging off the back of it. Doing something like that without a proper rear wheel carrier that would kill the oem carrier or rip off the back door. But rijidij's carrier is up to the task. I am planning on putting a shovel and axe carrier on mine.

    I had been looking at the Dolium and Kaymar products, as well as some available in the UK. Whilst there is nothing wrong with any of the others, rijidij's is the best on the market as far as I am concerned. It is super strong (rijidij should change his name to Over-Engineer), well thought out and easy to use. Everything has been done to remove vibration on corrugated roads and make the thing easy to use. Stuff like having brackets that reach over and under the rear cross member and bolt directly on to the chassis puts rijidij's carrier in a class of its own.

    I have paired the wheel carrier up with a Mulgo gas strut. If you do this, fit the wheel carrier before the gas strut. If you fit the gas strut first you might find that the gas strut fully extends (and stops) before the door is open far enough to engage the auto locking pin on the wheel carrier. Through sheer good luck (and not good management) I did not have this problem.
    Reply With Quote Reply With Quote
  9. 28th November 2010, 09:26 PM #9
    Scouse's Avatar
    Scouse
    Scouse is offline OldBushie Gold Subscriber
    Join Date
    Jan 1970
    Location
    Douglas Park, NSW
    Posts
    9,347
    Total Downloaded
    0
    Quote Originally Posted by dullbird View Post
    do you have a rear door that opens in the opposite direction? otherwise it wont work as its attached to the door
    I gather it opens with the door, negating the need to move the wheel out of the way before opening the door.
    Scott
    Reply With Quote Reply With Quote
  10. 28th November 2010, 09:39 PM #10
    rijidij's Avatar
    rijidij
    rijidij is offline ChatterBox Subscriber
    Join Date
    Jan 2007
    Location
    SW of Geelong
    Posts
    2,383
    Total Downloaded
    0
    David,
    Thanks heaps for the pics and your positive comments on the carrier. I'm glad you're so happy with it.
    You have inspired me to write up a proper build thread on the project, so you can see it here >>>> Puma Rear Wheel Carrier <<<<
    And thanks again for making the two trips down the freeway. It helped me out heaps to have your Puma in the workshop.

    Cheers, Murray
    '88 County Isuzu 4Bd1 Turbo Intercooled, '96 Defender 130 CC VNT
    '85 Isuzu 120 Trayback, '72 SIIA SWB Diesel Soft Top
    '56 SI Ute Cab

    Reply With Quote Reply With Quote
