Thread: external roll cage

  1. 27th April 2011, 07:43 PM #1
    85 county
    85 county is offline AULRO Holiday Reward Points Winner!
    Join Date
    Sep 2010
    Location
    adelaide
    Posts
    2,250
    Total Downloaded
    0

    external roll cage

    External roll cage.

    There a few pics of rolled defenders about, not nice

    So thinking of knocking up a roll cage. there’s a few pics of roll cages about BUT

    Where do they mount? IE what’s under the front guard etc
    Reply With Quote Reply With Quote
  2. 27th April 2011, 08:09 PM #2
    muddymech's Avatar
    muddymech
    muddymech is offline Master
    Join Date
    Jan 1970
    Location
    sydney
    Posts
    693
    Total Downloaded
    0
    ultimatley u need to end up on the chassis, have alook at safety devices web site and camel trophy stuff for ideas
    Reply With Quote Reply With Quote
  3. 27th April 2011, 08:27 PM #3
    Offender90
    Offender90 is offline ChatterBox
    Join Date
    Sep 2007
    Location
    Adelaide, SA
    Posts
    2,221
    Total Downloaded
    0
    They're a great idea, I've been wanting to do one for my 90 for a while now. There are several attachment point variations, but all ultimately attach to the chassis (and firewall).

    Safety Devices roll cage catalogs show schematics - link below.

    http://www.safetydevices.com/images/...efender110.pdf

    cheers

    Bojan
    Reply With Quote Reply With Quote
  4. 27th April 2011, 08:29 PM #4
    Offender90
    Offender90 is offline ChatterBox
    Join Date
    Sep 2007
    Location
    Adelaide, SA
    Posts
    2,221
    Total Downloaded
    0
    Quote Originally Posted by muddymech View Post
    ultimatley u need to end up on the chassis, have alook at safety devices web site and camel trophy stuff for ideas
    beat me to it!
    Reply With Quote Reply With Quote
  5. 27th April 2011, 08:42 PM #5
    Psimpson7's Avatar
    Psimpson7
    Psimpson7 is offline TopicToaster
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0

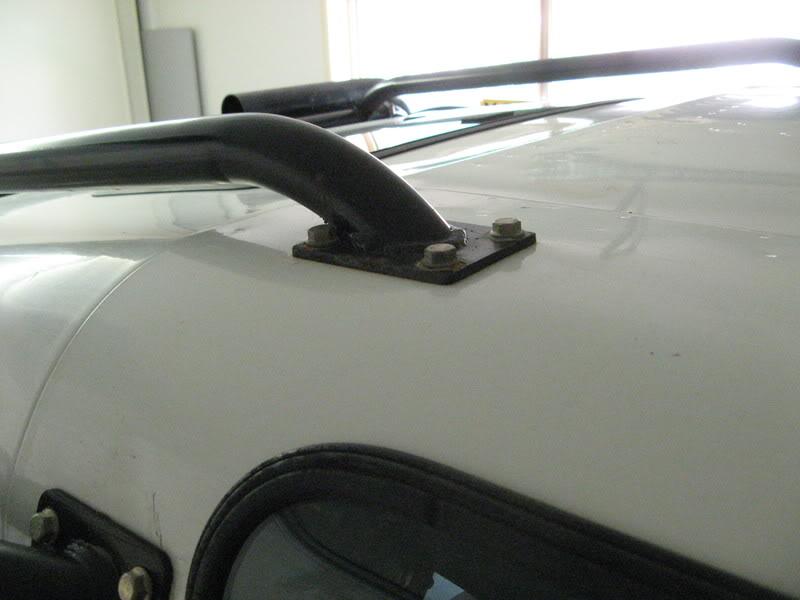

    In reality a full external cage is not a huge amount of use. Triangulation and diagnols are your freinds here.

    Protection and Performace are probably one of the best of the shelf cage manufacturers. (UK based)

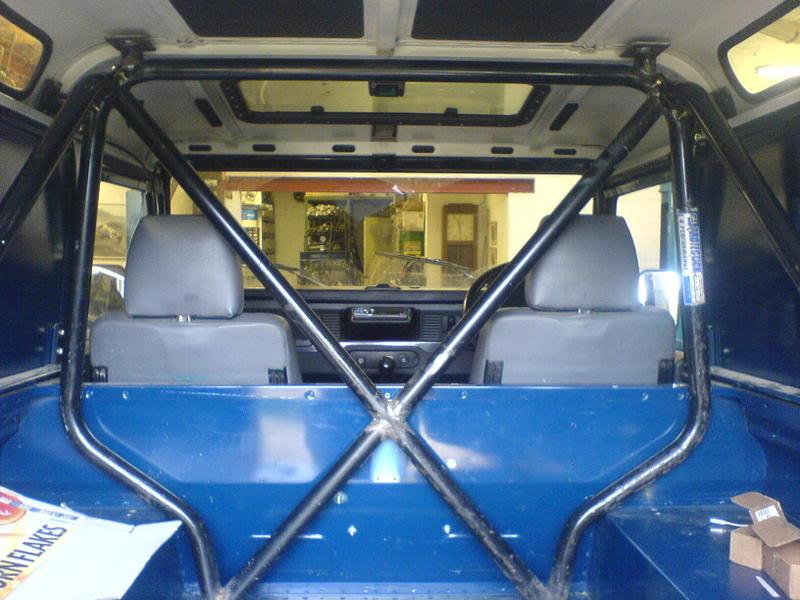

    I have one of their cages, modified by me to my needs.

    Inside the front wing skins is a rectangular Steel tube that mounts to the top of the main outriggers with a bracket that bolts to the outrigger with the bolt that holds the firewall on. (Sorry I don't have any pictures of this) Some cages also tie into the bolt holes that hold the wing skin on. (PPC will sell their version seperately to the cage if required)

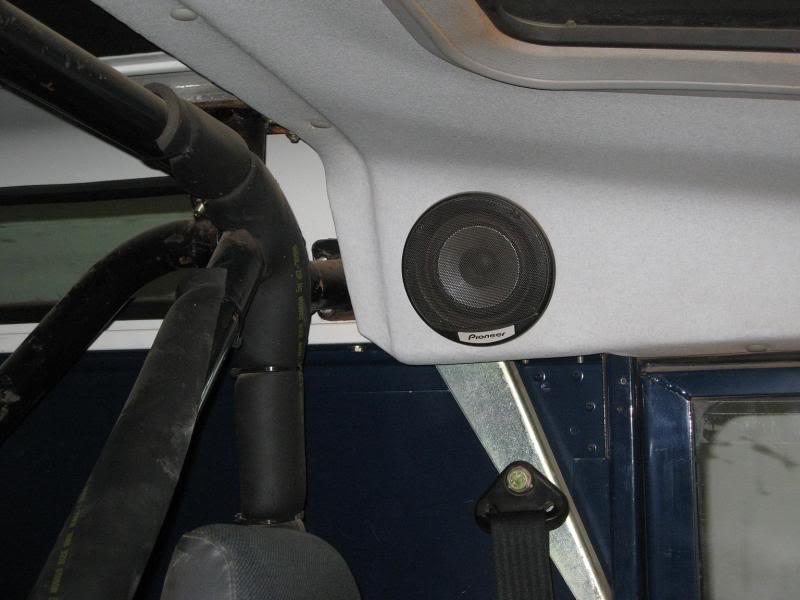

    Rear stay supports

    Reply With Quote Reply With Quote
  6. 27th April 2011, 10:22 PM #6
    85 county
    85 county is offline AULRO Holiday Reward Points Winner!
    Join Date
    Sep 2010
    Location
    adelaide
    Posts
    2,250
    Total Downloaded
    0
    AAHHH, thanks now time for thinking.

    The more I think about it the more I want to include

    Rollover protection
    Cargo barrier ( behind rear seat)
    Roof rack
    Support for the 3 solar panels over the cab, ( surprisingly heavy)
    Possible roof top aircon

    Sort of wrapping it all into one unit. and striping out our setup and starting again
