Thread: 300tdi R380 mainshaft wear

  1. 6th June 2011, 06:08 PM #1
    TD5_Fender's Avatar
    TD5_Fender
    TD5_Fender is offline Fossicker
    Join Date
    Jul 2008
    Location
    Sunny Coast,QLD
    Posts
    62
    Total Downloaded
    0

    300tdi R380 mainshaft wear

    I picked up a 110 300tdi ute off ebay late last year for a bit of a project and to use it as a weekend toy, anyway while driving it home from Brissy i noticed alot of freeplay in the driveline (aswell as a lot of other things). So one of my last jobs to do before i get it registered was to pull out the gearbox/transfer to check out the rattle coming from the clutch and while im their split the box and transfer to have a look at the mainshaft for wear.

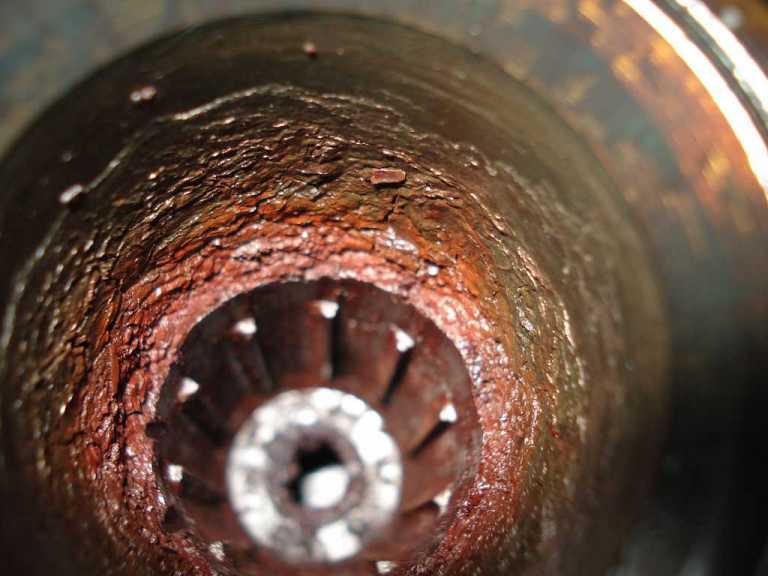

    This is what i found i don't think it would have lasted to much longer





    Lucky i have a spare T/case out of my Td5 to go in it for now just have to get a new mainshaft...

    Shane
    Last edited by TD5_Fender; 6th June 2011 at 06:09 PM. Reason: Spelling
    Reply With Quote Reply With Quote
  2. 6th June 2011, 06:43 PM #2
    PAT303
    PAT303 is offline OldBushie
    Join Date
    May 2007
    Location
    Safety Bay
    Posts
    8,041
    Total Downloaded
    0
    It must be a pre '96 model. Pat
    Reply With Quote Reply With Quote
  3. 6th June 2011, 07:05 PM #3
    TD5_Fender's Avatar
    TD5_Fender
    TD5_Fender is offline Fossicker
    Join Date
    Jul 2008
    Location
    Sunny Coast,QLD
    Posts
    62
    Total Downloaded
    0
    It is a 94 model but it has had the T/case off it before because someone put a long bolt where it shouldn't be which has gone through to the inside of the T/case and been nicely bent and chewed at by the gears inside.

    Obviously it never had a cross drilled input gear put in it.

    Shane
    Reply With Quote Reply With Quote
  4. 7th June 2011, 11:47 AM #4
    roverrescue's Avatar
    roverrescue
    roverrescue is offline YarnMaster Supporter
    Join Date
    Dec 2006
    Location
    Torres Straits
    Posts
    3,503
    Total Downloaded
    0
    Mine ex forestry '95 looked just like that
    Just buy the updated cross drilled input gear, it will engage on about 20mm extra main shaft splines.
    Ive done 30 something kays and no noticeble wear on inspection.
    Its like a pseudo-time bomb!

    S
    '95 130 dual cab fender (gone to a better universe)
    '10 130 dual cab fender (getting to know it's neurons)
    Reply With Quote Reply With Quote
  5. 7th June 2011, 02:19 PM #5
    harro's Avatar
    harro
    harro is offline Wizard Subscriber
    Join Date
    Jan 1970
    Location
    cairns
    Posts
    1,675
    Total Downloaded
    0
    Hi Shane,
    that vintage also had the timing belt issue with misalignment causing shredding of the belt on the block or cover.
    Might be worth checking if you haven't already

    Hope yours has had the correction kit fitted if it needed it.

    Cheers,
    Paul.
    Paul.

    77 series3 (sold)
    95 300Tdi Ute (sold)
    2003 XTREME Td5

    I thought I was wrong once, but I was mistaken.
    Reply With Quote Reply With Quote
  6. 7th June 2011, 04:55 PM #6
    TD5_Fender's Avatar
    TD5_Fender
    TD5_Fender is offline Fossicker
    Join Date
    Jul 2008
    Location
    Sunny Coast,QLD
    Posts
    62
    Total Downloaded
    0
    Quote Originally Posted by harro View Post
    Hi Shane,
    that vintage also had the timing belt issue with misalignment causing shredding of the belt on the block or cover.
    Might be worth checking if you haven't already

    Hope yours has had the correction kit fitted if it needed it.

    Cheers,
    Paul.
    Yeah already been in there and done that. No updated kit had ever been fitted.

    As for the mainshaft i have a oil leak from where 5th and reverse gear extension housing is joined so i am going to be splitting it anyways.

    It also now has front and rear lockers with 35's so better safe then sorry

    Shane
