Thread: 2012 Puma CANBUS re-set?...

  1. 15th February 2013, 07:05 PM #1
    benji's Avatar
    benji
    benji is offline Wizard Supporter
    Join Date
    Jan 2012
    Location
    Bendigo
    Posts
    1,643
    Total Downloaded
    0

    2012 Puma CANBUS re-set?...

    Sorting out a problem with a Nanocom on a 2012 Puma. The guy i've been talking to says to hard re-set the CANBUS by touching the positive and negative terminals together for a couple of minutes. I've heard of this being done on D3's, but is it safe for a 2.2 Def?

    I'm also trying to find out what the CANBUS does on the new Defenders, is this network used for diagnostic communication, or just communication between onboard ecu's.

    Thanks heaps.
    Benji.
    Reply With Quote Reply With Quote
  2. 15th February 2013, 07:42 PM #2
    Lorryman100's Avatar
    Lorryman100
    Lorryman100 is offline Master
    Join Date
    Jul 2011
    Location
    Scotland
    Posts
    191
    Total Downloaded
    0
    Personally I prefer just to remove the negative terminal and then press the brake pedal a few times to discharge any stored capacitance within the loom/modules. I then leave it ten mins before re connecting the negative lead. Does the same job as touching the two terminals.

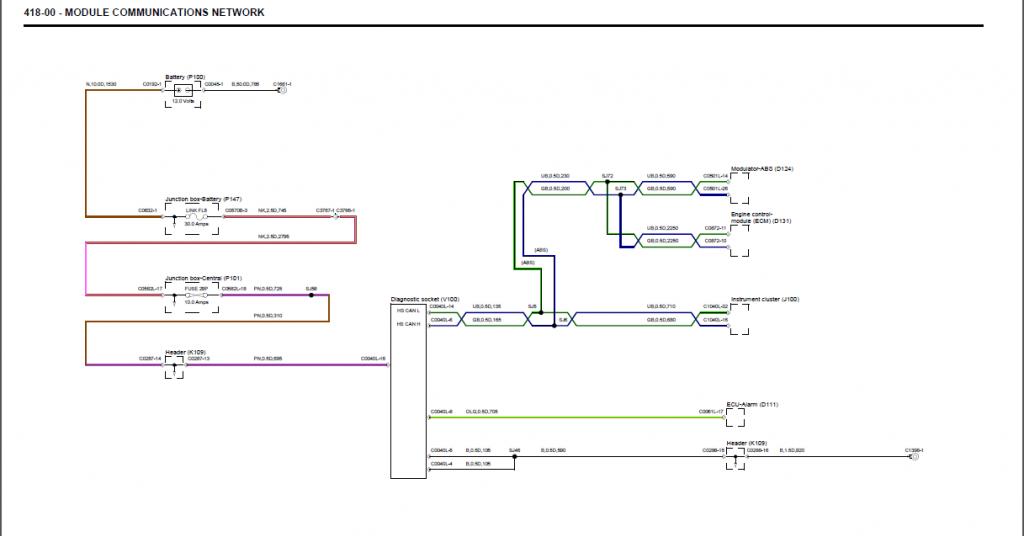

    On the 2012 MY the CanBus network connects the EMS, Ipac and ABS Modulator and the OBDII diagnostic socket.




    HTH Brian.
    Reply With Quote Reply With Quote
  3. 16th February 2013, 03:48 PM #3
    benji's Avatar
    benji
    benji is offline Wizard Supporter
    Join Date
    Jan 2012
    Location
    Bendigo
    Posts
    1,643
    Total Downloaded
    0
    Thanks very much for that!

    That all makes sense.

    Regards, Benji.
