Thread: CV joint replacement?

  1. 24th December 2014, 09:29 AM #1
    eddiec's Avatar
    eddiec
    eddiec is offline Master
    Join Date
    Sep 2007
    Location
    Box Hill, Victoria
    Posts
    100
    Total Downloaded
    0

    CV joint replacement?

    Morning (and Merry Christmas) all...

    Wonder if I could canvas your expertise around a steering issue which continues to bug me.

    A while back I noticed my 96 TDI's steering had a weird 'pulsing' thing going on as it returned to straight after a tight, low speed turn. Took it into our mechanic and they informed me that the track rod (I think) was pretty bent (not sure how that happened!) and fixed a heavy duty one for me.

    All seemed ok, but a few months later I noticed the same steering issue appearing - albeit to a lesser extent. Not all the time, but usually at low speed, and more often after turning right. The wheel comes back to centre 'unevenly'. Combined has been a clicking noise occasionally when at full lock to the right, which has been around for quite a while (but only at full lock).

    All of this leads me to believe it's the CV joint, and most likely the left one. However, the mechanic (Greg at AMG) had a peek the other week during its service, said it was a bit tight at points and loosened it up. He didn't indicate it needed replacing.

    However, it appears to be making the same noises and issues with the steering. Do I assume that the CV joint is the problem and go about just replacing, despite what the mechanic said? Or is there something else I might be overlooking? (I just rotated the wheels in case there was a chance that was the problem, but I don't think much has changed).

    And is this a job worth doing at home? Haven't done much serious mechanicking with the Defender so wondering whether this is a good place to start.

    And any recommendations to a good CV to replace it with (without going the $$$ of Ashcroft, etc)?

    Thanks all...
    Reply With Quote Reply With Quote
  2. 24th December 2014, 02:29 PM #2
    Drover's Avatar
    Drover
    Drover is offline Wizard
    Join Date
    Apr 2009
    Location
    Central Coast NSW
    Posts
    1,576
    Total Downloaded
    0
    You won't get a better CV than an Ashcroft.....simply as that !


    Ashcroft Transmissions
    Reply With Quote Reply With Quote
  3. 24th December 2014, 04:15 PM #3
    81V8 Guest
    "Having a peek" at a CV joint would is a little more involved than would be undertaken at a service - you actually have to fully remove them to check for tight spots / deformation and take a die grinder to them to loosen them up.

    I think your mechanic might be referring to the swivel ball - but that should not bo tight they only wear to being looser. Or the steering box.

    The clicking sounds like your CV is worn the other symtoms may perhaps relate to the swivels needing some attention - i.e a rebuild.

    It's not too hard a job to rebuild the swivels and change CV's but it is involved and perhaps not the best job to start on if you have little experience - have a look on you tube there are some surprisingly good 'tutorial' videos on hub rebuilds on there.

    As for replacement CV's yes Ashcroft's are good but then again if you haven't broken one yet or don't run a front locker I doubt you need them - they cost a lot more than the OEM item and will wear faster too as they are made of softer material. I'd stick with OEM in your position.

    In short - rebuild you front hubs, replace your CVs - how much attention have they received since 1996 and how many K's on them?

    Ian.
    Reply With Quote Reply With Quote
  4. 24th December 2014, 04:23 PM #4
    jboot51
    jboot51 is offline Master Gold Subscriber
    Join Date
    Aug 2012
    Location
    Logan,Queensland
    Posts
    921
    Total Downloaded
    0
    easy enough to replace at home.
    you'll need to remove parts down to the stub axle.


    wheel off
    lift calliper off
    remove drive flange
    remove wheel hub and bearings
    remove stub axle
    replace cv
    '95 Defender 130 Single Cab
    HS2.8 TGV Powered
    ------------
    98% of all Land Rovers built are still on the road.
    The other 2% made it home.

    Cost difference between Britpart and Genuine seals: £2.04. Knowing that your brakes won't fail at any moment: Priceless.
    Reply With Quote Reply With Quote
  5. 26th December 2014, 02:23 PM #5
    Bushie's Avatar
    Bushie
    Bushie is offline AT REST Gold Subscriber
    Join Date
    May 2002
    Location
    Heathcote (in "The Shire")
    Posts
    5,348
    Total Downloaded
    0
    Have you checked the steering column universals, can't say I've heard of them clicking but they do bind and make the steering go stiff/loose/stiff as you turn the wheel.

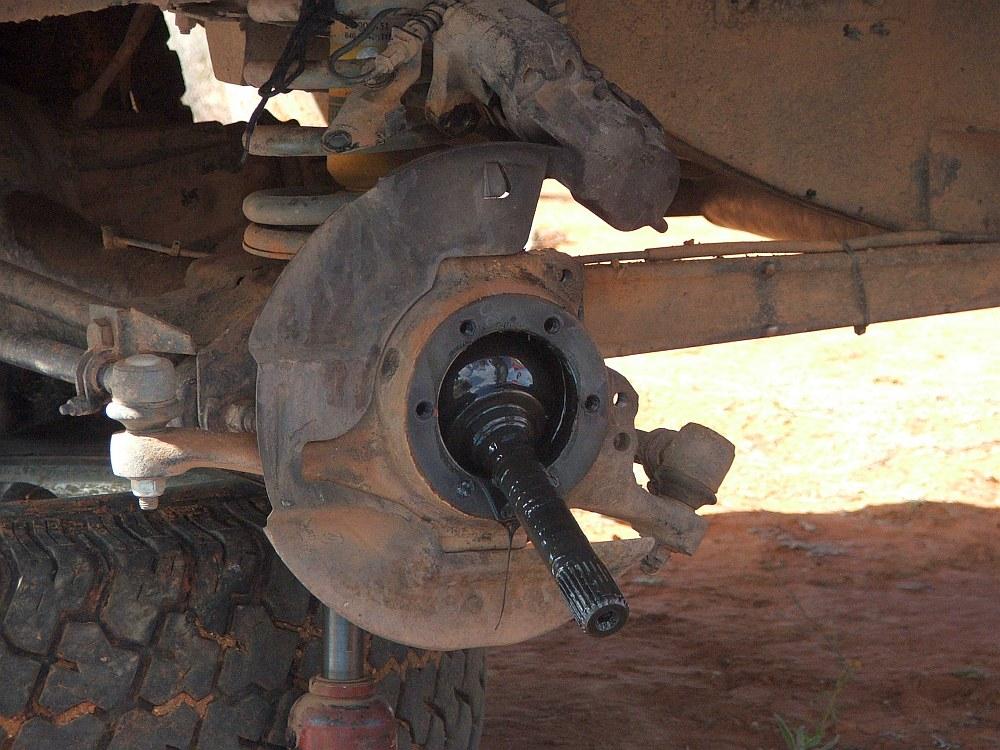

    If it's the CVs then you are getting down to this point,


    but it would have to be easier in a garage than on the side of a creek in western NSW.


    Martyn
    1998 Defender
    2008 Madigan
    2010 Cape York
    2012 Beadell, Bombs and other Blasts
    2014 Centreing the Simpson
    VKS-737 mob 7669



    Reply With Quote Reply With Quote
  6. 26th December 2014, 04:58 PM #6
    Jode
    Jode is offline Master
    Join Date
    Jul 2012
    Location
    Gaborone, Botswana
    Posts
    216
    Total Downloaded
    0
    If you do the swivles then check out what others have written up on that in the technical section - you'll avoid some possible mistakes that way and gain from other's good experience (such as cutting a slot in the brake hose bracket at the top swivel bearing to simplify future servicing).
    Reply With Quote Reply With Quote
