Thread: 130 Puma Help needed

Originally Posted by dennisS1

Hi, I am currently rebuilding a 2008 130"(yes I know I should stick to S1's and I would not have problems like this one);
This is my problem

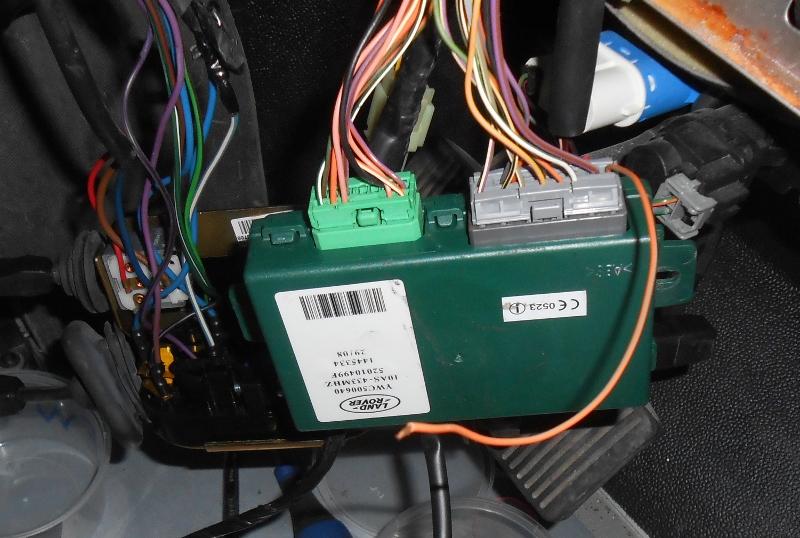

When reassembling the firewall I found this problem the orange and green wire has come from somewhere it is not a broken wire as I have striped back the loom and no broken wire. It looks like it has pulled out of a crimp but there are no pins in the plug without wire attached.
Best guess is that it loops back to one of the other pins but which one.
I have a CD copy of the Puma manual but it does not have the wiring diagrams.
If anyone can help it would be much appreciated.
Thanks Dennis

Dennis don't worry, that is the antenna for the alarm remote. Possibly someone has extended it by crimping a longer wire on, a common thing to do.

Jc

It seems like Jc has answered your question, but the manual might help later down the track.

Now lets see if this works. I have the wiring diagrams as a pdf on my computer, but can't seem to upload them. So here's a link to the manual on google drive from one of the ZA forum's. Good luck.

https://drive.google.com/viewerng/vi...GtKATAuMQEBdjI

Cheers, Ian.
