Thread: Discovery steel rims on 110

  1. 23rd January 2017, 07:24 AM #1
    lebanon's Avatar
    lebanon
    lebanon is offline YarnMaster Subscriber
    Join Date
    Nov 2009
    Location
    Lebanon
    Posts
    3,286
    Total Downloaded
    0

    Discovery steel rims on 110

    I replaced the RRC steel rims with a refurbished set of Discovery steel rims,



    I noticed that the studs don't protrude out of the bolts, they still have a thread or two to be flush with the bolts,





    Is it secure to have the bolts as such?
    Reply With Quote Reply With Quote
  2. 23rd January 2017, 07:31 AM #2
    weeds's Avatar
    weeds
    weeds is offline Swaggie
    Join Date
    Feb 2005
    Location
    Bracken Ridge - Brisbane - QLD
    Posts
    14,276
    Total Downloaded
    0
    Mine ran like that for 300 000km
    Reply With Quote Reply With Quote
  3. 23rd January 2017, 08:16 AM #3
    87County's Avatar
    87County
    87County is offline AT REST
    Join Date
    May 2007
    Location
    in the wild New England, NSW
    Posts
    4,918
    Total Downloaded
    0
    It is a look and a result I like Lebanon, I have D1 steels on my County and Perenties and the stud length has the same non-protrusion as yours - hasn't been a problem

    A cheap way of getting strong good quality tubeless rims onto a 110
    Reply With Quote Reply With Quote
  4. 23rd January 2017, 05:35 PM #4
    fitzy
    fitzy is offline Master
    Join Date
    May 2009
    Posts
    981
    Total Downloaded
    0
    I think technically there's longer studs available that you could knock in if you keen.
    Reply With Quote Reply With Quote
  5. 23rd January 2017, 07:24 PM #5
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0
    They are a good strong low cost rim. The wolf rims are unnecessarily thicker/stronger again but have slightly better offset. I fitted the D1 then wolf rims. The wolfs need the extra long studs but not the D1 rims IMHO.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  6. 24th January 2017, 01:50 PM #6
    dromader driver
    dromader driver is offline Master
    Join Date
    Sep 2007
    Posts
    577
    Total Downloaded
    0

    wheel load rating.

    From the back of the head.... I recall the load rating on the disco rims is not sufficient for a fully loaded defender. I had looked at using them on the trayback however insufficient strength.

    Someone may have the actual numbers. Was around the time a lot of white wheels with triangular slots were found to be lacking and cracking.
    Reply With Quote Reply With Quote
  7. 24th January 2017, 02:51 PM #7
    harro's Avatar
    harro
    harro is offline Wizard Subscriber
    Join Date
    Jan 1970
    Location
    cairns
    Posts
    1,675
    Total Downloaded
    0
    Quote Originally Posted by dromader driver View Post
    From the back of the head.... I recall the load rating on the disco rims is not sufficient for a fully loaded defender. I had looked at using them on the trayback however insufficient strength.

    Someone may have the actual numbers. Was around the time a lot of white wheels with triangular slots were found to be lacking and cracking.

    From memory Disco 1 steelies around 1,650 kgs and the Boost alloys were around 900 kgs.

    A hell of a load to overload those steelies.

    Paul.
    Paul.

    77 series3 (sold)
    95 300Tdi Ute (sold)
    2003 XTREME Td5

    I thought I was wrong once, but I was mistaken.
    Reply With Quote Reply With Quote
  8. 24th January 2017, 03:15 PM #8
    mfc's Avatar
    mfc
    mfc is offline Master Supporter
    Join Date
    Aug 2008
    Location
    latrobe valley victoria
    Posts
    898
    Total Downloaded
    0
    Mine.are just proud of the nut( 2002 td5) with d1 steel rims
    2002 defender 110 , 1955 86 inch
    Reply With Quote Reply With Quote
  9. 24th January 2017, 05:12 PM #9
    Larry's Avatar
    Larry
    Larry is offline Wizard Subscriber
    Join Date
    Jan 1970
    Location
    Sydney
    Posts
    1,374
    Total Downloaded
    0

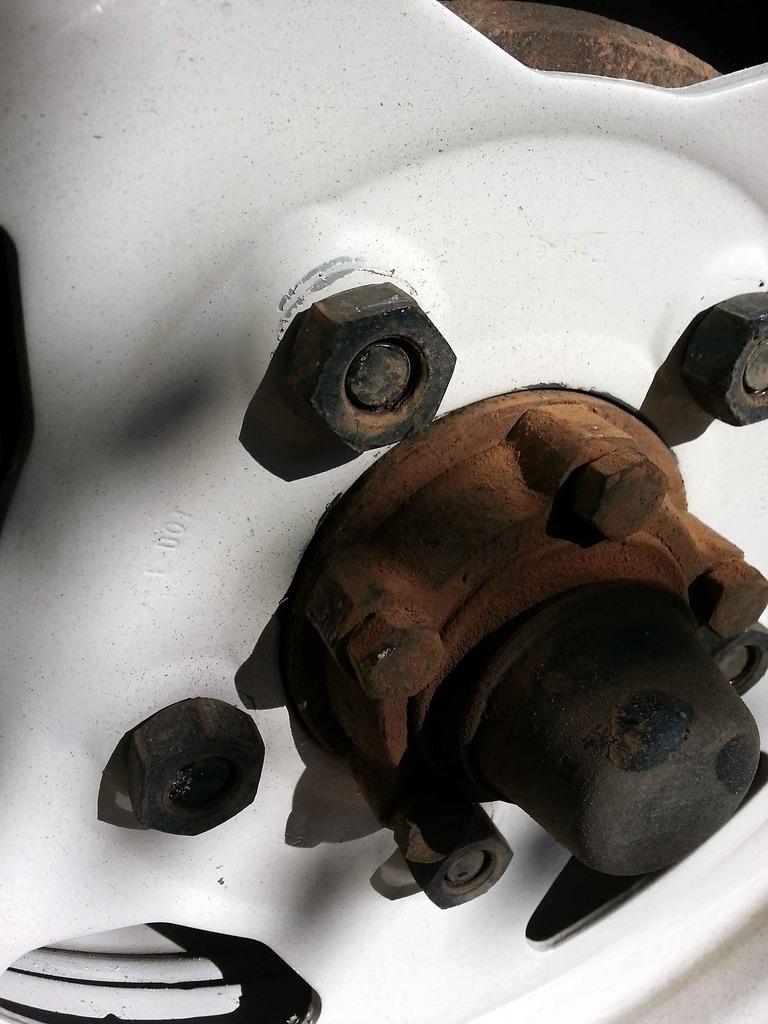

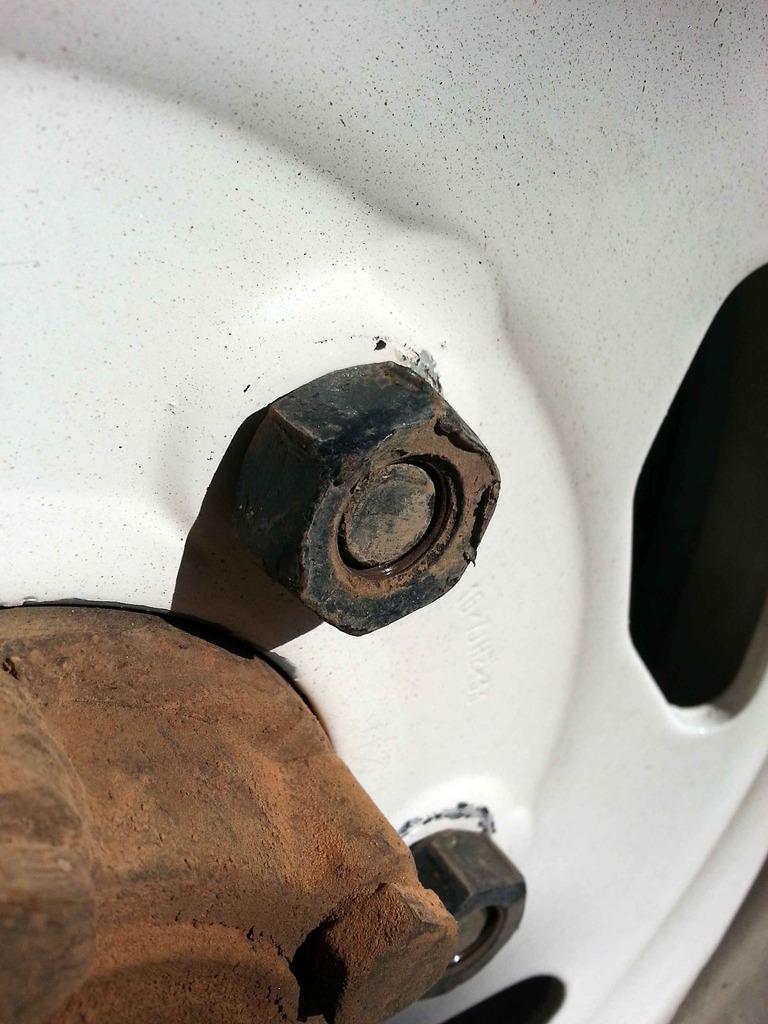

    Mine are flush with the nuts. (2012 D90)
    Attached Images Attached Images
    '51 Series 1 80"
    '12 Defender 90

    Reply With Quote Reply With Quote
  10. 24th January 2017, 05:47 PM #10
    REDTD5110
    REDTD5110 is offline Fossicker
    Join Date
    Sep 2016
    Location
    Sydney
    Posts
    46
    Total Downloaded
    0
    On the subject of disco steelies, can anyone recommend a place in sydney to get the centres re-welded to give 0 offset?
    Reply With Quote Reply With Quote
