Hi
sadly the wipers on the 130 have failed to proceed
they went coming home in the rain last Saturday but i managed to get them parked
turn them on a few days later and they did half a sweep and stopped and i havent been able to get them to proceed since.
checked the fuses etc and they are fine and there is 12v at the fuse etc.
do the switches or motors play up on a regular basis on these. i have never had an issue prior to this on any of mine so it isn't something i am familiar with.

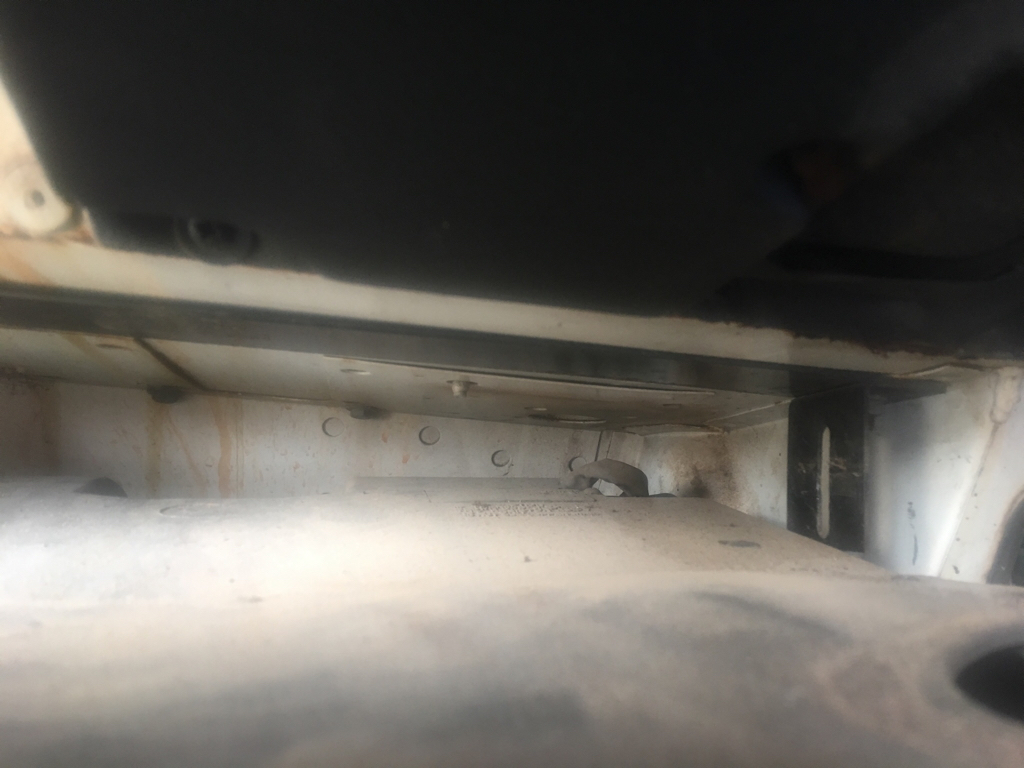

at first clance the wiper motor looks like a pox of a thing to remove due to the air-conditioning duct ...
is there an easy way around this to check the motor etc ?
am off to look at wiring diagrams for the switch so i can check it out...
2007 Discovery 3 SE7 TDV6 2.7
2012 SZ Territory TX 2.7 TDCi
"Make the lie big, make it simple, keep saying it, and eventually they will believe it." -- a warning from Adolf Hitler
"If you don't have a sense of humour, you probably don't have any sense at all!" -- a wise observation by someone else
'If everyone colludes in believing that war is the norm, nobody will recognize the imperative of peace." -- Anne Deveson
“What you leave behind is not what is engraved in stone monuments, but what is woven into the lives of others.” - Pericles
"We can ignore reality, but we cannot ignore the consequences of ignoring reality.” – Ayn Rand
"The happiness of your life depends upon the quality of your thoughts." Marcus Aurelius
SysAdmin (Owner)
Well that's fun

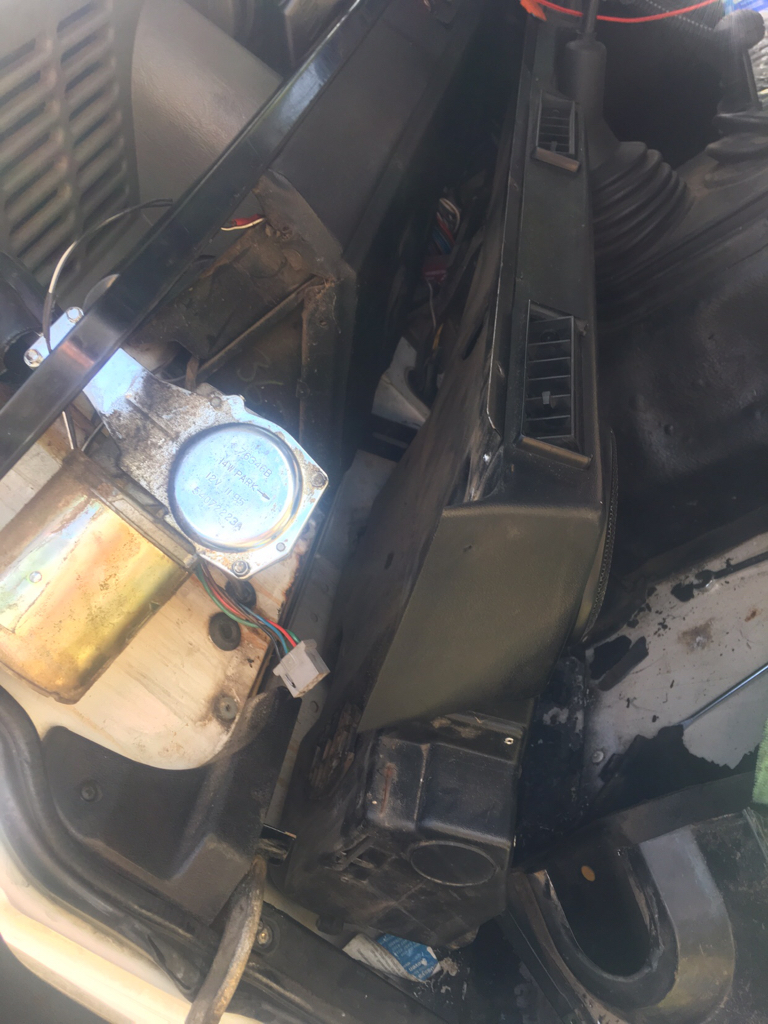

Getting to the wiper motor wasn't all that difficult thankfully and I found a couple of things

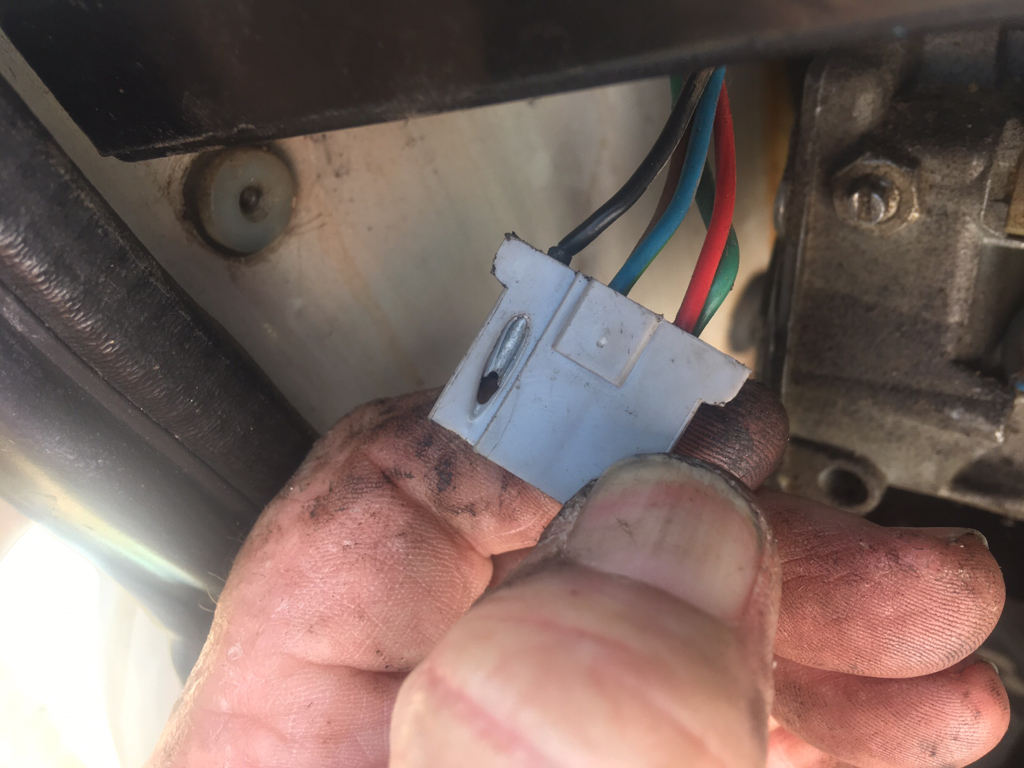

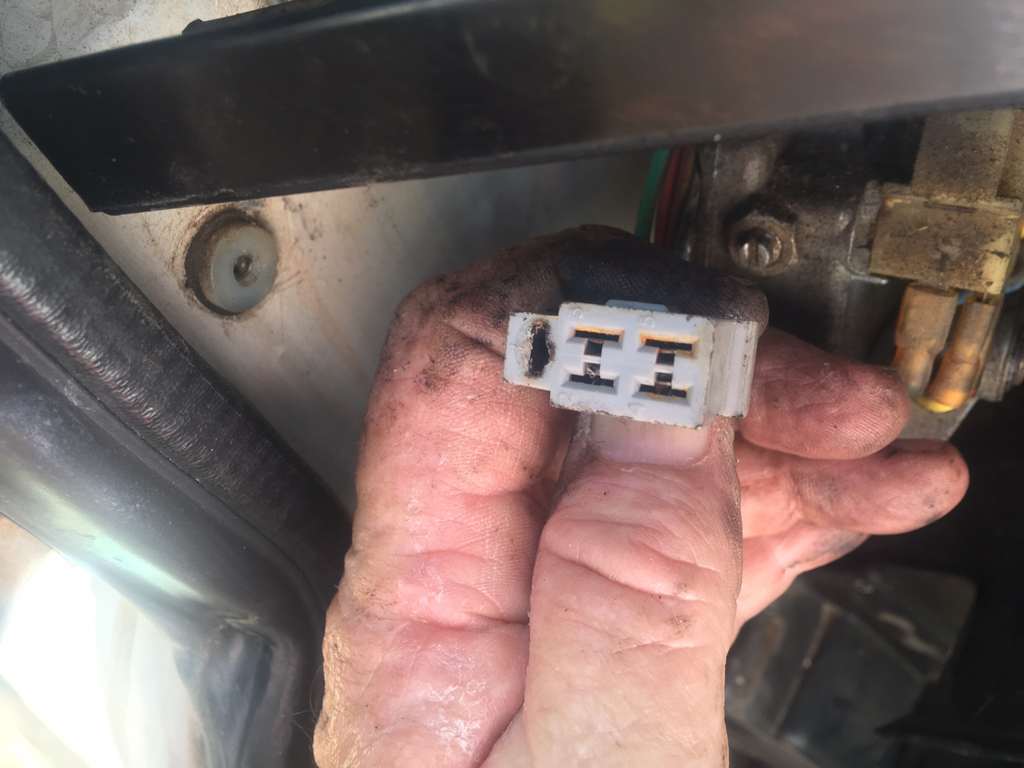

Am yet to check if there is still power to the plug that's gotten hot

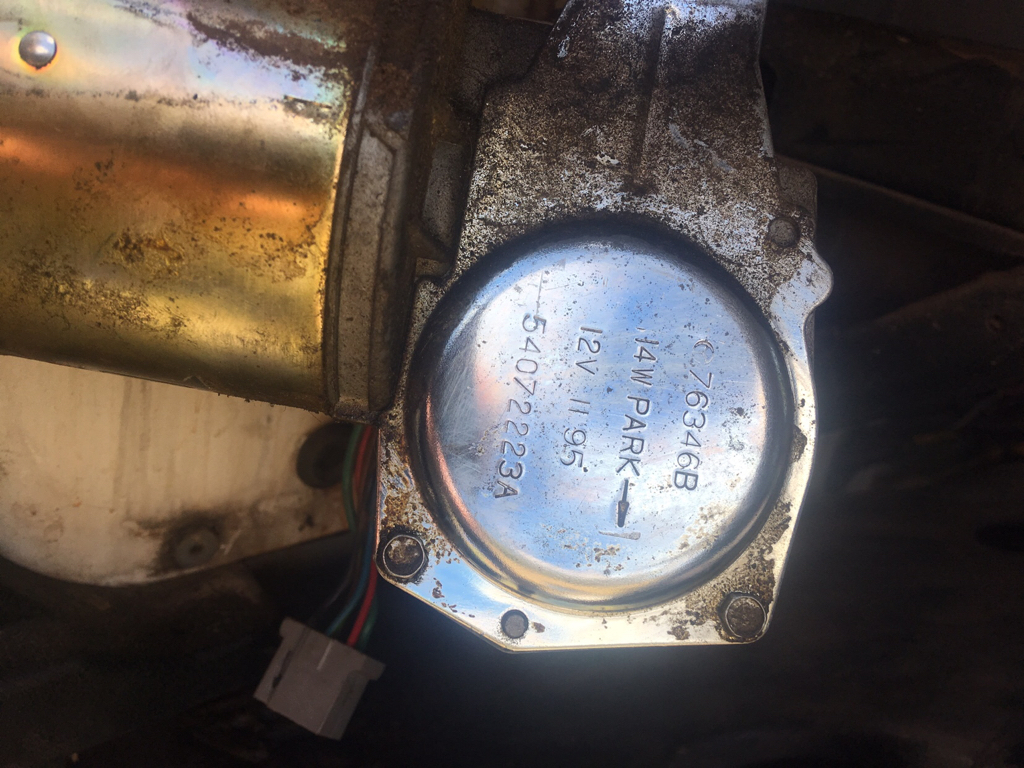

Is the type of wiper motor
Can one just detach the wiper motor from the cable at the wiper motor or?
TIA
For the record
2007 Discovery 3 SE7 TDV6 2.7
2012 SZ Territory TX 2.7 TDCi
"Make the lie big, make it simple, keep saying it, and eventually they will believe it." -- a warning from Adolf Hitler
"If you don't have a sense of humour, you probably don't have any sense at all!" -- a wise observation by someone else
'If everyone colludes in believing that war is the norm, nobody will recognize the imperative of peace." -- Anne Deveson
“What you leave behind is not what is engraved in stone monuments, but what is woven into the lives of others.” - Pericles
"We can ignore reality, but we cannot ignore the consequences of ignoring reality.” – Ayn Rand
"The happiness of your life depends upon the quality of your thoughts." Marcus Aurelius
Wizard
SubscriberIncisor,
If you remove the 6 small bolts on the motor cover in the last picture the cable and its retainer will come out and then you can remove the motor.
Regards,
Phil B
Custodian of:
1974 S3 swb wagon (sold)
1978 S3 swb canvas
48 749 '88 4x4 Perentie
1985 County with 4BD1T
SysAdmin (Owner)
much appreciated!Originally Posted by Phil B
thank you
2007 Discovery 3 SE7 TDV6 2.7
2012 SZ Territory TX 2.7 TDCi
"Make the lie big, make it simple, keep saying it, and eventually they will believe it." -- a warning from Adolf Hitler
"If you don't have a sense of humour, you probably don't have any sense at all!" -- a wise observation by someone else
'If everyone colludes in believing that war is the norm, nobody will recognize the imperative of peace." -- Anne Deveson
“What you leave behind is not what is engraved in stone monuments, but what is woven into the lives of others.” - Pericles
"We can ignore reality, but we cannot ignore the consequences of ignoring reality.” – Ayn Rand
"The happiness of your life depends upon the quality of your thoughts." Marcus Aurelius
Wizard
SupporterHow did you drop the air con? Was it just the self tappers along the top or are there some more substantial bolts underneath?Well that's fun
Getting to the wiper motor wasn't all that difficult thankfully and I found a couple of things
Am yet to check if there is still power to the plug that's gotten hot
Is the type of wiper motor
Can one just detach the wiper motor from the cable at the wiper motor or?
TIA
For the record
Cheers
Travelrover
Adventure before Dementia
2012 Puma 90 - Black
1999 Td5 110 Ute - White
1996 Tdi 300 Wagon - White
SysAdmin (Owner)

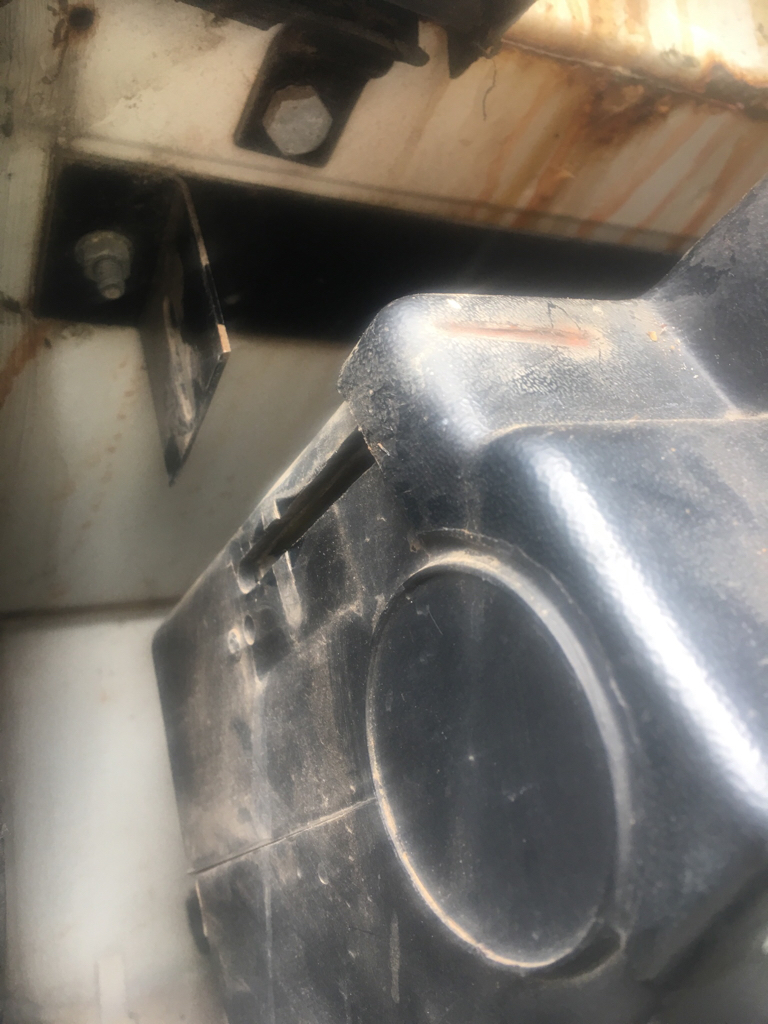

there are single bolts through the brackets on each side towards the top of the units. takes a 10mm socket on the door side and a10mm open end spanner on the side near the transmission tunnel.
will take a pic for you tomorrow if I get time to get near it.
2007 Discovery 3 SE7 TDV6 2.7
2012 SZ Territory TX 2.7 TDCi
"Make the lie big, make it simple, keep saying it, and eventually they will believe it." -- a warning from Adolf Hitler
"If you don't have a sense of humour, you probably don't have any sense at all!" -- a wise observation by someone else
'If everyone colludes in believing that war is the norm, nobody will recognize the imperative of peace." -- Anne Deveson
“What you leave behind is not what is engraved in stone monuments, but what is woven into the lives of others.” - Pericles
"We can ignore reality, but we cannot ignore the consequences of ignoring reality.” – Ayn Rand
"The happiness of your life depends upon the quality of your thoughts." Marcus Aurelius
Wizard
SupporterThanks incisor, yes a photo would be great. I think there is no support on the drivers side in my 300Tdi and i cant see anything passengers side but it is secure. In the Td5 the bolts are quite visible.
Cheers Simon
Cheers
Travelrover
Adventure before Dementia
2012 Puma 90 - Black
1999 Td5 110 Ute - White
1996 Tdi 300 Wagon - White
SysAdmin (Owner)

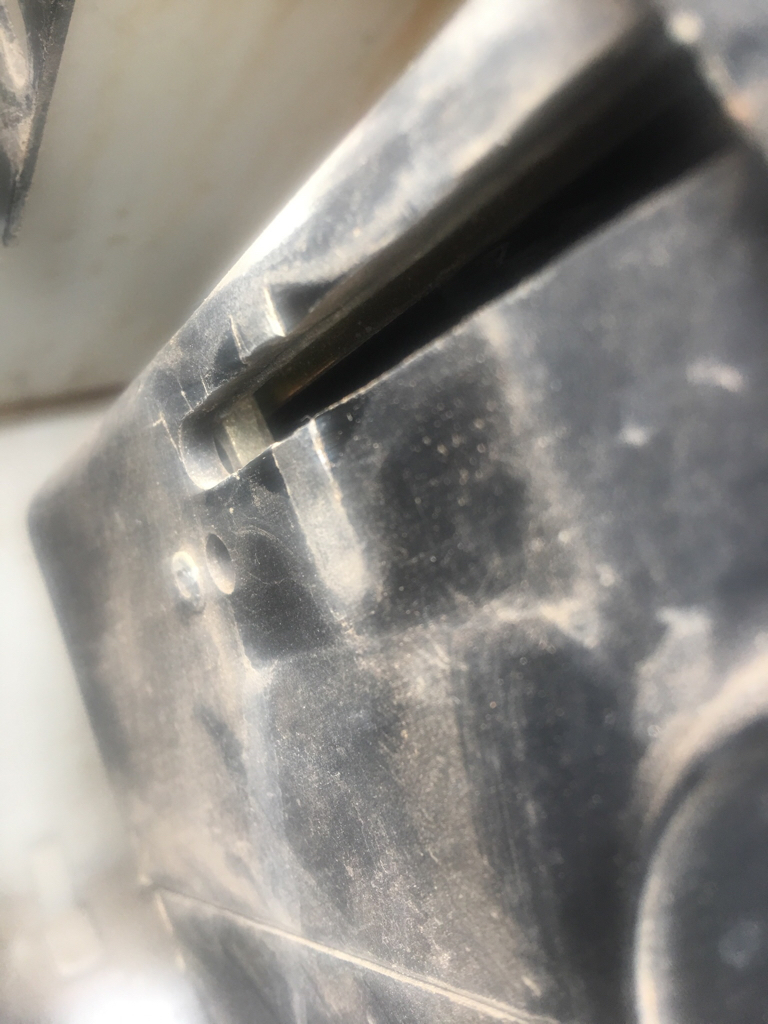

Well I appear to have made a rod for my own back
I should have used a socket on both sides and dropped the support bracket not the unit from the bracket
Oh well live and learn as they say
Unless I can pry the internal nut back to where it needs to be
2007 Discovery 3 SE7 TDV6 2.7
2012 SZ Territory TX 2.7 TDCi
"Make the lie big, make it simple, keep saying it, and eventually they will believe it." -- a warning from Adolf Hitler
"If you don't have a sense of humour, you probably don't have any sense at all!" -- a wise observation by someone else
'If everyone colludes in believing that war is the norm, nobody will recognize the imperative of peace." -- Anne Deveson
“What you leave behind is not what is engraved in stone monuments, but what is woven into the lives of others.” - Pericles
"We can ignore reality, but we cannot ignore the consequences of ignoring reality.” – Ayn Rand
"The happiness of your life depends upon the quality of your thoughts." Marcus Aurelius
AT REST
Those nuts in the evaporator case are dead loose and can be pulled along by a bent paper clip or a magnet on a stick.
SysAdmin (Owner)
Appears to be a dead wiper motor
