    Front dash area & diff lock switches

    I've been trying to work out where abouts to place the three ARB switches in the cab (compressor, front and rear). I've been thinking of putting them in between the radio and the steering wheel, as there is a big blank area there.

    However I believe that there's a steel plate or insert halfway in there which would make it difficult. Has anyone here fitted switches in this area before? And if so, would you mind sending some advice as to how you did the job?

    Cheers
    Chris
    Reply With Quote Reply With Quote
  2. 9th June 2008, 08:49 PM #2
    weeds's Avatar
    weeds
    weeds is offline Swaggie
    Join Date
    Feb 2005
    Location
    Bracken Ridge - Brisbane - QLD
    Posts
    14,276
    Total Downloaded
    0

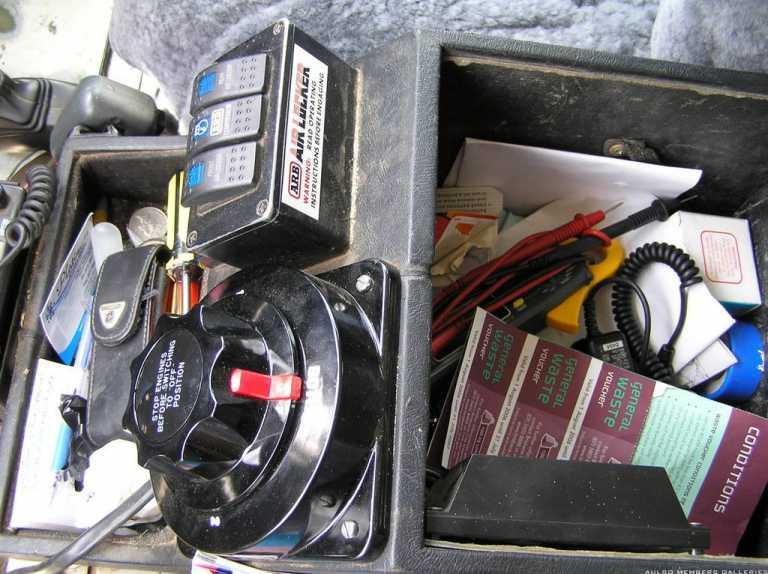

    mine are mounted on the cubby
    Reply With Quote Reply With Quote
  3. 9th June 2008, 08:55 PM #3
    weeds's Avatar
    weeds
    weeds is offline Swaggie
    Join Date
    Feb 2005
    Location
    Bracken Ridge - Brisbane - QLD
    Posts
    14,276
    Total Downloaded
    0
    something like this
    Reply With Quote Reply With Quote
  4. 9th June 2008, 11:18 PM #4
    hiline's Avatar
    hiline
    hiline is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Ferntree Gully VIC
    Posts
    10,362
    Total Downloaded
    0

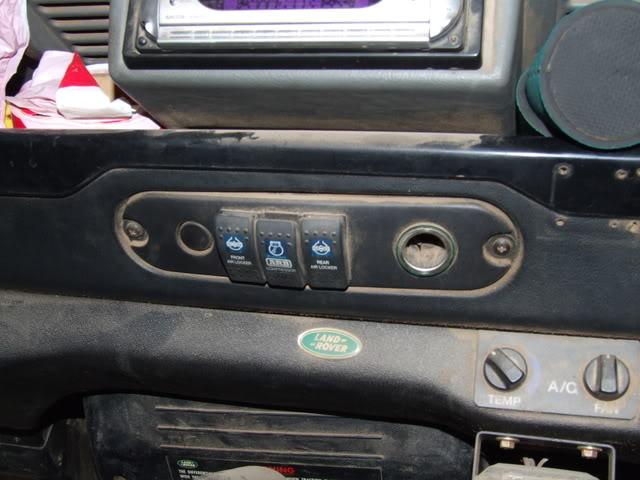

    here's mine

    they were a bit fiddly to put in but i find them real handy there to turn off and on



    130's rule
    Reply With Quote Reply With Quote
  5. 9th June 2008, 11:42 PM #5
    slug_burner
    slug_burner is offline TopicToaster Gold Subscriber
    Join Date
    Jul 2007
    Location
    Melbourne
    Posts
    4,024
    Total Downloaded
    0

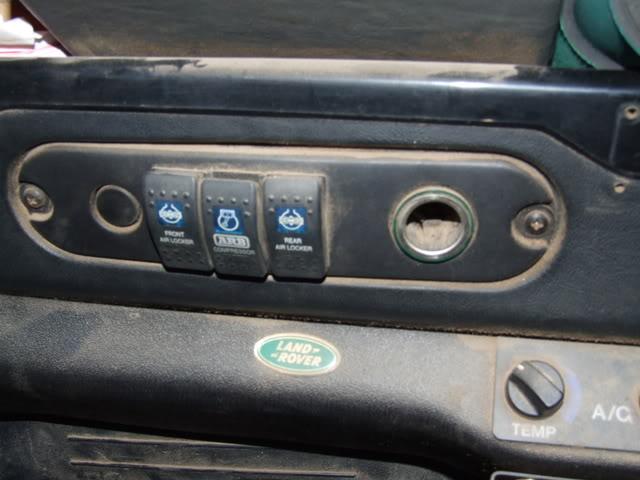

    Mine are like this also



    Done by Jack McNamara
    Reply With Quote Reply With Quote
  6. 9th June 2008, 11:59 PM #6
    hiline's Avatar
    hiline
    hiline is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Ferntree Gully VIC
    Posts
    10,362
    Total Downloaded
    0
    do you find that location handy ??

    i like how you can see them clearly and push them just as easy
    130's rule
    Reply With Quote Reply With Quote
  7. 13th June 2008, 08:13 AM #7
    cmurray's Avatar
    cmurray
    cmurray is offline Master
    Join Date
    Nov 2006
    Location
    Melbourne
    Posts
    139
    Total Downloaded
    0
    Chris,

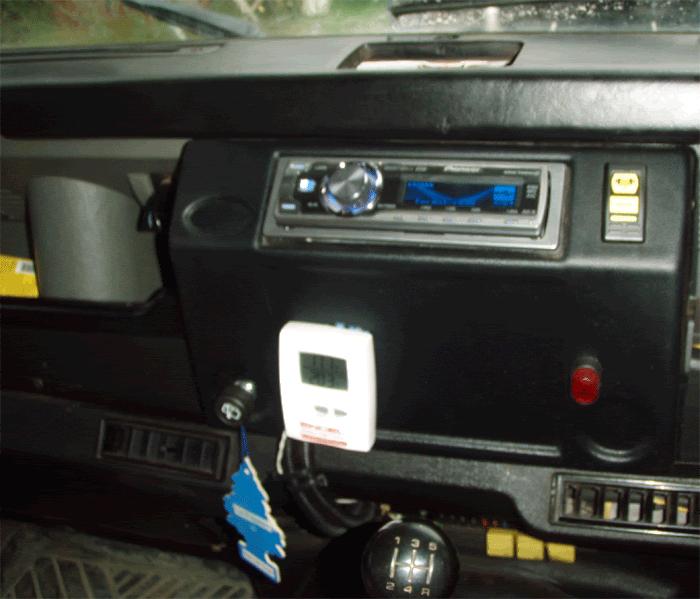

    Here are a couple of photos of my diff lock buttons.




    I just drilled a big hole and used my die grinder to grind it out to the shape required. I also used the ARB switch mounting plate, which I cut the tab off for the mounting screws and drilled a couple of holes in it to run some screws through. The metal plate running through the dash is actually good, as that means that the nuts on the back of the mounting screws shouldn't pull through.
    Reply With Quote Reply With Quote
  8. 13th June 2008, 04:53 PM #8
    cewilson
    cewilson is offline Wizard
    Join Date
    Jan 1970
    Location
    Tassie/Perth
    Posts
    1,454
    Total Downloaded
    0
    Thankyou - that's exactly where I'm looking at mounting the switches - short of going with the mud console which I'm looking at.

    Cheers
    Chris
    Reply With Quote Reply With Quote
  9. 13th June 2008, 06:22 PM #9
    DirtyDawg's Avatar
    DirtyDawg
    DirtyDawg is offline ChatterBox
    Join Date
    Jan 1970
    Location
    Gold Coast
    Posts
    2,382
    Total Downloaded
    0
    Get yourself one of these from www.mud.uk about $160 delivered but excellent steel construction.


    Reply With Quote Reply With Quote
  10. 13th June 2008, 06:25 PM #10
    rick130's Avatar
    rick130
    rick130 is offline Moderator Gold Subscriber
    Join Date
    Jan 1970
    Location
    NSW far north coast
    Posts
    17,285
    Total Downloaded
    0
    Glad to see everyone's interiors are as clean and dust free as mine
