    Help identifying a usb type connector

    Hi all. I need to identify this connector from my Smoothtalker S7 cradle. It is narrower than a micro Usb and the same height.

    I would like to get a cable has this fitting at one end and a USB A Male at the other end that I can plug into my Anker fast charger (the smoothtalker cradle is not a fast charger (just a stock cig lighter plug) so I am keen to convert it assuming that the little connector attached can handle the amps?

    Cheers uploadfromtaptalk1471259856961.jpg
    Reply With Quote Reply With Quote
  2. 15th August 2016, 08:27 PM #2
    Homestar's Avatar
    Homestar
    Homestar is offline Super Moderator & CA manager Subscriber
    Join Date
    Aug 2010
    Location
    Sunbury, VIC
    Posts
    20,105
    Total Downloaded
    0
    Hard to tell from the pic. Is it reversible? Could be a type C connector. Any chance of a better pic?
    If you need to contact me please email homestarrunnerau@gmail.com - thanks - Gav.
    Reply With Quote Reply With Quote
  3. 15th August 2016, 08:33 PM #3
    Rok_Dr's Avatar
    Rok_Dr
    Rok_Dr is offline Wizard
    Join Date
    Jan 1970
    Location
    Perth WA 6149
    Posts
    1,308
    Total Downloaded
    0
    Its a little hard to see but if the device is a couple of years old then it may be a mini B connector rather than a micro connector. USB C connectors are the latest format just starting to appear on devices.

    Cheers

    Steve
    Reply With Quote Reply With Quote
  4. 15th August 2016, 08:43 PM #4
    Bytemrk's Avatar
    Bytemrk
    Bytemrk is offline ForumSage Silver Subscriber
    Join Date
    Oct 2003
    Location
    Montrose, Vic.
    Posts
    5,417
    Total Downloaded
    0
    As the others have said.. little tricky to make out.

    How many contacts does it have?

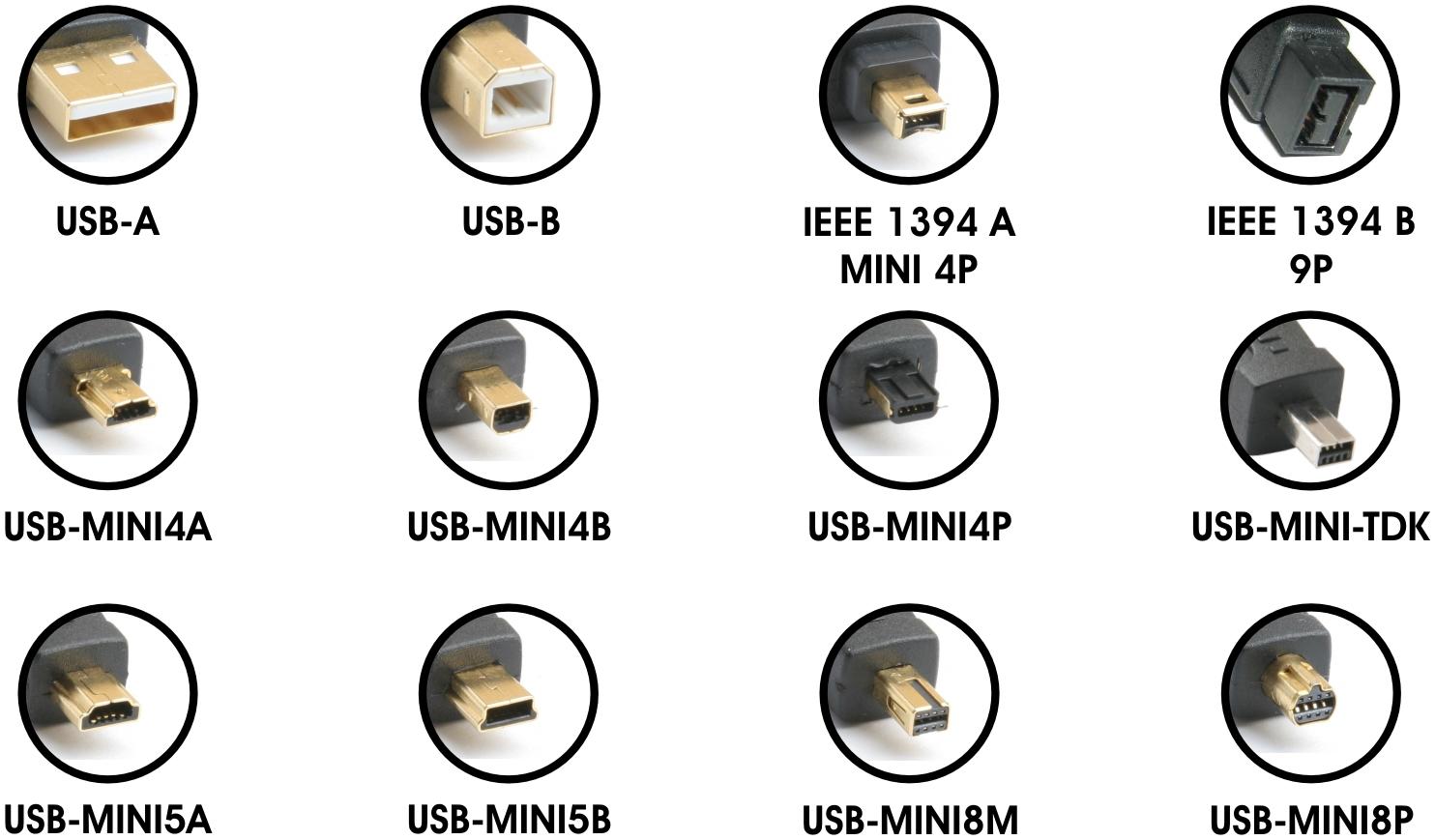

    Could it be a USB- Mini4B or USB-Mini5A ?
    Mark

    Of all the things I've lost, I miss my mind the most

    2015 TDV6 D4.... the latest project... Llams, Traxide, Icom 455, Tuffant Kimberleys and Mofos.... so far.
    2012 SDV6 SE D4 with some stuff... gone...
    2003 D2a TD5...gone...
    2000 D2 V8...gone...
    https://bymark.photography

    Reply With Quote Reply With Quote
  5. 15th August 2016, 08:45 PM #5
    ozscott's Avatar
    ozscott
    ozscott is offline ForumSage Subscriber
    Join Date
    Oct 2007
    Location
    Brisbane West
    Posts
    7,373
    Total Downloaded
    0
    Thanks guys I think it might be a USB Mini B 8 Pin buy where I only need 2 pins for charging. I can get a solder USB A Male and add put that in place of the current cig plug... Or also get the Mini B female solder socket and make up my own lead. Do you reckon these connectors should allow fast charging for the s7? Cheers
    Reply With Quote Reply With Quote
  6. 15th August 2016, 09:10 PM #6
    Ferret's Avatar
    Ferret
    Ferret is offline YarnMaster Subscriber
    Join Date
    Feb 2007
    Location
    Perth
    Posts
    3,918
    Total Downloaded
    0
    I thought a USB connector had only 4 ~ 5 pins. It's a bit difficult to make out but your picture seems to show more than 5 pins.
    2024 RRS on the road
    2011 D4 3.0 in the drive way
    1999 D2 V8, in heaven
    1984 RRC, in hell
    Reply With Quote Reply With Quote
  7. 15th August 2016, 09:13 PM #7
    ozscott's Avatar
    ozscott
    ozscott is offline ForumSage Subscriber
    Join Date
    Oct 2007
    Location
    Brisbane West
    Posts
    7,373
    Total Downloaded
    0
    Yep it has 8 connecting pins. Cheers
    Reply With Quote Reply With Quote
  8. 15th August 2016, 09:51 PM #8
    Ferret's Avatar
    Ferret
    Ferret is offline YarnMaster Subscriber
    Join Date
    Feb 2007
    Location
    Perth
    Posts
    3,918
    Total Downloaded
    0
    May not be a conventional usb mini connector then.
