Thread: D1 Rear drawers

  1. 17th August 2009, 10:33 PM #11
    streaky Guest
    If you lift the load bay carpet you'll find four plastic inserts protecting the rear cargo bay threaded tie down points. They are 5/8UNF thread I think.
    These are what I've used for my rear storage system and you don't have to drop the tank or crawl underneah to use them.
    I suggest you apply a generous ammount of copperslip or anti-seize compound to the bolts when you put them in.

    S.
    Reply With Quote Reply With Quote
  2. 29th August 2009, 09:07 PM #12
    magix Guest
    some pics of my project

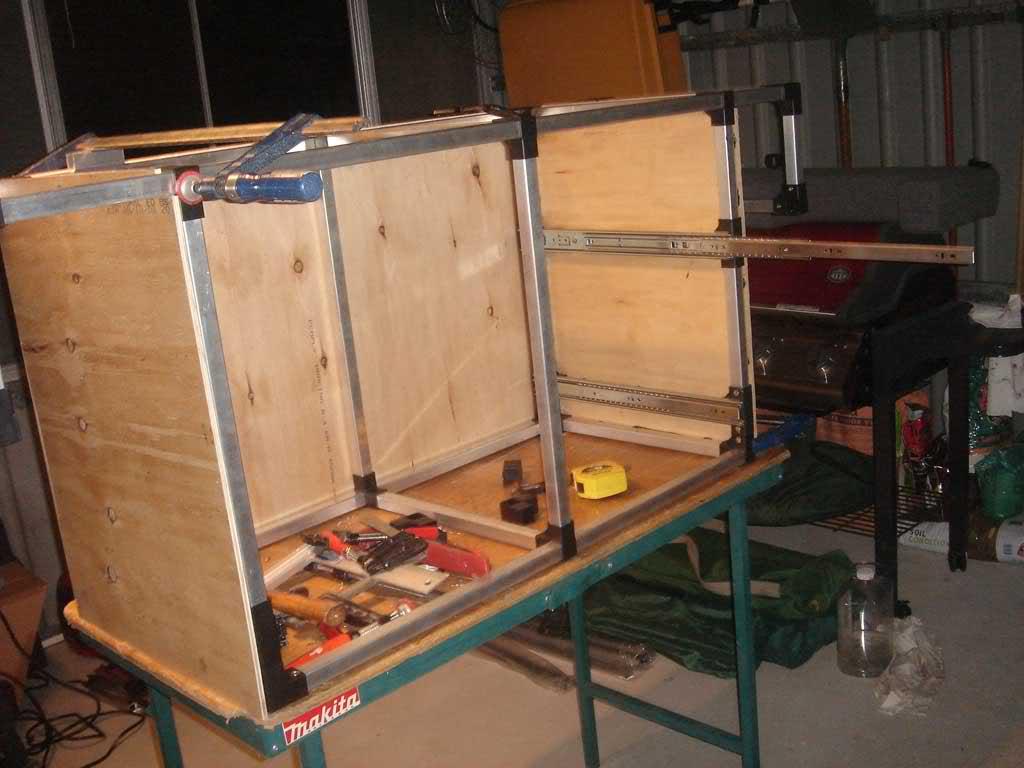

    the whole consruction is made from alluminium and plywood.

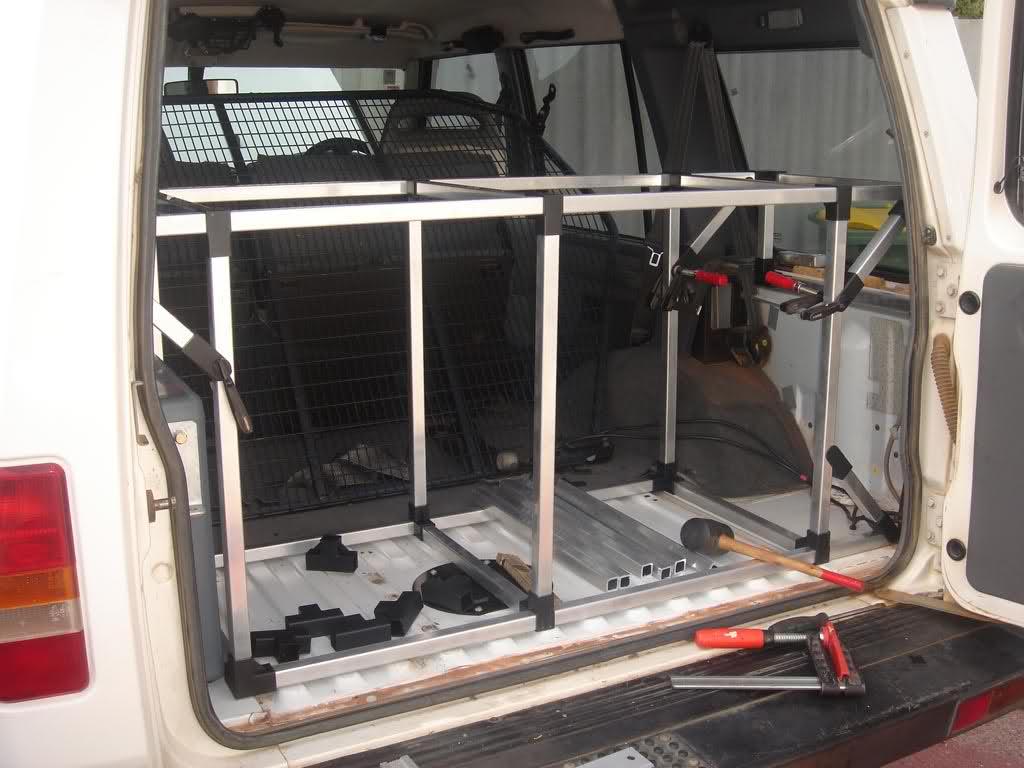

    dummie fitting...

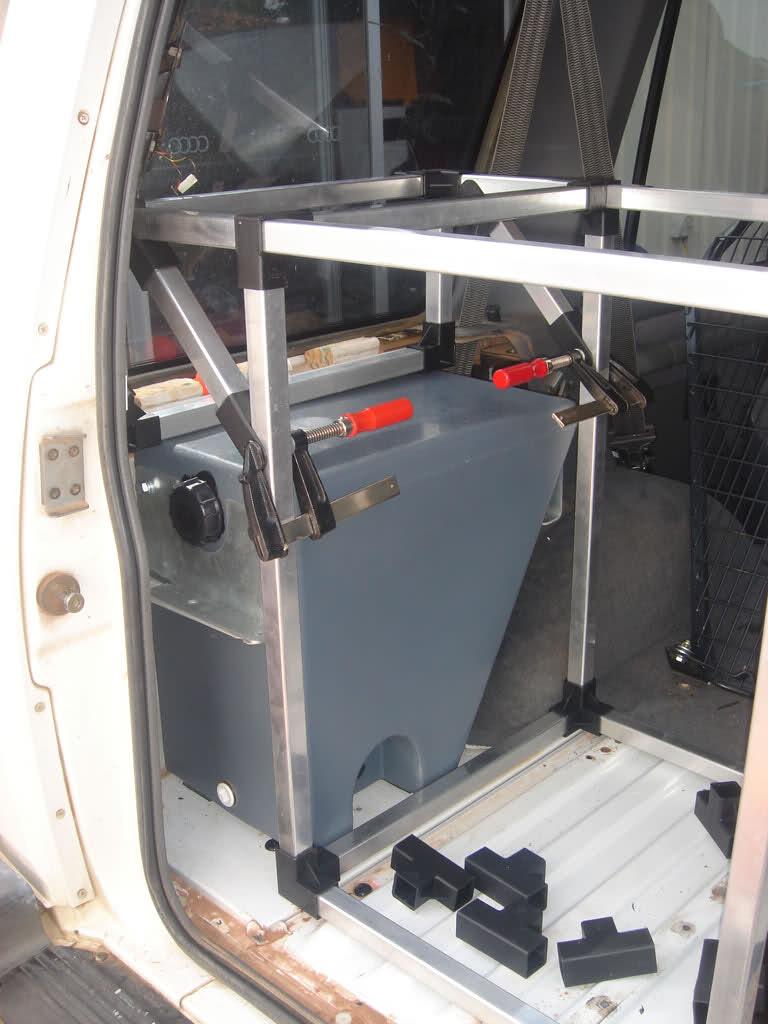

    32 liter water tank





    more to follow...
    Reply With Quote Reply With Quote
  3. 30th August 2009, 07:00 AM #13
    DiscoMick Guest
    I saw one commercial drawer set which had a full height cargo barrier included as the rear of the drawers, which were bolted to the barrier. Then the barrier bolted down with the usual two bolts in the side. The advantage was the whole thing could be removed just by undoing the two cargo barrier bolts, just like taking out a cargo barrier. Made it very flexible. Just a thought.
    Reply With Quote Reply With Quote
  4. 30th August 2009, 05:03 PM #14
    cucinadio's Avatar
    cucinadio
    cucinadio is offline ChatterBox
    Join Date
    Sep 2007
    Location
    Hervey Bay, Qld
    Posts
    2,641
    Total Downloaded
    0
    Quote Originally Posted by magix View Post
    some pics of my project

    the whole consruction is made from alluminium and plywood.



    dummie fitting...




    32 liter water tank





    more to follow...

    hey mate nice job ...who makes the tank youve got in there

    cheers
    Reply With Quote Reply With Quote
  5. 30th August 2009, 05:42 PM #15
    Rosscoe68's Avatar
    Rosscoe68
    Rosscoe68 is offline Wizard
    Join Date
    Nov 2007
    Location
    home at last - Port Macquarie NSW
    Posts
    1,271
    Total Downloaded
    0
    whats the alu tubes and joiners?, nicer joints than the stuff you get from bunnings
    Reply With Quote Reply With Quote
  6. 31st August 2009, 05:24 PM #16
    magix Guest
    tank is from TJM, O'Connor WA - ARB is selling the same but it will set you back about $225 - TJM charged $165
    joiners from BJ Evans, Malaga WA
    25x25mm alu from Metalcorp - if your lucky they might have some joiners as well...
    Drawer runners from Galvins, Osborne Park WA
    Reply With Quote Reply With Quote
  7. 31st August 2009, 05:27 PM #17
    magix Guest
    just found the brochure of the joiners again...

    http://www.rmdmp.com.au/rmd_wp/Resou...64%5CGATE4.pdf

    distributor for WA is BJ Evans Malaga
    Reply With Quote Reply With Quote
  8. 1st September 2009, 07:16 PM #18
    DiscoMick Guest
    Soft Luggage Racks, Cargo Barriers, Side Bin, Fridge on Runners, Fourby Fitouts

    I like the look of these but I haven't investigated prices and details yet because of other priorities.
    Reply With Quote Reply With Quote
  9. 2nd September 2009, 08:36 PM #19
    **Discovery300Tdi** Guest
    hey all,

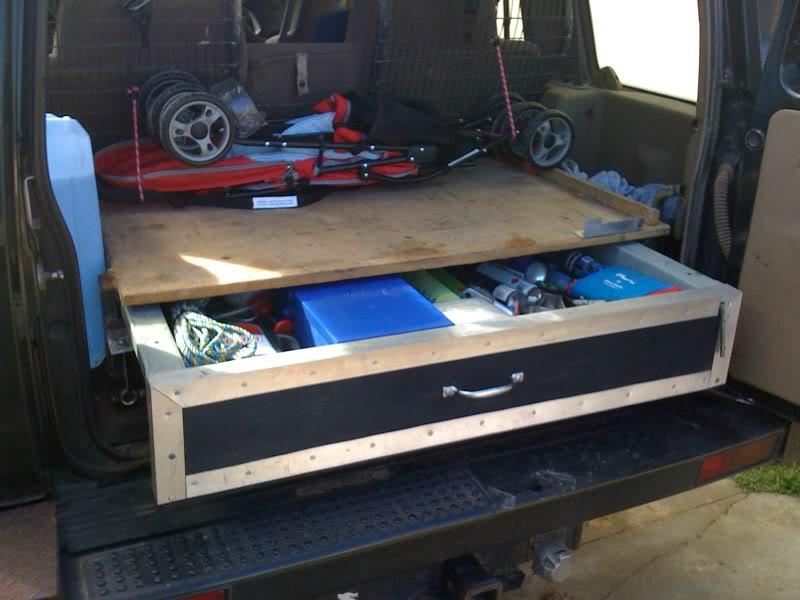

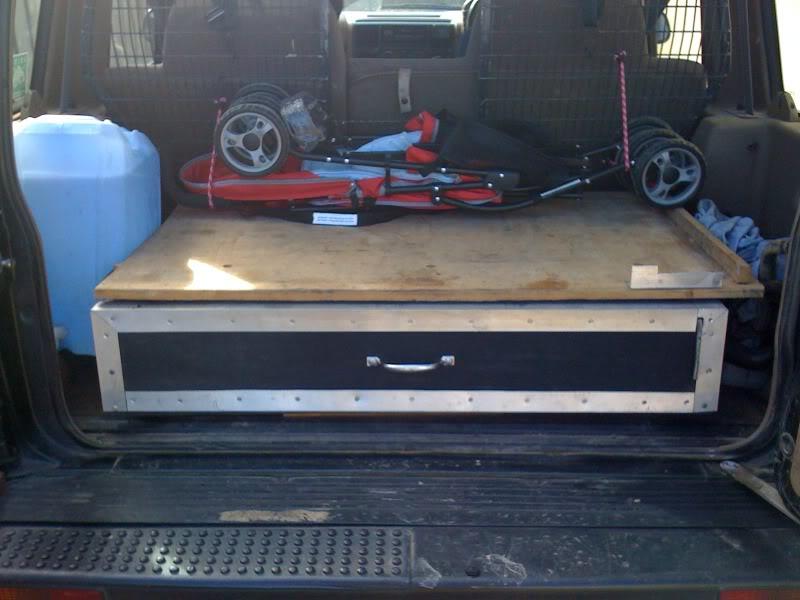

    just a quickie draw system that i did one weekend, still have some stuff to do with it but she's alright..




    cheers simon
    Reply With Quote Reply With Quote
  10. 2nd September 2009, 10:33 PM #20
    magix Guest

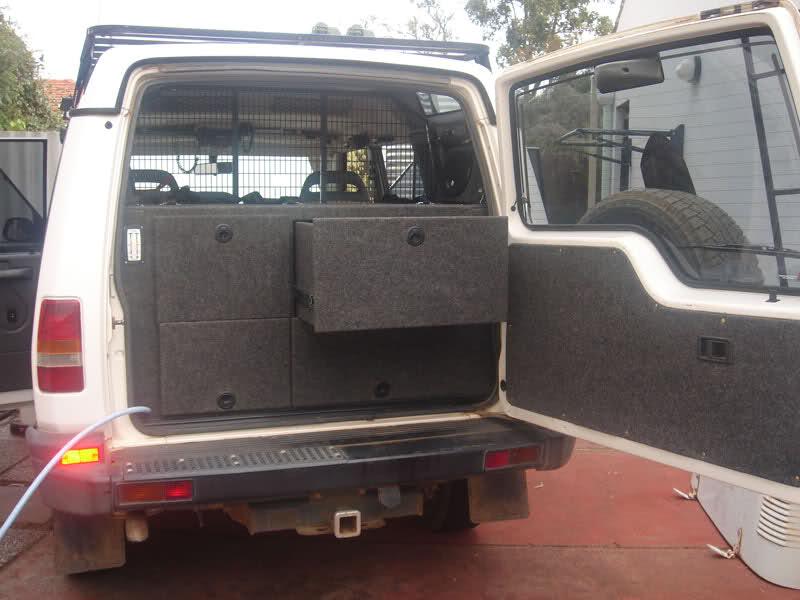

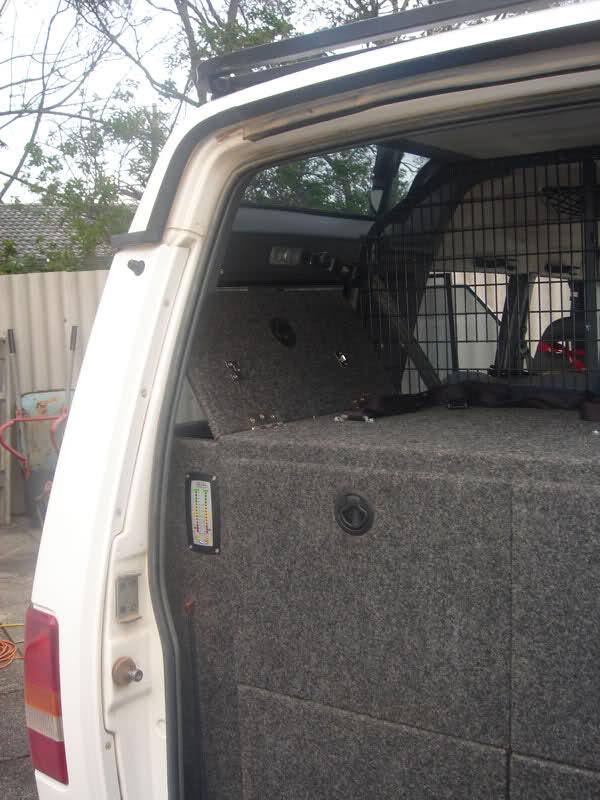

    done...





    Reply With Quote Reply With Quote
