    Question Getting rid of the Rotorflex joint - Tom Wood's Drive Shaft

    Whilst redoing my diffs I decided to rid myself of the rubber Rotorflex joint by fitting a Tom Wood's Drive Shaft.

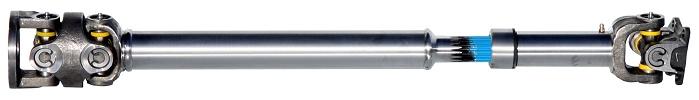

    The standard drive shaft is pretty much a Conventional Two Joint, similar to (but with a rotorflex joint on the far end):

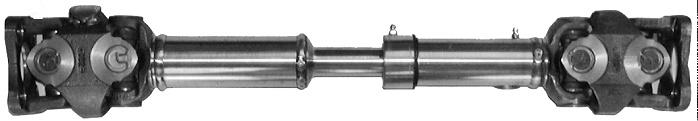

    I'm thinking therefore with the 3" lift and removing the flexibility offered by the rotorflex joint, the Conventional Double Cardan will be a suitable replacement:



    On the front, I run a Multiple Double Cardan:



    But, I think that this would be overkill and unnecessary for the rear. Any thoughts or experiences from anyone else that has done this?
    Reply With Quote Reply With Quote
  2. 11th September 2013, 07:55 PM #2
    Dougal
    Dougal is offline ForumSage
    Join Date
    Sep 2007
    Location
    Kiwiland
    Posts
    7,246
    Total Downloaded
    0
    If the joint with a single universal will work then the rotoflex will too. If you are expecting problems with the rotoflex then you won't run smoothly with only a dc at one end.
    Reply With Quote Reply With Quote
  3. 11th September 2013, 07:56 PM #3
    CJT's Avatar
    CJT
    CJT is offline Wizard
    Join Date
    Aug 2009
    Location
    Brisbane, Sunshine Coast, Gladstone, QLD
    Posts
    1,351
    Total Downloaded
    0
    With mine I just swapped out the rotoflex for the parts from a D1 and the standard tail shaft.

    I have not had any issues with the rear a all, always the front, I seem to ho through a rebuild on the front every 30,000km or so.
    Reply With Quote Reply With Quote
  4. 11th September 2013, 08:07 PM #4
    Slunnie's Avatar
    Slunnie
    Slunnie is offline Swaggie Gold Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    14,127
    Total Downloaded
    99.87 MB
    I use a TW DC-Uni shaft on the front and back and there are still some vibrations at about 105kmh. Same with a regular Uni-Uni at the rear. No vibration with the rotoflex. I would think about keeping the Rotoflex if you're not breaking them too often and you rear pinion is compatible with the 3 bolt flange. One day I'd like to try to find a stronger Rotoflex fitment, such as perhaps the Holden V8 one etc.
    Cheers
    Slunnie


    ~ Discovery II Td5 ~ Discovery 3dr V8 ~ Series IIa 6cyl ute ~ Series II V8 ute ~
    Reply With Quote Reply With Quote
  5. 11th September 2013, 08:33 PM #5
    twr7cx
    twr7cx is offline YarnMaster Supporter
    Join Date
    Feb 2011
    Location
    Hobart, Tasmania, Australia
    Posts
    3,828
    Total Downloaded
    0
    Quote Originally Posted by CJT View Post
    I have not had any issues with the rear a all, always the front, I seem to ho through a rebuild on the front every 30,000km or so.
    What front shaft are you running?
    Reply With Quote Reply With Quote
  6. 4th October 2013, 05:39 PM #6
    twr7cx
    twr7cx is offline YarnMaster Supporter
    Join Date
    Feb 2011
    Location
    Hobart, Tasmania, Australia
    Posts
    3,828
    Total Downloaded
    0
    I went with the Conventional Double Cardan. So far have found the vehicle smooth with no undue vibrations at 100km/h.
