    Reinstalling side mirror glass

    Hi All,



    Just wondering if there are any tricks to reinstalling the side mirror glass. I bumped the LH side one and the mirror popped out.


    After gluing back the broken bits (the shiny areas) on the internal motorized plate I realised I had no idea how to put them back on.


    I have had a go reinstalling them, searched AULRO and RAVE, however I haven't had much luck with either - Any suggestions?

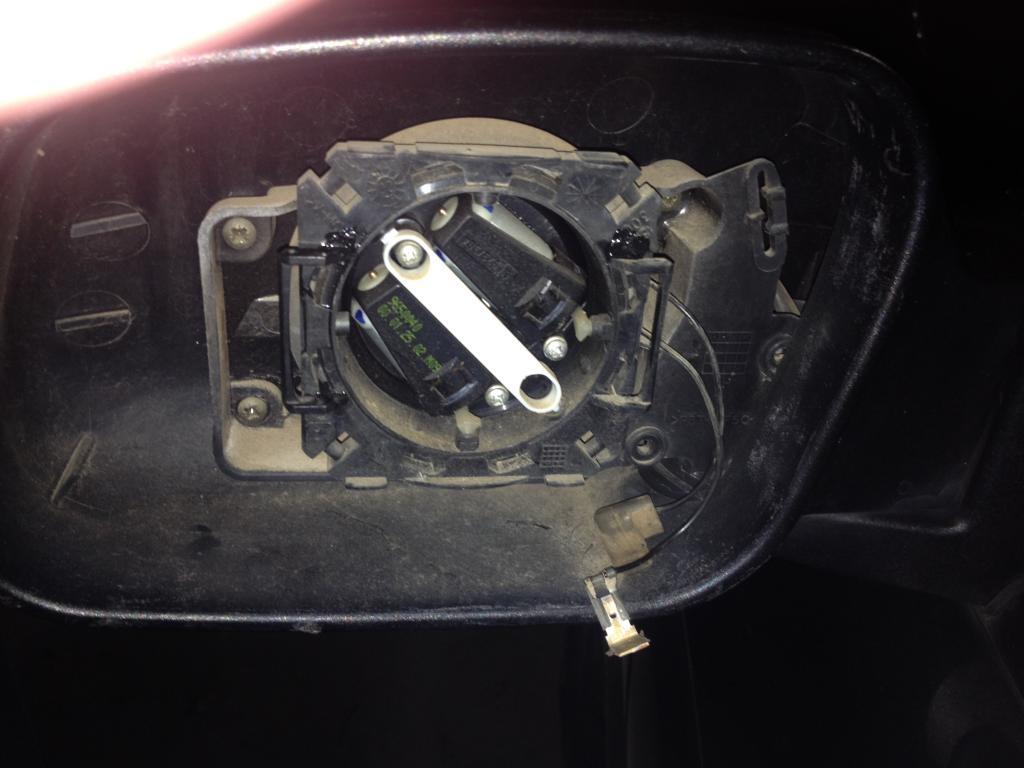

    Motorised backplate:

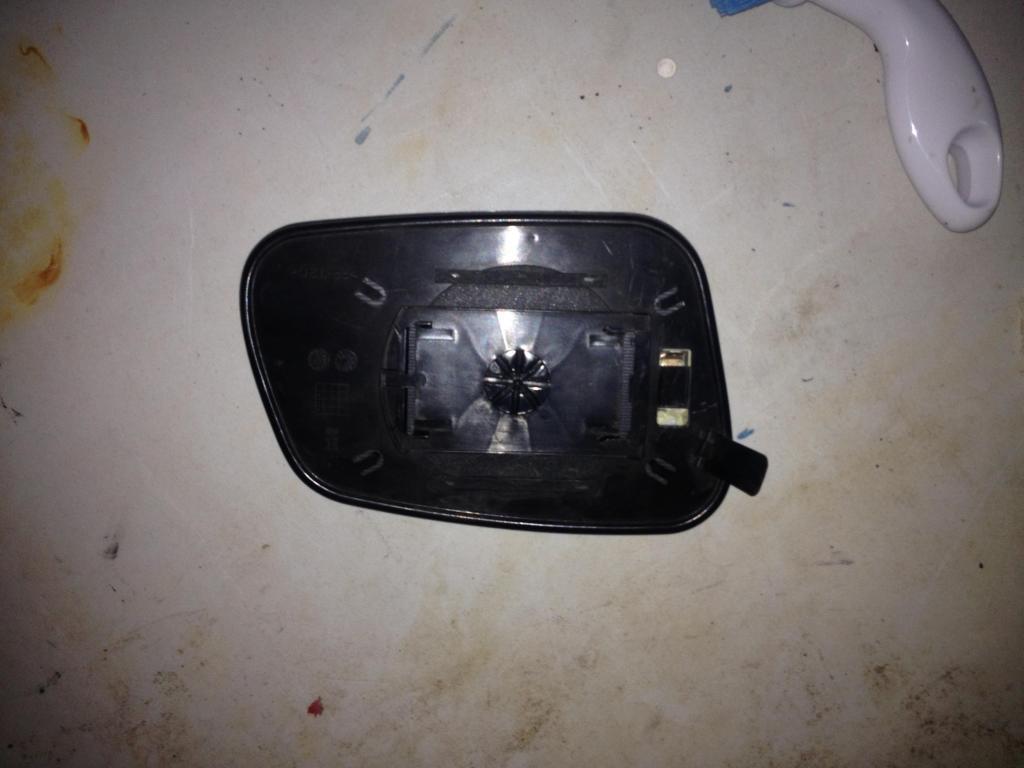

    Mirror side:


    Mark
    Reply With Quote Reply With Quote
  2. 29th April 2014, 10:28 PM #2
    Disco W.A's Avatar
    Disco W.A
    Disco W.A is offline Master Gold Subscriber
    Join Date
    Dec 2008
    Location
    Beechboro Perth
    Posts
    447
    Total Downloaded
    0
    The mirror just pushes onto the back plate you have repaired, in my case the glass broke so I brought a new mirror and backing plate.
    Reply With Quote Reply With Quote
  3. 29th April 2014, 10:52 PM #3
    Andych
    Andych is offline Fossicker Supporter
    Join Date
    Oct 2013
    Location
    Wodonga
    Posts
    88
    Total Downloaded
    0
    They can be a PITA or just clip in easy..
    You need to slip one end of the mirror clip into its holder then click the other end in... careful you dont dislodge the little ball pins that make the glass move... You then need to start all over again... such fun...
    Just be patient... when you get the knack they are easy...
    Reply With Quote Reply With Quote
  4. 30th April 2014, 01:44 AM #4
    ScotsD2
    ScotsD2 is offline Master
    Join Date
    May 2013
    Location
    Aberdeen Scotland
    Posts
    195
    Total Downloaded
    0

    Re fitting

    Best to use a new clip the plastic degrades
    a smear of lube or washing up liquid helps.

    Refitting trick is to not put the backing plate on fully onto the motor plinth to allow it to move in when putting the mirror onto it, (leave outer side off slightly) the mirror glass then clicks into place and then another push and the back plate clicks on fully.
