Reply With Quotelooks like the boots are dropping a little cv grease to me or the axle oil is starting to weep past the seal.... unless youve somehow managed to get the cassette bearings converted to oil and leaking.
hows the spray pattern elsewhere?
YarnMaster

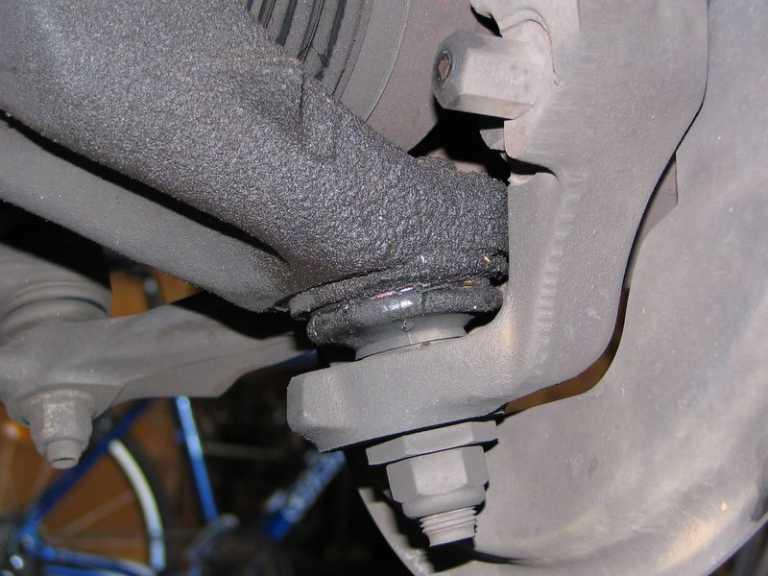

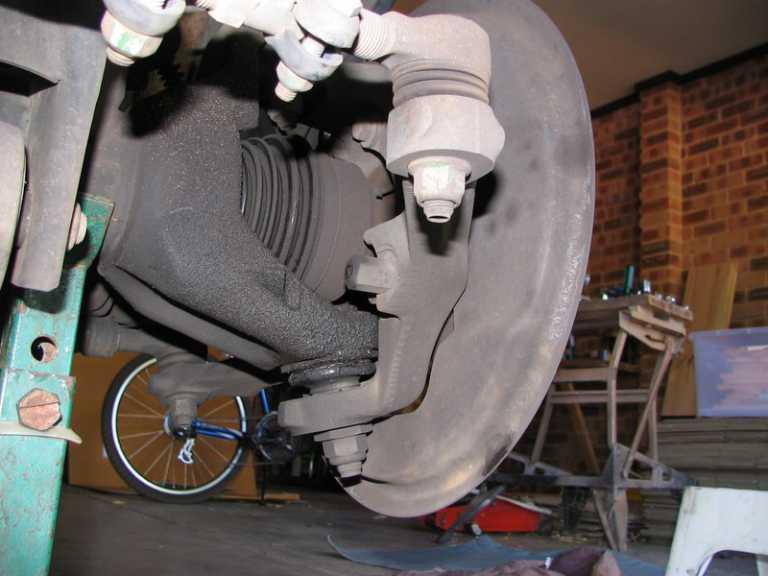

SubscriberWhile under the D2 pulling out the hookes joint this afternoon I noticed the front passenger side stearing knuckle is covered in oil.
You can see from the photos only the steering knuckle is covered in oil. Components adjacent to the steering knuckle are clean.
What would be the likely source of an oil leak in this area of the axel.
.
RoverLord
looks like the boots are dropping a little cv grease to me or the axle oil is starting to weep past the seal.... unless youve somehow managed to get the cassette bearings converted to oil and leaking.
hows the spray pattern elsewhere?
Dave
"In a Landrover the other vehicle is your crumple zone."
For spelling call Rogets, for mechanicing call me.
Fozzy, 2.25D SIII Ex DCA Ute
TdiautoManual d1 (gave it to the Mupion)
Archaeoptersix 1990 6x6 dual cab(This things staying)
If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
If you think you're in front on the deal, pay it forwards.
Major part of the heart and soul of AULRO.comAxle seal. LR replaced it with an updated seal design which allows for some eccentricity in the shaft (runout). I just did both mine on the P38A.
Ron B.
VK2OTC
2003 L322 Range Rover Vogue 4.4 V8 Auto
2007 Yamaha XJR1300
Previous: 1983, 1986 RRC; 1995, 1996 P38A; 1995 Disco1; 1984 V8 County 110; Series IIA
RIP Bucko - Riding on Forever
You need to get some higher rated car stands.
I agree with p38arover.
YarnMaster
SubscriberIs this someting which requires immediate attention or does it just need to be flagged for attention on the next routine service ~4000k away.Originally Posted by p38arover
YarnMaster
SubscriberWhat is your specific concerns with the car stands.You need to get some higher rated car stands.
I agree with p38arover.
Major part of the heart and soul of AULRO.comIt took me 5 years to do something about mine......
I was replacing the upper and lower ball joints so I had the seals done at the same time.
Ron B.
VK2OTC
2003 L322 Range Rover Vogue 4.4 V8 Auto
2007 Yamaha XJR1300
Previous: 1983, 1986 RRC; 1995, 1996 P38A; 1995 Disco1; 1984 V8 County 110; Series IIA
RIP Bucko - Riding on Forever
They're not really rated to hold up a 2 1/2 ton 4x4. They should at least be rated 2000kg for your safety.
ForumSage
Are you going to balance the entire vehicle on one stand?? For supporting one corner, 750kg rating should be adequate. 1000kg should easily be more than enough. 2000kg? Overkill.They're not really rated to hold up a 2 1/2 ton 4x4. They should at least be rated 2000kg for your safety.
ForumSage
BTW, it is the axle end seal leaking, as noted by others above. That amount of leakage should't be a huge concern, get it sorted at the next service.
