CDL Actuation with 10mm Spanner

Quote:

---

Originally Posted by Redback

Yes, but the mounting plate will need to be widened where the new lever goes through so it can move sideways, but the mount is the same, also the D2a cable CDL is the same whether you have a manual or auto.

The D1 linkage system won't fit in the transmission tunnel of the D2 AUTO only the manual just, with some modification.

So if you have a D2 AUTO then the D2a cable system is the only option.

Baz.

---

Thanks Baz for that confirmation. I couldn't imagine ZF changing entire casting over an accessory mount.

Are you sure the D2 and D2a tunnel clearance is that smaller than in a D1 you can't use a D1 CDL/HL linkage. The ZF and LT's cases are idential and I thought D1 linkages use in D2 auto's was widespread????

Quote:

---

Originally Posted by cockie55

Thanks Baz for that confirmation. I couldn't imagine ZF changing entire casting over an accessory mount.

Are you sure the D2 and D2a tunnel clearance is that smaller than in a D1 you can't use a D1 CDL/HL linkage. The ZF and LT's cases are idential and I thought D1 linkages use in D2 auto's was widespread????

---

Landyandy tried the D1 linkage on his AUTO and couldn't get it to fit, give him a PM just to confirm it, I have been known to be wrong;)

Baz.

You can use a D1 linkage, done it in my friends TD5.

The important bit is, you have to use a linkage for a manual FROM a manual and vice versa for an auto. This is because the mounting bracket that bolts to the transfer case and that holds the lever is different for both models. My friend purchased a manual linkage, we when to fit it and it didn't fit at all, so had to purchase the said casting for an Auto (picture)

below you can see the diff

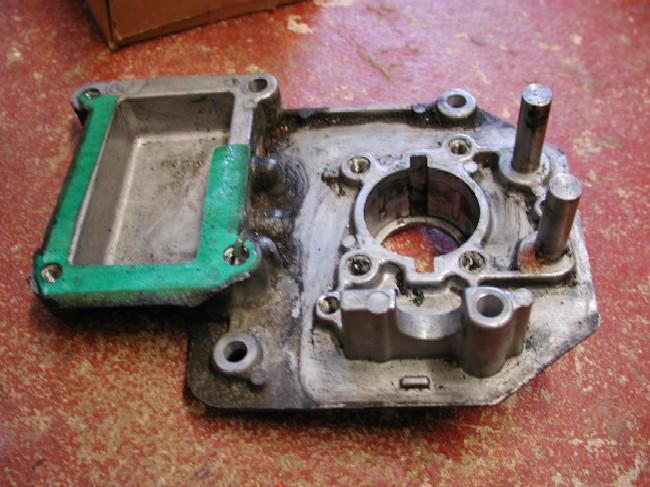

Manual

https://www.aulro.com/afvb/images/im...009/02/764.jpg

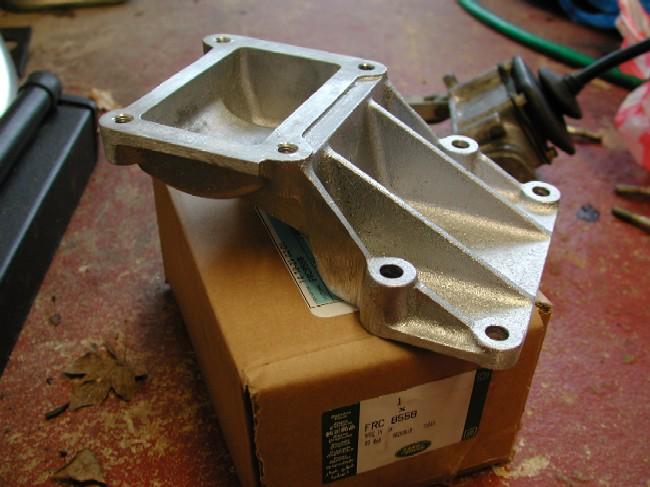

Auto

https://www.aulro.com/afvb/images/im...009/02/765.jpg
