Thread: URGENT who's near Wangaratta

I'm about 50km from wang.

I probably wouldn't be able to sort the suspension prob on the side of the road, but I might be otherwise useful.

Sing out if there's something I can do.

the compressor has flagged itself.

the easiest fix is to fit an air reciever plug onto the spare port on the tank, attach that to at least 110psi of compressed air and then start the vehicle. (make sure its on firm level ground first)

leave it running and then disconnect the computer that controls the airbag system. Its a big fat black plug and from memory its under the drivers seat.

I think pulling the air suspension fuses after it achieves level does the same thing and should be the easiest way.

I have plans on setting up and external jacking system so that you can do this from under the hood but atm its in the experimental stage and I need some voulenteers so i can work out plumbing options.

Originally Posted by Blknight.aus

the compressor has flagged itself.

the easiest fix is to fit an air reciever plug onto the spare port on the tank, attach that to at least 110psi of compressed air and then start the vehicle. (make sure its on firm level ground first)

leave it running and then disconnect the computer that controls the airbag system. Its a big fat black plug and from memory its under the drivers seat.

I think pulling the air suspension fuses after it achieves level does the same thing and should be the easiest way.

I have plans on setting up and external jacking system so that you can do this from under the hood but atm its in the experimental stage and I need some voulenteers so i can work out plumbing options.

Im thinking it may be more an air line come off due to it has had the airpump replaced in the last 12 months so they may have not tightened everything up.

And the fact that it went down so quickly and all together.

But again I dont know anything about these systems so I will forward on what youve posted and see what happens.

Try Ivan Clarke atClarke Automotive

Unit 8/ 204 Melbourne Rd


Wodonga

3690

02) 6024 6664



He's an independent LR specialist.

I went to him in February when my fuel pump failed whilst I was down there.

Thanks Ron and Proc. Inc (PM'd Ivan's Info as well) Ive passed it on.

I hope I was right and it is Ivan. Actually, Barra1 will know for sure. The chap I'm thinking of is a member of AULRO.

Late edit: Aha! Just came to me - the power of search. Grover is his AULRO username

Probably too late to be of any help, but cheap insurance for next time.



Similar problem occured on our 38a and as you only get three restarts before the ecu defaults to leaving you on your bump stops, it pays to have an overide, especially when your nearest dealer is 300km's away.

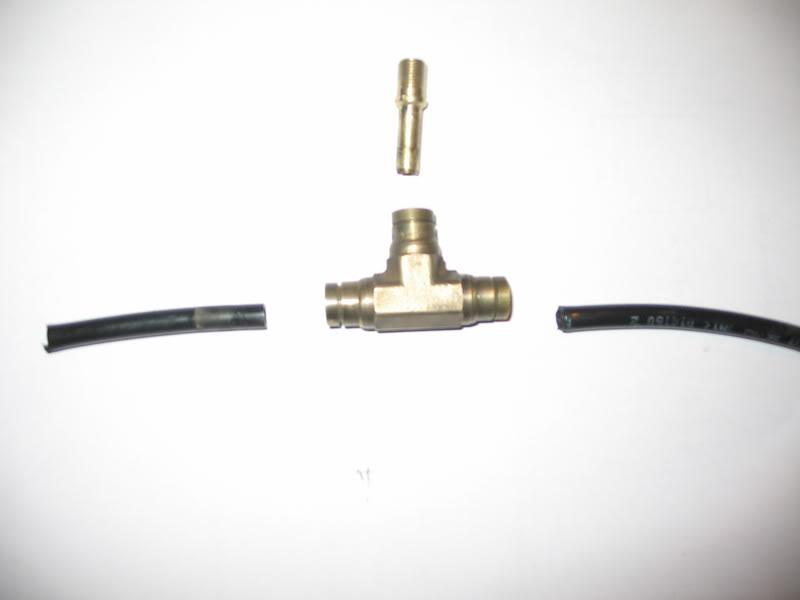

Find four, 6mm tee pieces. Local truck repairer should have them in stock. Next you need 4 tubless tyre valve holders. Buff on wire wheel down to the brass core. this core on most valve holders is, yep 6mm. You may have to shorten them a bit.

Assemble and fit at the valve body where the compressor is located, its the rear four off memory. As Dave said in his reply you have to disable the system by unplugging the relay under pass seat. Next step is to drag your butt down the road to the next servo and pump up each corner,can be up to 30psi difference to get it level.

This set up works well for a dead compressor, but will not help if you blow a bag or air line. But it will show up at which corner the leak is, in that it will be the only one to deflate.

The problem can still be in the valve body and if this is the case, just plug the front ailines together, then the rear using just 2 of the tee pieces. If you havn't used this type of connector, the airline just pushes in and you realease it by depressing the collar.

Can't show a photo on the car, sold it last month. It gave us buggerall trouble, had 280.000km's on it when we sold it.

Hope it helps

Greg
