Thread: That's what I call an engine!!!!!

  1. 20th February 2010, 09:35 PM #11
    banjo's Avatar
    banjo
    banjo is offline ForumSage Subscriber
    Join Date
    Nov 2006
    Location
    cardiff ,NEWCASTLE.
    Posts
    6,731
    Total Downloaded
    0
    Hey thanx Grockle those pics are AWESOME i have never seen an engine like that before..When i did my trade i got to look at a big train diesel & i thought that was big as i could stand in the bore.i could live in one of those bores..

    1969 LWB S2a yellow, gone
    1972 LWB S2a 5 DOOR wagon coming & GONE
    1973 LWB S3 green Sadly GONE
    1977 LWB S3 tabletop building
    1992 disco BOINGY BOINGY

    My landrover doesn't leak oil , IT SWEATS POWER

    JASON & KAREN
    Reply With Quote Reply With Quote
  2. 21st February 2010, 01:24 PM #12
    Bush65
    Bush65 is offline YarnMaster
    Join Date
    Jan 1970
    Location
    'The Creek' Captain Creek, QLD
    Posts
    3,724
    Total Downloaded
    0
    Sulzer (company that designed that engine) have a good reputation.

    One chemical plant I worked at for a while installed a 3 cylinder Sulzer air compressor to increase their compressed air capacity during one of the plant upgrades. The compressor was good, but presented a lot of challenges to prevent the pipework from cracking due to some complex vibrations - Sulzer came up with some interesting additions to the discharge area, but they weren't completely successful.

    I can't recall the displacement of the Sulzer compressor but it is 2 stories high. The main compressor has much greater capacity, but it is an axial compressor driven by a large steam turbine.

    Fuel consumption at maximum power is 0.278 lbs per hp per hour (Brake Specific Fuel Consumption). ...
    For comparison, most automotive and small aircraft engines have BSFC figures in the 0.40-0.60 lbs/hp/hr range ...
    A turbo charged and intercooled, direct injection diesel for automotive use will usually have a BSFC figure less than 0.35 lbs/hp/hr at maximum power.
    Reply With Quote Reply With Quote
  3. 22nd February 2010, 06:52 PM #13
    groucho's Avatar
    groucho
    groucho is offline Master Subscriber
    Join Date
    Nov 2006
    Location
    Wollongong NSW
    Posts
    622
    Total Downloaded
    0
    "While i have the head off may as well give give her a decoke"
    A medeum size sulzer.
    This is not one of my pics. scammed off the net.
    Working around the wharves i have been lucky to see a few ships engines
    being repaired or having a head change truly interesting.
    imagine the size of the tension wrench..Mark







    Reply With Quote Reply With Quote
  4. 22nd February 2010, 07:50 PM #14
    Bushie's Avatar
    Bushie
    Bushie is offline AT REST Gold Subscriber
    Join Date
    May 2002
    Location
    Heathcote (in "The Shire")
    Posts
    5,348
    Total Downloaded
    0
    For those that haven't/can't see the pics I believe this is the engine referred to

    The Most Powerful Diesel Engine in the World



    Martyn
    1998 Defender
    2008 Madigan
    2010 Cape York
    2012 Beadell, Bombs and other Blasts
    2014 Centreing the Simpson
    VKS-737 mob 7669



    Reply With Quote Reply With Quote
  5. 22nd February 2010, 08:10 PM #15
    stig0000's Avatar
    stig0000
    stig0000 is offline Wizard
    Join Date
    Nov 2008
    Location
    where every one holidays, sunny coast
    Posts
    1,712
    Total Downloaded
    0
    i just love how engines work,, and to see how sumthing that massive and all that wight been thrown about it still amazes me
    Reply With Quote Reply With Quote
  6. 23rd February 2010, 09:16 AM #16
    Bush65
    Bush65 is offline YarnMaster
    Join Date
    Jan 1970
    Location
    'The Creek' Captain Creek, QLD
    Posts
    3,724
    Total Downloaded
    0
    Quote Originally Posted by groucho View Post
    ...
    imagine the size of the tension wrench..Mark
    They use a device that screws onto the thread protruding through the nut, then use hydraulics to stretch the stud. The nut can then be tightened/loosened by hand.

    Ship's engines usually have separate heads for each cylinder and those that I have seen, use hydraulic tensioners that do all head studs simultaneously.
    Reply With Quote Reply With Quote
  7. 23rd February 2010, 09:29 AM #17
    buzz66's Avatar
    buzz66
    buzz66 is offline Master
    Join Date
    Jan 2009
    Location
    Gold Coast home of Maxi Drive
    Posts
    365
    Total Downloaded
    0

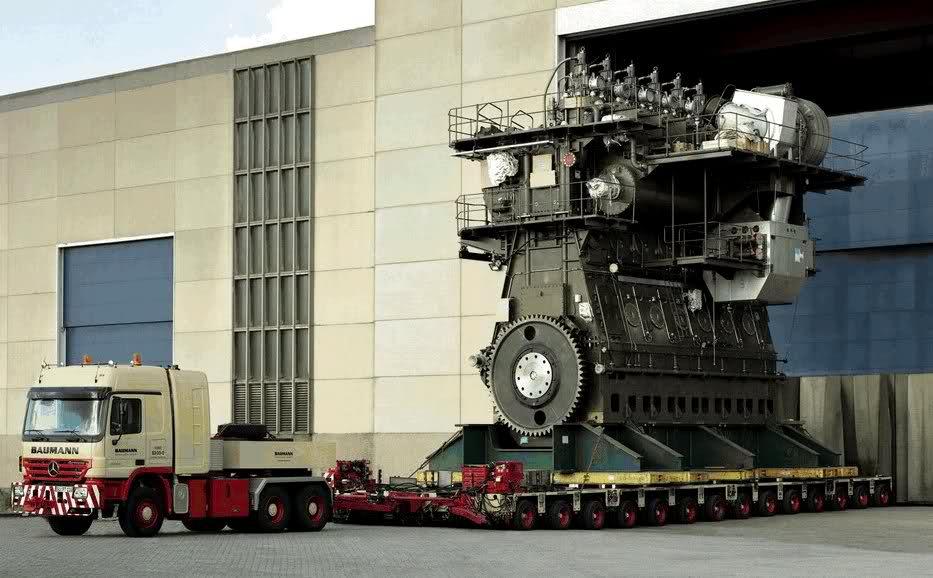

    here she is

    Reply With Quote Reply With Quote
  8. 23rd February 2010, 09:39 AM #18
    V8Ian's Avatar
    V8Ian
    V8Ian is offline Super Moderator
    Join Date
    Dec 2007
    Location
    Back down the hill.
    Posts
    29,799
    Total Downloaded
    0
    Quote Originally Posted by buzz66 View Post
    Bet that's not a 1624
    If you don't like trucks, stop buying stuff.
    http://www.aulro.com/afvb/signaturepics/sigpic20865_1.gif
    Reply With Quote Reply With Quote
  9. 23rd February 2010, 10:34 AM #19
    PAT303
    PAT303 is offline OldBushie
    Join Date
    May 2007
    Location
    Safety Bay
    Posts
    8,041
    Total Downloaded
    0
    [QUOTE=Bush65;1188379]They use a device that screws onto the thread protruding through the nut, then use hydraulics to stretch the stud. The nut can then be tightened/loosened by hand.



    Thread puller,dangerous mongrol of things.Around sites now they have been replaced with hydro nuts,they are a hydraulic jack with a threaded section that screws down and holds the tension.Hytorcs are still in abundance and they are also a good machine to use. Pat
    Reply With Quote Reply With Quote
