Thread: D3 faulty fuel gauge

  1. #1

    Angry D3 faulty fuel gauge

    Hi there, I'm travelling through Queensland on my trip around Australia (I left Melbourne 7 weeks ago). My problem is my fuel gauge has stopped working and showing empty all the time. Any tips on what I could check to fix or diagnose it? Before I have to pay a land rover specilist big bucks to fix it for me?

    Cheers.

  2. #2
    Join Date
    Feb 2005
    Location
    Bracken Ridge - Brisbane - QLD
    Posts
    11,424
    can you see where the wires connect to the sendor at the tank?

    if so i assume you have checked that a wire isn't loose?

    other than that i am not much help......it would be a pain having to use the trip meter for the entire trip

    2000 110 Hardtop

  3. #3
    Join Date
    Feb 2010
    Location
    Melbourne
    Posts
    1,588
    Quote Originally Posted by Gaultandrew View Post
    Hi there, I'm travelling through Queensland on my trip around Australia (I left Melbourne 7 weeks ago). My problem is my fuel gauge has stopped working and showing empty all the time. Any tips on what I could check to fix or diagnose it? Before I have to pay a land rover specilist big bucks to fix it for me?

    Cheers.
    Go to a auto sparky if you cannot find the loose wires yourself might be an idea.

  4. #4
    Join Date
    Jan 1970
    Location
    Adelaide - Torrens Park
    Posts
    7,135
    IIRC these were a common issue when new. Perhaps Sniegy will know.
    (76 Two Door - Unmolested)
    (88 Hiline - Now with Limited Slip rear diff)
    (07 Vogue TDV8 )

  5. #5
    Hi, I can't even find the sender unit in the tank. Does anyone have an idea where it is?

  6. #6
    Join Date
    Jan 1970
    Location
    Melbourne
    Posts
    2,613
    The sender units (there are 2) are located inside the tank.

    There were a few issues on early vehicles & from memory if it is a petrol version there wad a recall.
    Get in touch with your local dealer, supply last 6 digits of your VIN & we/they can advise if you have an outstanding action against your vehicle.
    Otherwise you need to take resistive readings from the connector behind the r/h/f wheel arch as there is a big connector in there & these readings will tell which sender is faulty.
    Problem is if it is the rear sender in the tank, you can't replace it as you can't get to it & you will have to replace the tank..

    Cheers

    Sent from my iPad using Forum Runner
    Ex 89 RR Classic V8i, Ex 93 D1 200Tdi, Ex 97 D1 300Tdi, Ex 98 D1 V8i LS, Ex 01 D2 Td5
    D4 2.7 TDV6 in Alaska White / Almond/Arabica, E-Diff, 7 Leather Seats, Rear A/C, Sunroof & Bi-Xenons with LED Signature !



    Keep Smilin' Pete.

  7. #7
    Join Date
    Feb 2010
    Location
    Melbourne
    Posts
    1,588
    Quote Originally Posted by Gaultandrew View Post
    Hi, I can't even find the sender unit in the tank. Does anyone have an idea where it is?
    On top. You would need to drop the tank to get get to it I think. I just shoved my head under mine and cannot see. It didn't look to much to drop the fuel tank. Would be easier to do when empty which is a pain given your not at home.

  8. #8
    Join Date
    Dec 2011
    Location
    Bundeena, NSW, Aust
    Posts
    1,664
    Cheers,

    Sean

    MY16 RRS TDV6 SE Fuji White
    Gone: MY10 D4 TDV6 3.0 HSE Baltic Blue

  9. #9
    Join Date
    Feb 2010
    Location
    Melbourne
    Posts
    1,588

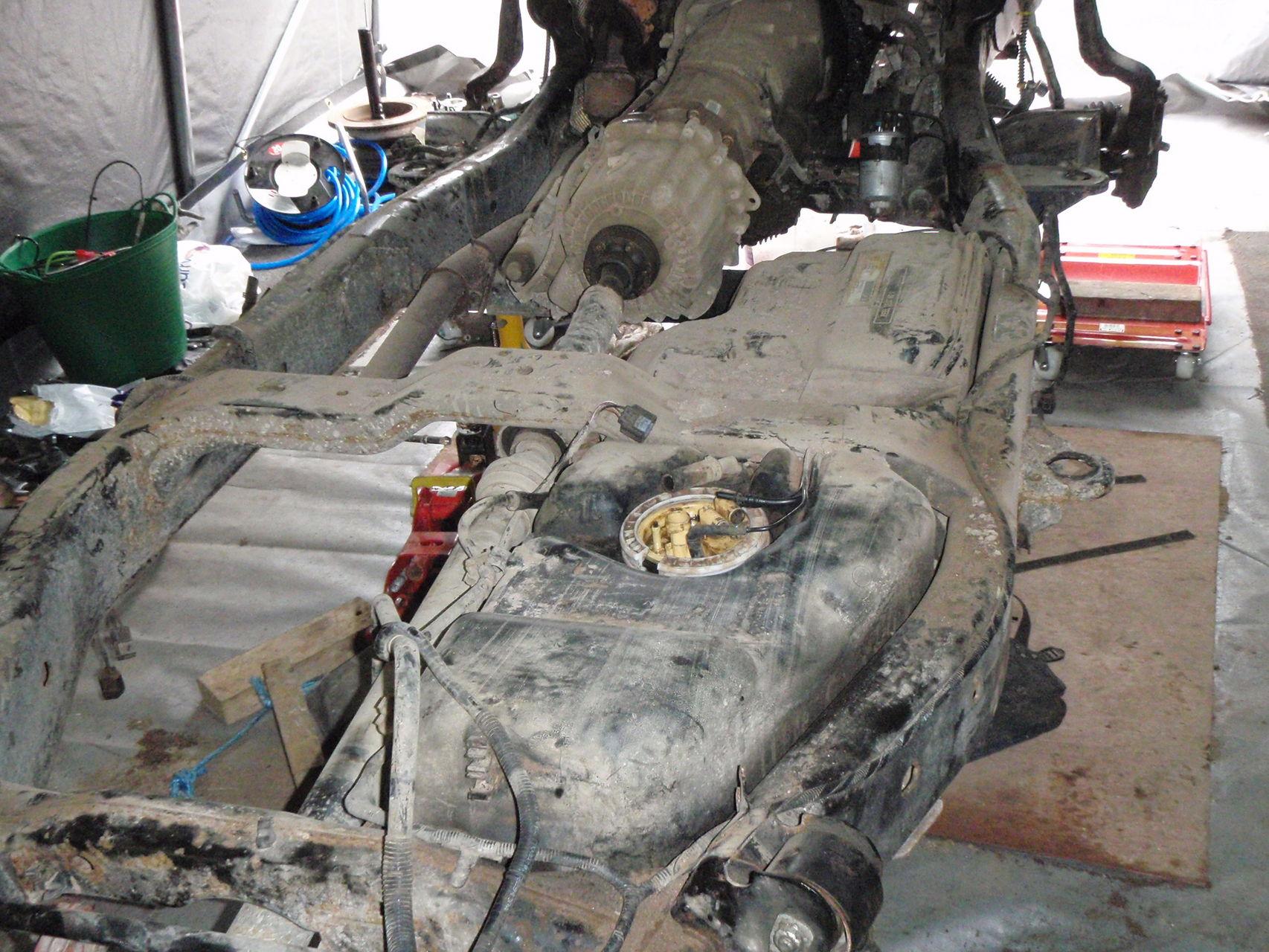

    SBD4's links picture shows the location and why we cannot get to it with out removing the car or the tank

  10. #10
    Join Date
    Feb 2010
    Location
    Melbourne
    Posts
    1,588
    Not certain but look at this link. It is not a Disco 3! I will edit after lifting my carpet to see it I have access to the sender unit as this link suggests. If so it look a fairly straight forward job.

    How To Change the Fuel Tank Breather/Vent Hose - Land Rover Forums - Land Rover Enthusiast Forum

    In the RHS footwell of the 3rd row of seat there appears to be an access point. I did not rip all my carpets out of mine just lifted a corner. Fairly sure the link above will help with out removing your tank to access the sender. I would still get a sparky as you may be better off testing the wiring properly.
