    ....... Just been out and checked........
    The fog lights can be turned on with either / or, side, main or hi.
    So... Connecting the light bar via a relay to the fog light circuit and from there via a second relay to the hi beam circuit, means that the fogs and hi beam operate independently, but if both together, the light bar will come on... So saving wiring in a second dash switch and giving dash indication..

    In operation, hi beam will have to be on, then the light bar can be turned on via the fog switch.. If it's foggy and hi beam isn't switched on, switching on the fogs without hi beam, doesn't turn on the light bar... In the same way to turn on the light bar, hi beam needs to be on (satisfying the police)

    Am I missing something ??
    Reply With Quote Reply With Quote
  2. 10th March 2015, 06:30 AM #22
    rufusking's Avatar
    rufusking
    rufusking is offline Master
    Join Date
    Sep 2011
    Location
    Minyama
    Posts
    472
    Total Downloaded
    0
    If your light bar is 55w or less I don't see the need for the "second relay". You would need to duplicate the 5 pin relay for the other fog light so that it also turned off when high beam is activated. If you run a pair of light bars you can feed each from seperate fog light circuits.
    Attached Images Attached Images
    Last edited by rufusking; 10th March 2015 at 08:25 AM. Reason: Diagram added
    Reply With Quote Reply With Quote
  3. 12th March 2015, 04:36 PM #23
    harry's Avatar
    harry
    harry is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Gold Coast Queensland Australia
    Posts
    6,469
    Total Downloaded
    0
    bump


    Quote Originally Posted by harry View Post
    thanks for all the wiring suggestions,
    but can you show how you have mounted the light bars?
    I want to fit one to my d3, but this seems to be more difficult than on older cars.
    anyone got pictures of how you mounted your light bars?
    Safe Travels
    harry
    Reply With Quote Reply With Quote
  4. 13th March 2015, 04:52 PM #24
    gossamer's Avatar
    gossamer
    gossamer is offline Master
    Join Date
    Oct 2013
    Location
    melbourne
    Posts
    217
    Total Downloaded
    0
    Quote Originally Posted by harry View Post
    bump




    anyone got pictures of how you mounted your light bars?
    I mounted mine to the roof rails (i did a 24hr event) but i made it easily removed

    Reply With Quote Reply With Quote
  5. 13th March 2015, 07:06 PM #25
    BMKal's Avatar
    BMKal
    BMKal is offline ForumSage Gold Subscriber
    Join Date
    Mar 2007
    Location
    Kalgoorlie WA
    Posts
    5,546
    Total Downloaded
    0

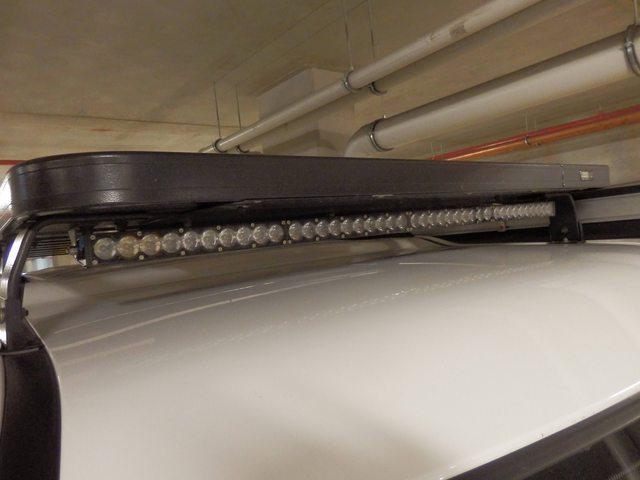

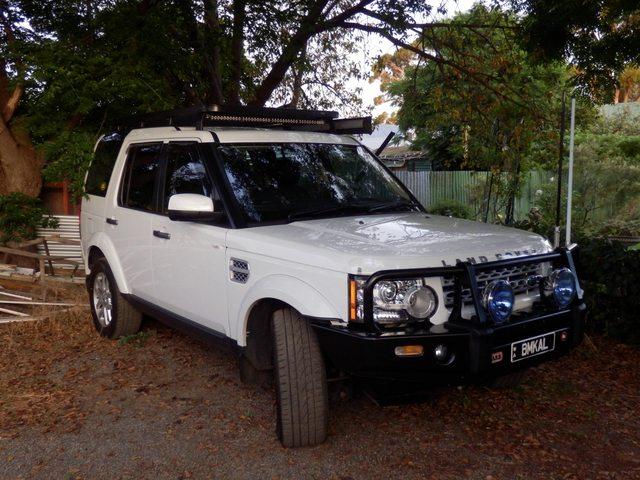

    Mine is mounted under the roofrack.





    These are old photos - the LED bar in these was stolen in Perth some time back. There's an identical replacement on there now, but the mounting is slightly more "secure".
    Cheers .........

    BMKAL
