Thread: rear link arm bolt

  1. 12th June 2015, 07:43 PM #1
    Ean Austral Guest

    rear link arm bolt

    Gday All,


    Just been reading about the number of rear link arm bolts that are breaking on the D3 /D4 .


    I am wondering if this should be a preventive maintenance job to replace at say 100,000ks or some similar age /kms shedual.


    I would imagine carrying spare bolts would be ok, but knowing how bolts usually break , being on the side of the road or track and trying to dig out a snapped bolt that level in the housing is usually beyond the limited tools that most would carry.


    Does anyone or has anyone changed these as a preventive thing.


    Cheers Ean
    Reply With Quote Reply With Quote
  2. 12th June 2015, 08:01 PM #2
    ~Rich~'s Avatar
    ~Rich~
    ~Rich~ is offline Wizard Supporter
    Join Date
    Aug 2010
    Location
    Sydney
    Posts
    1,874
    Total Downloaded
    0
    Yeah I changed mine as preventative maintenance. Got the old one as a spare now.
    2014 SDV6 HSE - LLAMS, Tuff Ant Tree Sliders, Tuff Ant 18" rims, Nitto Ridge Grappler tyres 265/65 R18, Custom Lipo4 battery, Custom Drawer storage system https://www.box.com/s/jem0ilac3cner2mexq64
    Reply With Quote Reply With Quote
  3. 12th June 2015, 08:07 PM #3
    Ean Austral Guest
    Quote Originally Posted by ~Rich~ View Post
    Yeah I changed mine as preventative maintenance. Got the old one as a spare now.

    Gday Rich,


    Where did you get the bolts from ? and is it 1 each side ?


    Cheers Ean
    Reply With Quote Reply With Quote
  4. 12th June 2015, 08:27 PM #4
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Hi ean i bought them from landrover. Always replace them after removing and refitting arm. Yes 1 each side. Jc
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  5. 12th June 2015, 08:28 PM #5
    ~Rich~'s Avatar
    ~Rich~
    ~Rich~ is offline Wizard Supporter
    Join Date
    Aug 2010
    Location
    Sydney
    Posts
    1,874
    Total Downloaded
    0
    I just asked my mechanic to order one in from Purnell, fitted when the car was serviced.

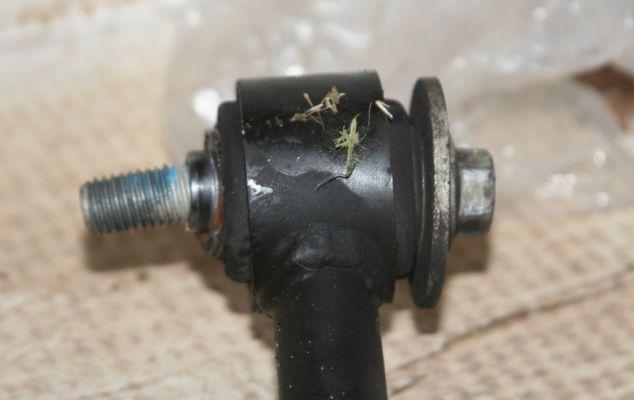

    Not mine but here is a bent one!
    2014 SDV6 HSE - LLAMS, Tuff Ant Tree Sliders, Tuff Ant 18" rims, Nitto Ridge Grappler tyres 265/65 R18, Custom Lipo4 battery, Custom Drawer storage system https://www.box.com/s/jem0ilac3cner2mexq64
    Reply With Quote Reply With Quote
  6. 12th June 2015, 08:49 PM #6
    eddy's Avatar
    eddy
    eddy is offline Master Supporter
    Join Date
    Aug 2007
    Location
    Mandurah WA
    Posts
    659
    Total Downloaded
    0
    Ean,I take it these are the M14x80mm bolts part RYG501580.LRdirect sell them as packs of five for $90 delivered from the UK.Does this indicate them as
    a weak spot or maintenance item?Replace them at home rather than by the side of the road!
    Reply With Quote Reply With Quote
  7. 12th June 2015, 09:25 PM #7
    Graeme
    Graeme is offline Swaggie Vendor
    Join Date
    Jan 1970
    Location
    NSW SW Slopes
    Posts
    12,030
    Total Downloaded
    0
    There's a suggestion that they may break if loosened during a rear wheel alignment then re-torqued rather than removed and retreated with thread locker or a new pre-treated bolt fitted. They are not required to be loosened for an alignment but apparently some aligners do anyway. If a bolt is not properly torqued then it will break.

    For an upcoming outback trip I will carry spare bolts and tools to remove the broken bolt even though mine's bolts have never been loosened.
    MY21.5 L405 D350 Vogue SE with 19s. Produce LLAMS for LR/RR, Jeep GC/Dodge Ram
    VK2HFG and APRS W1 digi, RTK base station using LoRa
    Reply With Quote Reply With Quote
  8. 13th June 2015, 07:02 AM #8
    LRD414's Avatar
    LRD414
    LRD414 is offline Super Moderator Subscriber
    Join Date
    Oct 2014
    Location
    Brisbane
    Posts
    3,737
    Total Downloaded
    0

    special tools?

    Quote Originally Posted by Graeme View Post
    For an upcoming outback trip I will carry spare bolts and tools to remove the broken bolt even though mine's bolts have never been loosened.
    Graeme, what tools do you plan to carry for removing broken bolt?

    Cheers,
    Scott
    Reply With Quote Reply With Quote
  9. 14th June 2015, 08:34 AM #9
    Graeme
    Graeme is offline Swaggie Vendor
    Join Date
    Jan 1970
    Location
    NSW SW Slopes
    Posts
    12,030
    Total Downloaded
    0
    Portable drill and ezi-out, centre punch and hammer. If its loose then the centre-punch might be enough to rotate it otherwise do it the hard way.
    MY21.5 L405 D350 Vogue SE with 19s. Produce LLAMS for LR/RR, Jeep GC/Dodge Ram
    VK2HFG and APRS W1 digi, RTK base station using LoRa
    Reply With Quote Reply With Quote
  10. 14th June 2015, 10:02 AM #10
    Ean Austral Guest
    Surely there must be an aftermarket bolt that can be used , M14 x 80mm is not an uncommon size bolt.


    Why would L/R sell them as a pack of 5 ? seems like a strange number of bolts when they are a pair. Does L/R know something we don't.


    Cheers Ean
    Reply With Quote Reply With Quote
