Thread: Suspension bolts

  1. 19th January 2017, 02:41 PM #1
    Graeme
    Graeme is offline Swaggie Vendor
    Join Date
    Jan 1970
    Location
    NSW SW Slopes
    Posts
    12,030
    Total Downloaded
    0

    Suspension bolts

    When changing LCA bushes or even just getting an alignment, if the nut is tight enough due to rust then the bolt can shear requiring a replacement bolt before the vehicle can be driven again. Best to have spares on hand even if not intending to replace them.
    MY21.5 L405 D350 Vogue SE with 19s. Produce LLAMS for LR/RR, Jeep GC/Dodge Ram
    VK2HFG and APRS W1 digi, RTK base station using LoRa
    Reply With Quote Reply With Quote
  2. 19th January 2017, 02:45 PM #2
    Tombie Guest
    Always replace - they are torqued to 290nm so play it safe!

    And some copper anti-seize on the new ones Suspension bolts
    Reply With Quote Reply With Quote
  3. 19th January 2017, 02:49 PM #3
    Redback's Avatar
    Redback
    Redback is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Ellendale Tasmania.
    Posts
    12,986
    Total Downloaded
    0
    We carry them just in case, will have ours replaced before we do our big trip in July.
    Cheers Baz.

    2011 Discovery 4 SE 2.7L
    1990 Perentie FFR EX Aust Army
    1967 Series IIa 109 (Farm Truck)
    2007 BMW R1200GS
    1979 BMW R80/7
    1983 BMW R100TIC Ex ACT Police
    1994 Yamaha XT225 Serow
    Reply With Quote Reply With Quote
  4. 19th January 2017, 03:29 PM #4
    l00kin4's Avatar
    l00kin4
    l00kin4 is offline Master Silver Subscriber
    Join Date
    Jan 2015
    Location
    Sydney
    Posts
    899
    Total Downloaded
    0
    LR part numbers
    Bolt RDI000034 Nut LR025050
    Washer (presumably rarely needed) RYF000203

    right?

    David
    Everything is easy when someone else is doing it
    MY14 SDV6 SE Corris Grey
    Compomotive 18s : D697s : Traxide DBS : LLAMS : ARB compressor : IC-455
    Rhino Platform : GOE compressor, Tx & front bash plates, deluxe sliders
    Reply With Quote Reply With Quote
  5. 19th January 2017, 05:09 PM #5
    Graeme
    Graeme is offline Swaggie Vendor
    Join Date
    Jan 1970
    Location
    NSW SW Slopes
    Posts
    12,030
    Total Downloaded
    0
    The nuts are also squashed as a form of locking mechanism so it doesn't take much rust to prevent them from undoing. However I was surprised that a 3/4" drive socket could break the bolt using only about 600 mm leverage, albeit with another spanner on the head to hold the bolt still.
    MY21.5 L405 D350 Vogue SE with 19s. Produce LLAMS for LR/RR, Jeep GC/Dodge Ram
    VK2HFG and APRS W1 digi, RTK base station using LoRa
    Reply With Quote Reply With Quote
  6. 19th January 2017, 06:32 PM #6
    Disco-tastic's Avatar
    Disco-tastic
    Disco-tastic is offline Wizard
    Join Date
    Jun 2010
    Location
    Central Coast NSW
    Posts
    1,888
    Total Downloaded
    0
    Quote Originally Posted by l00kin4 View Post
    LR part numbers
    Bolt RDI000034 Nut LR025050
    Washer (presumably rarely needed) RYF000203

    right?

    David
    I bought bolts and found the old washer didn't fit the new bolts. They cost about 2 bucks so i wouldnt risk it!
    Reply With Quote Reply With Quote
  7. 19th January 2017, 08:42 PM #7
    Grentarc
    Grentarc is offline Master Subscriber
    Join Date
    Aug 2015
    Location
    Coolamon, NSW
    Posts
    783
    Total Downloaded
    0

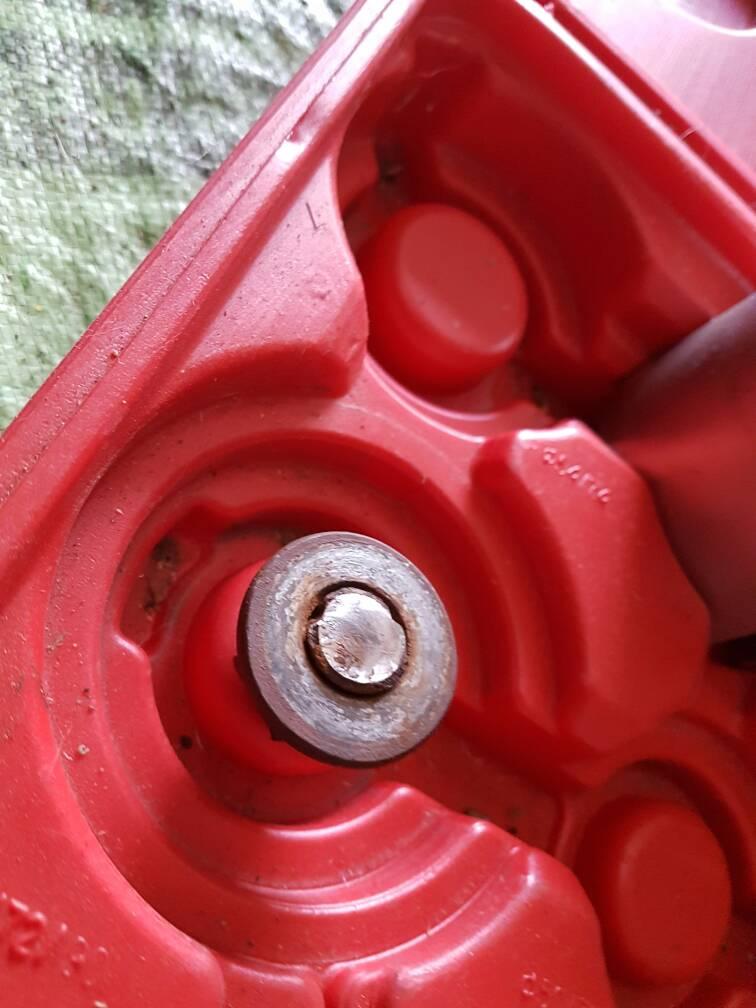

    Yeah, was quite a shock for it to go. The dirt in the break is from dust falling onto it, not an existing fatigue indicator.
    All the other bolts were in alright condition, still had their position (F Right, Robert Left etc) still hand written on them from last bush change.

    - Justin
    Selling soon - MY10 D4 3.0 TDV6 SE with E-Diff & LLAMS, 265/65R18 Maxxis Razr A/T
    Moved into MY12 L322 4.4 TDV8 Autobiography
    VK2HFJ
    Reply With Quote Reply With Quote
  8. 19th January 2017, 08:44 PM #8
    Grentarc
    Grentarc is offline Master Subscriber
    Join Date
    Aug 2015
    Location
    Coolamon, NSW
    Posts
    783
    Total Downloaded
    0
    Quote Originally Posted by Disco-tastic View Post
    I bought bolts and found the old washer didn't fit the new bolts. They cost about 2 bucks so i wouldnt risk it!
    My old washers fit fine to my new bolts, but I can see if they had enough corrosion they would be difficult to fit.
    - Justin
    Selling soon - MY10 D4 3.0 TDV6 SE with E-Diff & LLAMS, 265/65R18 Maxxis Razr A/T
    Moved into MY12 L322 4.4 TDV8 Autobiography
    VK2HFJ
    Reply With Quote Reply With Quote
  9. 20th January 2017, 06:02 AM #9
    Geedublya
    Geedublya is offline Wizard Silver Subscriber
    Join Date
    Dec 2009
    Location
    Ranelagh, Tasmania
    Posts
    1,543
    Total Downloaded
    0
    I replace bolts and nuts each time due to the high torque value. I also use an anti-corrosion paste on both the bolts and threads. The washers from the old bolts fitted on the new bolts.
    My old bolts showed no signs of corrosion, I would use them again in a pinch.
    Fuji white RRS L494 AB Gone
    2023 Ford Ranga
    Reply With Quote Reply With Quote
  10. 20th January 2017, 09:43 AM #10
    Russrobe's Avatar
    Russrobe
    Russrobe is offline Wizard Supporter
    Join Date
    Aug 2015
    Location
    Perth
    Posts
    1,215
    Total Downloaded
    0
    It didn't feel right putting that extra long, highly torqued bolt back through the lower air strut/shock assembly either.

    Just a shame I didn't consider it until they were undone and not when ordering parts.
    Reply With Quote Reply With Quote
