Thread: Llams install help! Anyone in Perth happy to take a look for me please

  1. #1
    Join Date
    Oct 2019
    Location
    Perth
    Posts
    75

    Llams install help! Anyone in Perth happy to take a look for me please

    Hi guys,
    Purchased a second hand Llams kit from a forum member last year. It's been sitting in my cupboard since then.
    Installed it tonight ready to leave on my Karijini trip on Thursday.
    Followed the Llams provided instructions. Pretty easy install except that you need to be a bit of a contortionist!
    However, I've re-connected by batteries and nothing seems to be happening with the Llams.
    The lights on the Llams switch are coming on (green, none, orange and red) for the 4 settings, however the Disco isn't Discoing!
    There were no error messages on the car when I re-connected the batteries.
    The factory suspension is still going up and down from the factory switch as normal. But no Llams control it appears.
    As per instructions I pushed the connectors together tightly and they clicked etc.
    (There seems to be an led light on the big black box that's under the dash by the A-pillar, that isn't lighting up. Not sure if it supposed to. No mention of that in the instructions. Thought I'd mention it though).

    Thoughts anyone?

    Anyone in Perth willing to take a quick look for me perhaps please, say on Sunday arvo? I'm south of river in Coogee, but happy to drive to you.

  2. #2
    Join Date
    Oct 2011
    Location
    Fremantle WA
    Posts
    2,910
    Quote Originally Posted by BeeGee View Post
    Hi guys,
    Purchased a second hand Llams kit from a forum member last year. It's been sitting in my cupboard since then.
    Installed it tonight ready to leave on my Karijini trip on Thursday.
    Followed the Llams provided instructions. Pretty easy install except that you need to be a bit of a contortionist!
    However, I've re-connected by batteries and nothing seems to be happening with the Llams.
    The lights on the Llams switch are coming on (green, none, orange and red) for the 4 settings, however the Disco isn't Discoing!
    There were no error messages on the car when I re-connected the batteries.
    The factory suspension is still going up and down from the factory switch as normal. But no Llams control it appears.
    As per instructions I pushed the connectors together tightly and they clicked etc.
    (There seems to be an led light on the big black box that's under the dash by the A-pillar, that isn't lighting up. Not sure if it supposed to. No mention of that in the instructions. Thought I'd mention it though).

    Thoughts anyone?

    Anyone in Perth willing to take a quick look for me perhaps please, say on Sunday arvo? I'm south of river in Coogee, but happy to drive to you.

    I'm in Freo, but have no idea how it was all put together. Having said that, if its any help, you are welcome to call by and see if checking out my LLAMS helps in any way. Just PM and I''l give you my address - will be home most of the weekend.
    D4 MY10 2.7 6 speed with LLAMS, long range tank and other goodies - for towing "The Brick" from Apr 19
    MY95 RRC LSE Vogue Softdash "Bessie" with MY99 TD5 and 4HP24 transplant from Aug 13 - in the LR garage since Apr 18
    SADLY SOLD MY04 D2a TD5 auto Classic "Disco Dan" Nov 11 - Jun 19

  3. #3
    Join Date
    Oct 2014
    Location
    Brisbane
    Posts
    3,528
    Quote Originally Posted by BeeGee View Post
    (There seems to be an led light on the big black box that's under the dash by the A-pillar, that isn't lighting up. Not sure if it supposed to. No mention of that in the instructions. Thought I'd mention it though).

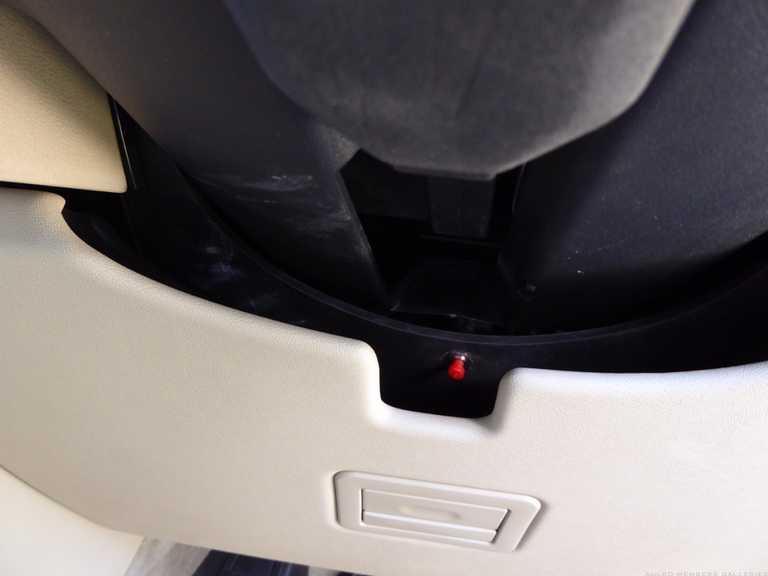

    It's been turned off I think. Where is your red mode button installed? Mine's under the steering wheel and if it's pushed in combination with the main switch being off the Llams module is locked.
    If it's this, pressing the red button once while main switch is off should activate Llams.

    Regards,
    Scott

    D4 TDV6 MY14 with Llams, 18" Wheels, Traxide DBS, Rhino Platform, APT sliders & protection plates, Prospeed Winch Mount with Carbon Winch, Mitch Hitch & Drifta Drawers
    Link to my D4 Build Thread

    Ex '77 RRC 2 door. Long gone but not forgotten.

  4. #4
    Join Date
    Jan 1970
    Location
    NSW South West Slopes
    Posts
    10,078
    Locked mode will prevent height changes but should also cause the module LED to alternate between red and green. If calibration has been done without changing between normal and off-road height then also no movement but the module LED should slowly flash green.

    If the module isn't an early version then I suspect that the calibration switches haven't been set correctly for the vehicle which due to differences in height sensor operation between early and later D3 or D4 can result in no height changes. If the switches are correct then please PM me a picture of the inside of the module so that I can be sure of the model.

    Edit: The wire connections to early button switches were insulated as a pair which could lead to no height changes if the 2 switch terminals were squashed together. After an instance of this the switch terminals were individually insulated. To test, unplug the button switch to see if the problem is overcome.
    MY12 RRV 4.4 TDV8 AB, +LLAMS, +e-diff, +ACC stop/go. Produce LLAMS for LR/RR, Jeep GC/Dodge Ram
    VK2HFG and APRS W1 digi

  5. #5
    Join Date
    Oct 2019
    Location
    Perth
    Posts
    75
    Quote Originally Posted by LRD414 View Post
    It's been turned off I think. Where is your red mode button installed? Mine's under the steering wheel and if it's pushed in combination with the main switch being off the Llams module is locked.
    If it's this, pressing the red button once while main switch is off should activate Llams.

    Regards,
    Scott

    Thanks Scott. Red button installed in exactly the same place as yours (and the master knob is on the left side of the steering wheel column like yours as well). It is on as the led lights are changing through the correct colours. To check that it is on I just turn it off using your instructions and now the led light donít come on in any setting. Turning it back on using your instructions the led lights are now working again in each setting but the height change isnít occurring.

  6. #6
    Join Date
    Oct 2019
    Location
    Perth
    Posts
    75
    Quote Originally Posted by Graeme View Post
    Locked mode will prevent height changes but should also cause the module LED to alternate between red and green. If calibration has been done without changing between normal and off-road height then also no movement but the module LED should slowly flash green.

    If the module isn't an early version then I suspect that the calibration switches haven't been set correctly for the vehicle which due to differences in height sensor operation between early and later D3 or D4 can result in no height changes. If the switches are correct then please PM me a picture of the inside of the module so that I can be sure of the model.

    Edit: The wire connections to early button switches were insulated as a pair which could lead to no height changes if the 2 switch terminals were squashed together. After an instance of this the switch terminals were individually insulated. To test, unplug the button switch to see if the problem is overcome.
    Thanks Graeme. Will check all your thoughts including the wire connections and also will PM you a photo of the internals.

  7. #7
    Join Date
    Oct 2019
    Location
    Perth
    Posts
    75
    Quote Originally Posted by gavinwibrow View Post
    I'm in Freo, but have no idea how it was all put together. Having said that, if its any help, you are welcome to call by and see if checking out my LLAMS helps in any way. Just PM and I''l give you my address - will be home most of the weekend.
    Thanks Gavin. I appreciate the offer. Not sure a working one will shed any light on the issue at this stage but will be in touch if I need to check it out. Thanks again

  8. #8
    Join Date
    Oct 2019
    Location
    Perth
    Posts
    75
    Update. Graeme, the lights on the big box are now flashing between red and green. Photos will follow in a couple of hours sorry

  9. #9
    Join Date
    Jan 1970
    Location
    NSW South West Slopes
    Posts
    10,078
    No need for the photo as the red/green indicates locked mode. Press the button switch once while the rotary switch is off which should turn off the module LED and restore the rotary switch functionality.
    MY12 RRV 4.4 TDV8 AB, +LLAMS, +e-diff, +ACC stop/go. Produce LLAMS for LR/RR, Jeep GC/Dodge Ram
    VK2HFG and APRS W1 digi

  10. #10
    Join Date
    Oct 2019
    Location
    Perth
    Posts
    75
    Quote Originally Posted by Graeme View Post
    No need for the photo as the red/green indicates locked mode. Press the button switch once while the rotary switch is off which should turn off the module LED and restore the rotary switch functionality.
    Ok, did that and module LED went off, but rotary switch functionality does not seem to do anything height wise??

    Edit. In addition, I Was just driving and came up with a suspension warning (something about 50km/hr) and dropped down onto the bump stops. Turned car off and back on and risen off the bump stops now. Still trying to work out how to get the Llams to work though....

    Edit 2. SUCCESS!!! On Graeme's prompting I checked the pins (see photo). And then in the instructions it said to calibrate by connecting the calibration (CAL) pins together momentarily with a small screw-driver. The green light came on for 3 seconds and then went off. And now Success, all working! So looks like the unit wasn't calibrated hence not responding to inupts.

    Thanks everyone!Llams.jpg
